OF-3W Series Outdoor Flexible LED Module – P3.076 | 320×160mm Panel | Magnetic Mounting | All-in-One Design | Cylinder LED Displays & Flexible LED Screens

About this item

• P3.076 Outdoor Flexible LED Module – Designed with a 3.076mm pixel pitch and 320×160mm module format, this flexible LED module provides a balance of image clarity, viewing distance, and installation flexibility for cylinder LED displays, curved LED screens, media facades, and creative outdoor LED projects.

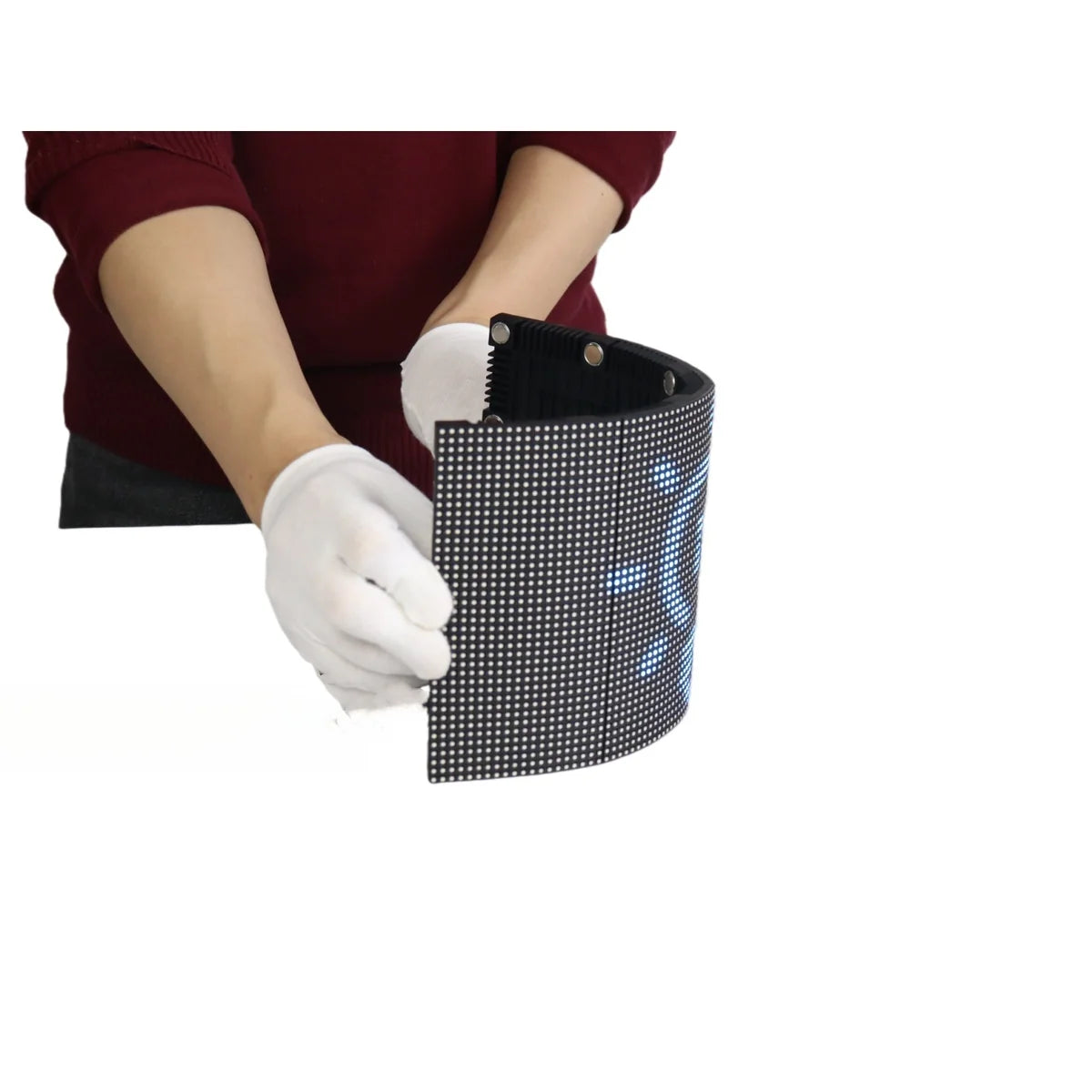

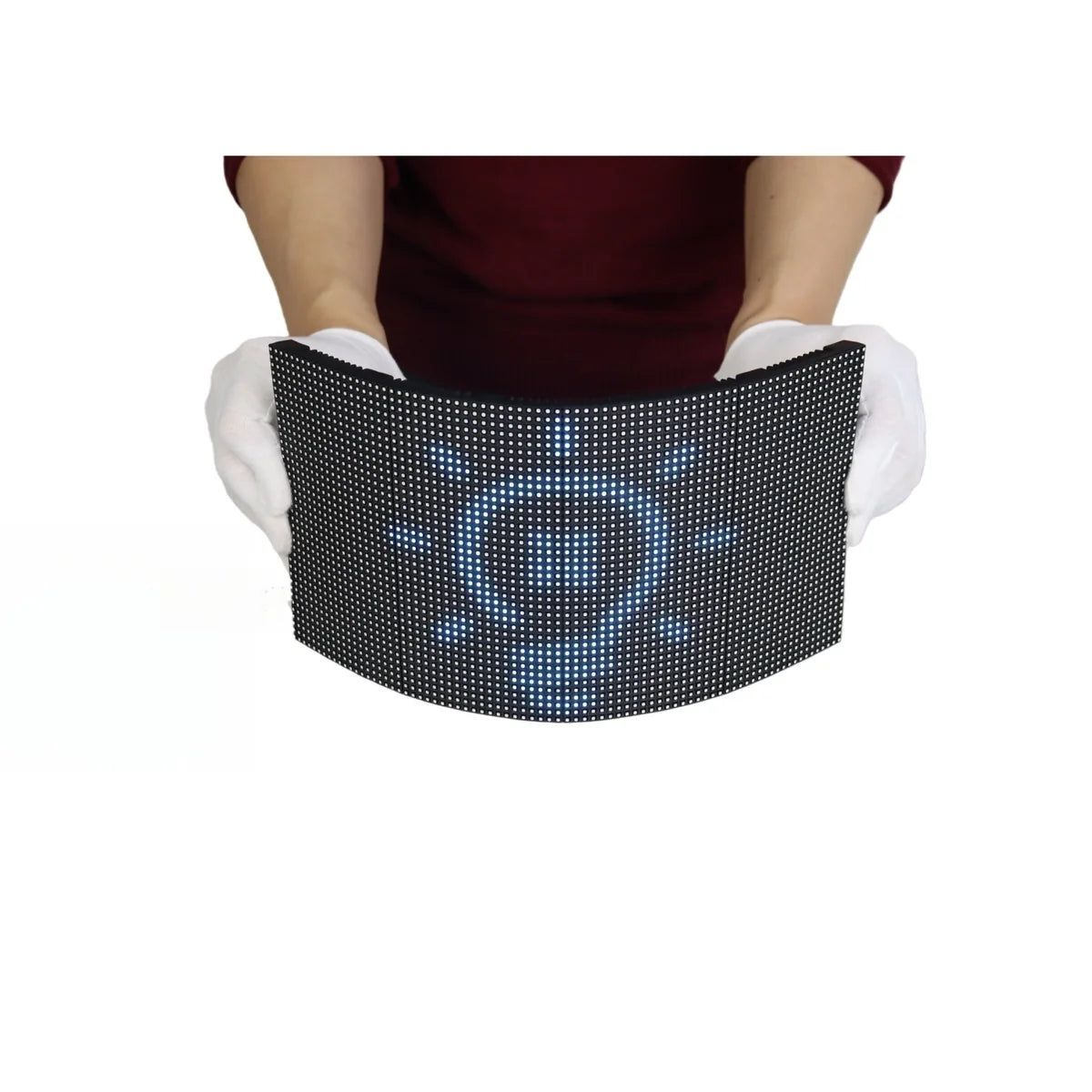

• All-in-One Silicone Flexible Structure – The integrated silicone flexible back structure combines lightweight construction, flexible shaping capability, and outdoor protection performance. Supporting up to 145° bending deformation, the module adapts to curved, cylindrical, and irregular LED display surfaces.
• Flexible Installation for Creative Outdoor Displays – Supporting magnetic mounting and M3 screw fixing methods, the module enables installation on curved surfaces, cylindrical structures, and customized architectural LED display designs.
• IP65 Waterproof Outdoor Protection – The integrated waterproof structure, silicone design, and IP65 protection capability improve resistance against dust, moisture, and outdoor environmental conditions for long-term flexible LED display operation.

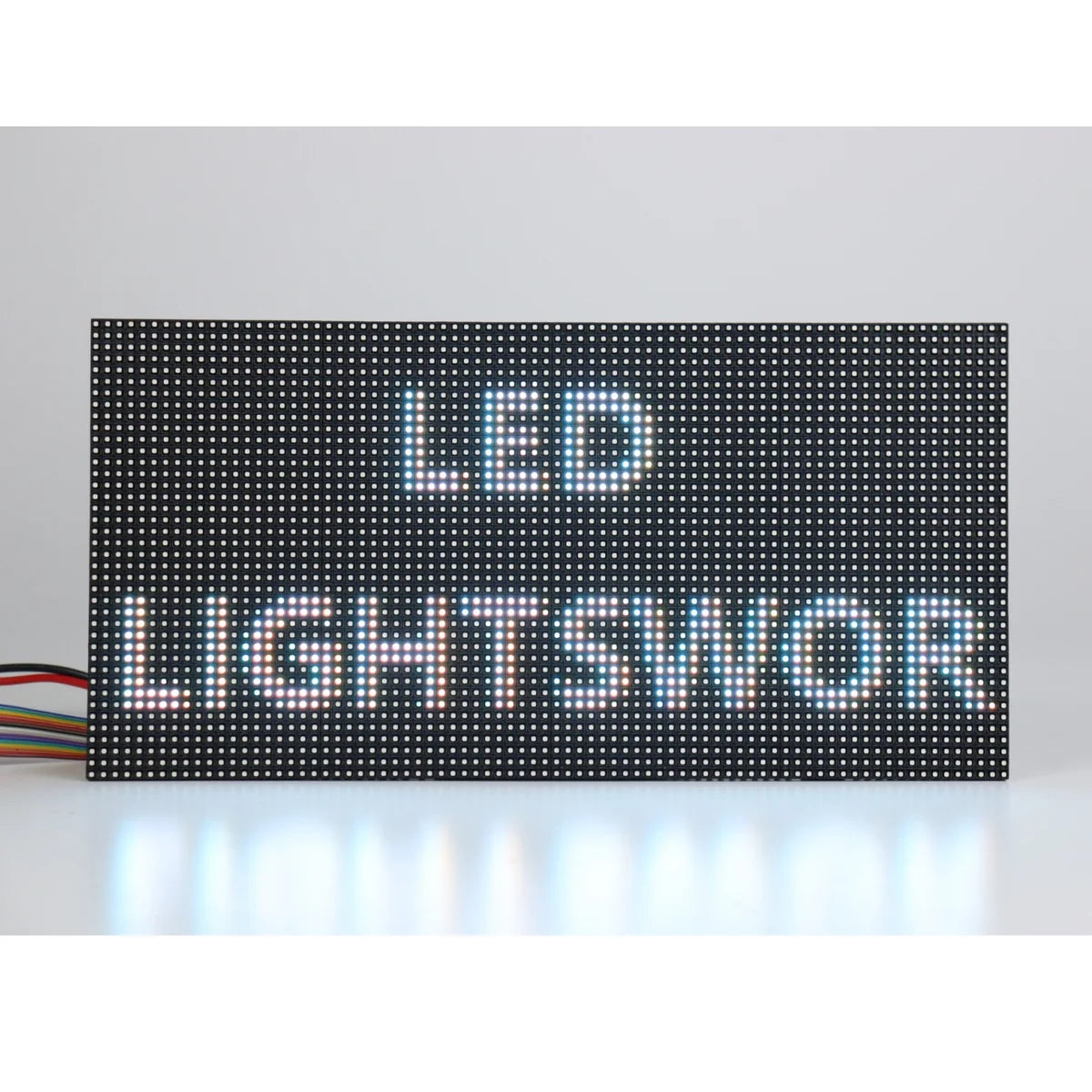

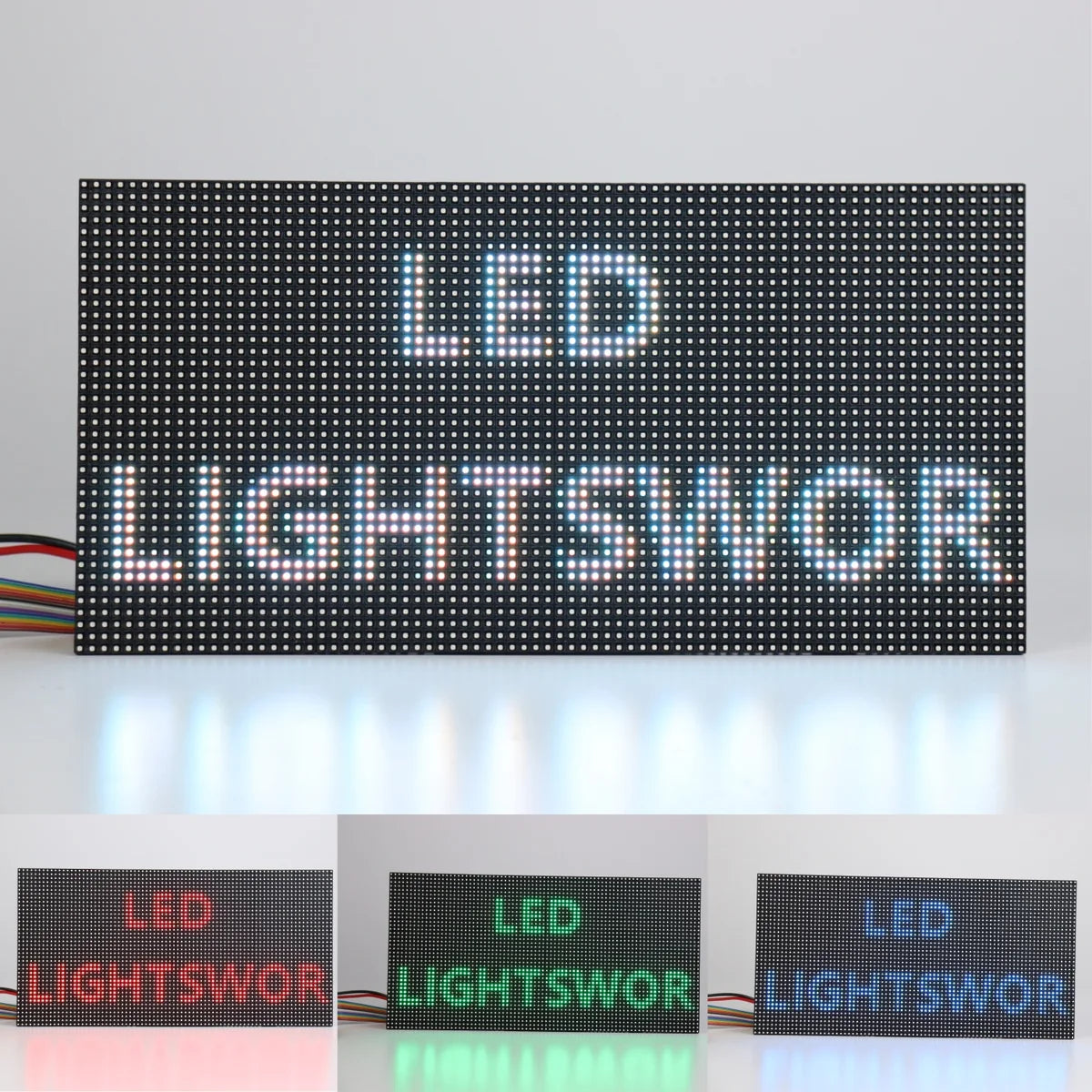

• SMD1415 LED Technology with High Refresh Performance – Equipped with SMD1415 LED technology, ≥4000 nits brightness, and high refresh rate performance up to ≥3840Hz, the module delivers smooth images, high contrast, and stable color reproduction for outdoor creative display projects.
• High Temperature Magnetic Mounting System – Equipped with 150°C high-temperature magnets, the mounting system maintains stable adsorption performance under outdoor heat conditions while supporting secure installation requirements.
• Creative Outdoor Display Project Platform – The flexible module design supports cylinder LED displays, media facades, architectural LED displays, curved screens, and large-scale creative outdoor LED projects.

Package Included

Version	Package Included
1pc Sample Pack	1 × P3.076 320×160mm Outdoor Flexible LED Module 1 × 5V Power Cable 1-to-2 Split 1 × Flat Data Cable
15pcs Standard Pack	15 × P3.076 320×160mm Outdoor Flexible LED Module 8 × 5V Power Cable 1-to-2 Split 15 × Flat Data Cable

Order & Logistics

Lead Time

• OF-3W Series and OF-3S Series usually ship within 1–3 business days.
• P6.67, P8 and P10 MOQ 200pcs items in OF-3W Series usually ship within 18–30 business days.
• OF-3N Series and OF-2N Series usually ship within 1–3 business days.

Shipping Note

• This series enjoys our Free Shipping Policy for orders over $399.
• Shipping Policy for OF Series: All OF Series modules are covered by our Free Shipping Policy for orders over US$399. Orders will be shipped from local warehouses when stock is available, or directly from China otherwise.
• For faster delivery, express options like DHL / UPS / FedEx are available during checkout.
• HQ Fulfillment: Standard delivery takes 9–18 days | Express 5–9 days.

Technical Specifications

Specification	Value

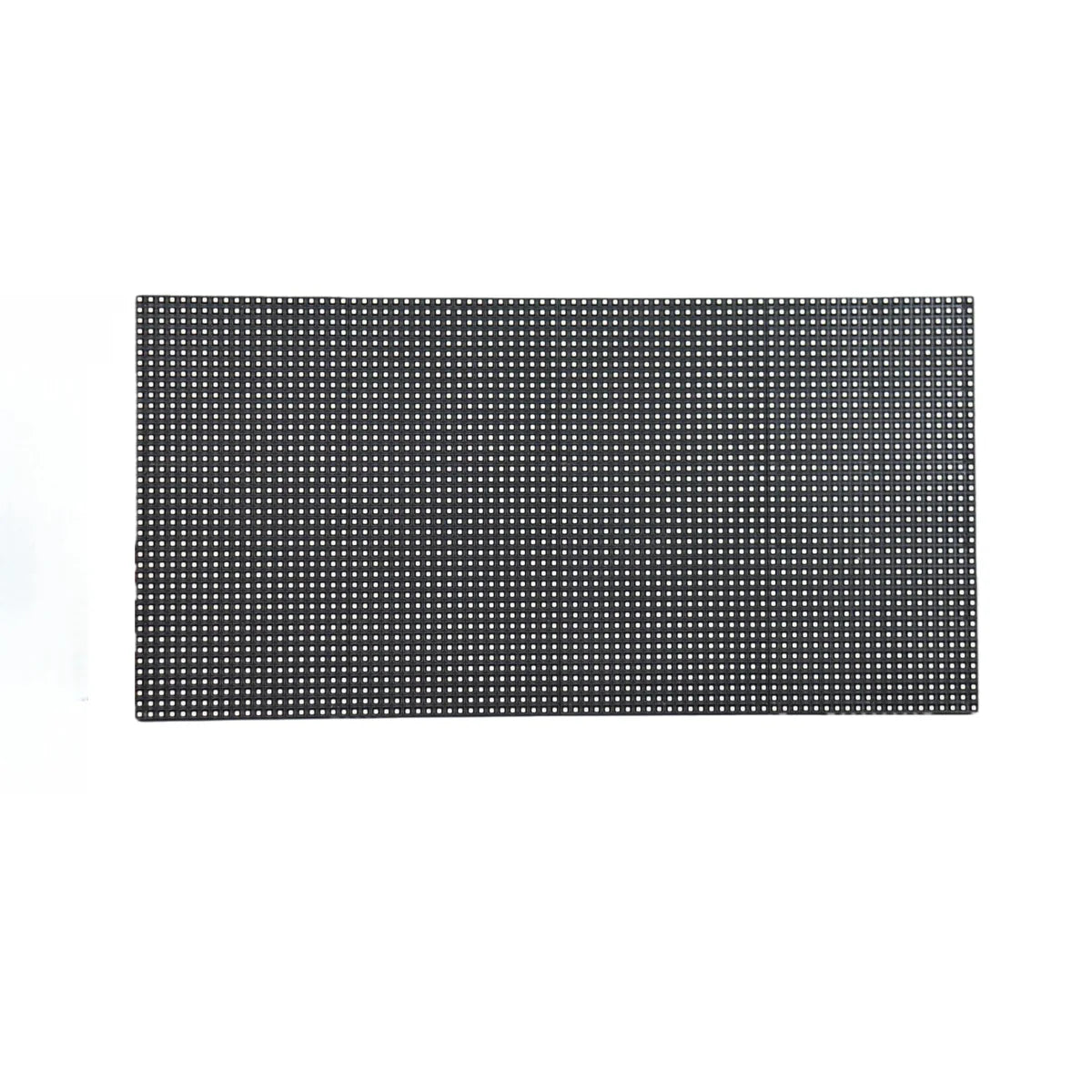

Module Size	320×160mm
Pixel Pitch	3.076mm
Module Resolution	104×52 dots
Pixel Density	105,625 dots/m²
LED Type	SMD1415
Technology System	Outdoor Flexible LED Module
Structure Type	All-in-One Flexible Design
Flexible Structure	Silicone Flexible Back Structure
Bending Capability	Up to 145°
Brightness	≥4000 nits
Scan Rate	1/13 Scan
Refresh Rate	High Refresh ≥3840Hz / Standard ≥1920Hz
Viewing Angle	H:140°±10° / V:130°±10°
Installation Method	Magnetic Mounting + M3 Screw Fixing
Magnetic Structure	150°C High Temperature Magnet
Protection Capability	IP65 Waterproof Protection
Waterproof Design	Front & Rear Waterproof Structure with Waterproof Power/Data Interface
Thermal Design	Rear Ventilation Structure
Interface	HUB75 16pin
Module Average Power	15W
Module Weight	0.4kg
Operating Temperature	-20°C to +60°C
Lifetime	100,000 Hours

Structure & Design Features

• All-in-One Flexible LED Structure – The integrated silicone flexible structure combines display performance and structural protection, supporting cylinder LED displays, curved LED screens, media facades, and creative outdoor LED designs.

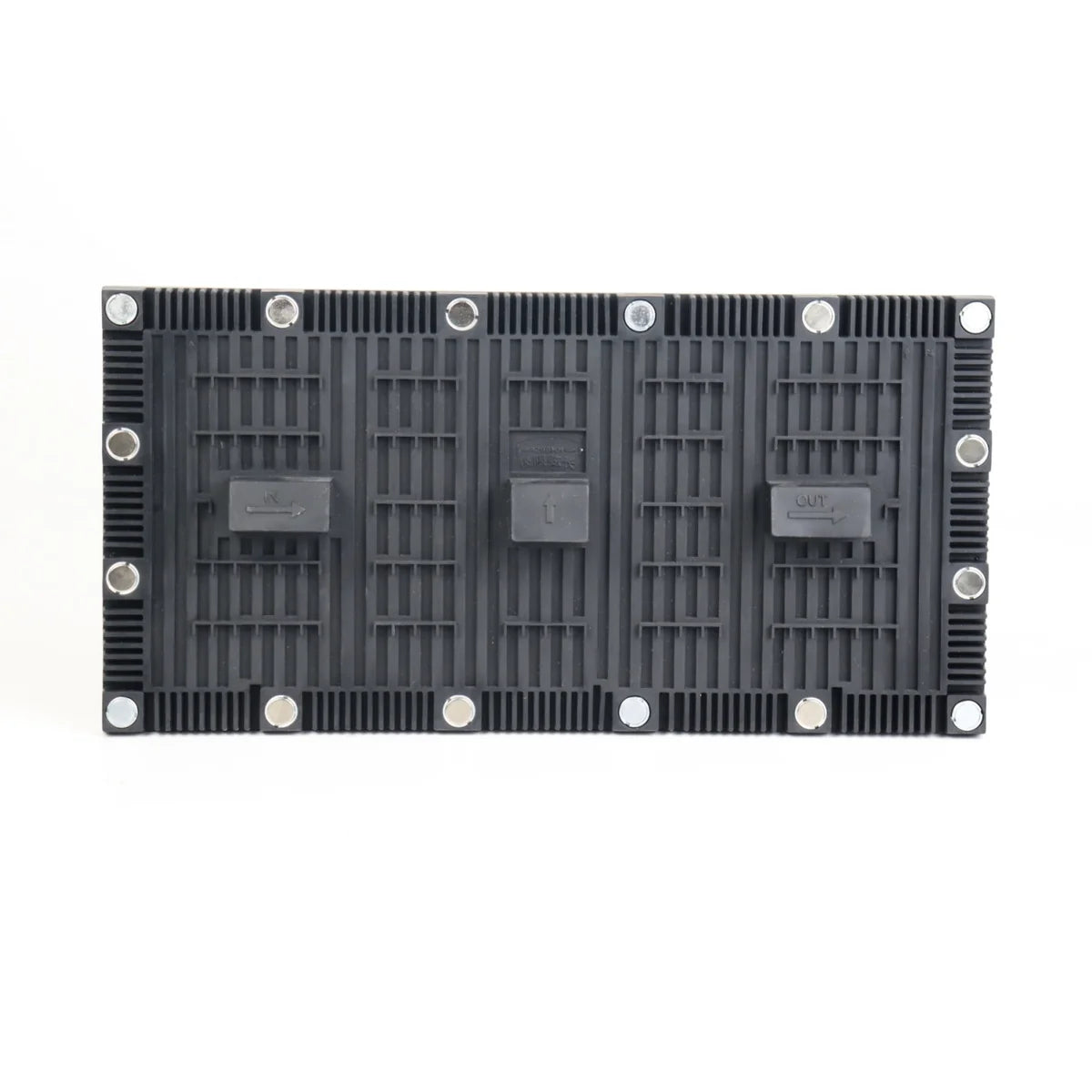

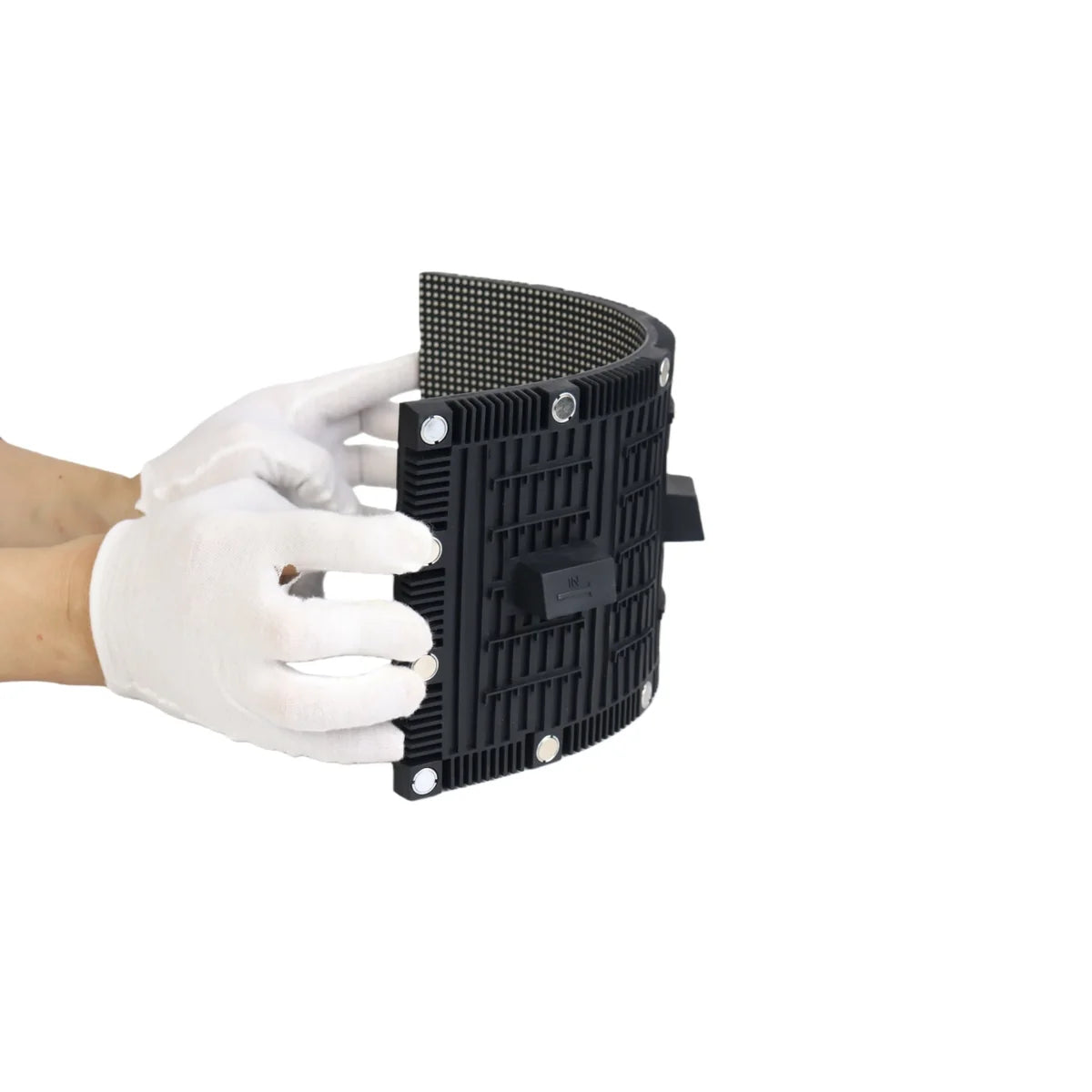

• Magnetic & Screw Dual Installation Design – The module supports magnetic mounting and M3 screw fixing. High-temperature 150°C magnets maintain stable mounting performance under outdoor heat conditions, while optional safety wire installation improves installation security.
• Integrated Waterproof & Thermal Management Design – The module features front and rear waterproof protection, waterproof power and data interfaces, integrated sealing design, and rear ventilation structures to improve outdoor reliability.

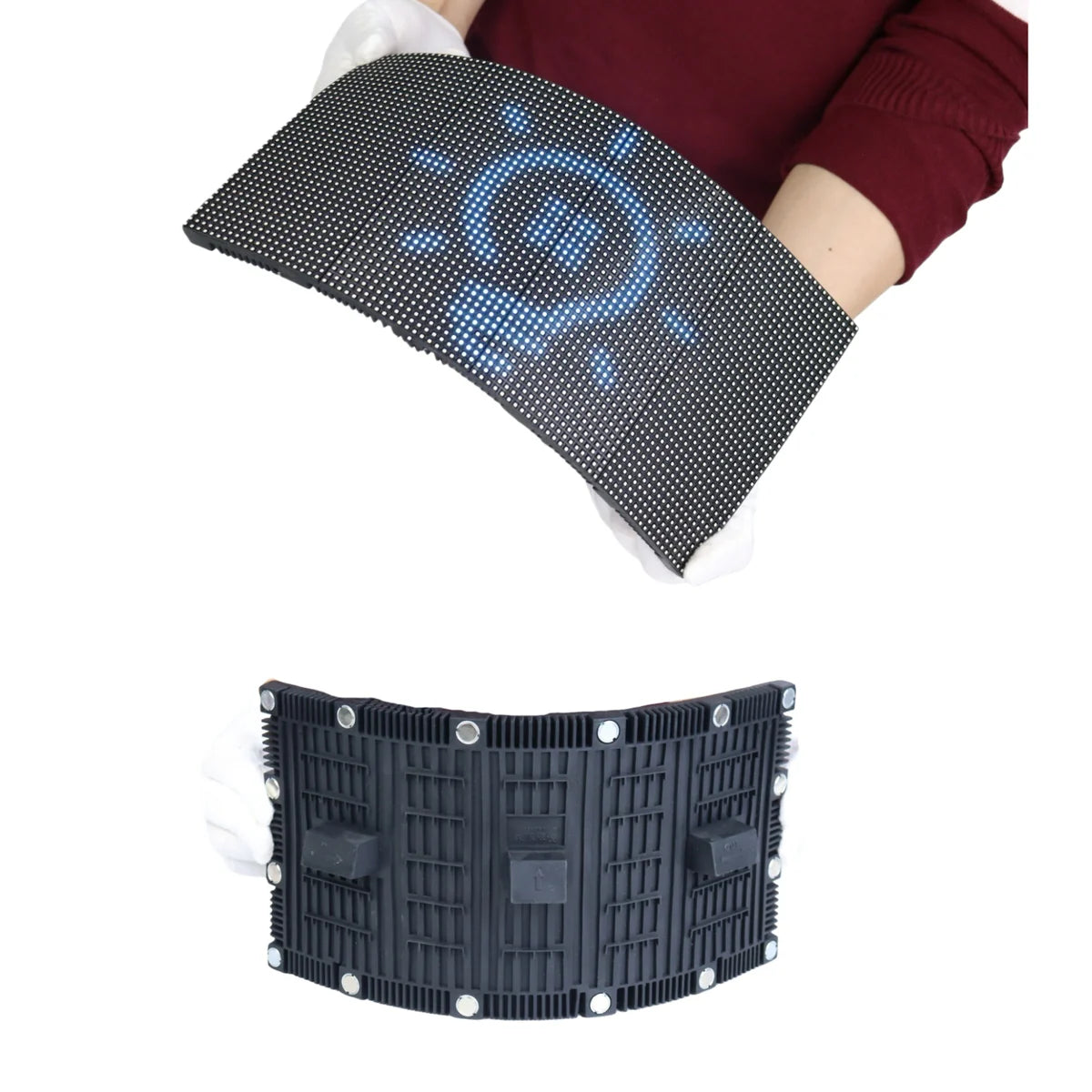

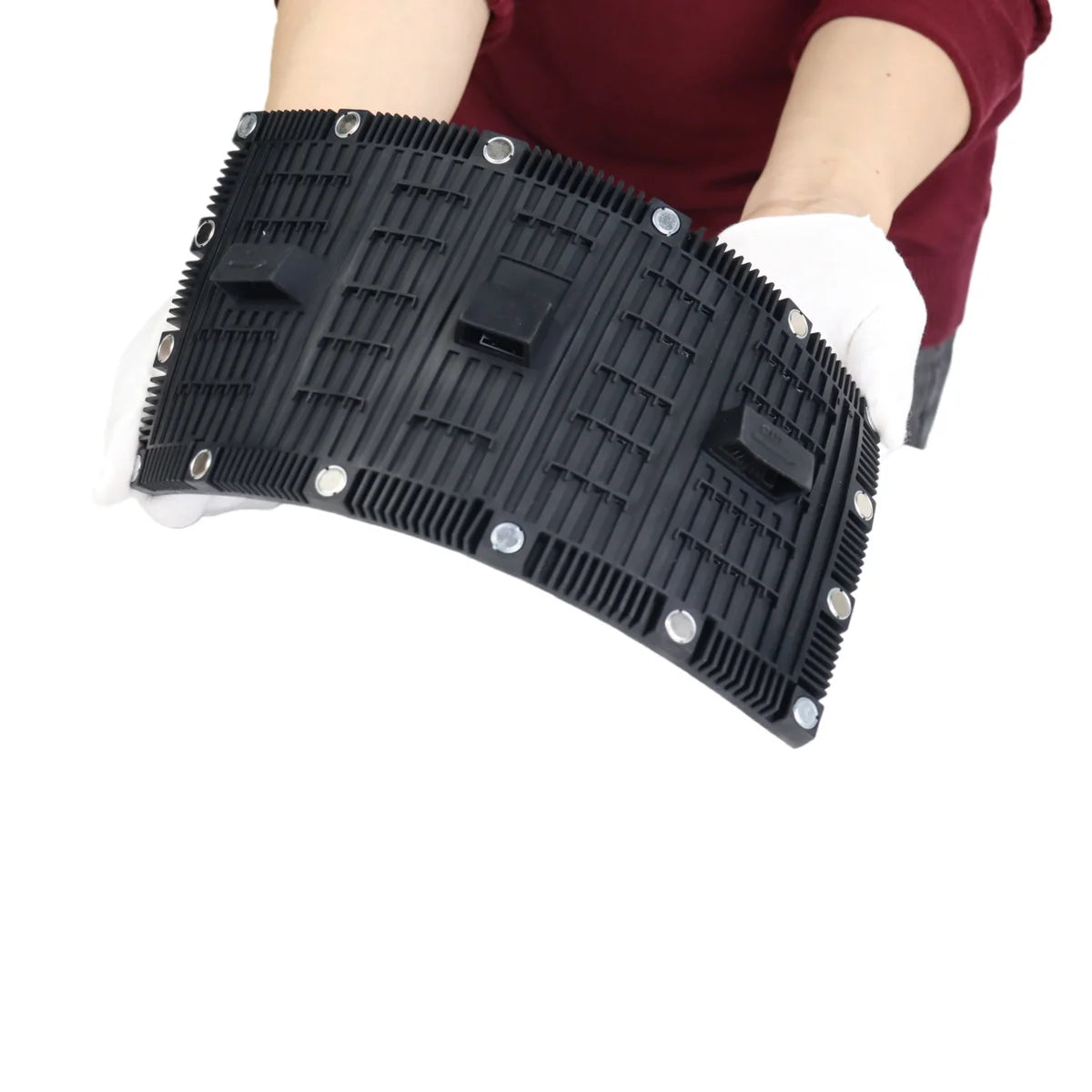

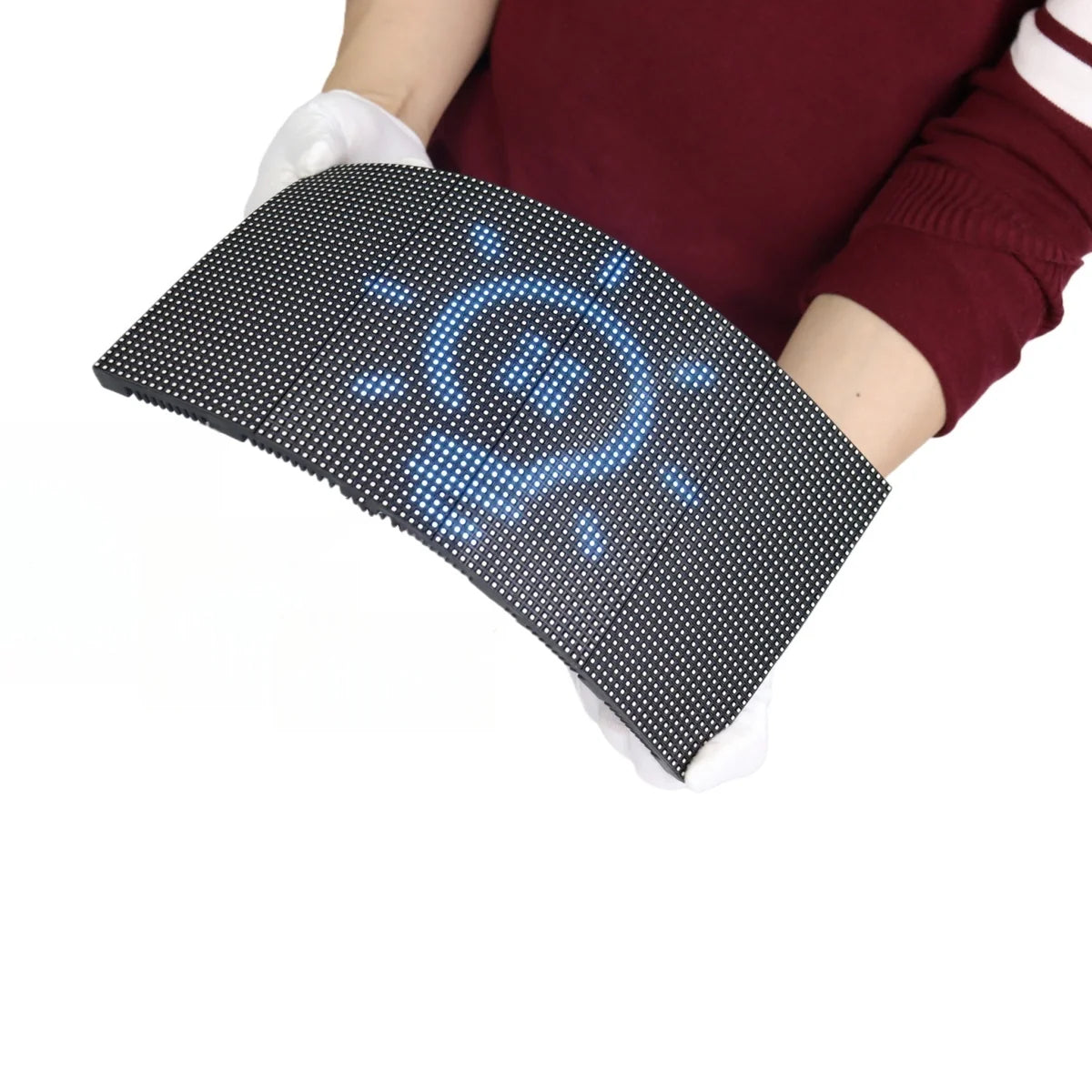

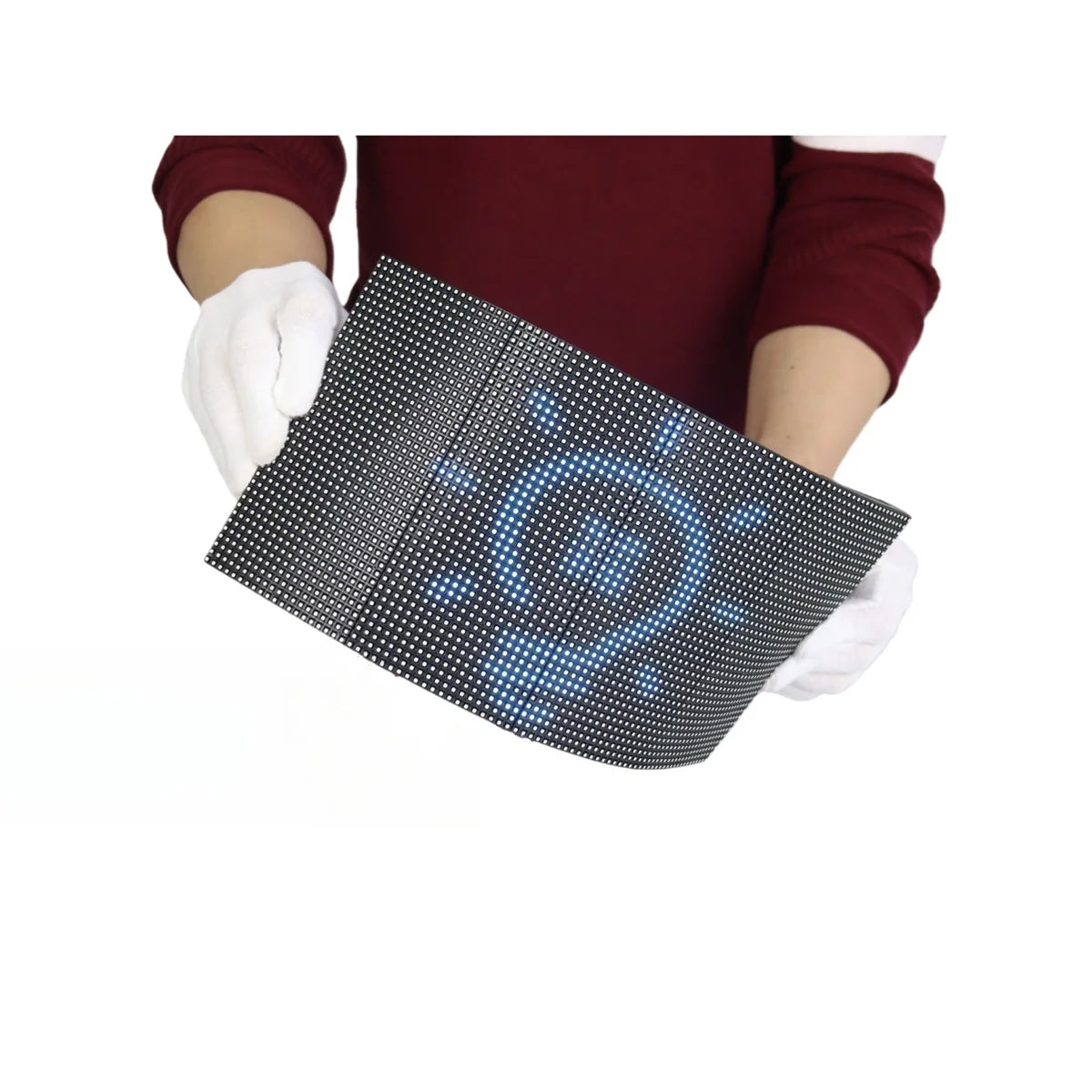

• Flexible Curved & Cylindrical Display Capability – Supporting up to 145° bending deformation, the module adapts to curved, cylindrical, and irregular LED display surfaces for creative outdoor installations.
• Creative Outdoor Display Project Platform – The flexible module design supports cylinder LED displays, media facades, architectural LED displays, curved screens, and large-scale creative outdoor LED projects.
• SMD1415 Outdoor Display Technology – The SMD1415 LED platform combined with high refresh performance provides stable brightness, smooth image output, high contrast, and reliable operation for outdoor creative display applications.

Installation Guide

• Confirm the flexible display structure, installation frame, module layout, pixel pitch, receiving card configuration, and power supply requirements before installation.
• Install the P3.076 Outdoor Flexible LED Module according to the curved surface design and ensure each module is securely positioned.
• Use the magnetic mounting system and M3 screw fixing points according to project installation requirements.
• For high-temperature outdoor environments, ensure optional safety wire installation is correctly applied when required.

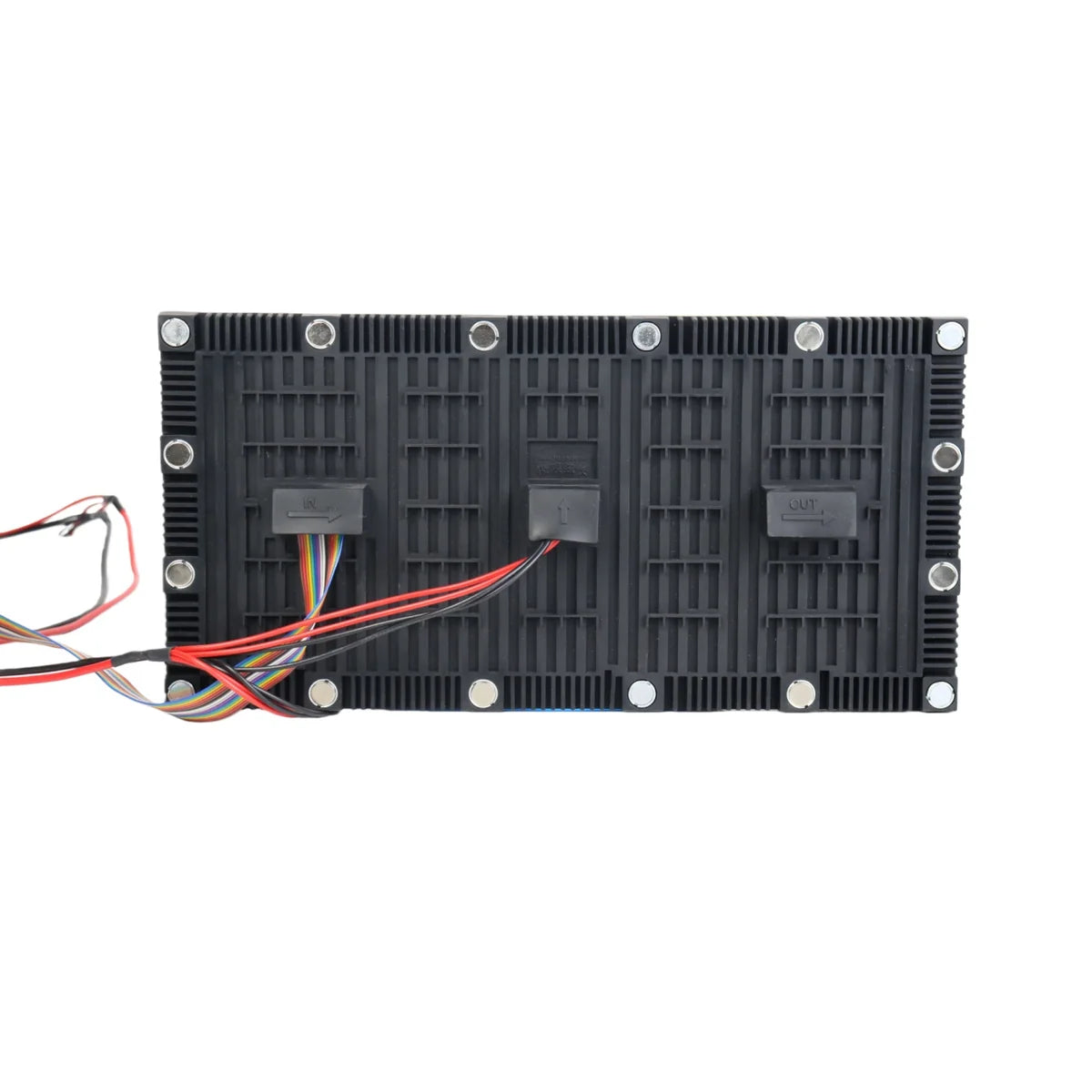

• Connect the HUB75 data cables and DC 5V power cables according to the LED display system wiring plan.
• Avoid excessive bending, impact, scratching, or improper handling of the flexible LED module during transportation and installation.

Applications

• Cylinder LED Displays: Flexible outdoor LED solutions designed for cylindrical structures and creative curved installations.
• Cylindrical LED Screens: Supports non-flat display surfaces requiring flexible module adaptation.
• Curved LED Displays: Suitable for customized curved screens, architectural structures, and creative visual projects.
• Media Facade Displays: Supports building facade media displays and large-scale outdoor visual communication projects.
• Building Facade LED Displays: Enables architectural LED applications with flexible installation capability.
• Architectural LED Displays: Suitable for landmark buildings, commercial spaces, and creative outdoor designs.
• Outdoor Creative LED Installations: Supports customized display shapes, artistic structures, and unique outdoor advertising applications.
• Commercial Outdoor Displays: Suitable for brand displays, retail environments, and outdoor promotional projects.
• Tourism Landmark & Public Art Displays: Provides flexible LED solutions for landmark projects and creative public installations.
• Creative Outdoor Advertising Projects: Supports projects requiring flexible structure, waterproof protection, and long-term outdoor reliability.
