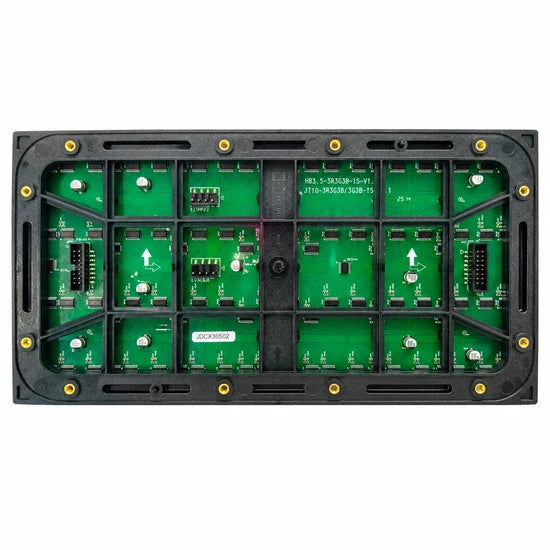

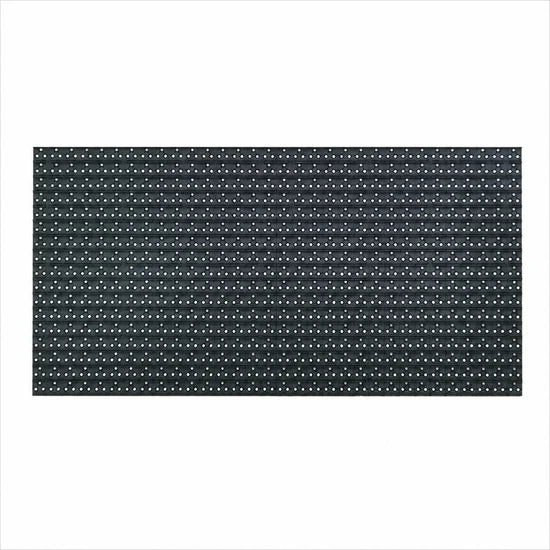

OD-SL Series High Brightness Outdoor LED Module – P5 / P10 | 320×160mm | IP65 with Screw-Lock Design | SMD | Rear Service | Highway LED Billboards & Long-distance Advertising Displays | MOQ: 100 pcs

About this item

• High Brightness Outdoor LED Modules – P5/P10 High Brightness Outdoor LED Modules are designed for large format LED advertising displays, digital billboards, highway advertising screens, DOOH networks, and fixed outdoor LED projects requiring exceptional brightness and reliable long-term operation.
• SMD1921 LED Technology for Outdoor Media Displays – Built with SMD1921 LED technology, these high brightness outdoor modules provide strong daylight visibility, stable brightness output, reliable color performance, and long-term outdoor operation.
• Ultra High Brightness Performance – P5 version provides ≥8000 nits brightness, while P10 version provides ≥10000 nits brightness, delivering excellent visibility for outdoor environments with strong sunlight exposure.
• IP65 Weatherproof Outdoor Protection – The IP65 protection structure helps protect the LED display system against dust and water exposure, supporting reliable operation in changing outdoor environments.
• Static and High Efficiency Driving Structure – P10 uses static scan driving technology for maximum brightness performance, while P5 uses optimized scan driving technology for efficient outdoor display operation.
• Rear Service Large Format Module Design – The rear service structure provides convenient maintenance access, secure cabinet integration, and efficient module replacement for large-scale outdoor LED display systems.
• Long Distance Outdoor Display Applications – Suitable for highway billboards, outdoor media screens, airport advertising displays, transportation information screens, smart city displays, and large commercial outdoor LED projects.

Package Included

Version	Package Included
100pcs MOQ Pack	100 × P5/P10 320×160mm High Brightness Outdoor LED Module 50 × 5V Power Cable 1-to-2 Split 100 × Power Connection Cable

Order & Logistics

Lead Time

• OD-SL Series usually ship within 1–3 business days, MOQ 100pcs items in OD-SL Series usually ship within 7–15 business days.
• OD-SLG Series and OD-PM Series usually ship within 3–5 business days, 192×192mm MOQ 100pcs items in OD-PM Series usually ship within 7–15 business days.
• OD-PMG Series usually ship within 7–15 business days.
• OD-WS Series and OD-WSG Series usually ship within 15–25 business days.

Shipping Note

• This series enjoys our Free Shipping Policy for orders over $399.
• Shipping Policy for OD Series: All OD Series modules are covered by our Free Shipping Policy for orders over US$399. Orders will be shipped from local warehouses when stock is available, or directly from China otherwise.
• For faster delivery, express options like DHL / UPS / FedEx are available during checkout.
• HQ Fulfillment: Standard delivery takes 9–18 days | Express 5–9 days.

Technical Specifications

Specification	Value
Module Size	320×160mm
Pixel Pitch	P5 / P10
LED Type	SMD1921
Technology System	High Brightness Outdoor SMD LED Module
Brightness	P5: ≥8000 nits P10: ≥10000 nits
Module Resolution	P5: 64×32 dots P10: 32×16 dots
Pixel Density	P5: 40,000 dots/m² P10: 30,000 dots/m²
Scan Rate	P5: 1/4 Scan P10: Static Scan (1/1 Scan)
Refresh Rate	P5: ≥3840Hz P10: 1920Hz / 3840Hz
Pixel Configuration	P5: 1R1G1B Full Color P10: 3R3G3B
Viewing Angle	H:120°+ / V:140°+
Input Voltage	DC 4.2V / 5V
Data Interface	HUB75
Installation Method	Screw Lock
Protection Level	IP65
Maintenance Method	Rear Service
Recommended Viewing Distance	10–200m
Operating Temperature	-20°C to 65°C
Lifetime	≥100,000 Hours

Structure & Design Features

• Ultra High Brightness Outdoor Display Structure – Designed with SMD1921 LED technology, P5 provides ≥8000 nits brightness and P10 provides ≥10000 nits brightness, delivering excellent daylight visibility for large-format outdoor advertising and media display applications.
• IP65 Weather Protection Design – The outdoor protection structure helps maintain stable operation in environments exposed to dust, moisture, and changing weather conditions.
• High Brightness Rear Service Module Platform – The rear service structure supports efficient maintenance, secure installation, and large-scale outdoor LED display deployment.
• Large Format Outdoor LED Architecture – The standardized 320×160mm module format supports efficient cabinet integration, scalable LED screen construction, and engineering-level outdoor media projects.
• Long Distance Visibility Optimization – The high brightness design and outdoor SMD platform provide strong visibility for viewing distances from 10m to 200m, making the modules suitable for highway and large-area advertising applications.

Installation Guide

• Confirm the cabinet size, module layout, receiving card configuration, power supply capacity, and rear service structure before installation.
• Install the P5/P10 high brightness 320×160mm outdoor LED modules according to the cabinet layout and ensure each module is securely fixed.
• Connect the HUB75 data cables according to the signal direction, receiving card configuration, and outdoor LED screen wiring plan.
• Connect the DC 4.2V / 5V module power supply correctly and verify polarity before powering on the LED display system.
• For rear service maintenance, remove and replace the LED module from the rear side using proper tools and maintenance procedures.
• Avoid strong impact, scratching, or improper handling of the LED surface during transportation, installation, and maintenance.

Applications

• Large Format LED Advertising Displays: High brightness outdoor LED modules designed for digital billboards, commercial advertising screens, and large media displays.
• Highway & Transportation Displays: Highway advertising LED screens, airport outdoor information displays, transportation hub LED screens, and public information systems.
• DOOH Advertising Networks: Outdoor media screens, smart city information displays, and commercial digital advertising projects requiring strong daylight visibility.
• Large-Scale Fixed Outdoor LED Projects: Engineering outdoor video walls, outdoor event LED screens, and long-term fixed installation projects.
