OD-SL Series High Brightness Outdoor LED Module – P16 | 256×256mm | IP65 with Screw-Lock Design | SMD | Rear Service | Large-format Outdoor Displays & Sports Venue LED Screens | MOQ: 100 pcs
About this item
- 8000 Nits High Brightness Outdoor LED Modules – P16 High Brightness Outdoor LED Modules are designed for ultra long-distance billboard displays, highway advertising screens, DOOH advertising networks, and large-format outdoor LED projects requiring exceptional brightness and reliable outdoor performance.
- SMD2728 LED Technology for Large Outdoor Displays – Featuring SMD2728 LED technology, 16mm pixel pitch, 8000 nits brightness, and 1920Hz / 3840Hz refresh rate to provide strong daylight visibility, stable color output, and dependable operation for fixed outdoor installations.
- Static Scan Structure for High Brightness Performance – The static scan driving structure improves display stability and supports consistent image output for outdoor environments requiring high brightness and long viewing distances.
- IP65 Weatherproof Outdoor Protection – The IP65 protection structure helps protect the LED display system against dust and water exposure during continuous outdoor operation in changing weather conditions.
- Rear Service Large Format LED Module Design – The rear service structure provides convenient maintenance access, secure cabinet integration, and efficient module replacement for large-scale outdoor LED display systems.
- Professional Long Distance Display Applications – Suitable for highway billboards, outdoor media screens, airport advertising displays, transportation hub LED screens, smart city information displays, and large-scale fixed outdoor LED projects.
Package Included
| Version | Package Included |
| 100pcs MOQ Pack | 100 × P16 256×256mm High Brightness Outdoor LED Module 50 × 5V Power Cable 1-to-2 Split 100 × Power Connection Cable |
Order & Logistics
Lead Time
- OD-SL Series usually ship within 1–3 business days, MOQ 100pcs items in OD-SL Series usually ship within 7–15 business days.
- OD-SLG Series and OD-PM Series usually ship within 3–5 business days, 192×192mm MOQ 100pcs items in OD-PM Series usually ship within 7–15 business days.
- OD-PMG Series usually ship within 7–15 business days.
- OD-WS Series and OD-WSG Series usually ship within 15–25 business days.
Shipping Note
- This series enjoys our Free Shipping Policy for orders over $399.
- Shipping Policy for OD Series: All OD Series modules are covered by our Free Shipping Policy for orders over US$399. Orders will be shipped from local warehouses when stock is available, or directly from China otherwise.
- For faster delivery, express options like DHL / UPS / FedEx are available during checkout.
- HQ Fulfillment: Standard delivery takes 9–18 days | Express 5–9 days.
Technical Specifications
| Specification | Value |
| Module Size | 256×256mm |
| Module Weight | 650±10g |
| Module Thickness | 20mm |
| Pixel Pitch | 16mm |
| Module Resolution | 16×16 dots |
| Pixel Density | 11,718 dots/m² |

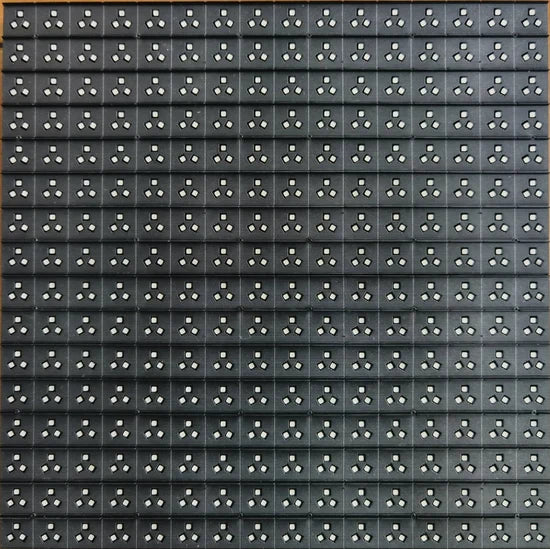

| LED Type | SMD2728 |
| Technology System | High Brightness Outdoor SMD LED Module |
| Brightness | ≥8000 nits |
| Scan Rate | Static Scan (1/1 Scan) |
| Refresh Rate | 1920Hz / 3840Hz |
| Pixel Configuration | 3R3G3B |
| Viewing Angle | H:110°+ / V:140°+ |
| Input Voltage | DC 5V |

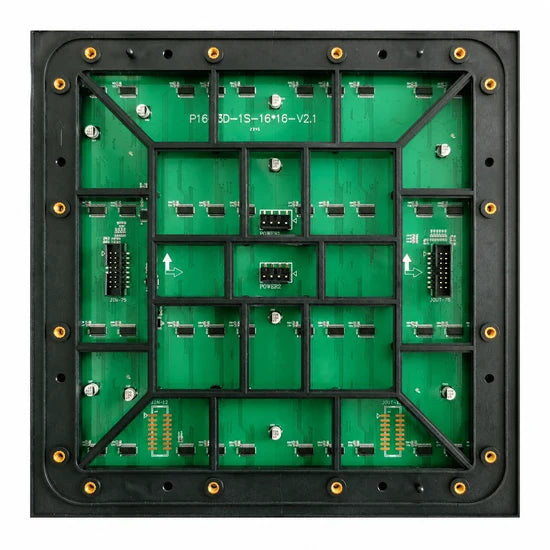

| Data Interface | HUB75 |
| Installation Method | Screw Lock |
| Protection Level | IP65 |
| Maintenance Method | Rear Service |
| Cascade Support | Yes |
| Recommended Viewing Distance | 10–200m |
| Operating Temperature | -20°C to 65°C |
| Operating Humidity | 10%–90% RH |
| Lifetime | ≥100,000 Hours |
Structure & Design Features
- Ultra High Brightness Outdoor Display Structure – Designed with SMD2728 LED technology and 8000 nits brightness, the module provides excellent daylight visibility for large-format outdoor advertising and long-distance media display applications.
- IP65 Weather Protection Design – The outdoor protection structure helps maintain stable operation in environments exposed to dust, moisture, and changing weather conditions.
- Static Scan Rear Service Module Platform – The static scan structure combined with rear service design supports high brightness output, efficient maintenance, and large-scale outdoor LED display deployment.
- Large Format Outdoor LED Architecture – The 256×256mm standardized module format supports efficient cabinet integration, scalable construction, and engineering-level outdoor LED display projects.
Installation Guide
- Confirm the cabinet size, module layout, receiving card configuration, power supply capacity, and rear service structure before installation.
- Install the P16 high brightness 256×256mm outdoor LED modules according to the cabinet layout and ensure each module is securely fixed.
- Connect the HUB75 data cables according to the signal direction, receiving card configuration, and outdoor LED screen wiring plan.
- Connect the DC 5V module power supply correctly and verify polarity before powering on the LED display system.
- For rear service maintenance, remove and replace the LED module from the rear side using proper tools and maintenance procedures.
- Avoid strong impact, scratching, or improper handling of the LED surface during transportation, installation, and maintenance.
Applications
- Ultra Long Distance Billboard Displays: High brightness outdoor LED modules designed for highway advertising screens and large-format billboard applications.
- Outdoor Advertising Display Systems: DOOH advertising networks, outdoor media screens, airport advertising displays, and commercial outdoor LED projects.
- Transportation & Public Information Displays: Highway information screens, transportation hub LED displays, and smart city visual communication systems.
- Large-Scale Fixed Outdoor LED Projects: Engineering outdoor video walls, commercial LED displays, and long-term fixed installation projects.
