OD-SL Series Outdoor LED Module – P2.5 / P3.076 / P4 / P5 / P6.67 / P8 / P10 | 320×160mm | IP65 with Screw‑Lock Design

About this item

• IP65 Weatherproof – Fully sealed structure with robust screw‑lock design; resists dust, rain, and harsh outdoor conditions.
• High Brightness – Up to ≥5500 nits (by pitch) for clear visibility even under direct sunlight.
• Smooth Playback – Integrated driver & buffer ICs with a 3840 Hz refresh rate across all pixel pitches for flicker‑free videos, images, and text.
• Multiple Pixel Options – P2.5, P3.076, P4, P5, P6.67, P8, P10 on a compact 320×160 mm module for flexible design and maintenance.
• Rear Service – Secure screw‑lock mounting for reliable outdoor fixed installations.

Package Included

Version	Package Included

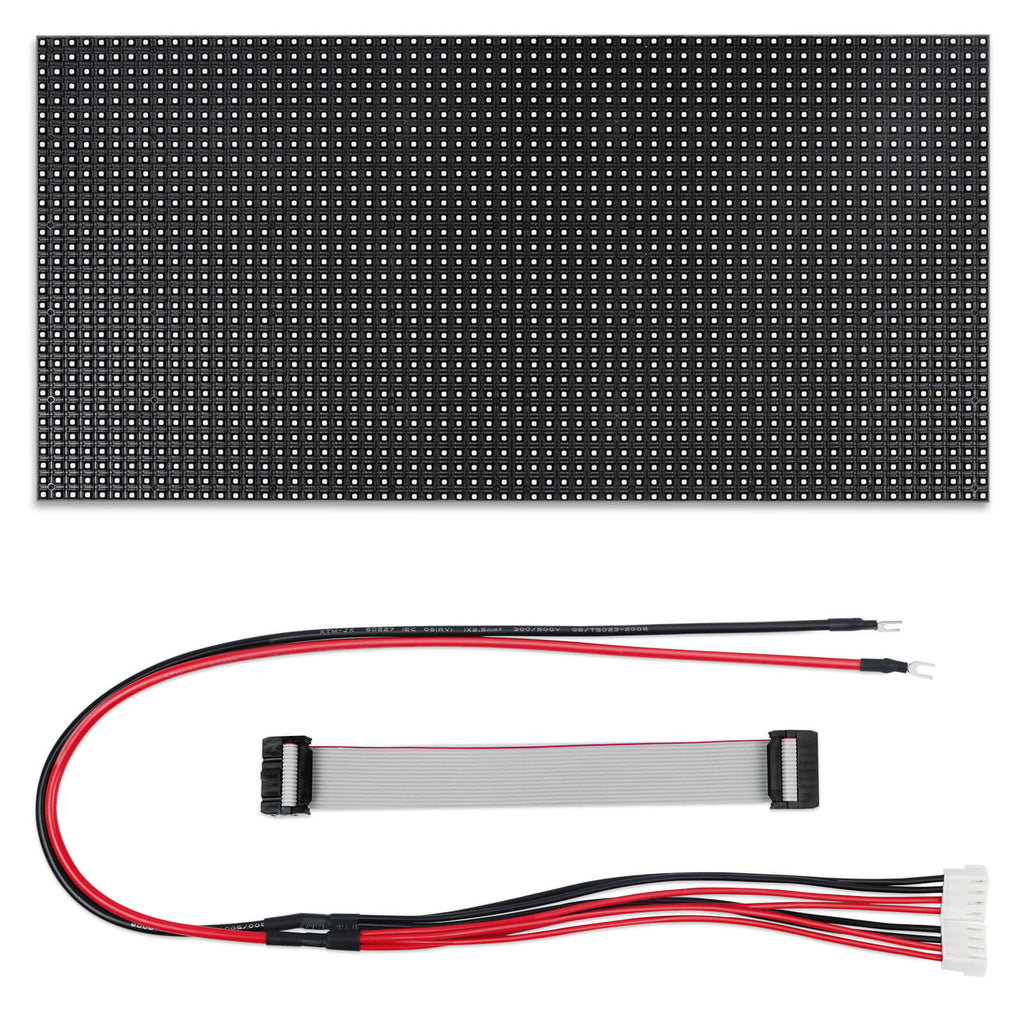

1pcs Sample Pack	1 × LED Matrix Module (320×160 mm, select P2.5/P3.076/P4/P5/P6.67/P8/P10) 1 × 1‑to‑2 Power Cord 1 × Data Cable
40pcs Standard Pack	40 × LED Matrix Module (320×160 mm, select P2.5/P3.076/P4/P5/P6.67/P8/P10) 20 × 1‑to‑2 Power Cord 40 × Data Cable

Order & Logistics

• Lead Time: Typically ships within 1–3 business days.
• Packing: Cardboard box with protective packaging.
• Shipping: Ships from local warehouses (3–7 days) if available, or from headquarters (7–25 days standard / 3–10 days express).

Structure & Design Features

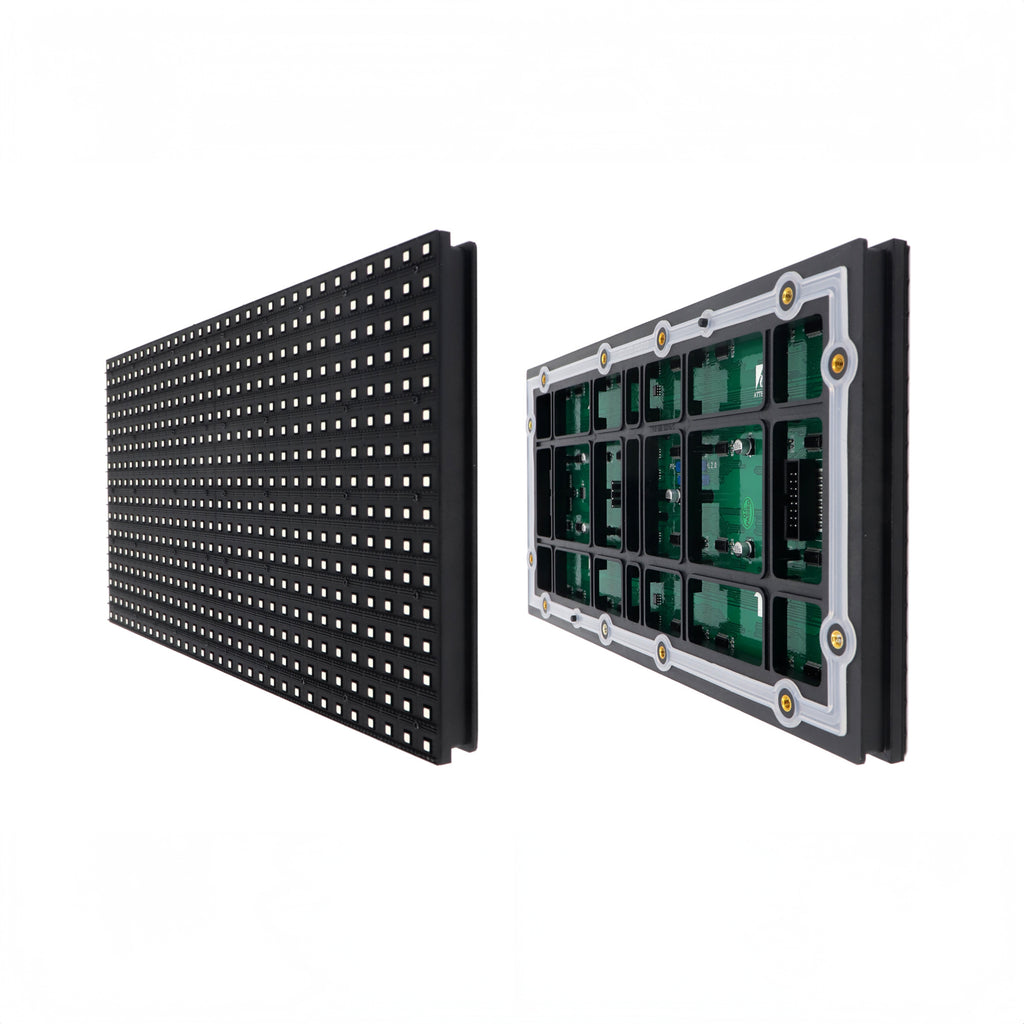

• Screw‑lock anchoring prevents vibration loosening in outdoor use.
• Sealed power/data ports and conformal‑coated PCB for reliability.
• Seamless splicing for large‑area displays; cabinet‑friendly 320×160 mm size.

Installation Tips

• Disconnect power before installing or servicing the module.
• Confirm polarity and firmly secure data/power connections.
• Ensure cabinet sealing & drainage; avoid water ingress at cable entries.
• Use compatible receiving card, sending card, control software, and DC 5V power supply.

Technical Specifications — 320×160 mm Module

Parameter	OD‑SL‑P2.5	OD‑SL‑P3.076	OD‑SL‑P4	OD‑SL‑P5	OD‑SL‑P6.67	OD‑SL‑P8	OD‑SL‑P10
Pixel Pitch	2.5 mm	3.076 mm	4 mm	5 mm	6.67 mm	8 mm	10 mm
LED Configuration	SMD1515	SMD1515	SMD1921	SMD1921	SMD3535	SMD3535	SMD3535
Module Resolution (dots)	128 × 64	104 × 52	80 × 40	64 × 32	48 × 24	40 × 20	32 × 16
Pixel Density (dots/㎡)	160,000	105,625	62,500	40,000	22,500	15,625	10,000
Module Size (W×H)	320 × 160 mm
Module Mask	Flat	Flat	Flat	Flat	Flat	Flat	Flat
Driving Mode (scan)	1/16	1/13	1/10	1/8	1/6	1/4	1/2
Standard Brightness	≥4500 nits	≥5000 nits	≥5500 nits	≥5500 nits	≥6000 nits	≥6000 nits	≥5500 nits
Refresh Rate	3840 Hz	3840 Hz	3840 Hz	3840 Hz	3840 Hz	3840 Hz	3840 Hz
Contrast Ratio	≥4000:1
Gray Level	65,536
Viewing Angle (H/V)	140°/140°
Input Voltage	AC110/220V ±10%, 50/60 Hz
Working Voltage	DC 5V
Power Consumption (Max / Avg)	≤850 / ≤283 W/㎡ (typical for this series)
Minimum Viewing Distance	≥2.5 m	≥3 m	≥4 m	≥5 m	≥6 m	≥8 m	≥10 m
Operating Temperature	‑15°C to 70°C
Operating Humidity	10% ~ 90% RH
IP Rating	IP65
Lifetime	≥100,000 hours
Usage Environment	Outdoor fixed installation
Service Method	Rear Service (screw‑lock)

Applications

• Outdoor advertising billboards and building façades
• Stadium perimeters and scoreboards
• Event stages, transportation hubs, and public information displays
