Series Overview
The Mechanical Rotating LED Display Series is an innovative multi-layer LED display solution that combines dynamic mechanical rotation with high-resolution LED screens. Designed to deliver immersive 360° visual impact, this series is ideal for premium commercial advertising, exhibitions, transportation hubs, and landmark installations.
Through intelligent rotation control and modular LED screen layers, the system creates eye-catching motion effects that dramatically increase audience engagement and brand exposure.
Series Comparison Table
| Series | Structure Type | Screen Shape | Standard Layers | Max Layers | Single Layer Size | Base Height | Pixel Pitch Options | Control System | Rotation Control |
|---|---|---|---|---|---|---|---|---|---|

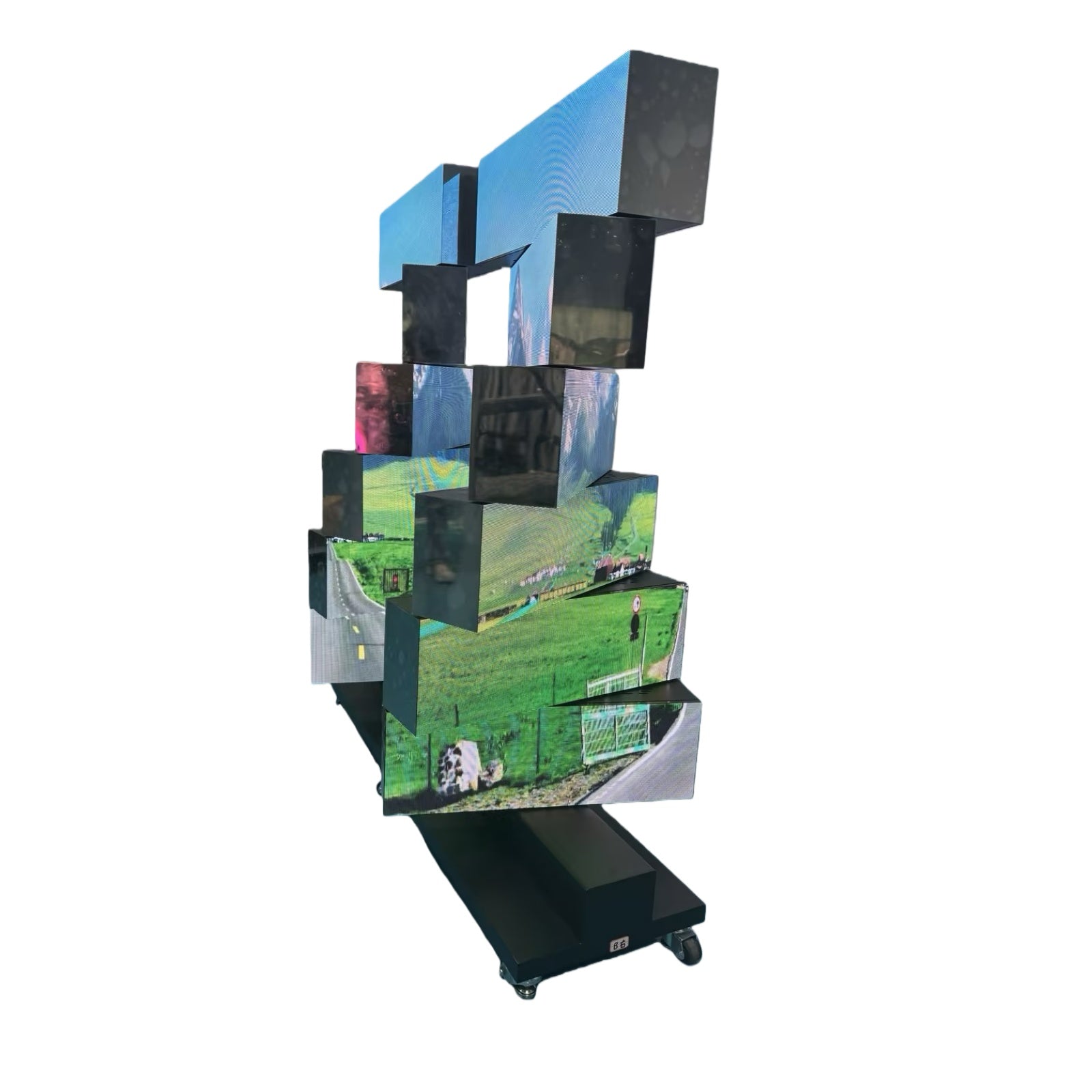

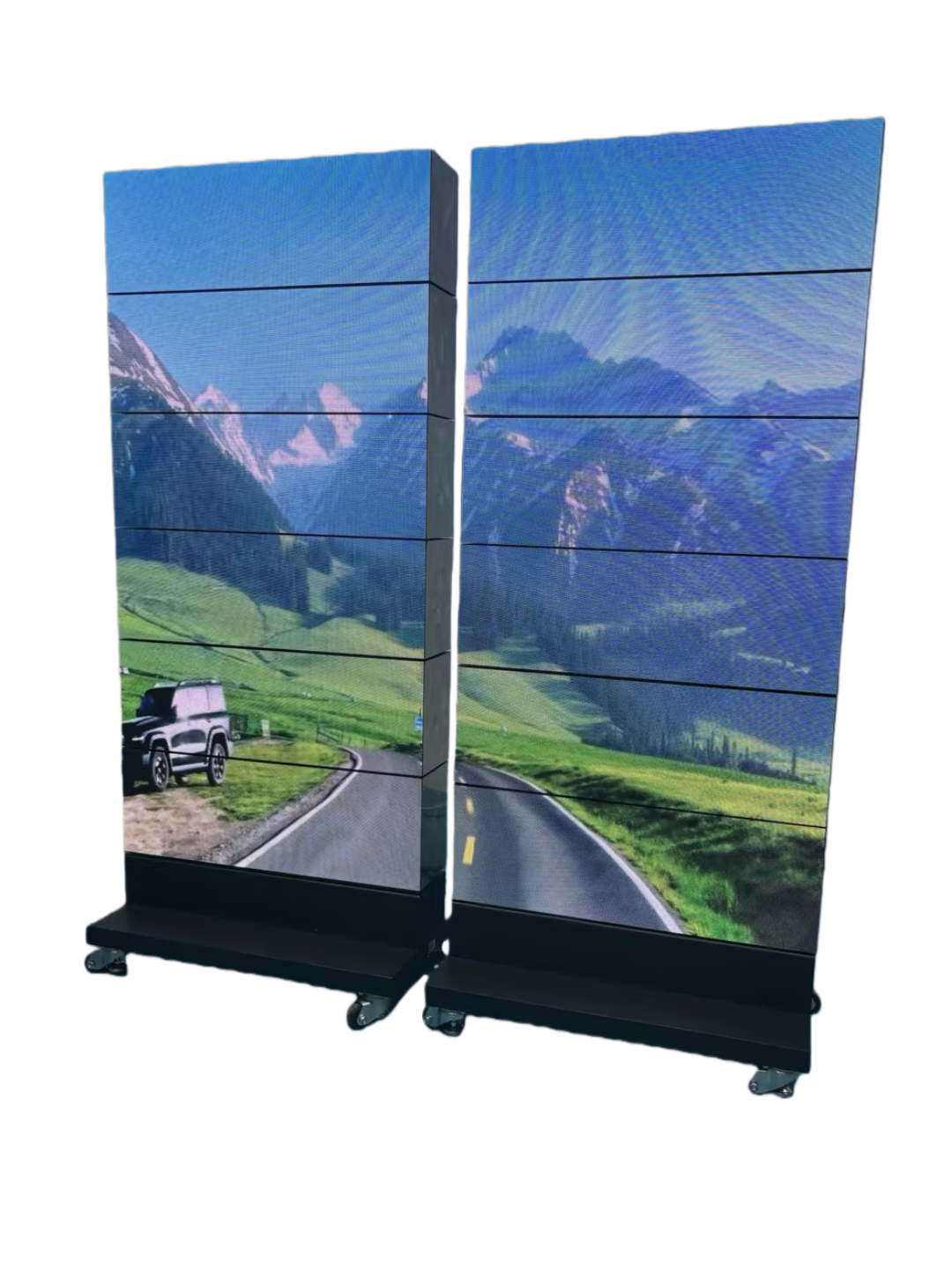

| MR-2FR Series | Floor-standing, vertical | Double-sided rectangular | 6 layers (≈1250mm total) | Up to 12 layers | Height: 250mm (9.8"), Width: 280mm (11") | 250mm | P2.5 / P1.9 / P1.5 | NovaStar | Remote control, programmable rotation modes |

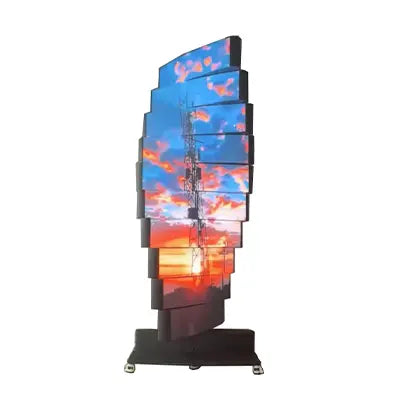

| MR-3FC Series | Floor-standing, vertical | Double-sided curved | 6 layers (≈1615mm total) | 10 layers | Height: 323mm (12.7"), Width: 280mm (11") | 360mm | P2.5 /P 1.86 / P1.5 | NovaStar | Remote control, multi-pattern rotation |

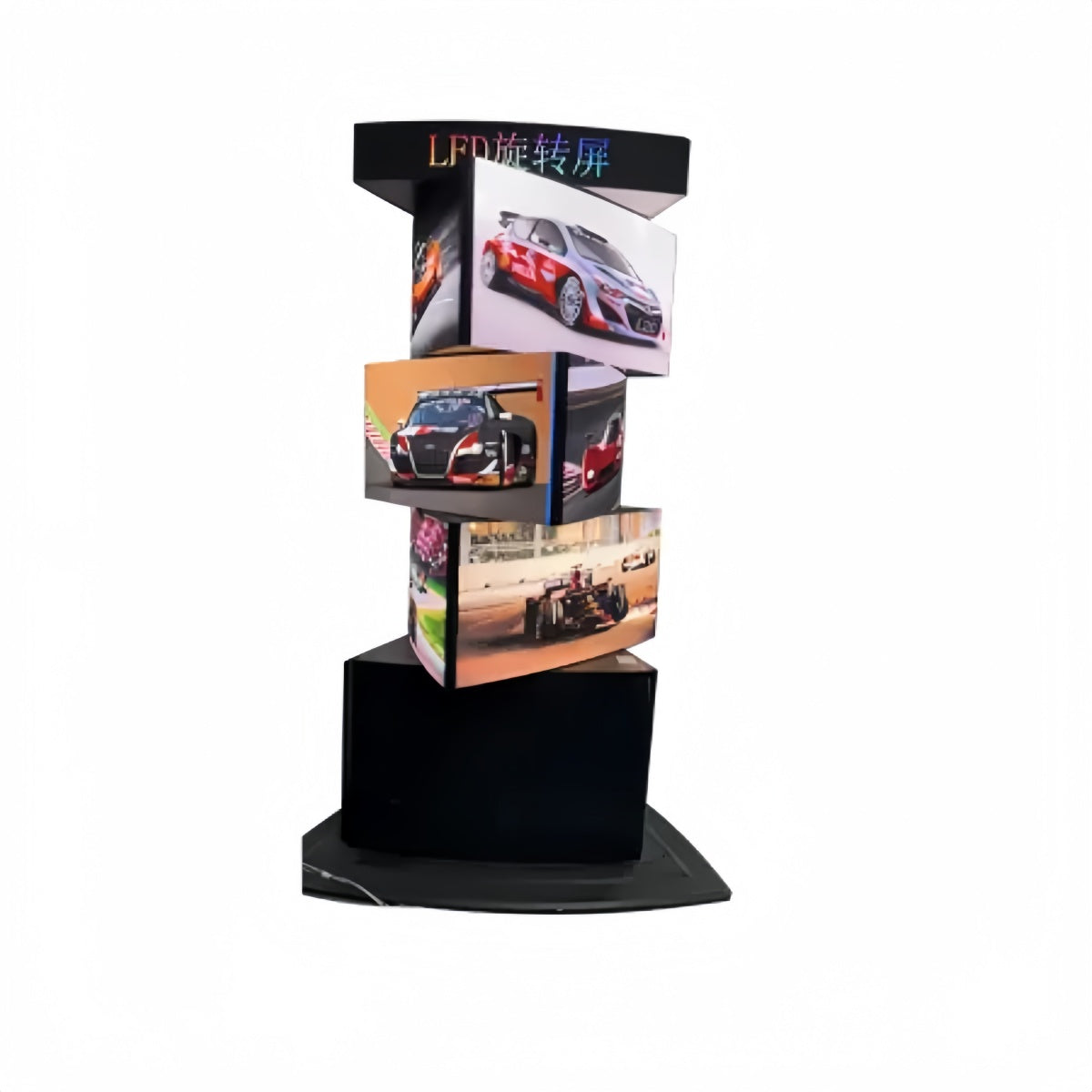

| MR-3FL Series | Floor-standing, composite | Three-sided + top display | Fixed 4 display units | 4 layers | Middle panels: 960×480mm (3 pcs), Top panels: 960×160mm (3 pcs) | 480mm | P2.5 / P1.86 / P1.5 | NovaStar | Remote control, synchronized rotation |
Notes
-
All series support 360° mechanical rotation with adjustable speed and direction.
-
Screen layers can rotate independently or synchronously depending on configuration.
-
External video controller included; content and motion can be programmed separately.
-
Custom dimensions, layer counts, and pixel pitch options available upon request.
Lead Time
- Ships directly from headquarters. Handling time 30–35 business days
- This series enjoys our Free Shipping Policy by SEA.
About Packing
- MR-2FR Series under 10 Layers will be packed in Air-flight case, exceed 10 layer be packed in plywood case;
- MR-3FC Series 6 Layer model will be packed in in Air-flight case, 10 layer model be divided into 2 section and be packed in Air-flight case;
- MR-3FL Series will be packed in plywood case only.
Key Features
Dynamic Multi-Layer Rotation
The intelligent rotation system enables seamless combinations of multiple rotational patterns, producing stunning 360-degree dynamic visual movements. Different layers can rotate independently or synchronously to create rich, multi-dimensional visual effects.
Custom LED Display Design
-
Supports flat and curved LED screen surfaces
-
Customizable screen layer quantity based on project requirements
-
Flexible dimensions and pixel pitches available
-
Tailored structures for brand identity and spatial design
Convenient Control System
-
LED display content controlled via NovaStar control system
-
Mechanical rotation managed by remote controller
-
Independent or synchronized control of display and rotation
-
Stable, user-friendly operation for commercial environments
Easy Front Maintenance (GOB Technology)
-
GOB surface LED panels fixed with magnetic mounting
-
Front-access maintenance without disassembly
-
Faster servicing, reduced downtime, and lower maintenance costs
-
Enhanced durability and surface protection
Industrial-Grade Construction
-
Reinforced steel structure for long-term stability
-
Designed for continuous commercial operation
-
Suitable for indoor and semi-outdoor installations
Applications
Mechanical Rotating LED Display Screens are widely used in:
-
High-speed rail stations & transportation terminals
-
Shopping malls & commercial complexes
-
Car dealerships & brand showrooms
-
Retail stores & flagship spaces
-
Science & technology museums
-
Industrial parks & exhibition halls
-
Bus stations & public venues
Delivery Model: Standardized & Custom-Ready
This series is designed for standardized delivery, while remaining fully adaptable for high-end customization.
-
Standard Models: Pre-engineered structures, proven rotation systems, and stable LED configurations ensure predictable cost, lead time, and performance.
-
Custom Extensions: Screen size, layer quantity, rotation patterns, curvature, and branding elements can be customized to meet premium project requirements.
This dual-mode delivery model makes the series suitable for both fast commercial deployment and landmark bespoke installations.
