IF-2S Series Indoor Flexible LED Module – P2.0 | 240×120mm | SMD | Soft Back Shell with Magnet | 600nits

Pixel Pitch: P2.0

Package Qty: 1pcs Sample Pack

Variant

Price:

$28.95 USD ($28.95 / count)

Quantity:

Share this product

About this item

Durable & Reliable – Designed for indoor use with a soft back shell and magnetic mounting for secure installation and easy maintenance.
High Precision Visuals – 2.0mm pixel pitch, 1/30 scan, vivid and smooth images with accurate color reproduction.
Bright & Stable – 600 nits brightness with adjustable color temperature (3,000–10,000K) and low lumen depreciation over time.
Wide Viewing Angle – ≥160° (H) / ≥140° (V) viewing angles for uniform color and brightness across the screen.
Flexible Installation – Soft silicone back shell with magnetic mounting; supports creative curved designs (curved arc ≥169°, splicing diameter 1222 mm). Requires receiving card, sending card, control software, and DC 5V power supply.

Version	Package Included

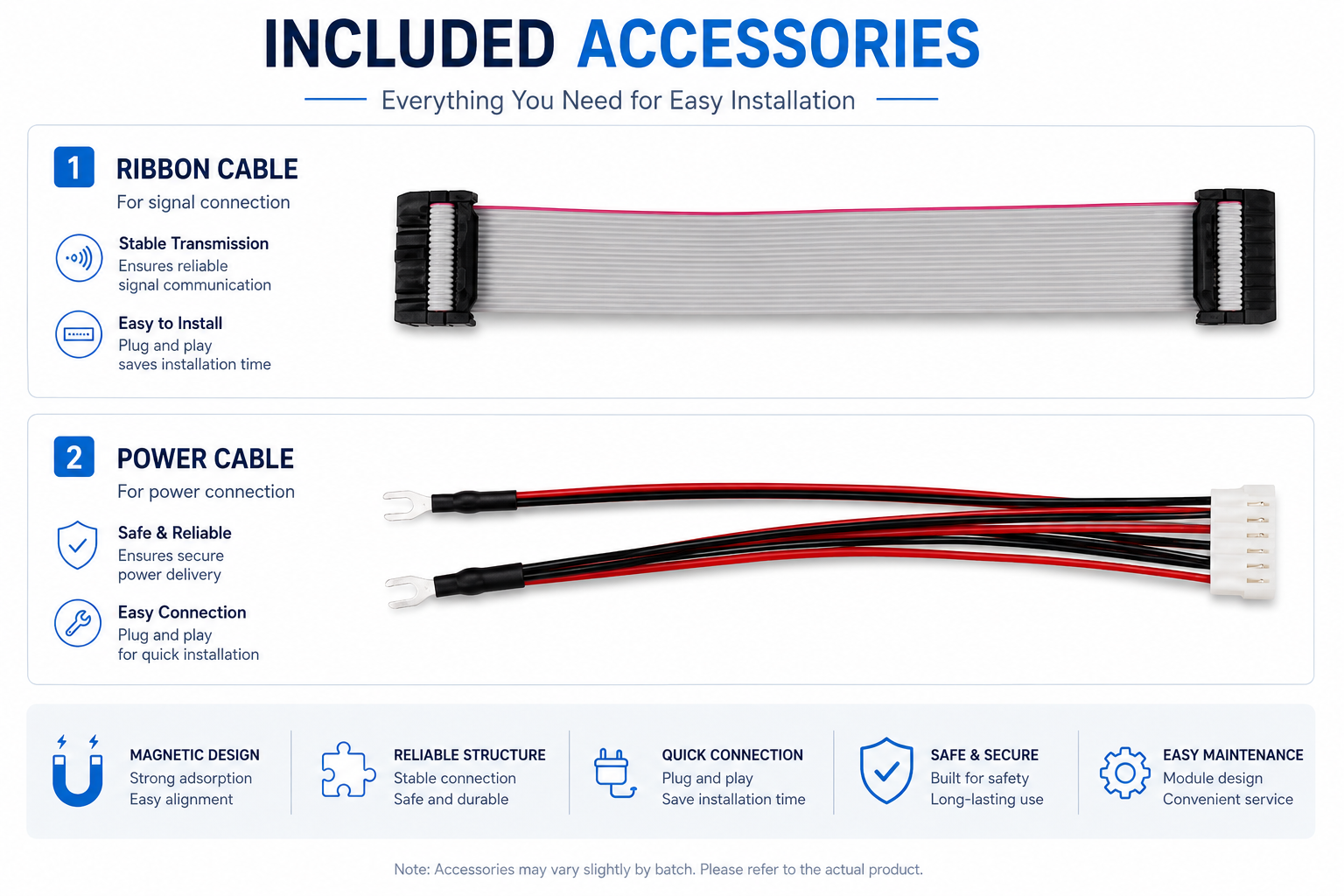

1pcs Sample Pack	1 × Power Cable 1 × Data Cable 1 × P2 240×120mm RGB Full Color LED Display Module
84pcs Standard Pack	84 × Power Cable 84 × Data Cable 84 × P2 240×120mm RGB Full Color LED Display Module

Lead Time: Typically ships within 1–3 business days.
Packing: Cardboard box with protective packaging.
Shipping: Ships from local warehouses (3–7 days) if available, or from headquarters (7–25 days standard / 3–10 days express).

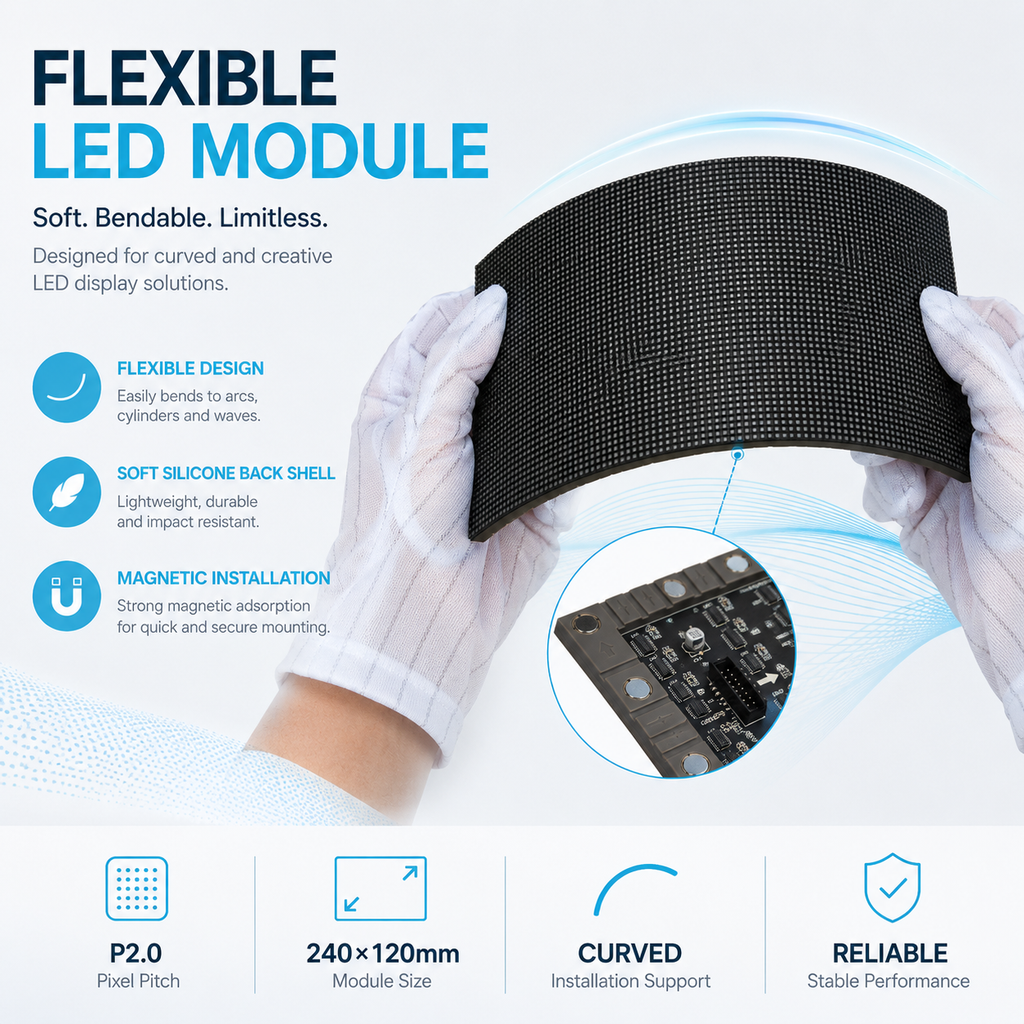

Indoor flexible module with soft silicone back shell and magnetic mounting for quick assembly and maintenance.
Supports curved installations (curved arc ≥169°, splicing diameter 1222 mm) for creative display designs.

Always disconnect power before installing or servicing the module.
Ensure correct polarity for power and data connections.
Avoid bending or twisting the PCB beyond the rated tolerance.
Use compatible receiving card, sending card, control software, and DC 5V power supply.

Specification	Value
Item code	IF2S-P2
Module size	240 × 120 × 8.6 mm
Pixel pitch	2.0 mm
LED type (encapsulation)	SMD1515
Pixel configuration	1R1G1B Full Color
Pixel density	250,000 dots/m²
Module resolution	120 × 60 dots
Scan mode	1/30
Driver IC (optional)	PWM
Refresh rate	3840 Hz
Frame rate	60 Hz
Gray scale	12–13-bit adjustable
Brightness	600 nits
Color temperature	3,000–10,000 K adjustable
Brightness evenness	≥97%
Viewing angle	≥160° (H) / ≥140° (V)
Contrast ratio	≥5000:1
Input voltage (DC)	5 V
Max current / module	3 A
Max power / module	15 W
Working AC voltage	110–220 V
Peak power consumption	490 W/m²
Average power consumption	140 W/m²
IP rating	IP20
Assembly / maintenance	Front & rear assembly / maintenance
Cabinet material	Powder coated sheet metal steel cabinet
Cabinet evenness	≤ 0.5 mm
Weight	0.19 kg
Typical lifespan	100,000 hrs
Operating temperature	-20°C ~ 40°C
Storage temperature	-20°C ~ 40°C
Working humidity	20–75% RH (no condensation)
Storage humidity	20–75% RH (no condensation)
Data interface	HUB75 (no cascading interface)
