Description

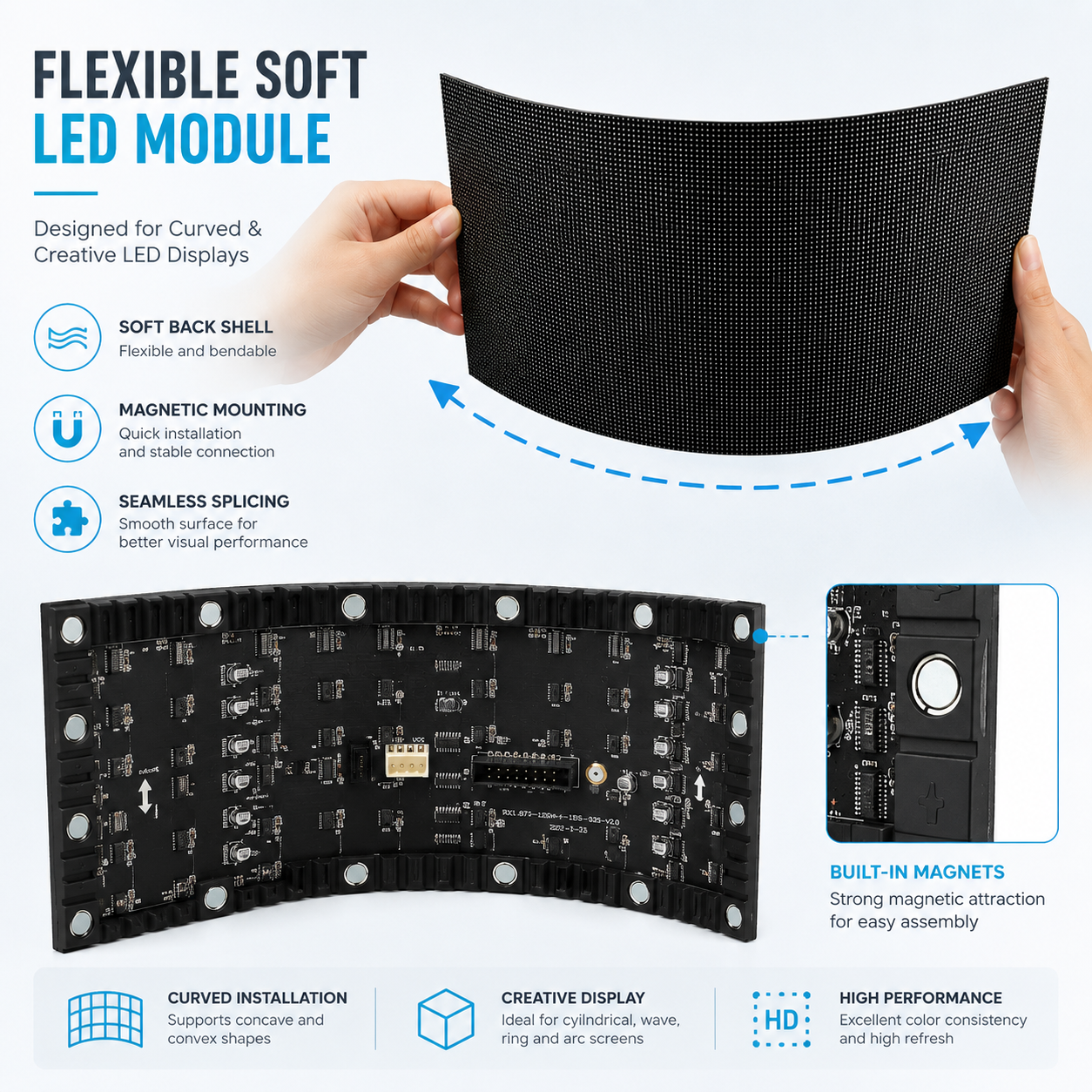

IF-2S Series Indoor Flexible LED Module – P1.875 | 240×120mm | SMD | Soft Back Shell with Magnet | 600nits
About this item
- More Elaborate Performance – Pixel pitch of just 1.875mm smooths on-screen images and reveals more detail. With 1/32 scan rate, it delivers excellent dynamic expression.
- Bright and Even for Long Usage – 600 nits brightness with automatic adjustment to ambient light. Lower lumen depreciation compared to LCD and DLP displays, ensuring consistent performance over time.
- Vivid Visual Experience – Wide 160° × 160° viewing angle with digital RGB chip for vibrant colors. 1/32 scanning rate offers lifelike visuals.
- A Whole Screen – Seamless splicing creates a unified screen without the black gaps seen in LCD or DLP displays.
- DIY & Wide Usage – Highly flexible for various combinations to fit your setup. Requires receiving card, sending card, software, and DC 5V power supply.
Package Included
| Version | Package Included |
| 1pcs Sample Pack | 1 × Power Cable 1 × Data Cable 1 × P1.875 240×120mm RGB Full Color LED Display Module |
| 84pcs Standard Pack | 84 × Power Cable 84 × Data Cable 84 × P1.875 240×120mm RGB Full Color LED Display Module |
Order & Logistics
- Lead Time: Typically ships within 1–3 business days.
- Packing: Cardboard box with protective packaging.
- Shipping:
- Orders in this series qualify for our Free Shipping Policy on purchases over $399. All products in this series are shipped directly from our headquarters warehouse（Standard Shipping: 9–18 days|Express Shipping: 5–9 days.）
Structure & Design Features
- Indoor flexible module with soft silicone back shell and magnetic mounting for quick assembly and maintenance.
- Supports seamless splicing for large displays, ideal for creative setups.
Installation Tips
- Always disconnect power before installing or servicing the module.
- Ensure correct polarity for power and data connections.
- Avoid bending or twisting the PCB beyond the rated tolerance.
- Use compatible receiving card, sending card, control software, and DC 5V power supply.
Technical Specifications
| Specification | Value |
| Model # | IF2S-P1.875 |
| Pixel pitch | 1.875 mm |
| Module size | 240 × 120 mm |
| Module resolution | 128 × 64 |
| Module pixels | 8192 dots |
| Scan | 1/32 |
| Pixel density | 284,444 dots/m² |
| Viewing distance | >2 m |
| LED type | SMD1515 |
| Pixel configuration | 1R 1G 1B |
| Brightness | ≥600 nits |
| Contrast ratio | 5000:1 |
| Color depth | 16-bit |
| Gray level | 16384 |
| Refresh frequency | >3840 Hz |
| Driving IC | FM/ICN/Default |
| Color uniformity | ≥97% |
| Protection rating | IP30 |
| Lifespan | ≥100,000 hours |
| Operating temperature | -20°C ~ 60°C |
| Operating humidity | 10% ~ 90% |
| Voltage | 5 V |
| Viewing angle | 160° (H) / 160° (V) |
| Max power / module | 15 W |
| Blind spot rate | ≤0.0003 |
Applications
- Indoor: Retail shops, conference rooms, exhibitions, broadcast studios.
- Creative: Curved splicing, cylindrical screens, artistic installations.
