Description

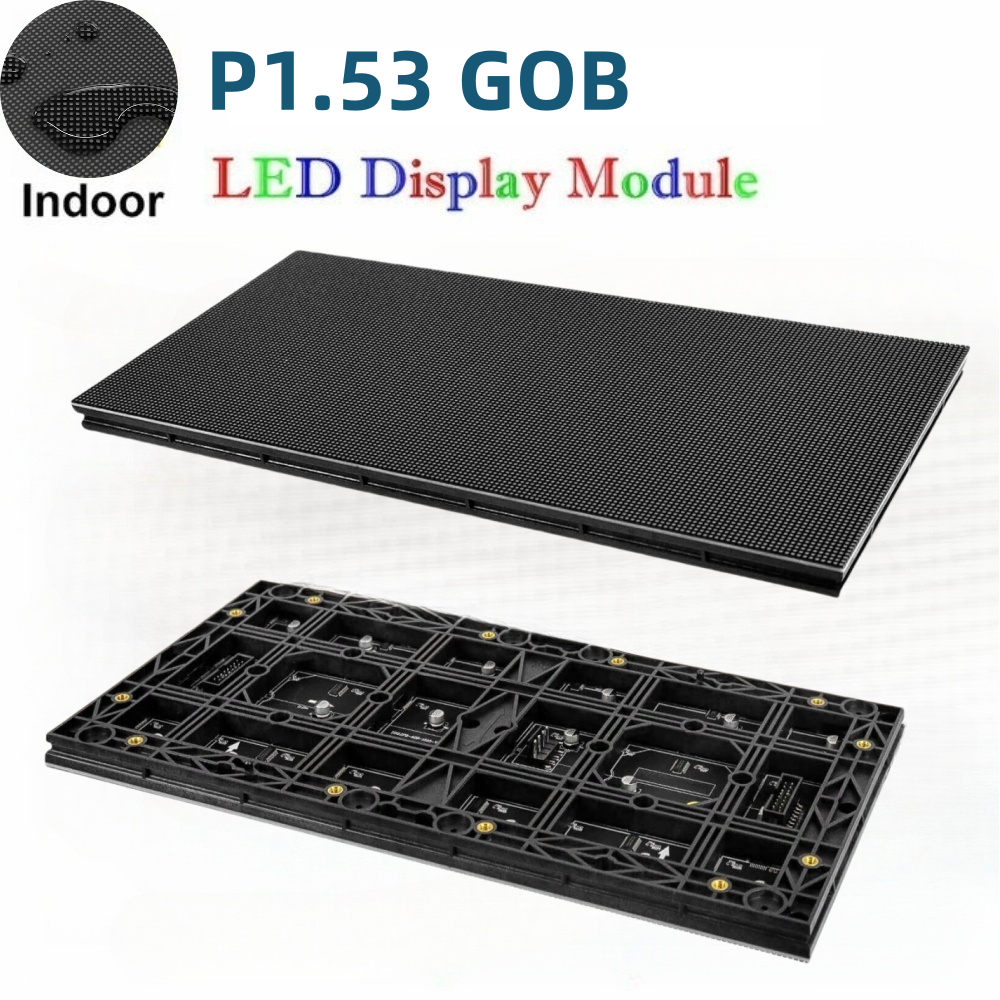

ID-G Series – P1.53 GOB Indoor LED Display Module | 320×160mm | 22,050 Pixels RGB Tile | Fine-Pitch Impact-Resistant LED Panel
About this item
- Durable & Reliable – Indoor GOB module with IK10 anti-collision grade and IP65 waterproof surface, shock-proof and dust-proof, ensures stable performance in demanding indoor environments.
- High Precision Visuals – Pixel pitch 1.53 mm, 1/52 scan, vivid and smooth display with accurate color reproduction.
- Bright & Long-lasting – ≥600 nits brightness with low lumen depreciation for consistent performance over time.
- Wide Viewing Angle – H:160°, V:160° for uniform color and brightness across the screen.
- Flexible Installation – Seamless splicing, supports creative shapes (curved, cylindrical, custom sizes). Requires receiving card, sending card, software, and DC 5V power supply.
Package Included
| Version | Package Included |
| 1pc Pack | 1 × P1.53 LED Module 1 × 5V Power Cable 1-to-2 Split 1 × Flat Data Cable |
| 40pcs Pack | 40 × P1.53 LED Module 20 × 5V Power Cable 1-to-2 Split 40 × Flat Data Cable |
Order & Logistics
- Lead Time: Typically ships within 1–3 business days.
- Packing: Cardboard box with protective packaging.
- Shipping: Orders in this series qualify for our Free Shipping Policy on purchases over $399. All products in this series are shipped directly from our headquarters warehouse（Standard Shipping: 9–18 days|Express Shipping: 5–9 days.）
Protection & Design Features
- Indoor Series: GOB Technology – surface is waterproof, shock-proof, dust-proof, protects LEDs from damage.
- Flexible module options for creative curved or cylindrical displays.
Installation Tips
- Always disconnect power before installing or servicing the module.
- Ensure correct polarity for power/data connections.
- Avoid bending or twisting the PCB beyond rated tolerance (for flexible models).
- Use compatible receiving card, sending card, software, and DC 5V power supply.
Technical Specifications
| Specification | Details |
| Module Size | 320×160 mm |
| Pixel Pitch | 1.53 mm |
| LED Type | SMD1515 |
| Module Resolution | 210×105 |
| Module Pixels | 22,050 dots |
| Scan Rate | 1/52 |
| Pixel Density | 430,336 dots/㎡ |
| Brightness | ≥600 nits |
| Contrast Rate | 3000:1 |
| Color Depth | 16 bit |
| Grey Level | 16,384 |
| Refresh Frequency | >3840 Hz |
| Driving IC | MBI/ICN |
| Color Uniformity | ≥97% |
| Protection Rating | IP30 |
| Life Span | ≥100,000 hours |
| Operating Temperature | -20°C ~ 60°C (-4°F ~ 140°F) |
| Operating Humidity | 10% ~ 90% |
| Voltage | DC 5V |
| Viewing Angle | H:160°, V:160° |
| Power Consumption | Max. 20 W |
| Blind Spot Rate | ≤0.0003 |
Applications
- Indoor: Retail shops, conference rooms, exhibitions, broadcast studios.
- Creative: Curved displays, cylindrical screens, artistic installations.
