Description

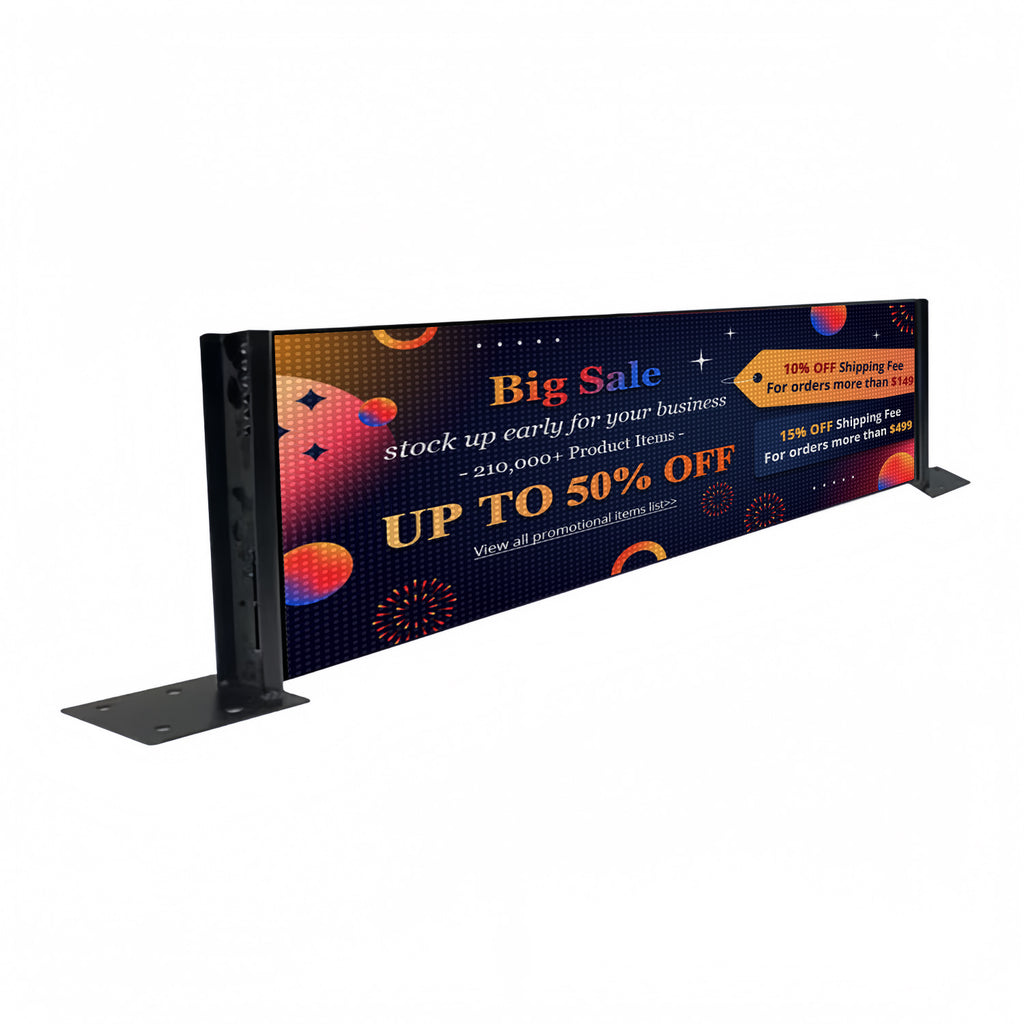

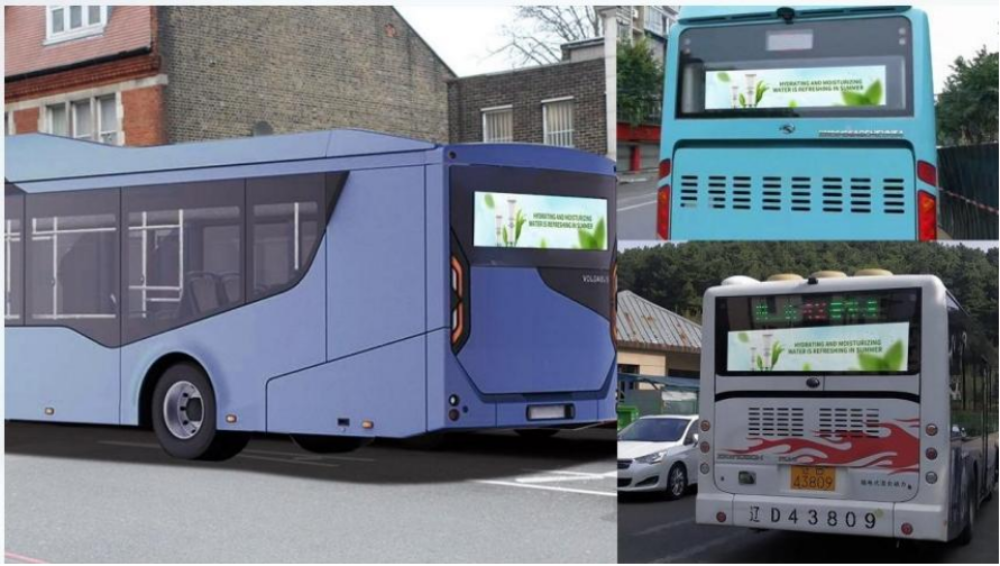

High-brightness LED advertising display designed for bus rear window or side installation.
Featuring vehicle-grade power supply, shockproof structure, and 4G network cluster control, this display turns buses into reliable mobile advertising platforms for outdoor use.
Product Data-sheet
⭐ Key Features
1️⃣ Ultra High Brightness for Outdoor Visibility
Equipped with outdoor-grade LED chips, brightness reaches ≥4500 nits, ensuring clear visibility under direct sunlight and long-distance viewing.

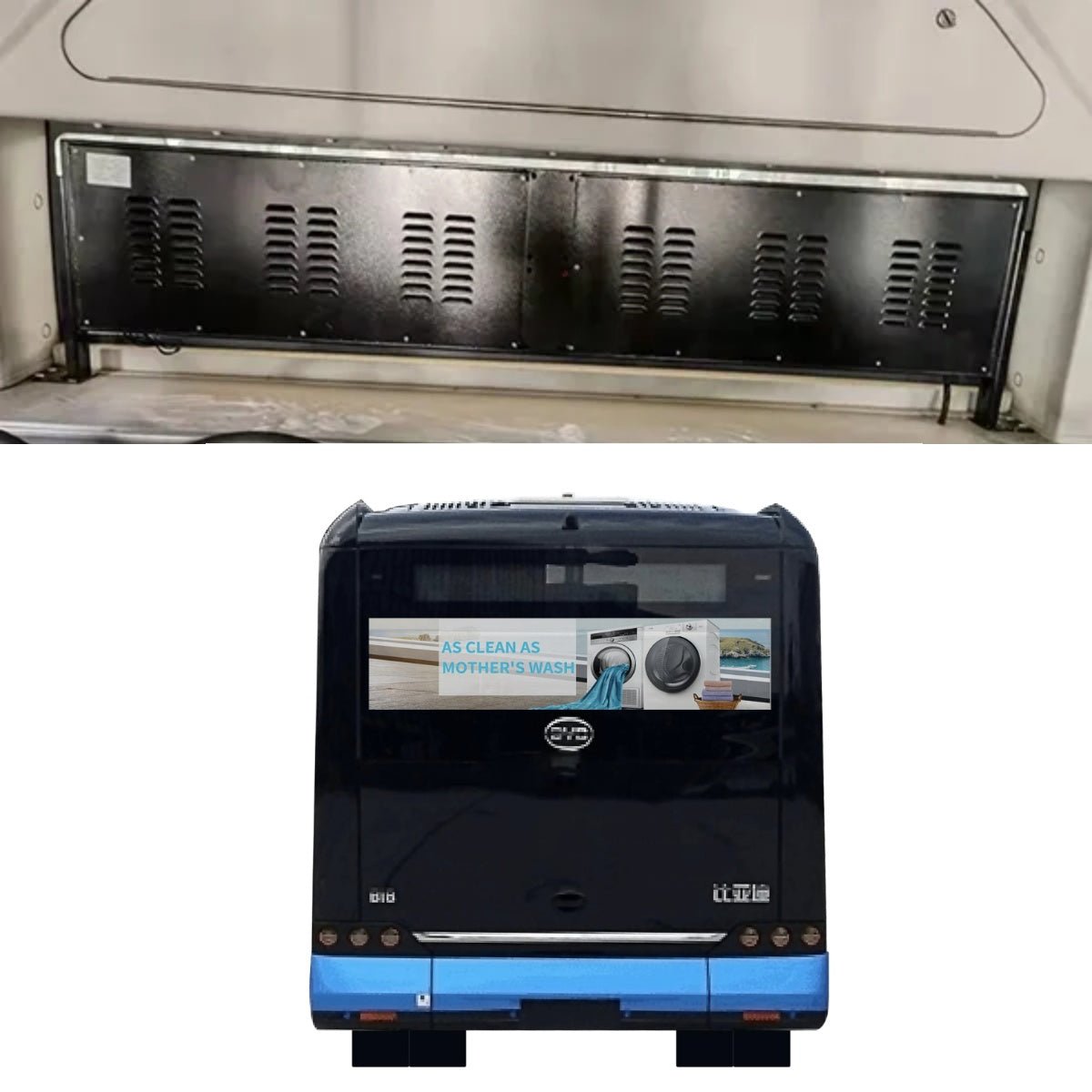

2️⃣ Designed for Bus Rear Window & Side Advertising
Optimized cabinet size and structure allow flexible installation on bus rear windows or side panels, supporting both advertising and information display.
3️⃣ Stable Vehicle-Grade Power System
Customized vehicle power supply effectively converts bus voltage, ensuring stable operation and protecting the LED modules during long-term driving conditions.

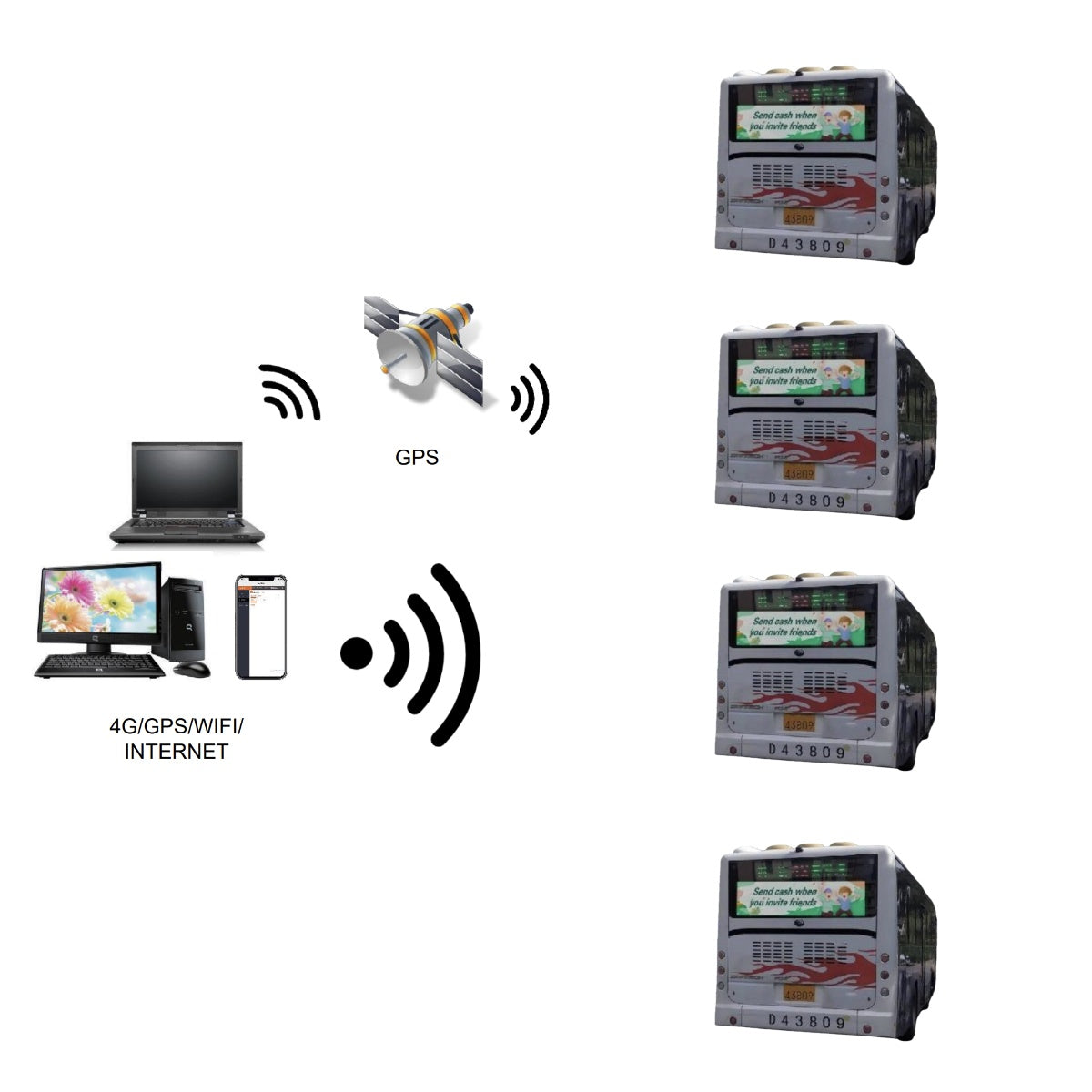

4️⃣ Network Cluster Control (4G Ready)
Supports centralized content management, enabling remote updates, scheduled playback, and synchronized advertising across multiple buses.
(4G SIM card not included)
5️⃣ Shockproof & Durable for Road Conditions
Anti-vibration, dustproof, and reinforced heat-dissipation design ensures reliable performance in complex urban traffic and long-hour operation.
📐 Technical Specifications
Bus LED Advertising Display – Specifications
| Model # | VB2.5 | VB3 | VB4 | VB5 |
| Pixel Pitch | 2.5mm | 3mm | 4mm | 5mm |
| Resolution | 640*128dots | 520*104dots | 400*80dots | 320*64dots |
| Display area (mm) | 1620x320 | 1600x320 | 1536x278 | 1600x320 |
| Physical Size (mm) | 1630x322x65 | 1630x325x65 | 1630x325x65 | 1630x325×65 |
| Brightness | ≥4500CD/m² | ≥4500CD/m² | ≥4500CD/m² | ≥4500CD/m² |
| Avg. Power | 120W | 105W | 85 | 70W |
| Refresh Rate | 3840Hz | 3840 Hz | 3840 Hz | 1920 Hz |
| Weight | 19KGS | 19KGS | 19KGS | 19KGS |

🚌 Typical Applications
-
City buses
-
Shuttle buses
-
Tourist buses
-
Public transportation advertising
-
Mobile digital signage & announcements

📦 Package & Customization
-
LED display cabinet
-
Vehicle mounting brackets
-
Power & control system
-
Optional customization: pixel pitch, display size, control solution
