Description

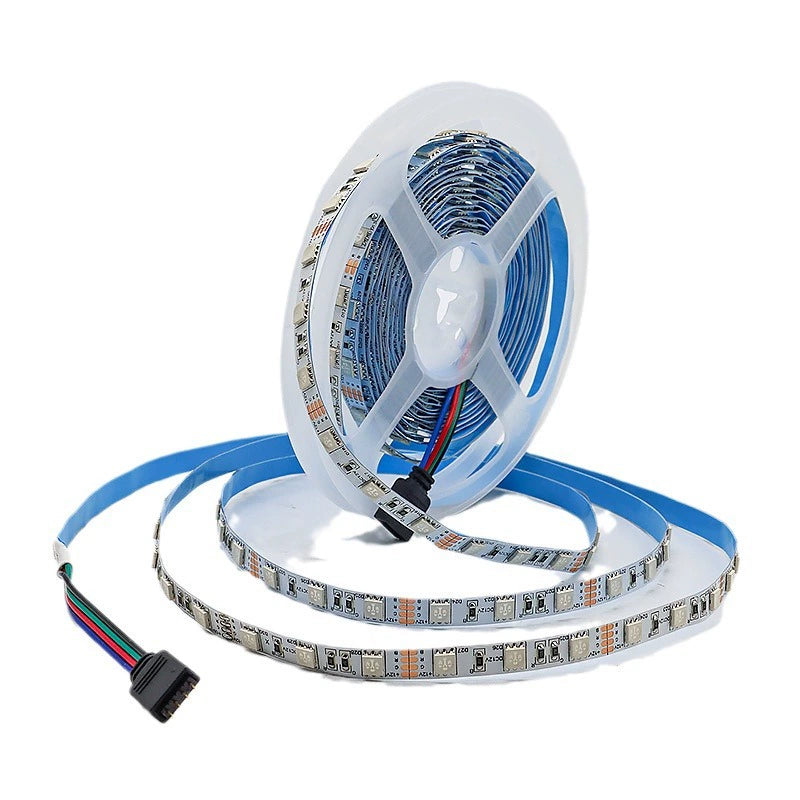

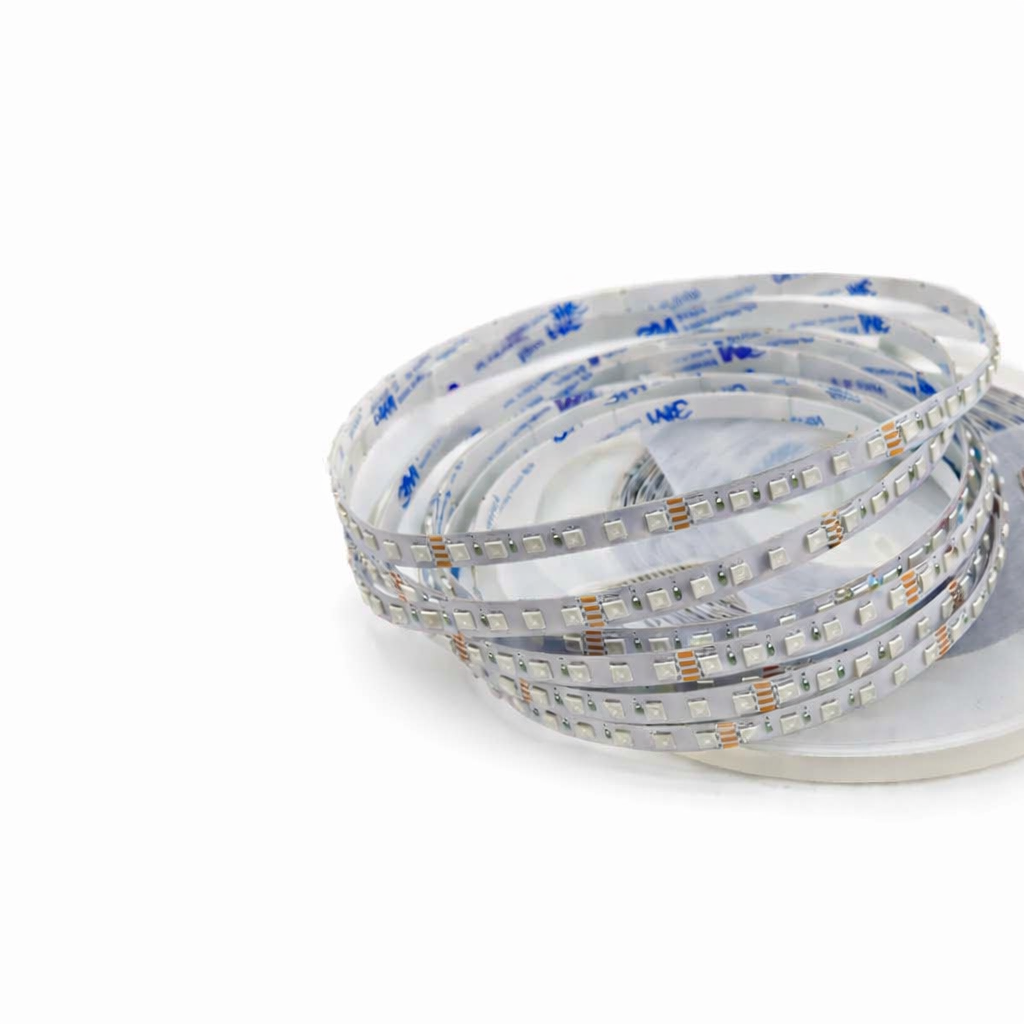

8MM Wide SMD5050 RGB LED Strip Light - DC12V | 60 LEDs/M | 8mm PCB | Non-Waterproof | for Mirror, Kitchen Cabinet, Bedroom | 5/50M
Package Included:
| Version | Package Included |
| 1 Roll × 5 m (16.4 ft total) (Strip Only) | 1 Roll × 5 m (16.4 ft) LED Strip Light Only, Do not include Power Supply and Controller |
| 10 Rolls × 5 m (328 ft total) (Strip Only) | 10 Rolls × 5 m (164 ft total) LED Strip Light Only, Do not include Power Supply and Controller |
| 1 × 5 m Strip + 1 × Controller + 1 × Power Supply (Complete Kit) | 1 Roll × 5 m Strip + 1 × Controller + 1 × Power Supply (Complete Kit) |
About this item
-
Premium SMD5050 RGB Chips for Vivid Color – High-quality RGB LEDs deliver bright multicolor lighting with smooth color transitions, ideal for decorative accents and entertainment lighting setups.
-
Stable Output with Thick Copper-Plated PCB – Built on a thick copper electroplated PCB to improve conductivity and heat dissipation, helping maintain stable performance during long-time use.
-
8 mm Flexible PCB for Easy Routing – Flexible 8 mm strip bends around corners and edges, making it easy to install along mirrors, cabinets, shelves, and indoor outlines.
-
Cuttable by Segment (3 LEDs) – Cut along the marked points every 3 LEDs per segment to customize lengths for DIY projects without affecting the rest of the strip.
-
4-Pin RGB Connection & PWM Control Compatible – Standard 4-pin RGB interface works with compatible PWM RGB controllers for brightness adjustment, color selection, and dynamic lighting modes.
Order & Logistics
- Lead Time: Ships directly from headquarters. Handling time 3–5 business days
- Packing: Carton packaging with protective wrapping
- Shipping:
This series enjoys our Free Shipping Policy for orders over $399.
- HQ Fulfillment (when local stock is unavailable): Standard 9–18 days | Express 5–9 days.
Key Specifications
- Product Model: 5050 60 LEDs RGB Strip Light
- Input Voltage: DC12V
- LED Type: SMD5050
- LED Density: 60 LEDs per meter

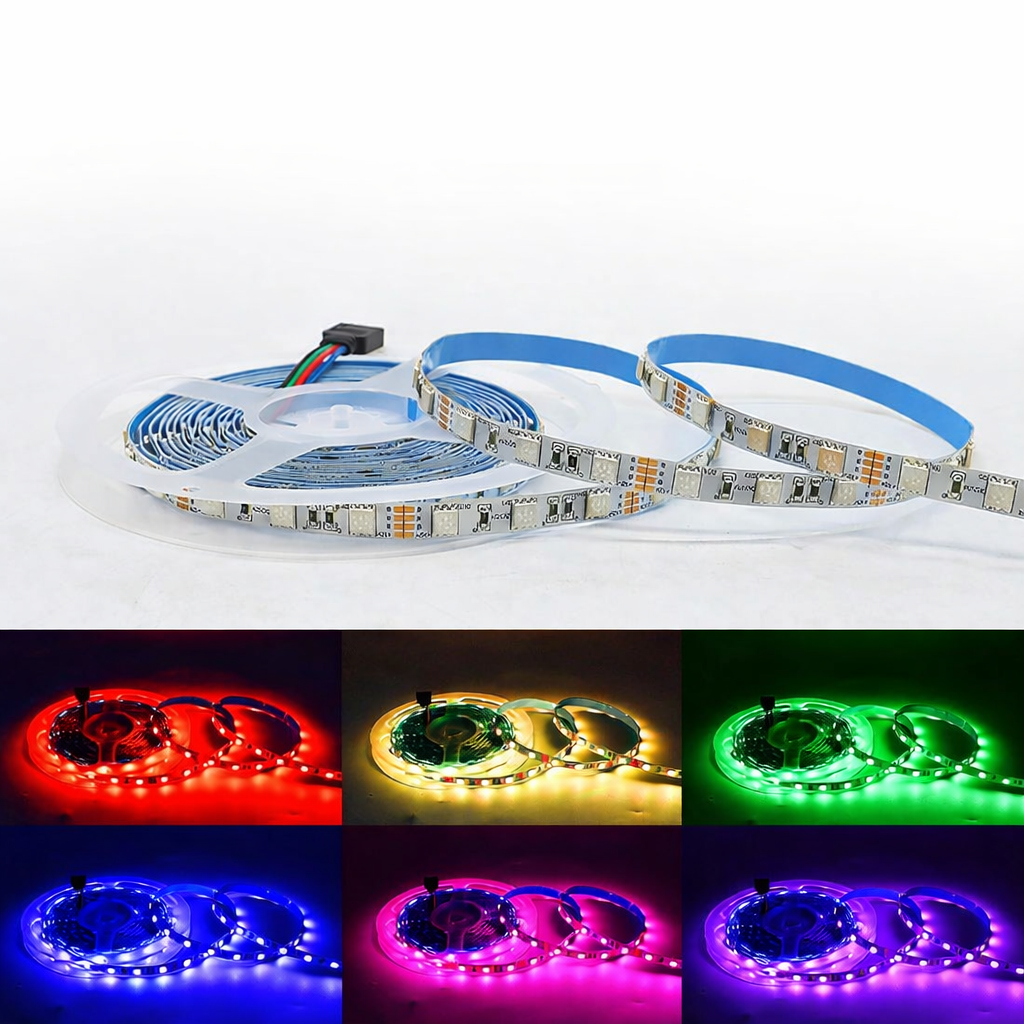

- Color Mode: RGB Multicolor
- Beam Angle: 120°
- PCB Type: Thick copper electroplated PCB

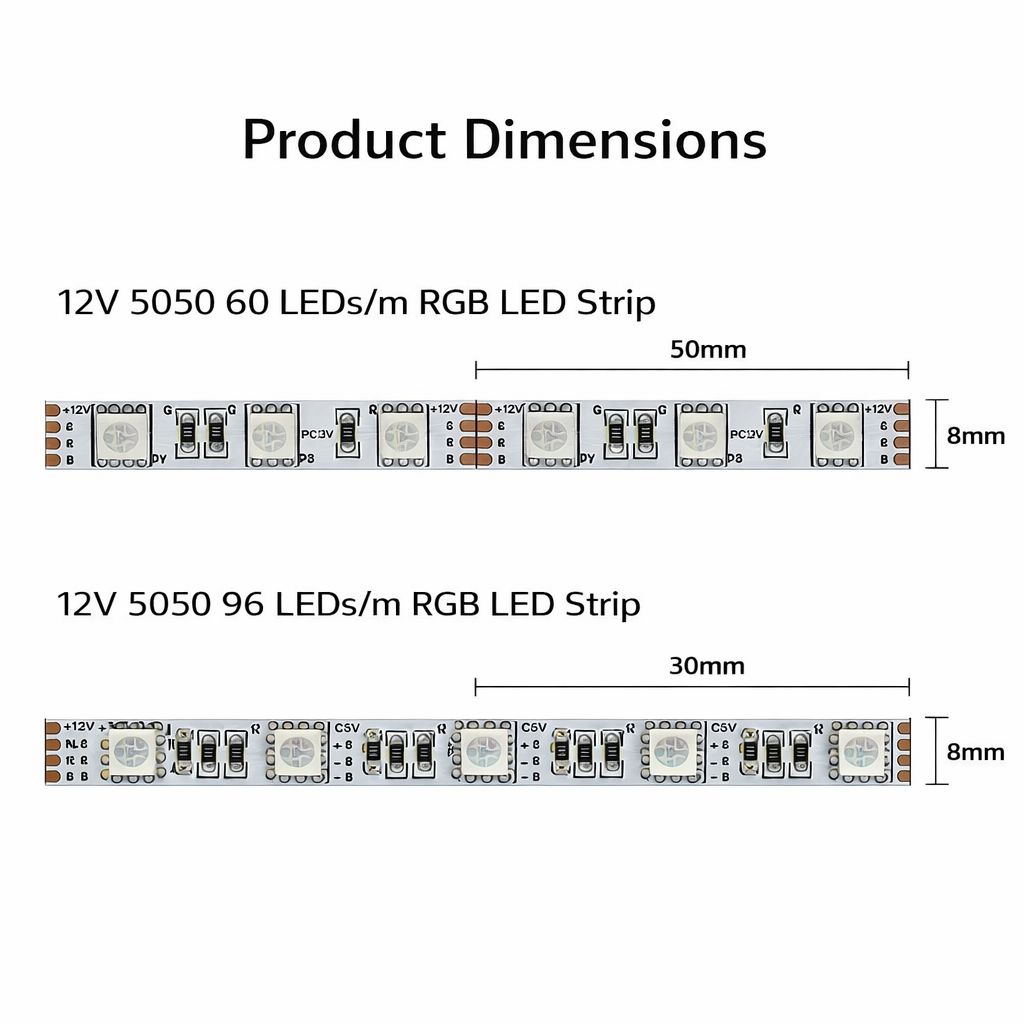

- Strip Width: 8 mm
- Cutting Interval: 3 LEDs per segment
- Connection Type: 4-Pin RGB cable
- LED Chip Brand: Sanan Optoelectronics
- Power Consumption: 14.4 W per meter
- Packaging: 5 meters per roll
Technical Specifications
| Specification | Details |
| Product Type | RGB LED Strip Light |
| Input Voltage | DC12V |
| LED Chip Type | SMD5050 |
| LED Density | 60 LEDs/m |
| Luminous Flux per LED | 22 lm |
| Beam Angle | 120° |
| Power Consumption | 14.4 W per meter |
| Power Factor | 0.95 |
| PCB Width | 8 mm |
| Strip Dimensions | 5000 × 8 × 3 mm |
| Protection Rating | Non-waterproof (IP20) |
| CRI | 70 |
| Lifespan | Up to 50,000 hours |
| Control Type | PWM Controller |
| Connection | 4-Pin RGB Cable |
| Packaging | 5 meters per roll |

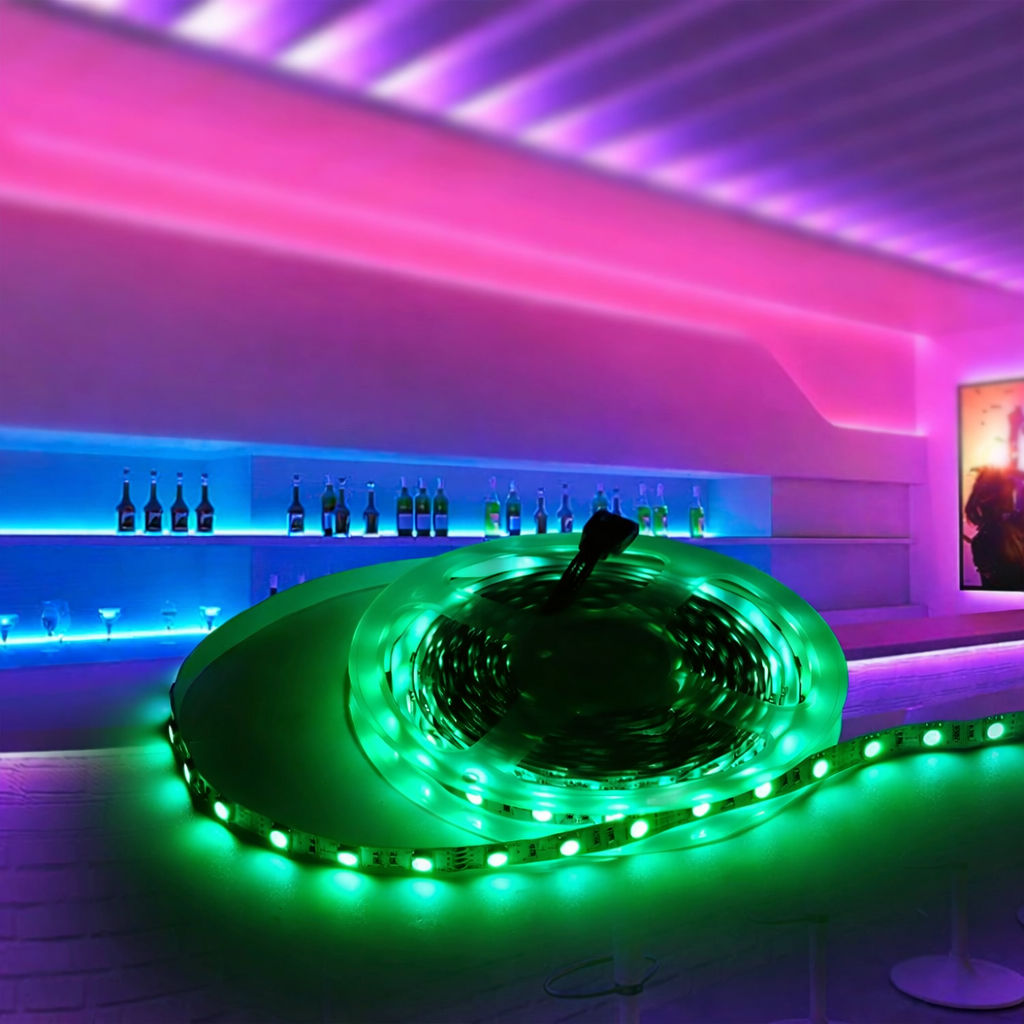

Applications
- KTV and nightclub lighting
- Bar and lounge ambient lighting
- Stage and event lighting
- Retail store decorative lighting
Complete Kit Included:
Strip LED Density Compare:
Waterproof Strip Dimension
- Non-waterproof : Bare Strip, with self-adhesive backing, for indoor or dry location use.
- Waterproof IP65 : Strip Surface is covered on top with Gel, and with self-adhesive backing. IP65 grade can protect sprayed water from all direction
- Waterproof IP67: The bare strip is put in a hollow silicone tube and sealed at two ends. IP67 grade can shortly immersed in water.
- Waterproof IP68: The bare strip is put in a U Shape silicone tube, then covered on top with silicon gel, and sealed at two ends, which make it's solid.IP68 grade can be used under water.
About the Controller in the Complete Kit
Model: SP113E
SP113E 3CH PWM RGB LED Controller, with RE3 2.4G remote control. Built-in rich and diverse RGB color dynamic light effects, with 16 million color range. Utilizes 16KHz PWM high-frequency dimming technology to ensure smooth, even, and stable lighting.
- 3CH PWM RGB Control : Independent control of RGB three colors, built-in a variety of dynamic light effects.
- 16KHz PWM Utilizes : Utilizes 16KHz PWM high-frequency dimming technology to ensure smooth, even, and stable lighting.
- 2.4G RF Remote Control : Distance control up to 30 meters for quick and easy light setting.
- Color Correction: The remote control allows for quick color correction, ensuring that the function of the remote control's color keys matches the actual color of the light.
- 16 Million Colors: 16 million full-color color mixing, with a wealth of color options, with commonly used color gamut, to achieve rapid color mixing.
- Collected Effect Cycle: All lighting effects can be looped for added ambience.
- Timed Lights Off: Support 30 minutes, 60 minutes, 90 minutes timer to turn off the light
- Power-down Memory: Remember your last settings so you don't have to reset them the next time you use it
Strip Usage Notices:
General Information:
