Description

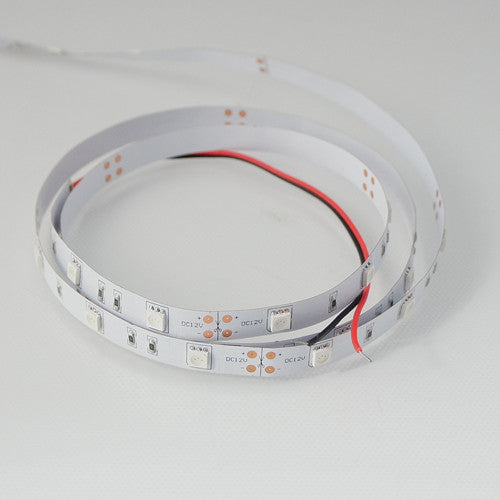

365–370nm SMD5050 UV LED Strip Light – 16.4FT / 5M | 30 / 60 / 120 LEDs/m | DC12V | Non-Waterproof / IP67 Waterproof | Not Include Power Supply | for Curing, Currency Validation & Medical Field
Package Included
| Version | Package Included |
| 30 LEDs/m (Non-Waterproof) | 1 × UV LED Strip 30 LEDs/m, 5M (Non-Waterproof), user manual |
| 30 LEDs/m (IP67 Waterproof) | 1 × UV LED Strip 30 LEDs/m, 5M (IP67 Waterproof), user manual |
| 60 LEDs/m (Non-Waterproof) | 1 × UV LED Strip 60 LEDs/m, 5M (Non-Waterproof), user manual |
| 60 LEDs/m (IP67 Waterproof) | 1 × UV LED Strip 60 LEDs/m, 5M (IP67 Waterproof), user manual |
| 120 LEDs/m (Non-Waterproof) | 1 × UV LED Strip 120 LEDs/m, 5M (Non-Waterproof), user manual |
| 120 LEDs/m (IP67 Waterproof) | 1 × UV LED Strip 120 LEDs/m, 5M (IP67 Waterproof), user manual |
About this item

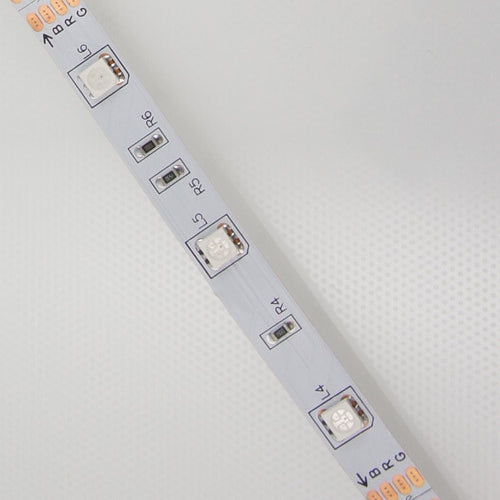

- Uses SMD5050 UV LEDs, available in 365nm-370nm wavelengths.
- Available in different LED densities: 30 LEDs/m (<6W/m), 60 LEDs/m (<12W/m), 120 LEDs/m (<18W/m, dual row).
- Operates on DC 12V with a 120° beam angle.
- Cuttable design: 3 LEDs per 2" (30 LEDs/m), 3 LEDs per 1" (60 LEDs/m), 6 LEDs per 1" (120 LEDs/m).

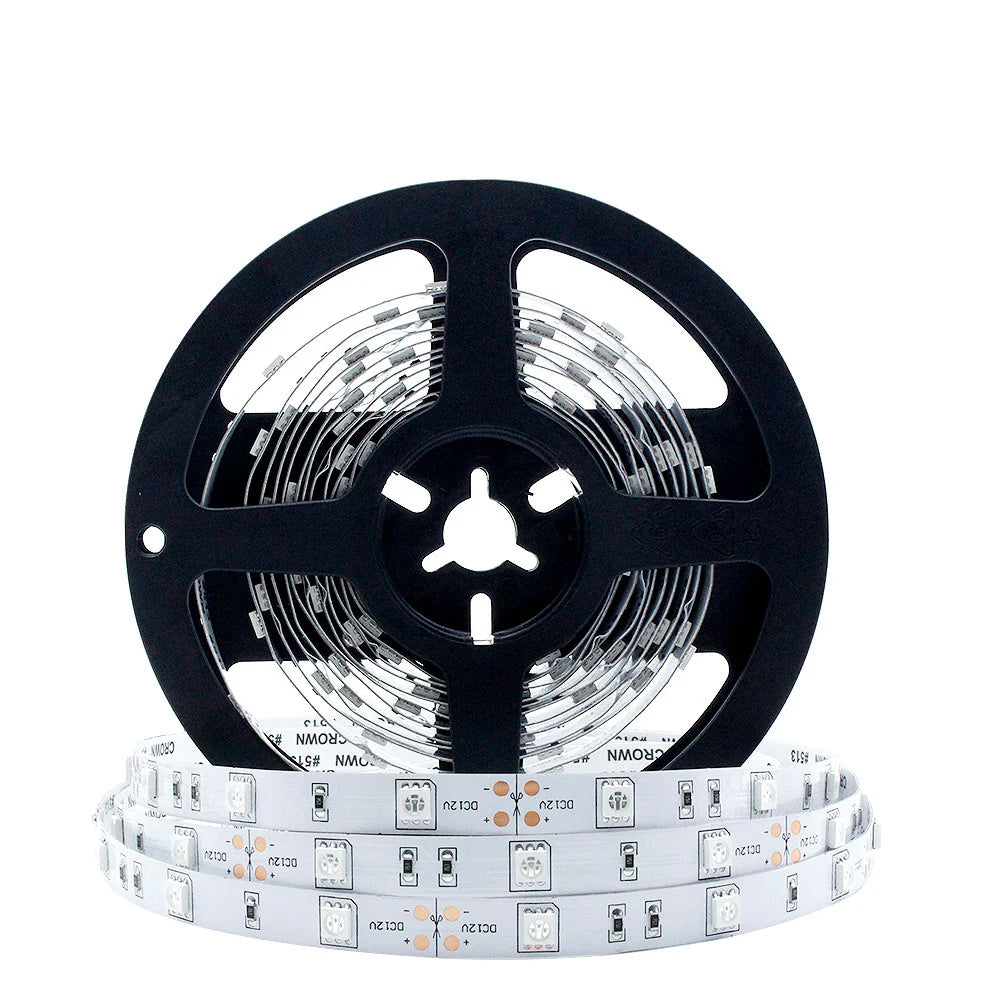

- Available lengths: 5 meters (16.4 ft) per roll.

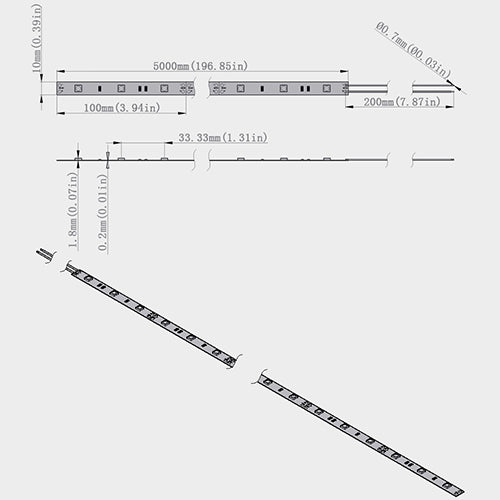

- Flexible white PCB, width x height: 8×2mm (single row), 15×2mm (dual row).
- Waterproof options: Non-waterproof (IP20), IP65 Waterproof, IP67 Waterproof.
- Dimmable with compatible dimmers (more information available based on dimmer applications).
- Features self-adhesive backing for easy installation.
- Emits invisible ultraviolet light, ideal for UV curing, currency validation, mosquito killers, fluorescence disclosing, and medical applications.
Order & Logistics
- Lead Time: Typically ships within 3–5 business days.
- Packing: Cardboard box.
- Shipping: Ships from our headquarters (9-18 days standard / 5-9 days express).

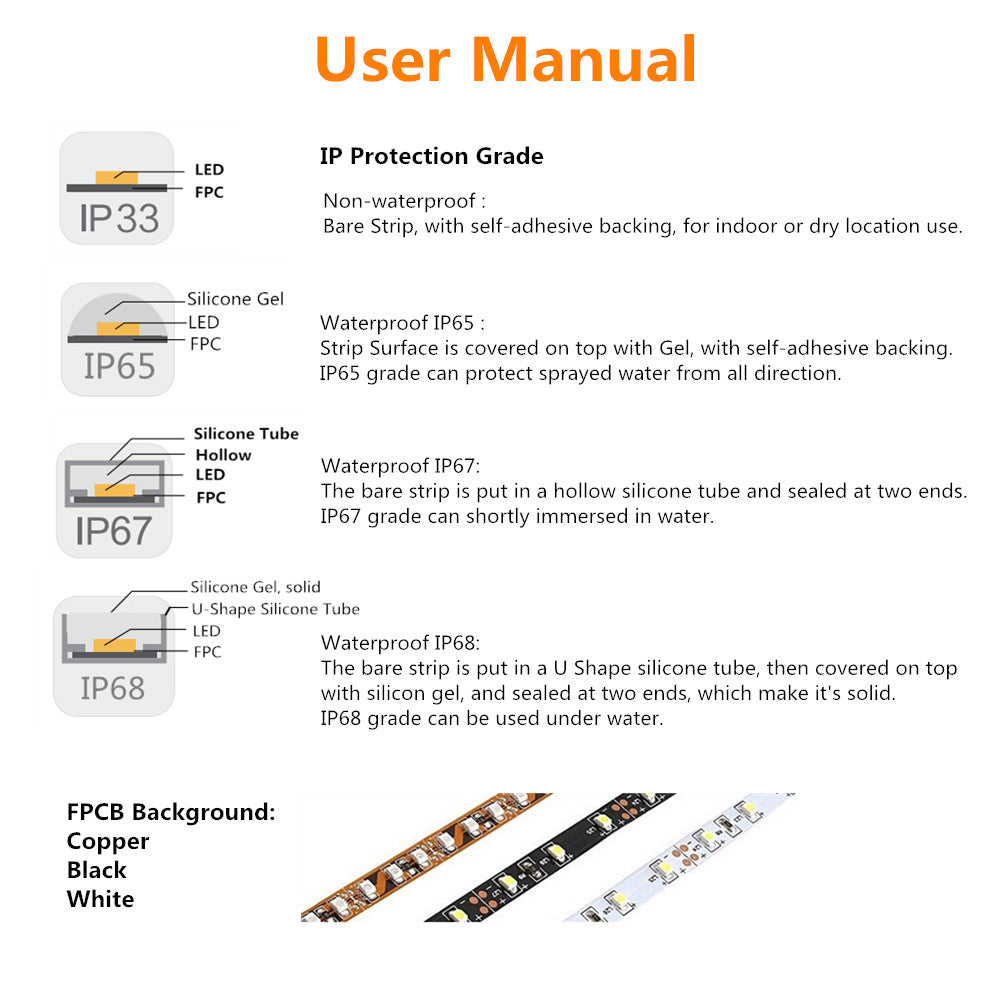

Type of LED & Different Waterproof IP Grade
- Non-waterproof (IP20): Bare strip, self-adhesive backing, for indoor/dry use.
- Waterproof IP65: Surface covered with gel, self-adhesive backing. Protects from sprayed water from all directions.
- Waterproof IP67: Strip enclosed in a hollow silicone tube, sealed at both ends; suitable for short-term immersion in water.
- Waterproof IP68: Strip enclosed in U-shape silicone tube, covered with silicone gel, sealed at both ends; suitable for underwater use.
Installation Tips
- Always disconnect power before cutting or connecting LED strips.
- Do not crimp, bend width-wise, or bend to a radius less than 15mm.
- Do not connect directly to 120V AC power.
- Test LED strips before mounting.
How to Power / Control the Strip
- When selecting a transformer: Choose based on total wattage of connected strips.
- Always select a transformer with higher wattage than the strip’s rated power to avoid full-load operation.
- A higher wattage transformer is safe and helps prolong lifespan.

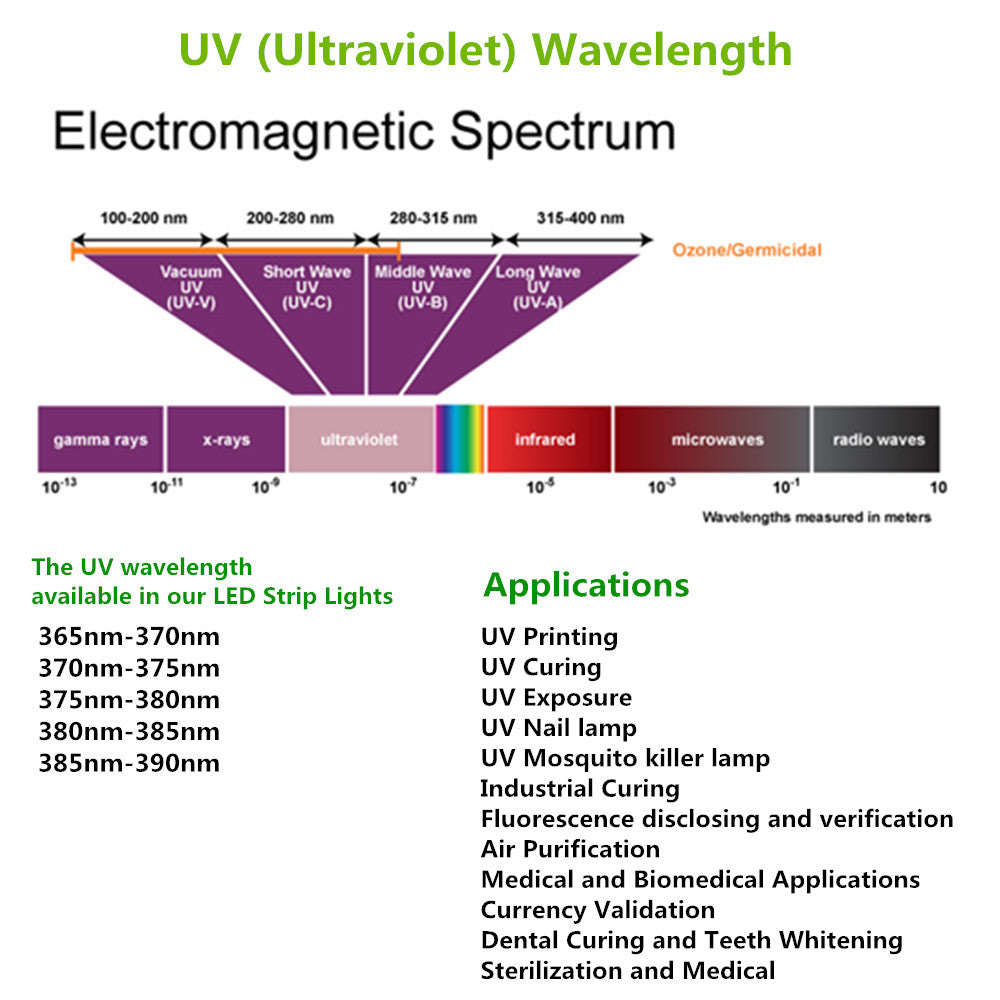

Applications
- Security camera night vision
- UV Sensing and automation systems
- Industrial equipment illumination
- Special-purpose lighting
- UV Printing, UV Curing, UV Exposure
- UV Nail lamp, UV Mosquito killer lamp
- Industrial Curing, Fluorescence Disclosing and Verification
- Air Purification, Medical and Biomedical Applications
- Currency Validation, Dental Curing and Teeth Whitening
- Sterilization and Medical
Warnings and Handling Instructions on UV LED Lights
- UV-LEDs emit invisible ultraviolet radiation when in operation, which may be harmful to eyes or skin, even for brief periods. Do NOT look directly into the UV-LED during operation. Be sure that you and all persons in the vicinity wear adequate "UV" safety protection for eyes and skin.
- If you incorporate a UV-LED into a product, be sure to provide WARNING labels.
