Description

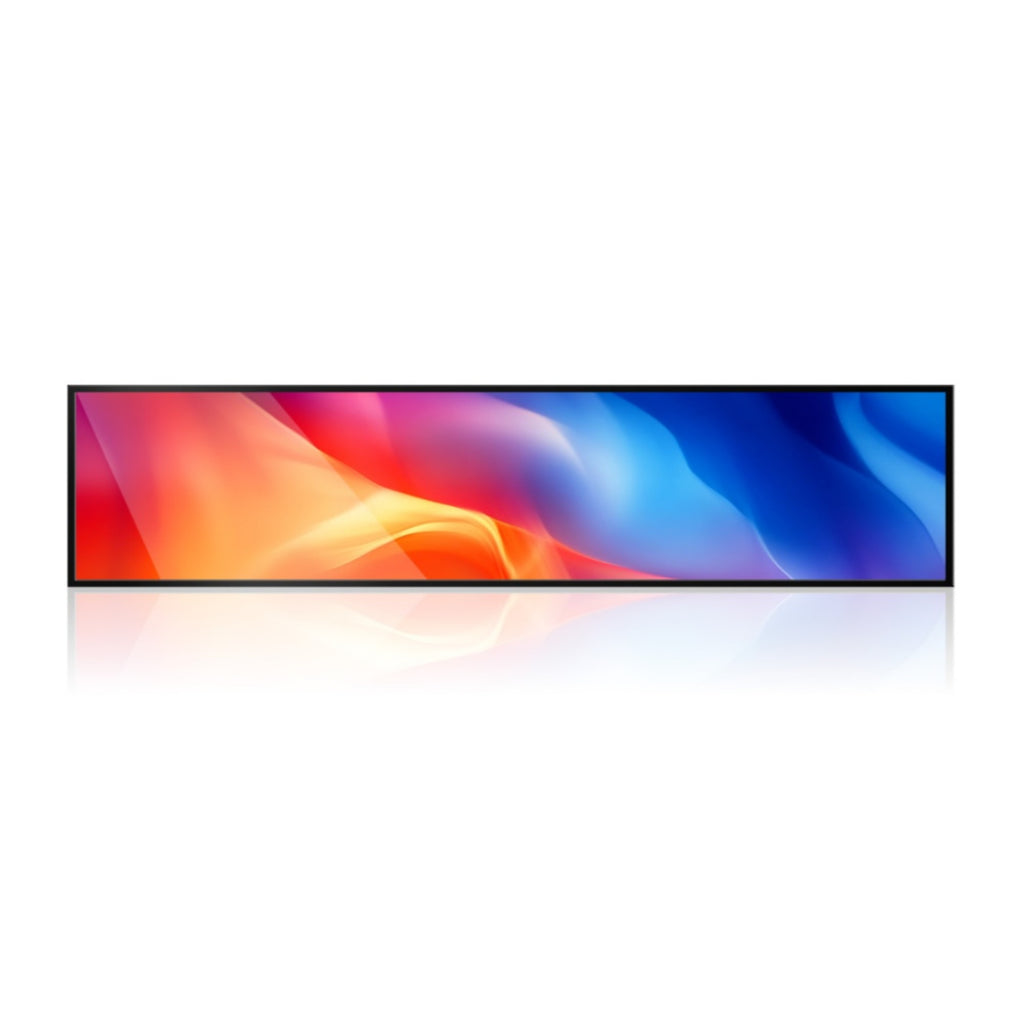

Stretched LCD Bar Display – 28.1" Ultra-Wide Android Digital Signage | Cloud / Mobile / USB Control
Package Included
| Version | Package Included |
| TXP-28.1" | LCD Bar Display ×1, Power Adapter ×1, Mounting Kit ×1, User Manual ×1 |
About this item
- Ultra-wide LCD bar screen with Android OS, ideal for shelf-edge advertising, signage, and creative installations
- Multiple sizes available, resolutions up to 3840×1080 for ultra-clear display
- Durable aluminum frame + tempered glass ensures long service life
- Control methods: Cloud Platform, LEDArt App, USB plug & play, LAN / Wi-Fi
- Optional capacitive touch screen for interactive applications
- Widely used in retail shelves, shopping malls, exhibitions, transportation hubs, and creative installations
- Display Example Image
Order & Logistics
- Lead Time: Standard 10–15 business days (production scheduling); if in stock, ships within 5 business days
- Packing: Corrugated Carton (with protective foam inside)
- Shipping: Ships from headquarters
- Standard: 7–25 days
- Express: 3–10 days
- DDP TERM (all fees included) except when unavailable in destination country → we will contact the buyer
PARAMETERS (DOWNLOAD DATA-SHEET)
| Parameter | Value |
| Model # | TXP-28.1'' |
| Screen Dimensions | 28.1 inch |
| Screen Vendor | LG |
| Resolution | 1920×385 |
| Display size (mm) | 698.5(H) × 140(V) |
| Brightness | 500 cd/m² |
| Contrast | 1200:1 |
| Viewing angle (H/V) | 89/89/89/89 (Min.) (CR≥10) |
| Response Time | 8ms (typ.) |
| Display Color | 16.7M |
| Pixel Pitch | 0.27963 × 0.27963 mm |
| Refresh Rate | 60Hz |
| Control Board | Motherboard: RK3568; 4 Core ARM Cortex-A55, 2.0GHz, Mali-G52 GPU |
| Internal Cache (RAM) | 2G |
| Internal Storage (ROM) | 16G |
| System | Android 11 |
| Audio | Speaker (Optional) |
| Remote | Remote control (Optional) |
| Touch | IR Touch (Optional) |
| Interface | USB3.0, OTG, TF-card, Audio, RJ45, HDMI out, DC-IN |
| Weight | Net weight around 5kgs |

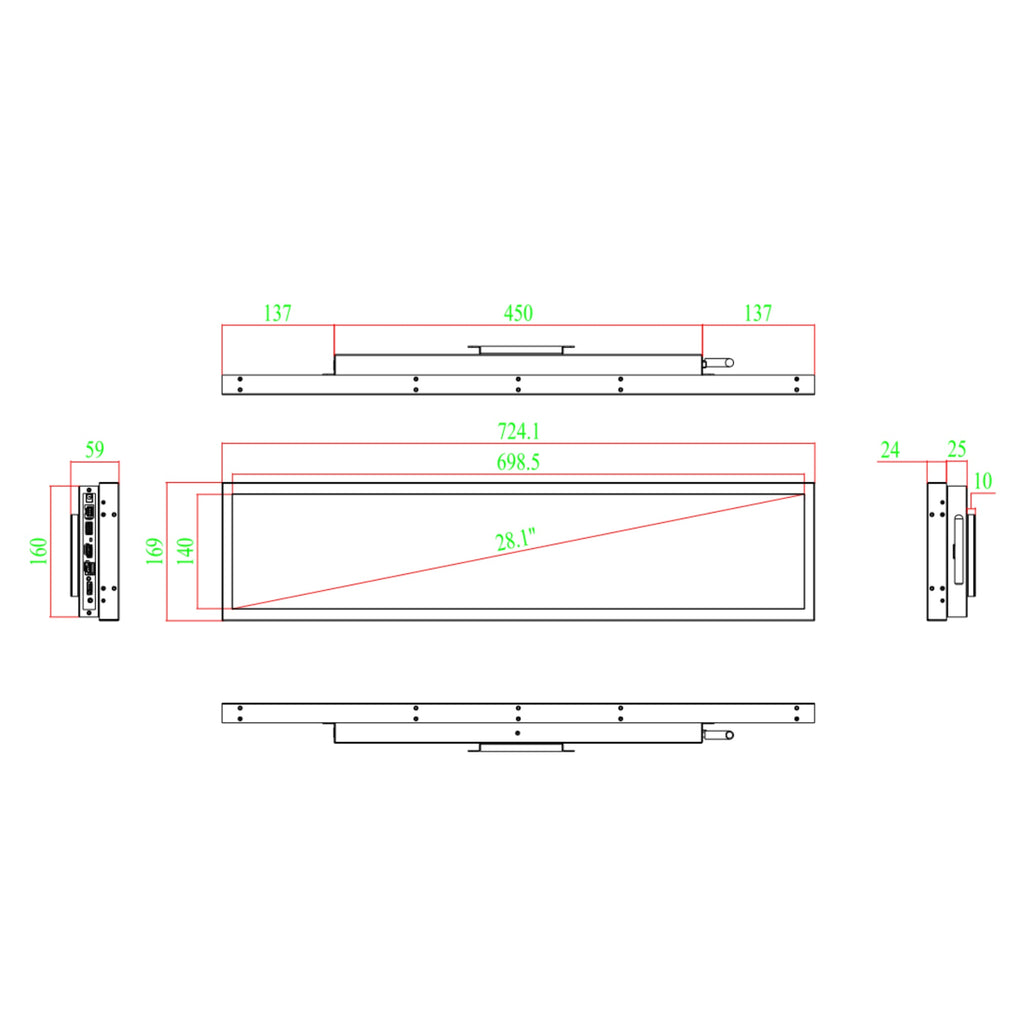

| Housing | Complete machine size: 724.1 × 169 × 59 mm; Casing material: Iron Metal Sheet |
| Power | Power input voltage: AC220V 50-60Hz; Complete machine power ≤40W; Standby power <1W |
| Environment | Operating temperature: 0℃～+50℃; Operating humidity: 10%～90% RH Non-Condensing; Storage temperature: -20℃～60℃; Storage humidity: 5%～95% RH Non-Condensing |
| Language | OSD: English/Chinese |
Usage Notes / Installation Tips
| Send Program via Cloud Platform | Send Program via LEDArt | Play Program via U-disk/SD card |
|---|---|---|
| Login cloud platform Create and edit programs Send programs to the device NOTE: The device mode needs to be adjusted to networking mode and associated with the cloud platform account. Cloud server address: http://www.led-cloud.cn / http://www.led-cloud.com
|
Run mobile APP LEDArt Create and edit programs Send program to the device NOTE: The device mode needs to be adjusted to stand-alone mode, and the mobile phone is in the same local area network
|
Save programs into U-disk or SD Card Insert U-Disk or SD Card Playback program automatically NOTE: The device mode needs to be adjusted to stand-alone mode, and the system format of the U-disk/SD Card needs to be FAT32
|
Applications
- Retail shelf-edge displays
- Shopping mall signage
- Exhibition & trade show displays
- Airport / metro / bus station information boards
- Creative installations & advertising walls
