Description
Product Overview

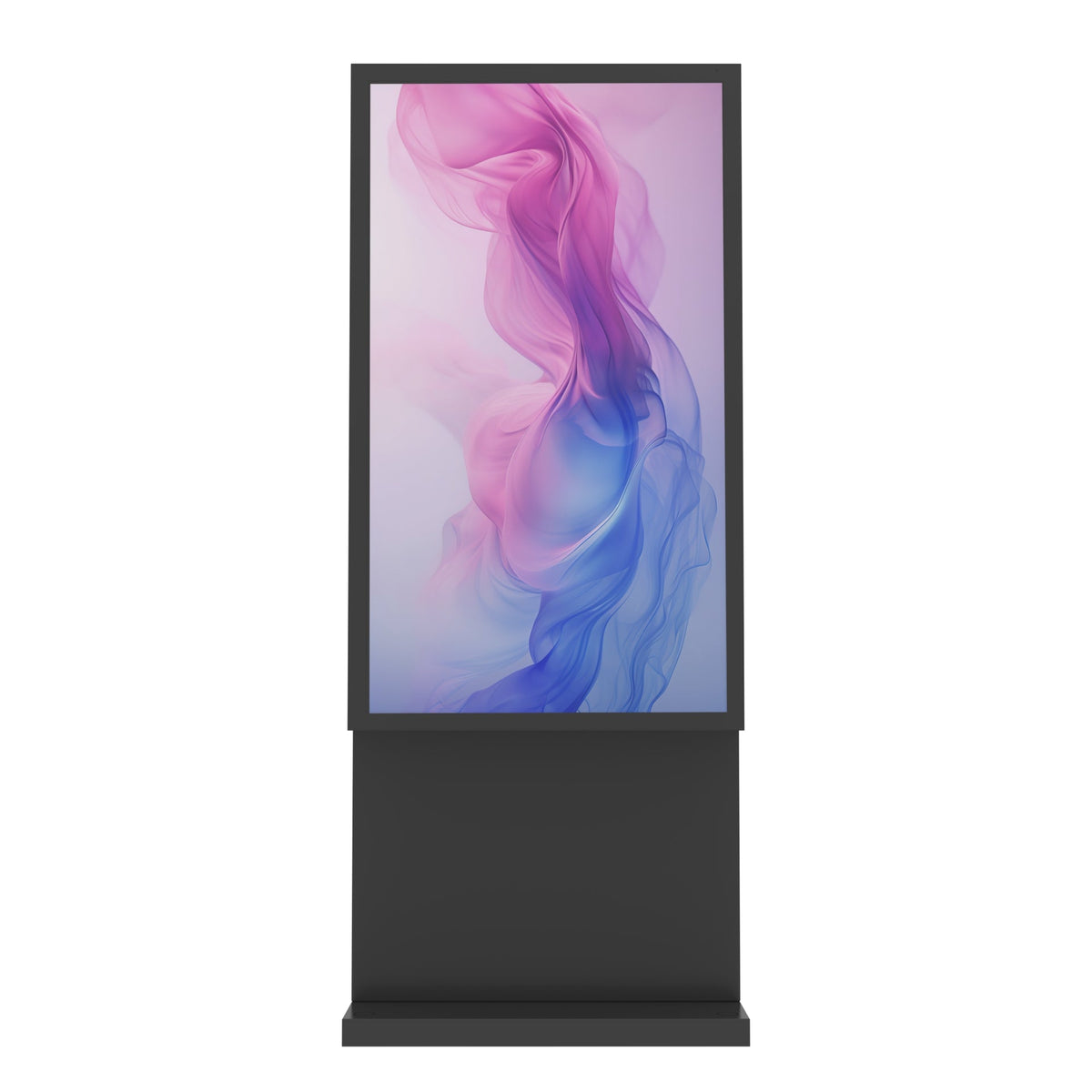

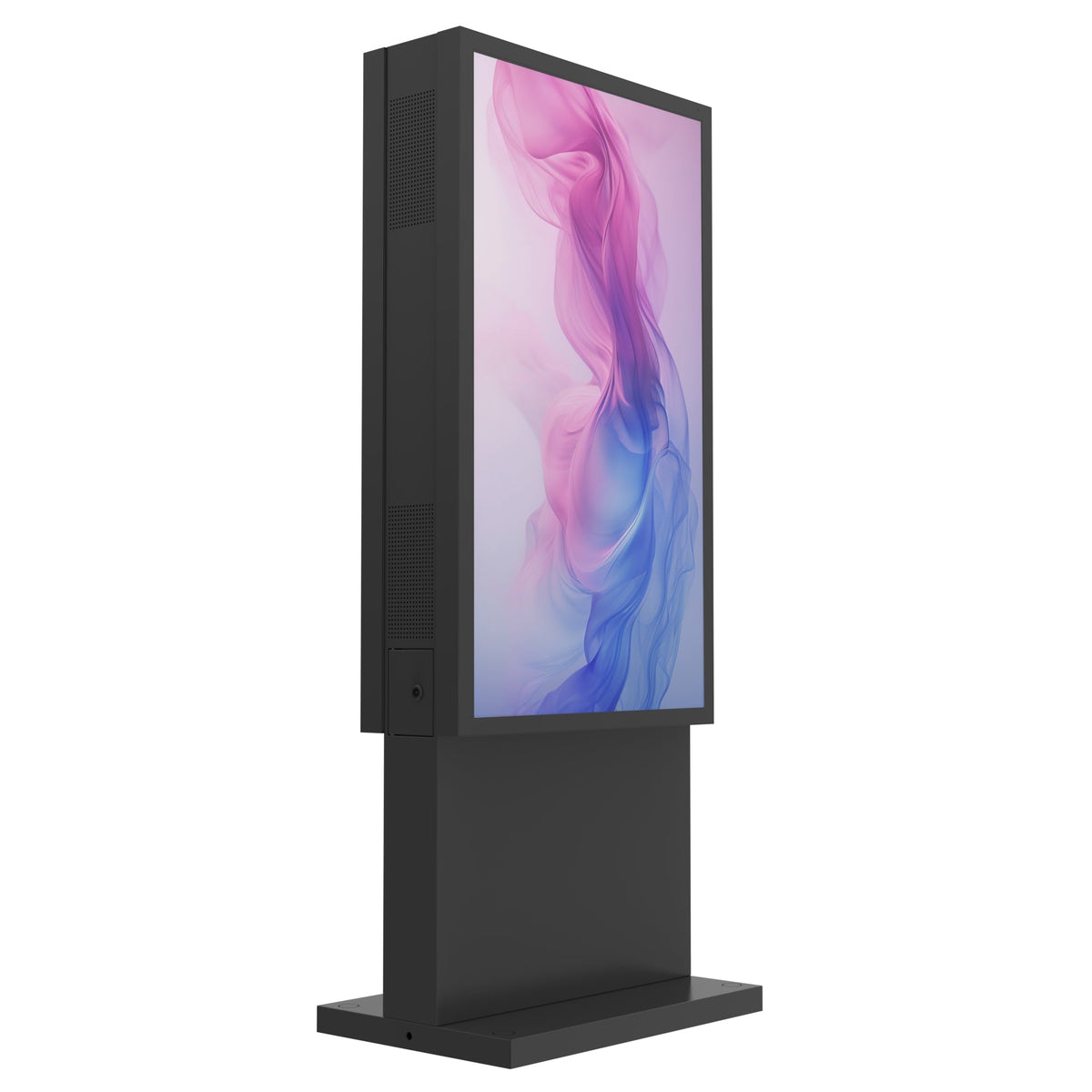

This product consists of two screens installed back to back and facing the two opposite directions. It is a front-and-back multi-sided outdoor digital display that be able to attract views from all directions.
This floor-standing outdoor digital signage system combines two independently controlled screens in one IP66 weatherproof enclosure. The two screens can display synchronized content for a unified presentation or play different content independently, making the system ideal for advertising, digital menus, wayfinding, public information and interactive applications.
Available with three 43-inch, 55-inch or 65-inch screens, the display features 2500-nit sunlight-readable LCD panels, full optical bonding, intelligent temperature control and optional projected capacitive touchscreens.
Five Key Features

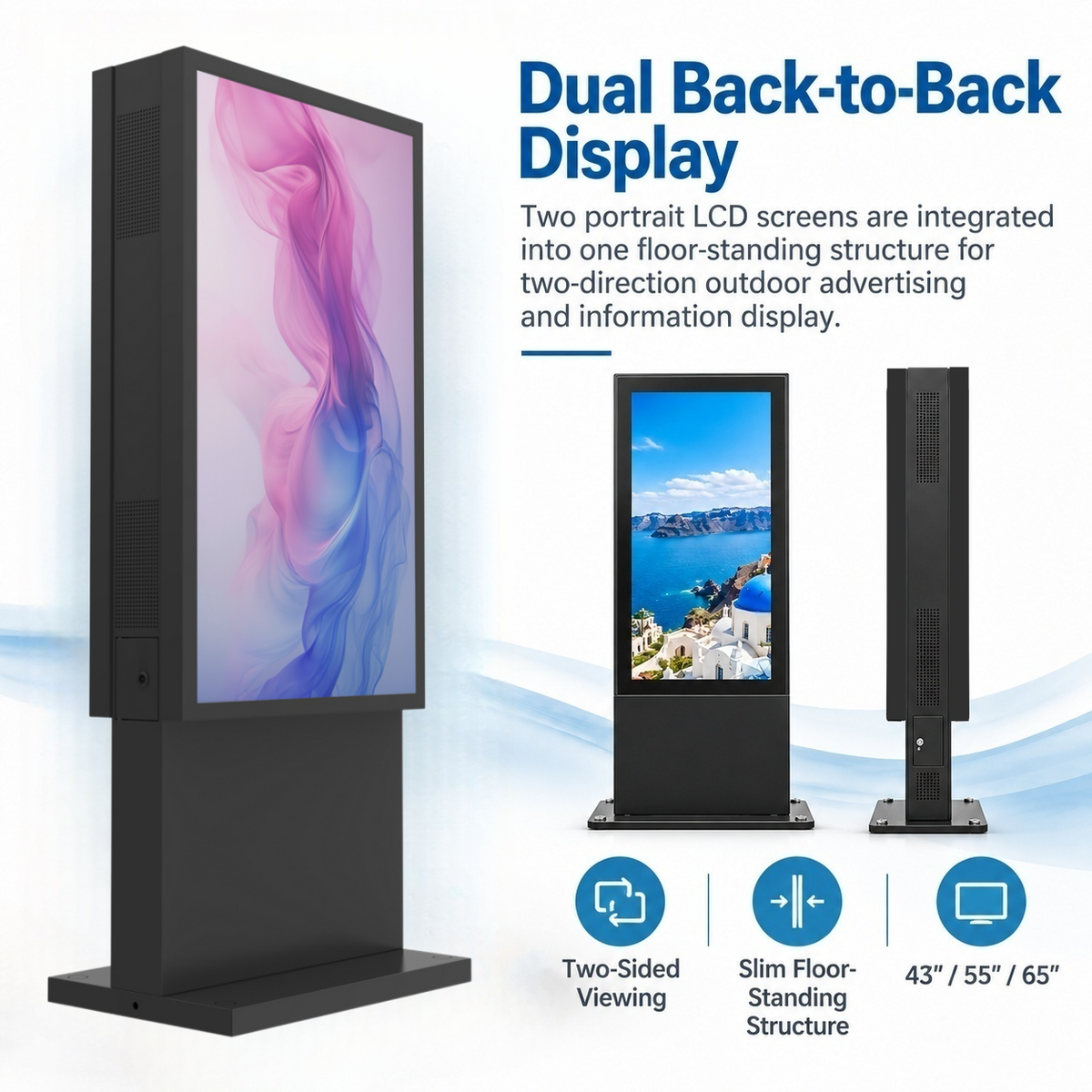

1. Dual-Sided Back-to-Back Display
Featuring two portrait LCD screens integrated into one floor-standing enclosure, this outdoor digital signage delivers clear advertising content in two directions. Ideal for shopping malls, commercial entrances, sidewalks, and other high-traffic locations.

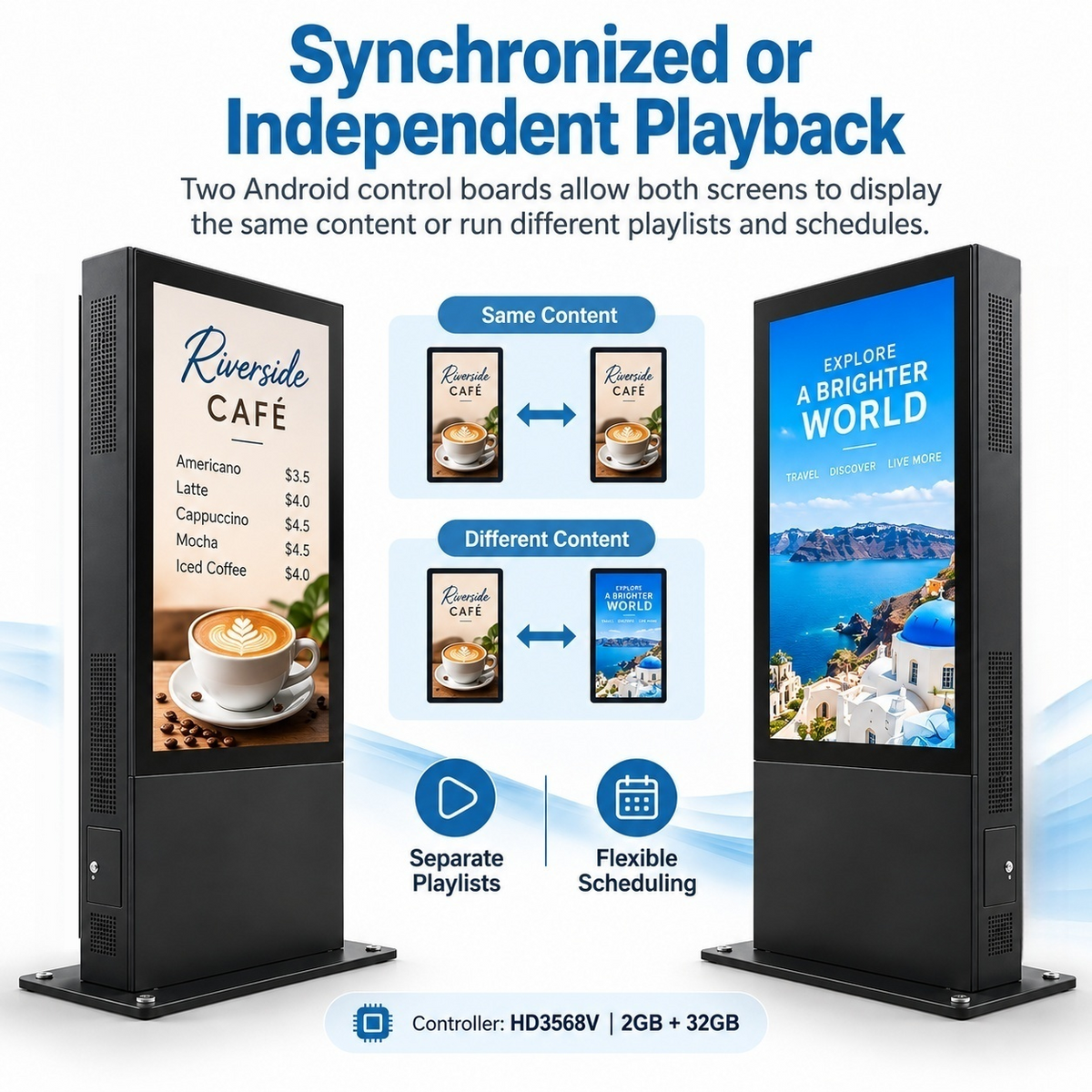

2. Synchronized or Independent Content Playback
Equipped with two Android control boards, the dual-screen system supports synchronized or independent content playback. Display identical advertisements on both sides or run different videos, images, playlists, and schedules independently for flexible content management.
3. 2500-Nit High Brightness for Outdoor Visibility
Featuring high-brightness LG or BOE wide-temperature LCD panels, this display delivers 2500 nits of brightness for improved visibility in bright outdoor environments. The high-brightness panels help maintain clear and vivid advertising content under strong ambient lighting.
4. IP66 Waterproof & Durable Outdoor Construction
Designed for outdoor applications, the IP66-rated enclosure provides protection against dust and water ingress. An industrial aluminum front frame with outdoor-grade powder coating enhances durability and corrosion resistance. Intelligent temperature-controlled cooling helps maintain stable operation.

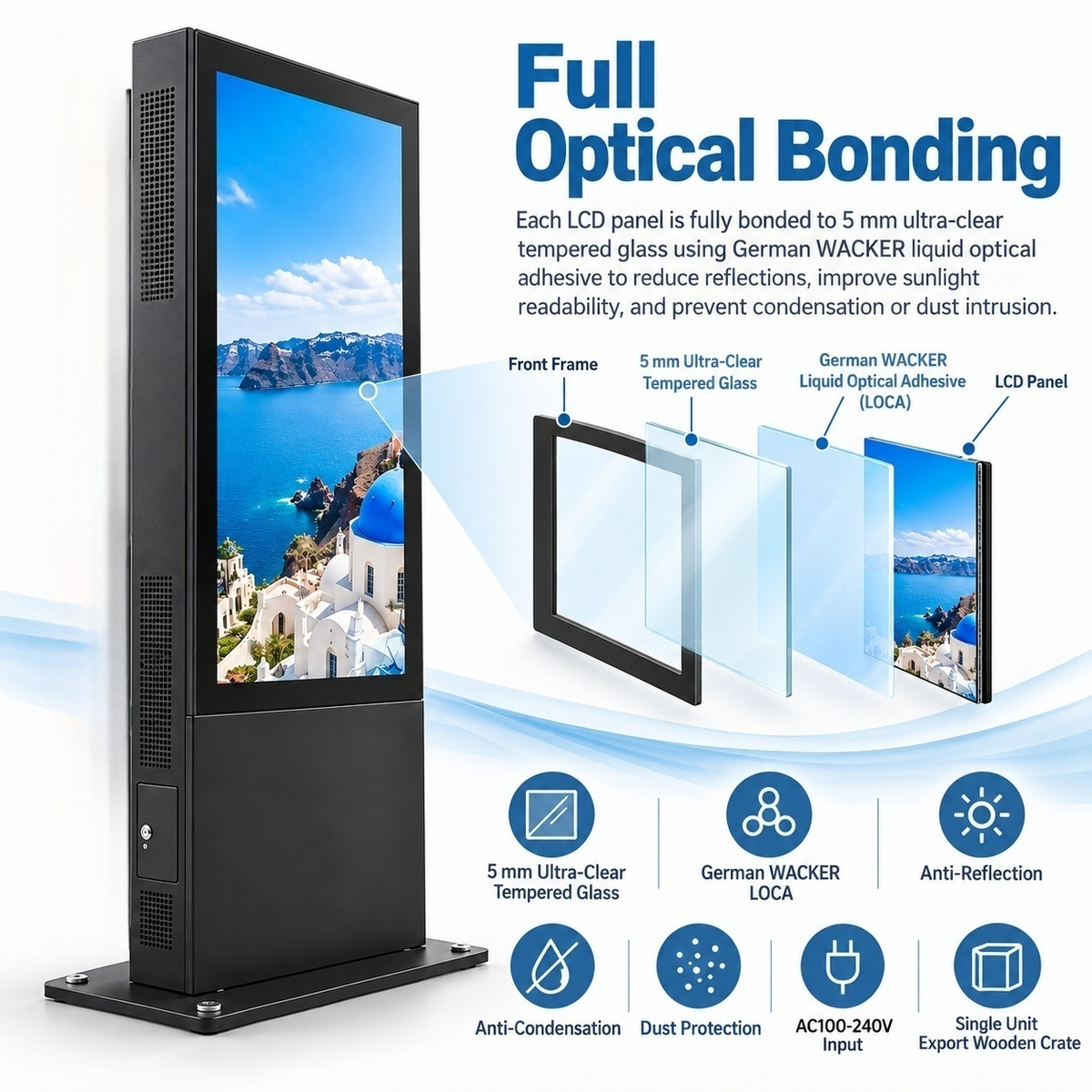

5. Full Optical Bonding with 5mm Tempered Glass
The display features 5mm ultra-clear tempered glass fully bonded to the LCD panel using German WACKER optical adhesive. This construction helps minimize internal reflections, improve sunlight readability, and prevent moisture and dust from entering the space between the glass and LCD panel.
Back to Back Two-Screen Presentation
The two-screen layout provides a multi-direction display while retaining the flexibility of two independently controlled Full HD displays.
Typical content configurations include:
- One synchronized campaign across all two screens
- Two separate advertisements
- Main advertising content with two information screens
- Menu, promotion and ordering information
- Maps, directions and visitor information
- Product catalog, branding and interactive content
Each screen has a native resolution of 1920 × 1080 pixels for 43'' and 55'', while 65'' has 3840 x 2160 pixels.
Smart and Quiet Temperature Control
The integrated intelligent thermal-management system regulates the internal operating temperature according to environmental conditions. Its ultra-quiet design supports stable operation while minimizing fan noise and routine maintenance requirements.
The display is designed for operation in ambient temperatures from -20°C to 50°C.
Two Android Control System
Each screen is equipped with an independent Android control board, allowing all two screens to operate together or separately.
Standard configuration per screen:
- HUIDU HD3568V / RK3568 platform
- Android 11
- Quad-core processor up to 2.0 GHz
- 2 GB RAM
- 32 GB internal storage
- Dual-band Wi-Fi
- Gigabit Ethernet
- HDMI input
- LVDS, eDP or V-by-One display interface
Content, playlists, schedules and synchronized or independent playback modes can be configured through the supported application.
Optional Capacitive Touchscreens
The double-sided screen display is available in touch and non-touch configurations.
Touch functionality can be specified for all two screens ( it's also availble for only 1 screen with touch if need, please contact us).
The optional projected capacitive touchscreen configuration is suitable for interactive directories, product selection, self-service applications and visitor-information systems.
Please specify which screens require touch functionality when requesting a quotation.
Technical Specifications
| Specification | Double-Sided 43" | Double-Sided 55" | Double-Sided 65" |
|---|---|---|---|
| Number of Screens | 2 | 2 | 2 |
| Screen Arrangement | Back to Back | Back to Back | Back to Back |
| Panel Technology | IPS | IPS | IPS |
| Display Orientation | Portrait | Portrait | Portrait |
| Resolution per Screen | 1920 × 1080 | 1920 × 1080 | 3840 × 2160 |
| Brightness | 2500 nits | 2500 nits | 2500 nits |
| Contrast Ratio | 1200:1 | 1200:1 | 1200:1 |
| Viewing Angle | 178°/178° | 178°/178° | 178°/178° |
| Surface Treatment | 3% haze | 3% haze | 3% haze |
| Rated Panel Lifetime | 50,000 hours | 50,000 hours | 50,000 hours |
| Operating Temperature | -20°C to 50°C | -20°C to 50°C | -20°C to 50°C |
| Operating Humidity | 10%–85% | 10%–85% | 10%–85% |
| Weather Protection | IP66 | IP66 | IP66 |
| Protective Glass | 5 mm ultra-clear tempered glass | 5 mm ultra-clear tempered glass | 5 mm ultra-clear tempered glass |
| Bonding Method | Full optical bonding | Full optical bonding | Full optical bonding |
| Input Voltage | AC 100–264 V, 50/60 Hz | AC 100–264 V, 50/60 Hz | AC 100–264 V, 50/60 Hz |
| Maximum Power per Screen | 180 W | 200 W | 280 W |
| Number of Android Mainboards | 2 | 2 | 2 |
| Mainboard Configuration | RK3568, 2 GB + 32 GB | RK3568, 2 GB + 32 GB | RK3568, 2 GB + 32 GB |
| Operating System | Android 11 | Android 11 | Android 11 |
| Network | Dual-band Wi-Fi and Gigabit Ethernet | Dual-band Wi-Fi and Gigabit Ethernet | Dual-band Wi-Fi and Gigabit Ethernet |
| Playback Mode | Synchronized or independent | Synchronized or independent | Synchronized or independent |
| Touchscreen | Optional | Optional | Optional |
Power consumption varies according to brightness, temperature-control activity, touchscreen selection and system configuration.
Typical Applications
- Outdoor retail advertising
- Shopping centers and commercial plazas
- Restaurant and drive-through menu boards
- Hotel and resort entrances
- Transportation hubs
- Outdoor information kiosks
- Corporate and campus wayfinding
- Tourist attractions
- Public information displays
- Interactive directories
- Self-service terminals
- Event and exhibition entrances
- Large-format promotional displays
Package Includes
- 1 × Outdoor Double-Sided LCD digital signage system
- 1 × Floor-standing support structure
- AC power connection
- Export wooden crate
Touchscreen hardware, customized branding and other optional components are included only when specified in the quotation.
Production Lead Time
| Material Availability | Estimated Production Time |
|---|---|
| Materials in stock | 10–15 days |
| Materials not in stock | Approximately 25 days |
Estimated Transportation Time
| Shipping Method | Estimated Transit Time |
|---|---|
| Air shipping | 12–18 days |
| Sea shipping to the United States | 35–40 days |
| Sea shipping to Europe | 55–60 days |
Production and transportation times are estimates. Actual timing may vary according to screen size, touchscreen selection, order quantity, destination, vessel or flight availability and customs clearance.
