Why Troubleshooting Matters in LED Control Systems

When an LED display suddenly goes dark, starts flickering, or produces unusual color patterns, the problem often lies not in the screen itself but in the control system behind it. A complete LED control system is typically composed of a sending card, receiving card, video processor, and sometimes a multimedia player box. Each of these components ensures smooth, synchronized, and high-quality playback.

This guide is designed to help you understand the most common LED control system failures, identify their causes, and apply effective solutions—whether you are managing a commercial advertising screen, a control room display, or a stage backdrop.

Recognizing the Symptoms of Control System Issues

Not all LED screen failures look the same. Understanding the symptoms helps narrow down the cause:

• No display (black screen): The display remains dark even when powered on.



• Unstable picture: The image flickers, shows ghosting, or jitters.



• Incorrect colors: Red may appear as blue, or colors shift unexpectedly.



• Asynchronous playback: Video or content lags or doesn’t sync properly.



• Partial display loss: Only part of the screen shows content, or sections are missing.



• No connection to software: The screen cannot be recognized by the control software.



Each of these symptoms typically points to specific hardware or software problems within the control system.

Step-by-Step Troubleshooting Process

Step 1: Check Power Supply

Power problems are the most common and often the simplest to fix.

• Ensure the LED screen and control cards are receiving the correct DC voltage.



• Inspect power cables for loose connections, burnt smells, or visible damage.



• Use a multimeter to confirm a stable output from the power supply.



Step 2: Inspect Sending Card and Data Cables

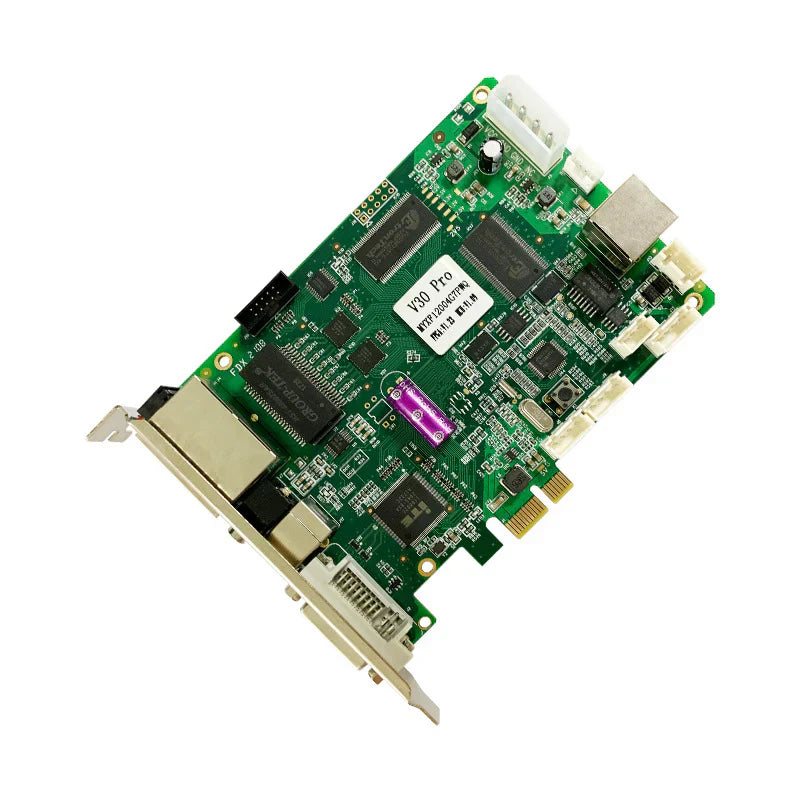

The sending card is the heart of the control system, transmitting signals from your computer to the LED display.

• Confirm the sending card is securely connected to both the computer and the display.



• Inspect DVI/HDMI cables for wear or broken pins.



• Verify that driver software (such as NovaLCT or LEDSet) recognizes the sending card.



Step 3: Test Receiving Cards

When parts of the display are missing or show incorrect content, the receiving card may be the culprit.

• Swap in a working receiving card to see if the problem resolves.



• Confirm the correct configuration in the software.



• Ensure ribbon cables inside LED cabinets are properly connected.



Step 4: Review Software Settings

Software misconfiguration often causes color shifts, delayed playback, or mapping errors.

• Verify the correct resolution, refresh rate, and color depth.



• Check the cabinet arrangement mapping to ensure proper pixel alignment.



• Reload configuration files from a backup if available.



Step 5: Examine Video Processor or Media Player

For setups using a video processor or player box:

• Confirm the correct input source is selected.



• Check scaling, aspect ratio, and output resolution.



• Restart the processor or player to refresh connections.



Common Root Causes and Their Solutions

Preventive Measures to Avoid Future Failures

Fixing an LED control issue can be stressful—but preventing it is much easier. Consider these best practices:

• Keep backups: Always have spare sending and receiving cards on-site.



• Use high-quality cables: Shielded cables reduce interference and improve reliability.



• Stabilize power: Use surge protection and voltage stabilizers to protect sensitive electronics.



• Update software regularly: Keep firmware and control software up to date with stable versions.



• Backup configuration files: Store multiple copies of screen settings for quick recovery.



• Plan redundancy: For mission-critical displays, dual sending cards and backup processors are worth the investment.



Final Thoughts

A reliable LED display is about more than just good panels—it’s about a well-maintained control system that keeps everything running smoothly. By following a structured troubleshooting approach and implementing preventive measures, you can minimize downtime, reduce repair costs, and maximize screen performance.

If your LED display cannot be restored after basic troubleshooting, the next step is to consult your control system provider or upgrade to a more advanced solution designed for stability and flexibility.
