Description

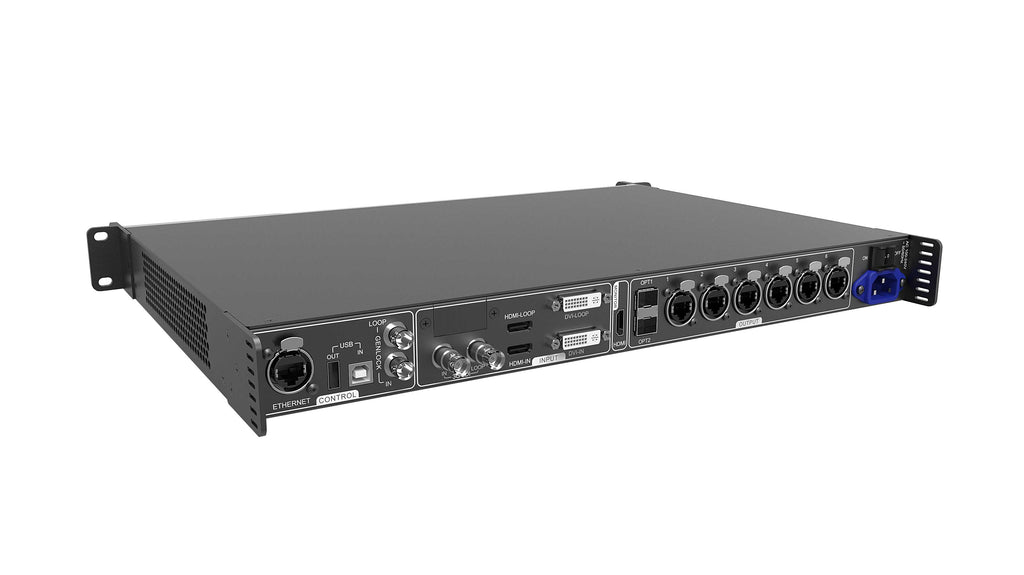

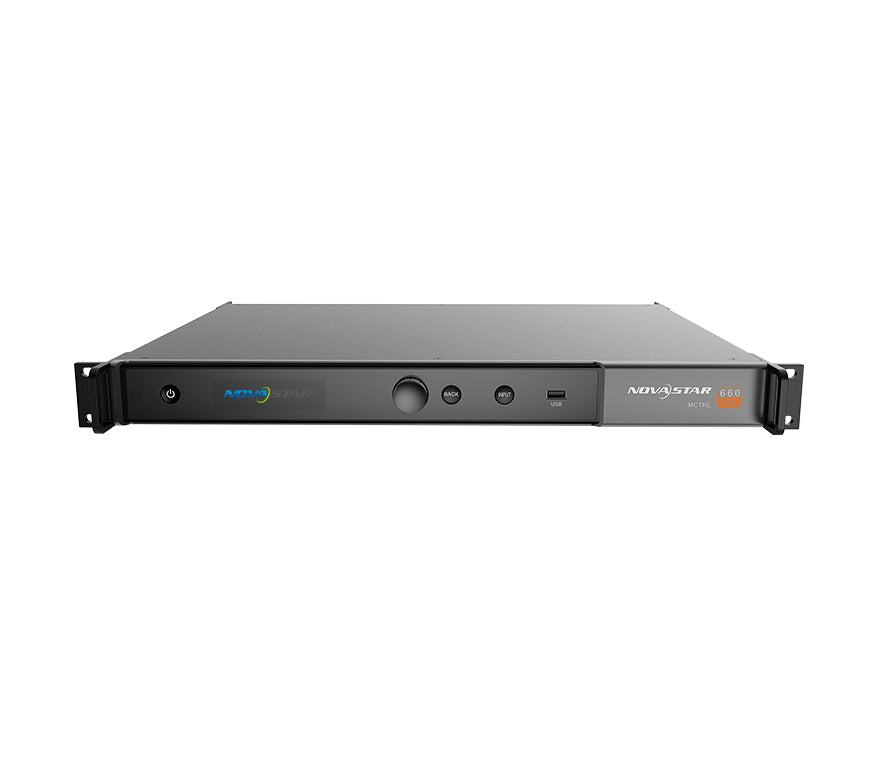

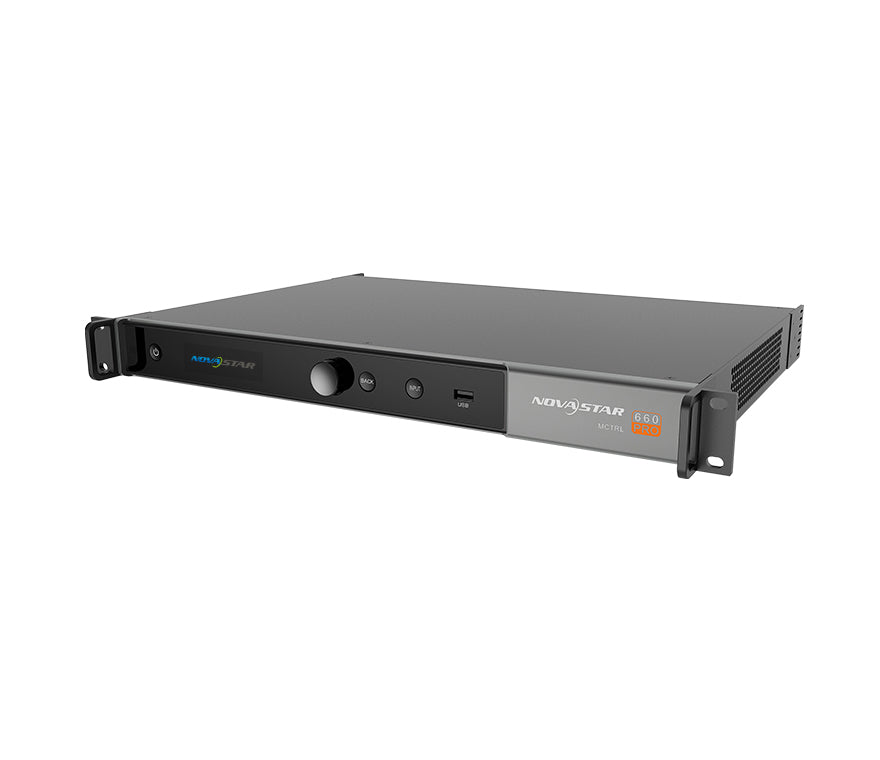

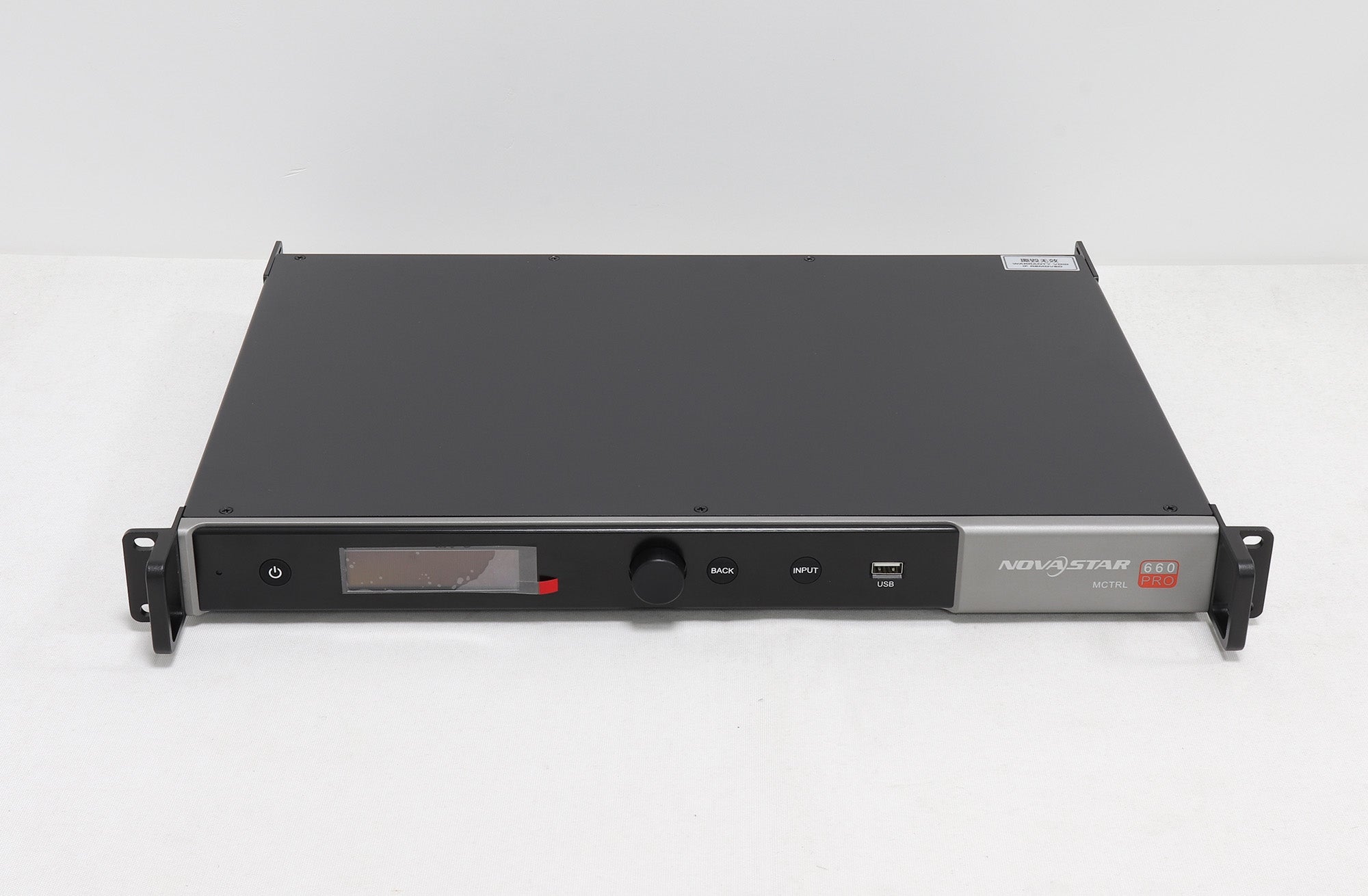

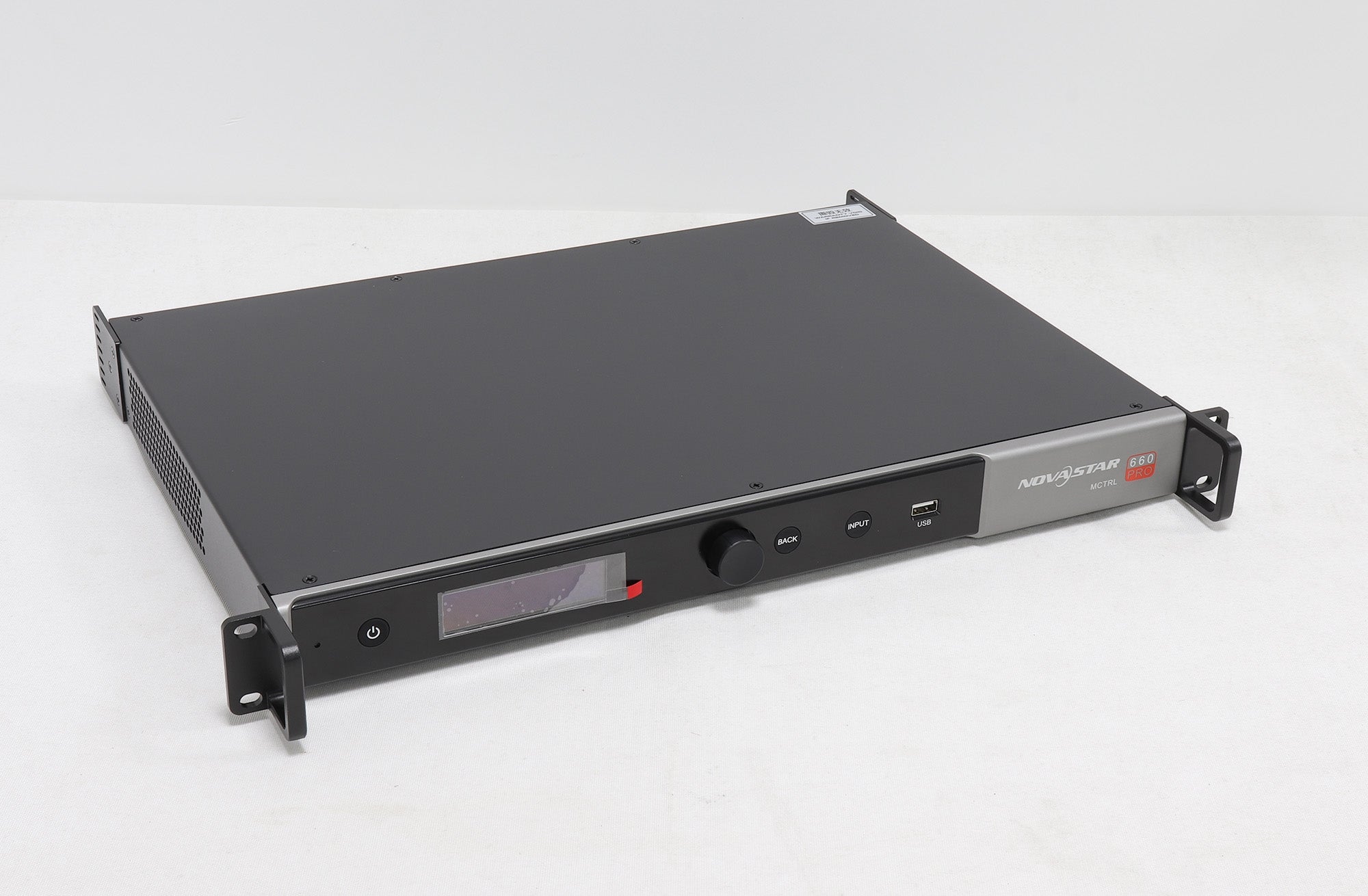

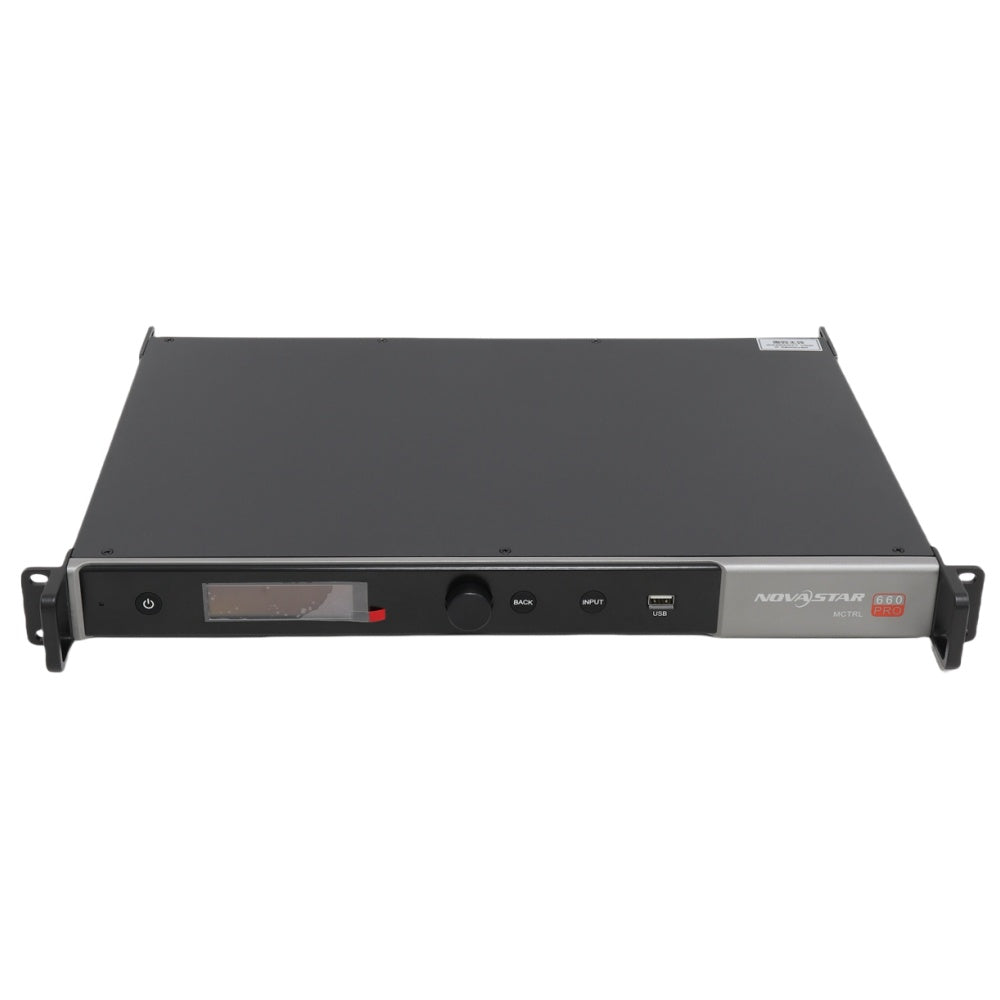

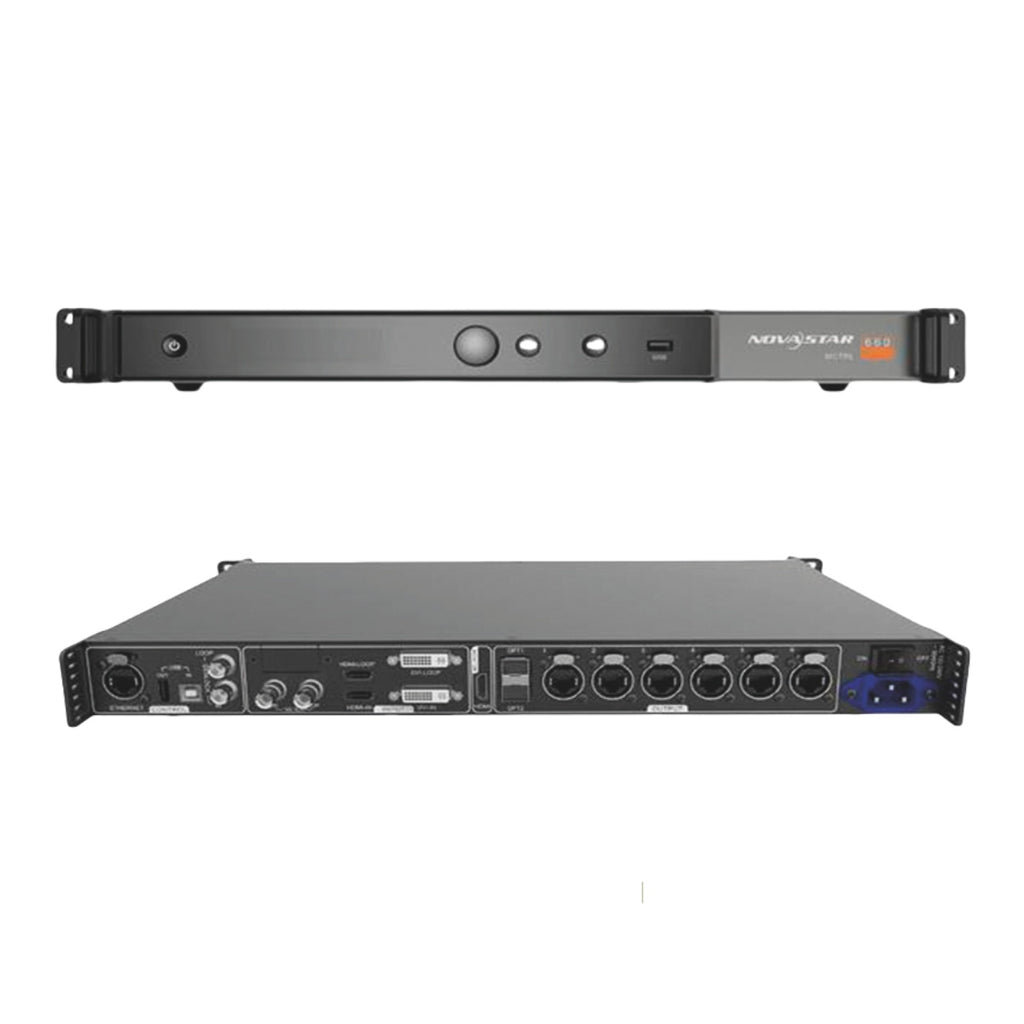

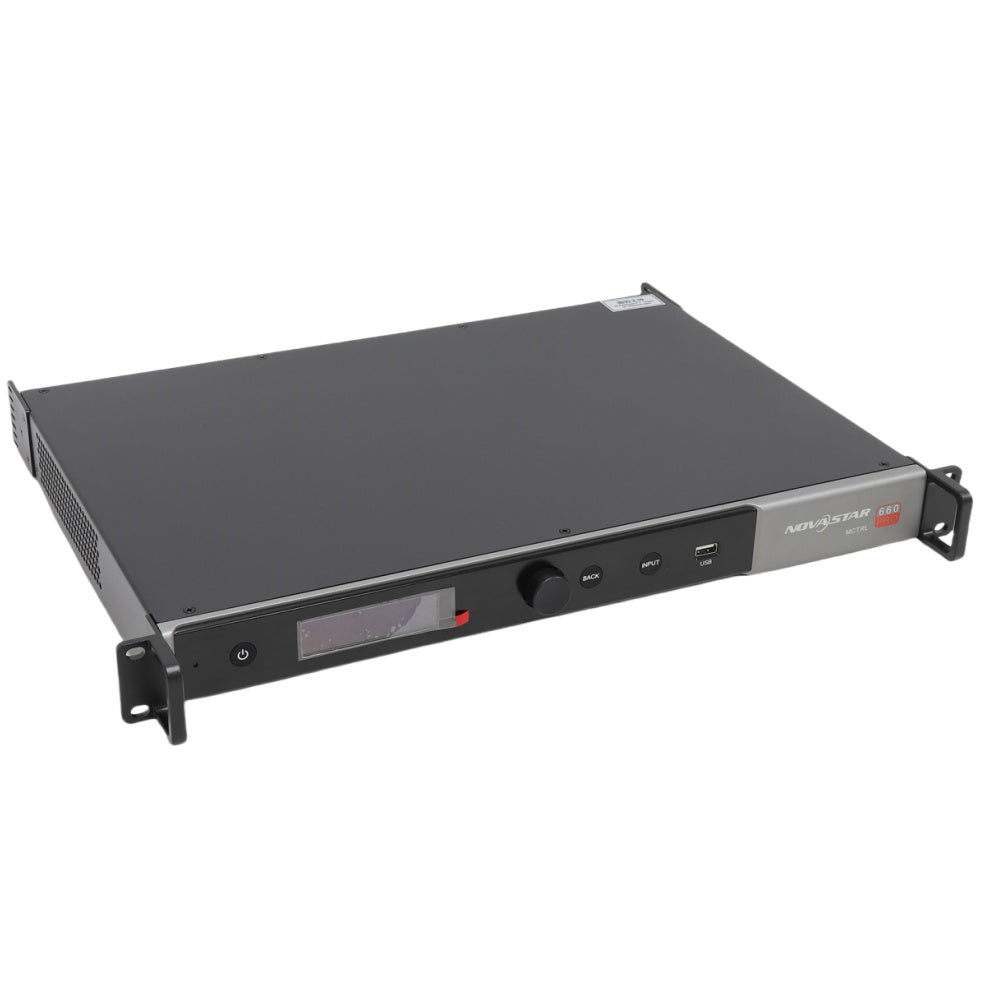

Novastar MCTRL660 Pro Independent Controller 1920×1200 Resolution 2.6 Million Loading Capacity
Package Included
| Version | Package Included |

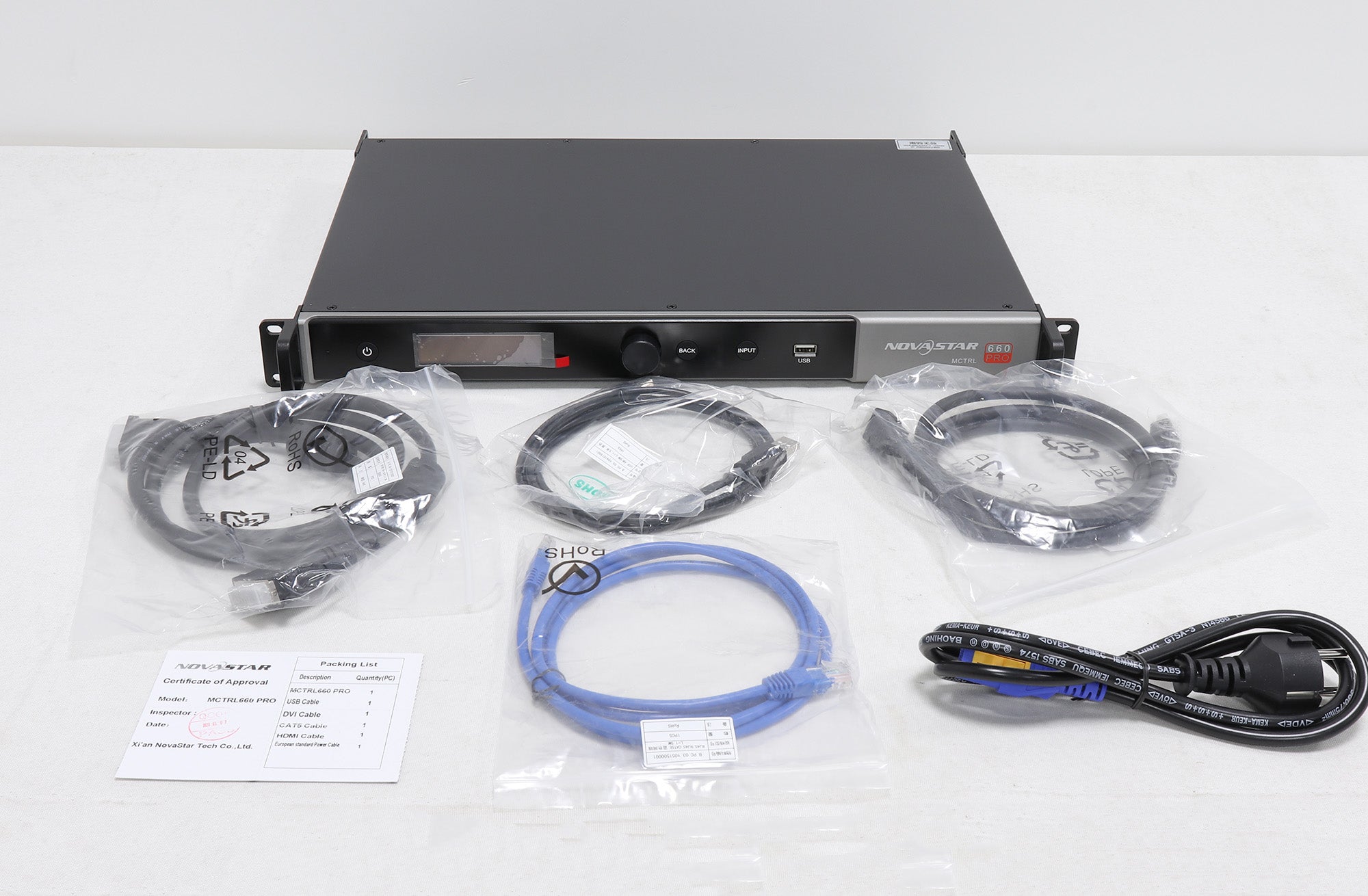

| MCTRL660 Pro | MCTRL660 Pro controller, power cable, user manual |
About this item
- High-performance LED controller with multiple input/output options
- Supports resolutions up to 1920×1200@60Hz
- Features zero latency, mirror image, and TCP/Artnet control
- Reliable design for fixed, rental, and creative LED displays
Order & Logistics
- Lead Time: Typically ships within 2–5 business days
- Packing: Cardboard box
- Shipping: Ships from local warehouses (3–7 days) if available, or from headquarters (7–25 days standard / 3–10 days express)
Key Specifications

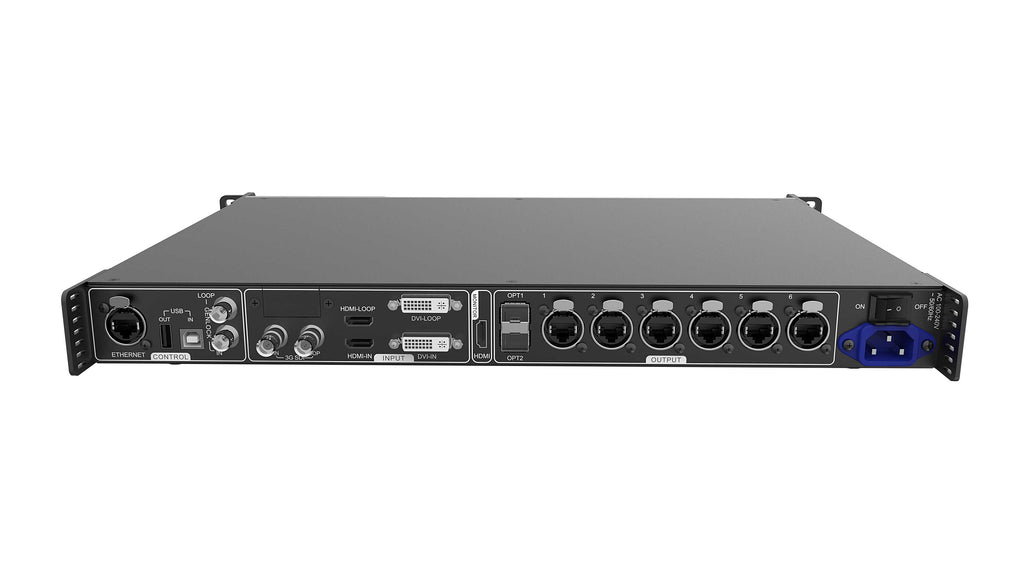

| Input Ports | 1× 3G-SDI, 1× HDMI 1.4a, 1× SL-DVI, 1× HDBaseT |
| Output Ports | 6× Gigabit Ethernet, 2× optical |
| Supported Resolutions | Up to 1920×1200@60Hz |
| Control Method | Network (TCP, Artnet), Web interface |
Usage Notes / Installation Tips
- Always power off before connecting/disconnecting signal cables
- Use shielded network cables for stable data transmission
- Ensure adequate ventilation for prolonged operation
Technical Specifications
- 8-bit / 10-bit / 12-bit input support
- Image mirroring (multi-angle) for stage effects
- Works as sending card and fiber converter with quick mode switching
- Individual RGB gamma adjustment for low-grayscale uniformity
- Pixel-level brightness and chroma calibration
- Input monitoring; one-click backup & restore
- Low latency: when enabled with source sync and vertical cabinet connection, delay can be reduced to one frame
- Cascading of up to 8 MCTRL660 Pro units
Applications
- Fixed installations and rental LED screens
- Concerts and live events
- Sports centers and exhibitions
- Security monitoring and other large-scale displays
