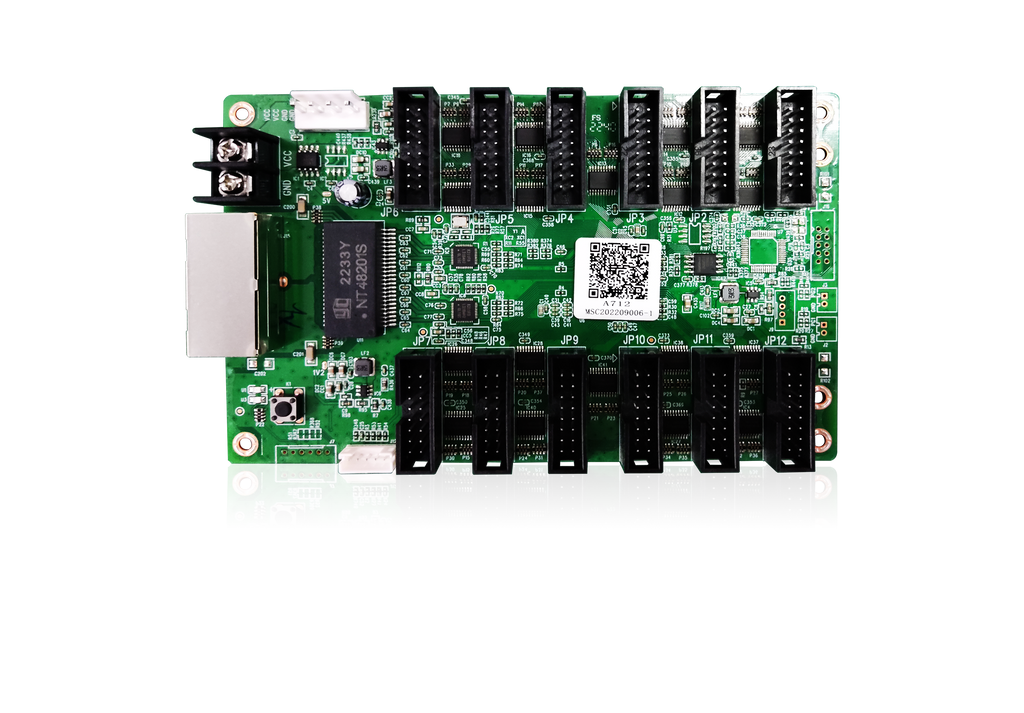

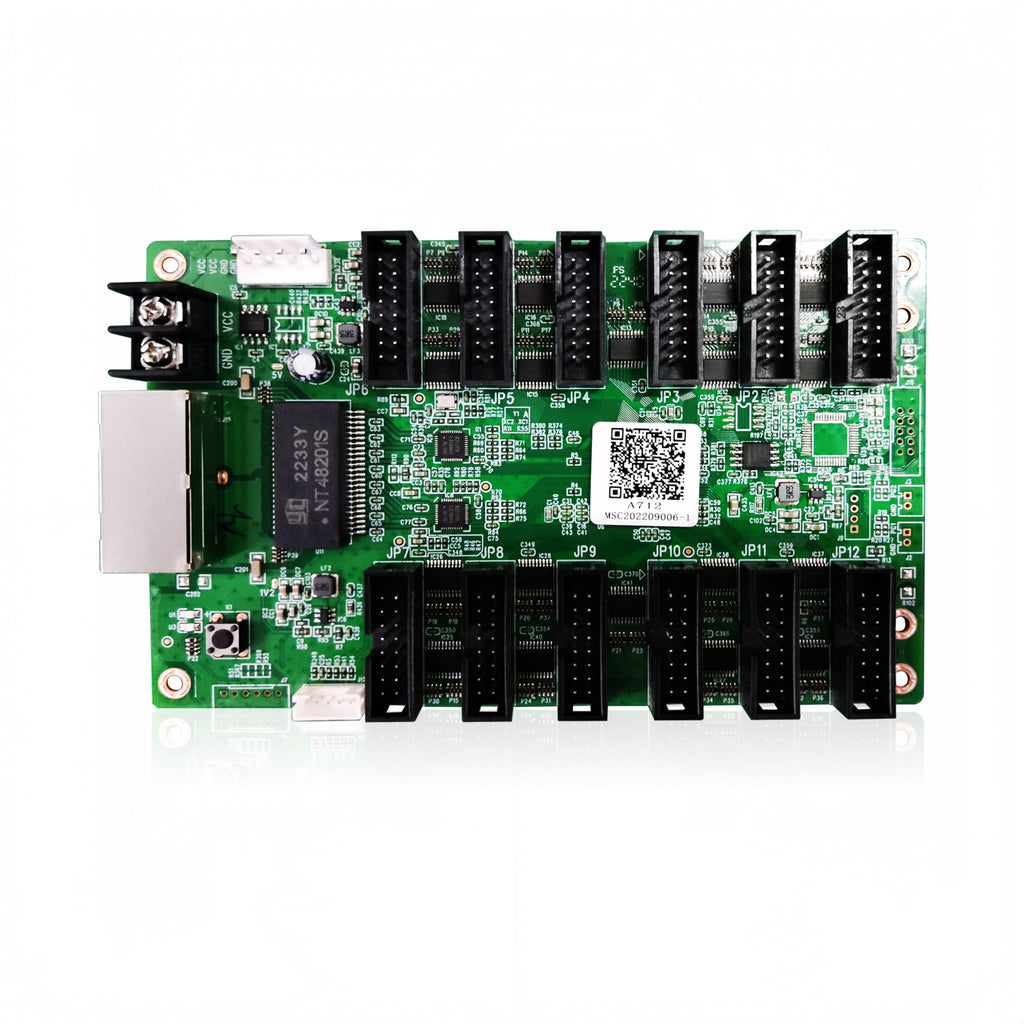

Mooncell A712 LED Screen Receiving Card – 512×384 Pixels | 24-Group RGB Parallel Data | HUB75E Interface

Package Included

Version	Package Included
A712	1× A712 LED Receiving Card

About This Item

• High-performance LED receiving card supporting 12× HUB75E input interfaces and 24-group RGB parallel data output
• Broad module compatibility with loading up to 512×384 pixels
• Mooncell stability features including brightness & color calibration, independent gamma adjustment, low latency, and loop backup
• Reliable compact design with strong processing capability for competitive performance
• Ideal for indoor/outdoor fixed installations, rental displays, and creative LED setups

Order & Logistics

• Lead Time: Typically ships within 2–5 business days
• Packing: Cardboard box
• Shipping: Ships from local warehouses (3–7 days) if available, or from headquarters (7–25 days standard / 3–10 days express)

Key Specifications

• Input Ports: 12× HUB75E
• Output Ports: 24-group RGB parallel data sets
• Supported Resolutions: Up to 512×384 pixels
• Control Method: PC control via LED sending system/network
• Power Supply: DC 3.3–5 V

Usage Notes / Installation Tips

• Always power off before connecting/disconnecting signal cables
• Use shielded network cables for stable data transmission
• Ensure adequate ventilation for prolonged operation

Technical Specifications

Parameter	Value
Loading Capacity	512×384 pixels
RGB Parallel Data Sets	24
HUB Interface	HUB75E (12×)
Input Bit Depth	8-bit / 10-bit
High Gray Grade	18-bit
Brightness & Color Calibration	Supported
Independent Gamma Adjustment	Supported
Low Latency	Supported
Loop Backup	Supported
Box Marking	Supported
Irregular Structure	Supported
Arbitrary Rotation	Supported

Applications

• Fixed LED billboards
• Rental stage LED screens
• Indoor/outdoor advertising displays
• Conference and exhibition LED screens
