Description

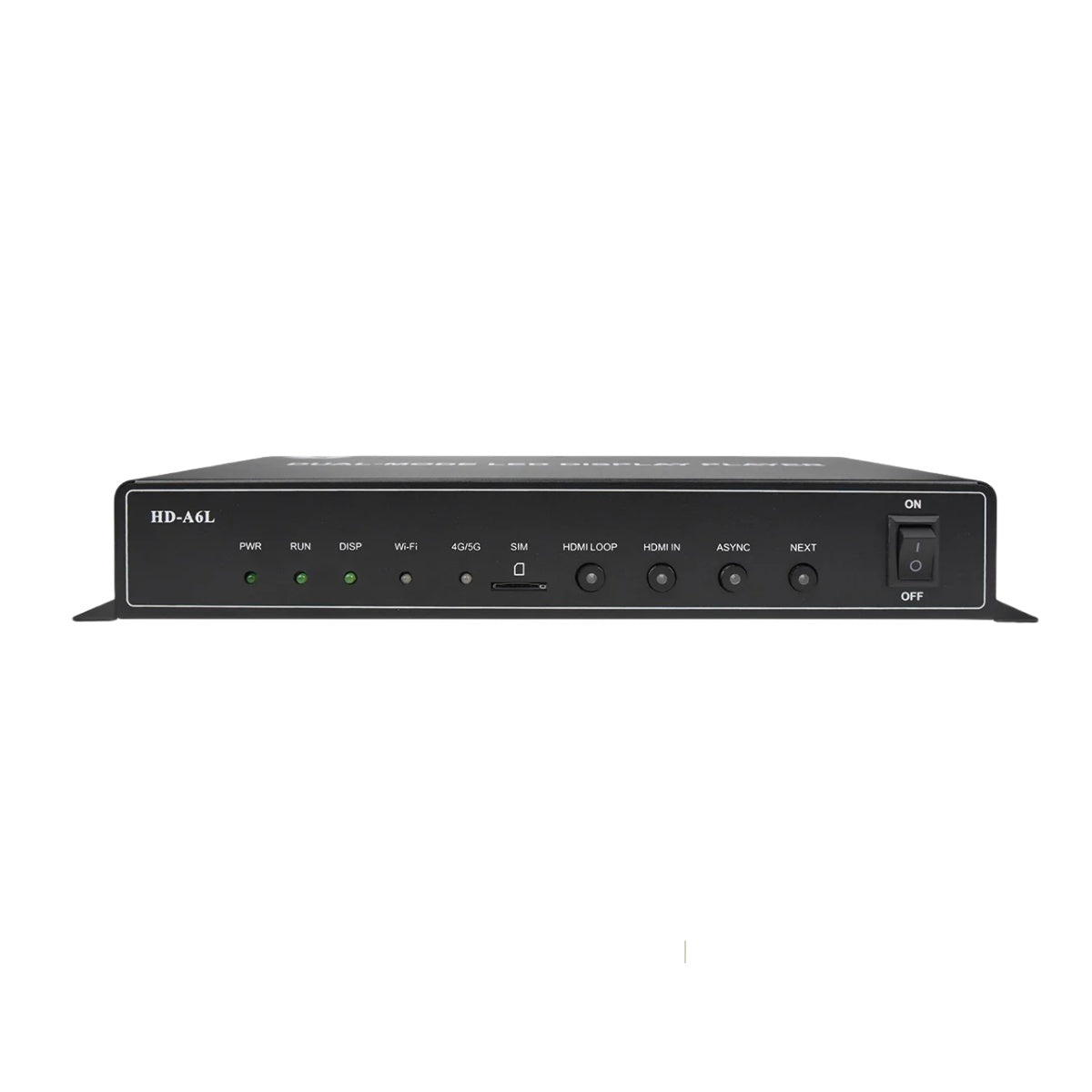

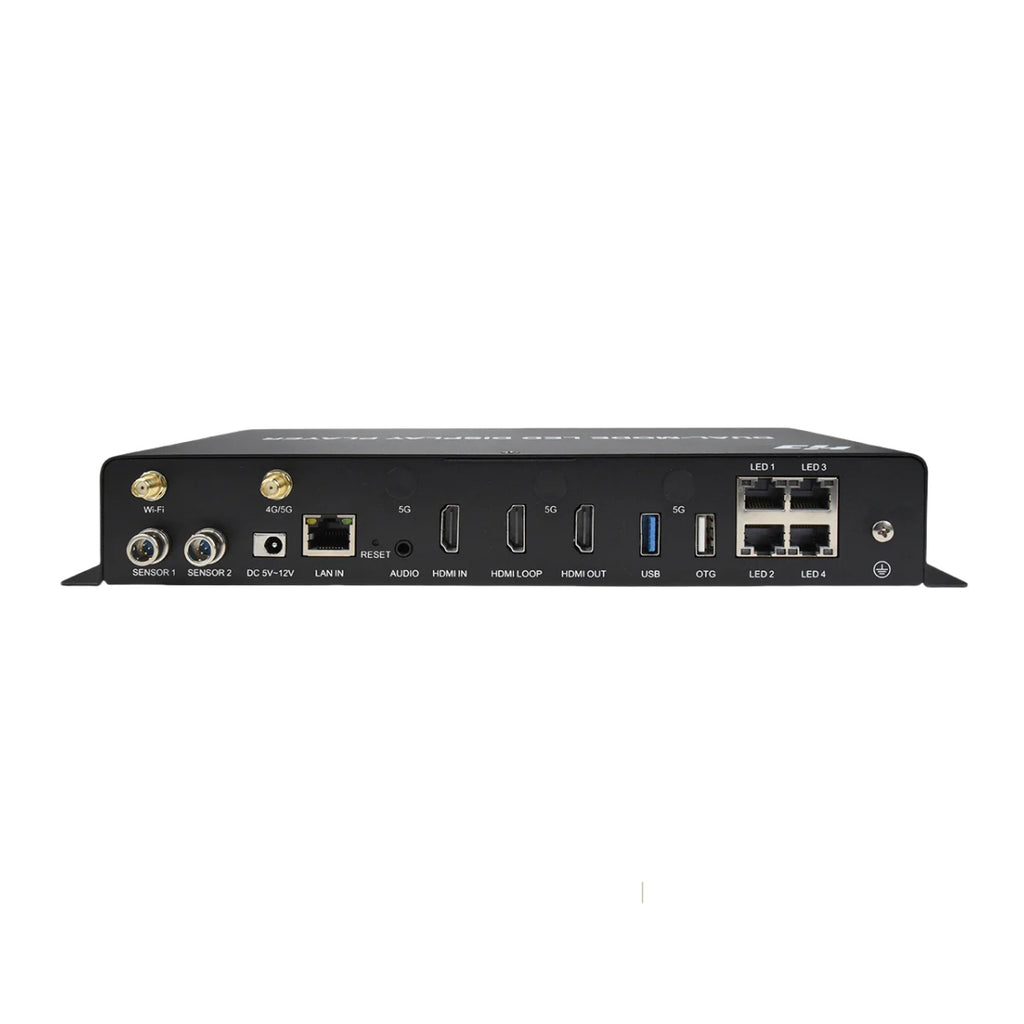

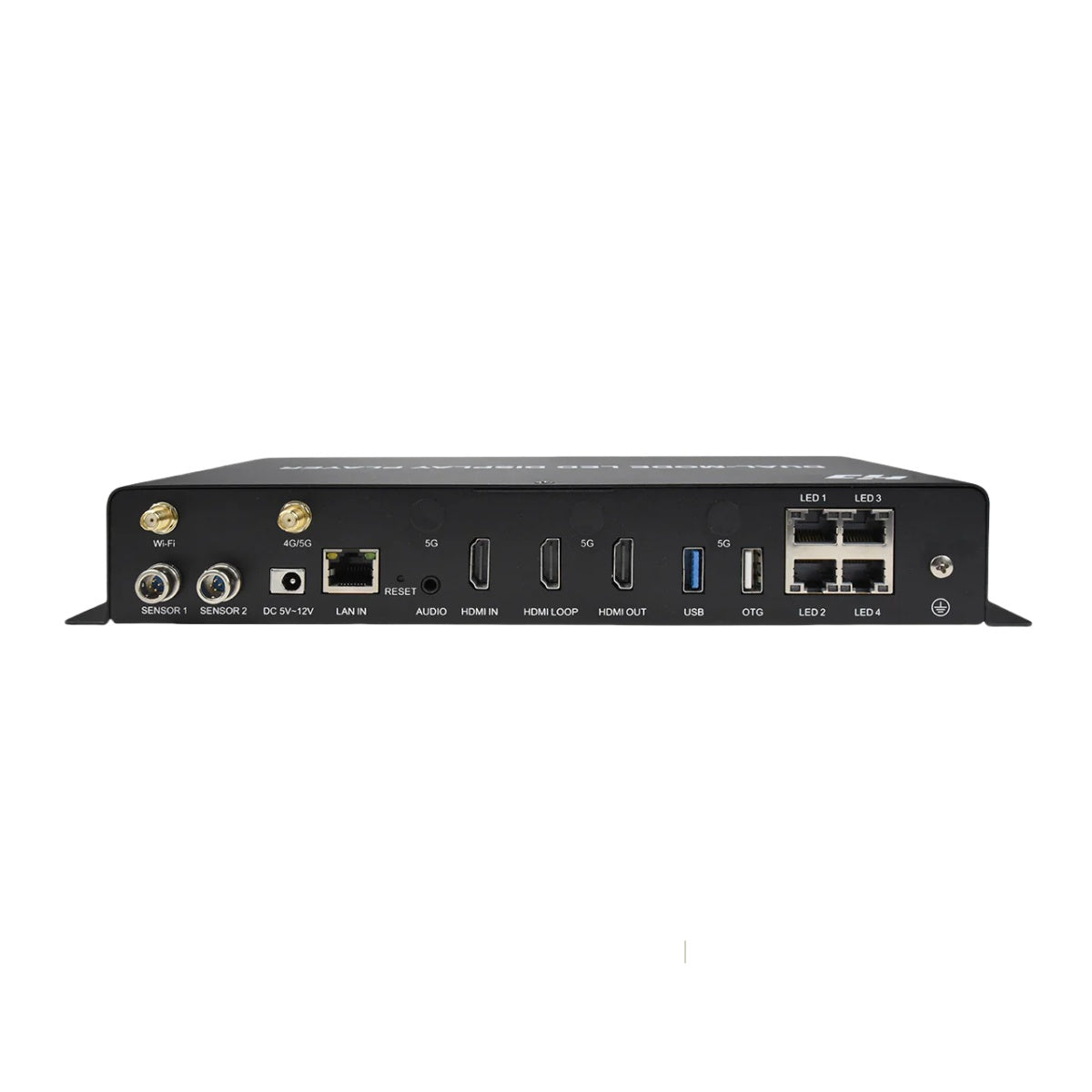

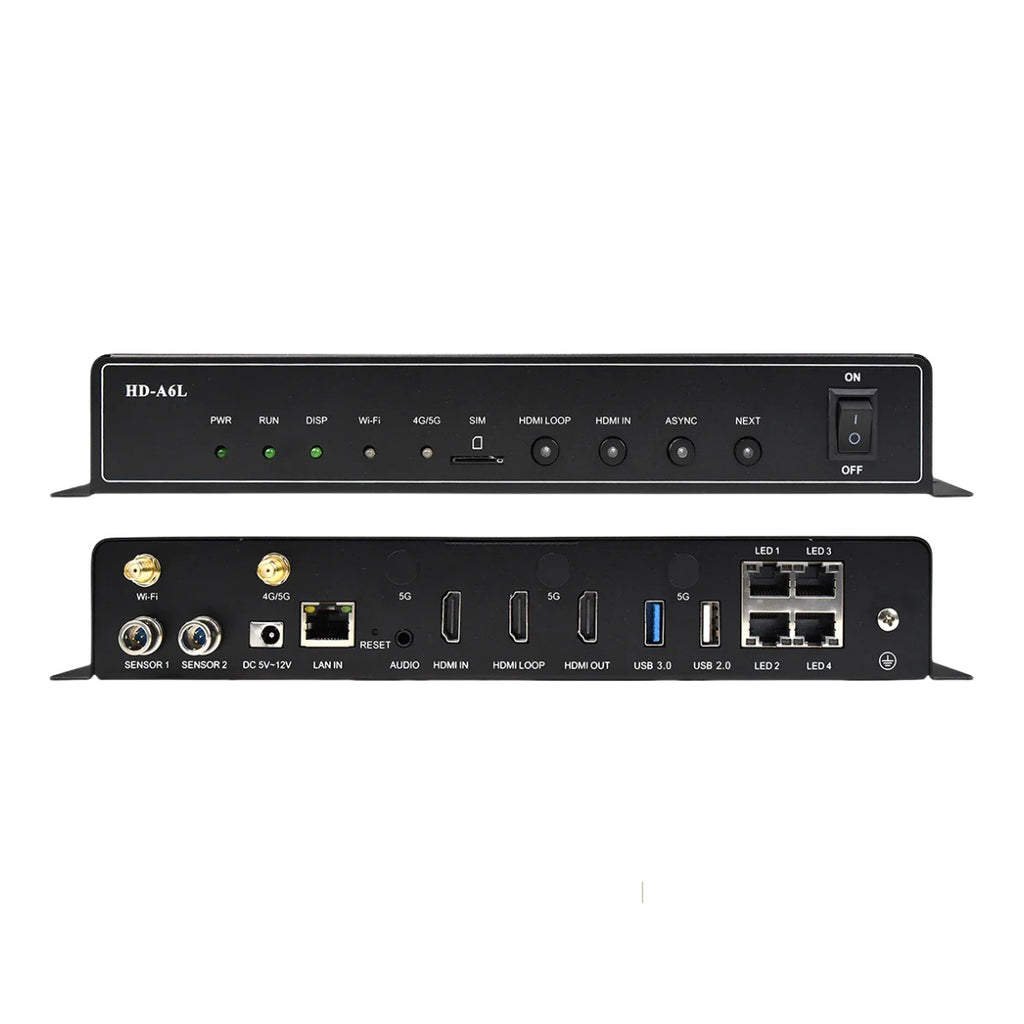

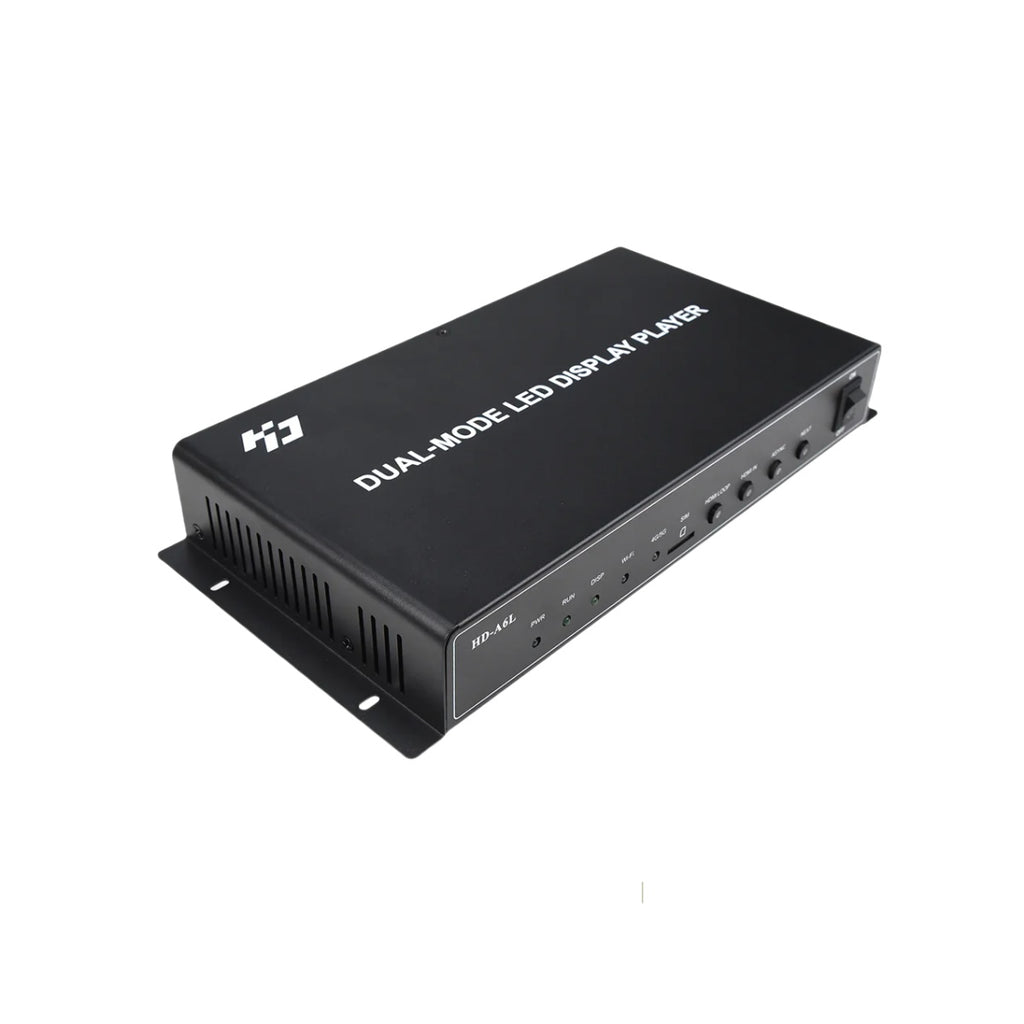

Huidu HD-A6L Sending Box – 1.3 Million Pixels | Dual-Mode LED Controller with Multi-Window Output & HDMI Video Input for LED Display Screens
Package Included
| Version | Package Included |
| HD-A6L | Sending Box × 1, Power Cable × 1, User Manual × 1 |
About this item
- High-performance LED screen controller supporting HDMI input and Ethernet output
- Compatible with multiple LED module pixel pitches, up to 65,536 pixels width
- HUIDU advanced features such as asynchronous/synchronous switching and HDMI splicing playback for enhanced stability
- Compact design with efficient cooling to ensure long-term reliability
- Ideal for indoor/outdoor fixed installations, rental displays, and creative LED setups
Order & Logistics
- Lead Time: Typically ships within 2–5 business days
- Packing: Cardboard box
- Shipping: Ships from local warehouses (3–7 days) if available, or from headquarters (7–25 days standard / 3–10 days express)
Key Specifications
- Input Ports: 1× HDMI
- Output Ports: Ethernet
- Supported Resolutions: Up to 2.62 million pixels loading capacity
- Control Method: USB / Network / Wi-Fi
- Power Supply: AC 100–240V
- Operating Temperature: –20 °C ~ +60 °C
Usage Notes / Installation Tips
- Always power off before connecting/disconnecting signal cables
- Use shielded network cables for stable data transmission
- Ensure adequate ventilation for prolonged operation
Technical Specifications
| Picture |  |
 |
 |
 |
| Model | A6L | A5L | A4L | A3L |
| Loading Capacity | 2.62M pixels | 1.3M pixels | 655,360 pixels | 655,360 pixels |
| Max Width | 65,536 px | 16,384 px | 16,384 px | 8192 px |
| Memory | 64 GB | 16 GB | 16 GB | 16 GB |
| External Expansion | Max 128 GB | Max 128 GB | Max 128 GB | Max 128 GB |
| Video Hard Decoding | 4K | 4K | 4K | 4K |
| Video Signal Input | 1× HDMI | 1× HDMI | 1× HDMI | – |
| HDMI Cascade | √ | – | – | – |
| Streaming Media | √ | √ | √ | √ |
| LAN | 1000 Mbps | 1000 Mbps | 1000 Mbps | 100 Mbps |
| Wi-Fi Control | 5 GHz + 2.4 GHz | 5 GHz + 2.4 GHz | 5 GHz + 2.4 GHz | 2.4 GHz |
| Screen Casting | Optional | – | – | – |
| USB Playback | √ | √ | √ | √ |
| Cloud Management | √ | √ | √ | √ |
| 4G/5G Module | Optional 4G/5G | Optional 4G/5G | Optional 4G/5G | Optional 4G |
| External Sensor | 2 channels | 2 channels | 2 channels | 1 channel |
Applications
- Fixed LED billboards
- Rental stage LED screens
- Indoor/outdoor advertising
- Conference / exhibition displays
