How MoonCell LED Controllers Power Creative Displays: Sphere, Cube, and Curved Screens

In the rapidly evolving world of LED creative displays—think 3D spheres, curved installations, cubes, and other irregular forms—traditional controllers often fall short. They are optimized for flat, rectangular layouts and cannot easily handle the pixel mapping, synchronization, or content correction required by complex geometries.

The MoonCell LED controller series changes this landscape by offering precision mapping, powerful calibration tools, and software that’s tailor-made for irregular LED configurations. Whether it’s a massive exhibition dome, a cube suspended in a lobby, or a 3D advertising globe, MoonCell brings real flexibility and visual accuracy.



---



Why Traditional Controllers Struggle with 3D and Curved Displays

Most LED controllers are built for simple, flat panel configurations. When faced with curved or 3D surfaces, they encounter several challenges:

• Geometric distortion: A 2D video signal doesn’t naturally conform to a spherical or curved surface, leading to stretched or misaligned visuals.



• Pixel addressing conflicts: Curved and custom-shaped modules don’t fit the uniform grid pattern assumed by traditional controllers.



• Load inefficiency: Conventional systems waste bandwidth calculating “blank” rectangular areas around curved displays.



• Calibration limitations: Color uniformity and brightness balance vary sharply when modules sit at different angles.



• Cumbersome setup: Manual mapping and content warping consume time and demand specialized experience.



These issues make it difficult to achieve seamless visuals in immersive installations or artistic displays without the right control system.



---



MoonCell’s Unique Mapping and Pixel Calibration Capabilities

MoonCell controllers are engineered to handle these advanced setups with precision.

1. Flexible Irregular Mapping

MoonCell’s software allows free-form pixel mapping, enabling designers to assign pixel positions exactly as they exist in real-world layouts—triangular, wedge, or circular panels included. The “irregular module cropping” feature eliminates blank areas and ensures every pixel counts.

2. Dynamic Interpolation Algorithms

For spheres and curved surfaces, MoonCell’s dynamic interpolation algorithm creates smooth transitions between panels. This avoids edge misalignment or content tearing when wrapping visuals 360° around an object.

3. Per-Pixel Calibration

MoonCell supports fine-tuned pixel calibration—adjusting brightness, gamma, and color balance individually. This ensures a uniform look even when panels are installed at various angles or lighting conditions differ.

4. Visual Mapping Interface

Through intuitive WYSIWYG (What You See Is What You Get) software, users can drag, rotate, and scale module positions visually—no coding or manual coordinate setup required. This shortens commissioning time and reduces human error.

5. Smart Load Calculation & Backup

MoonCell calculates network load by actual pixel count, optimizing bandwidth usage. Dual-master redundancy and backup loop options guarantee uninterrupted performance for large exhibitions or permanent installations.



---



Example: Running a 1200 mm LED Sphere with MoonCell

Imagine a 1200 mm diameter LED globe for a museum installation:

1. Module Layout: Define the spherical arrangement (for example, 24 vertical segments × 12 horizontal bands). Each band and wedge-shaped module may contain different pixel counts.



2. Mapping in Software: Use MoonCell’s irregular cropping and visual editor to position modules precisely according to real geometry.



3. Seamless Interpolation: Enable the dynamic interpolation function to smooth transitions between edges.

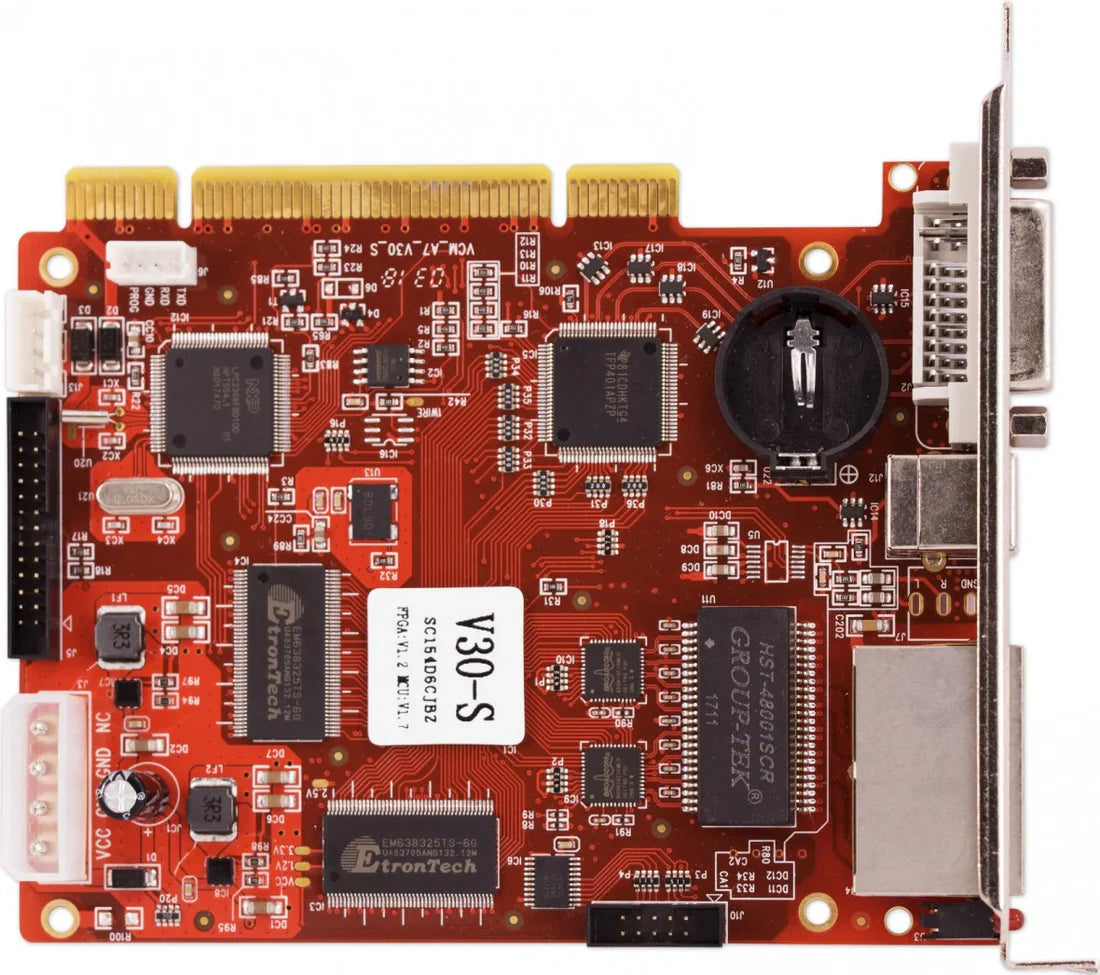

4. Controller Setup: Assign appropriate sending and receiving cards (e.g., V30 Pro sending card for ~1.3 million pixels total).



5. Calibration: Use per-pixel calibration tools to balance brightness and gamma across the top and bottom sections.



6. Testing: Apply test patterns to verify continuity and distortion-free display.



7. Playback: Configure refresh rates and resolutions within AutoLED or LedMagic to achieve perfect 360° playback.



The result is a visually flawless spherical display—ideal for immersive exhibits or branded showcases.



---



Real-Time Correction and Smooth Playback

MoonCell’s technology doesn’t just stop at mapping. Its real-time processing ensures stunning playback quality:

• Adaptive scaling for arbitrary resolutions



• High refresh rate (up to 3840 Hz) and deep grayscale (up to 16-bit) for filming or live broadcast



• Real-time brightness compensation for uneven panels



• Seamless content playback across multi-controller setups



• Multi-window layering for blending video, animation, and interactive media



These features make MoonCell the go-to choice for integrators who demand precision and reliability in creative installations.



---



Why System Integrators and Designers Choose MoonCell

For system integrators, exhibition designers, and creative display developers, the benefits are clear:

• Faster project deployment with simplified mapping tools



• Reliable, high-fidelity visuals across complex geometries



• Flexible scaling for future expansion and upgrades



• Professional-grade performance with broadcast-level refresh rates



• Reduced maintenance downtime thanks to real-time diagnostics



Whether building an immersive tunnel, cube installation, or a spherical digital art piece, MoonCell provides the backbone for stable and precise LED control.



---



Recommended MoonCell Products

Below is a quick reference table for the core MoonCell controller lineup—covering sending cards, receiving cards, and multimedia player boxes for both synchronous and asynchronous setups.



---



Conclusion

From immersive museum domes to outdoor creative cubes and interactive spheres, MoonCell controllers enable limitless design potential. Their advanced mapping logic, per-pixel calibration, and real-time playback optimization empower integrators and designers to push visual boundaries—transforming imagination into precise, seamless LED experiences.
