Description

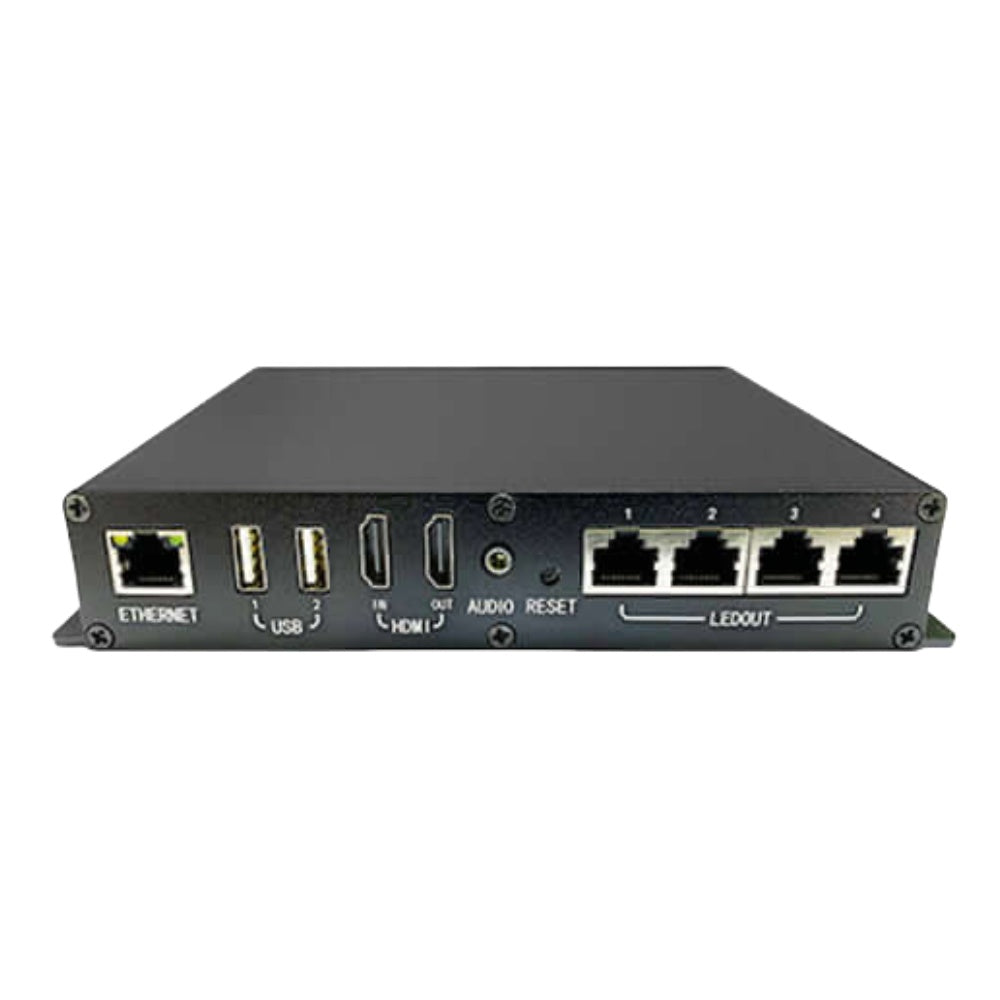

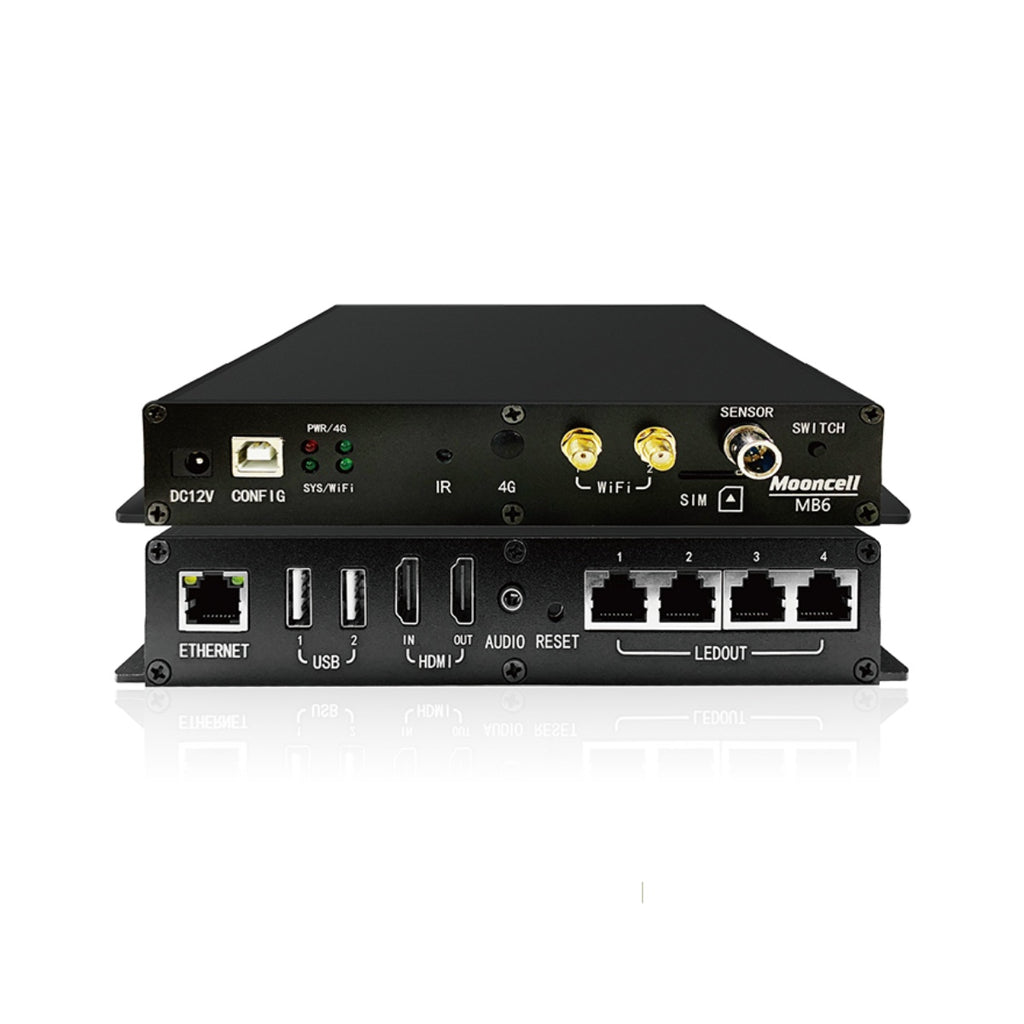

Mooncell MB6 Multimedia Player Box – 2.3 Million Pixels | Dual Mode | HDMI & Network Video Input | 24 LED Outputs
Package Included
| Version | Package Included |
| MB6 | 1× Mooncell MB6 Multimedia Player Box |
About This Item
- High-performance multimedia player with 2.3 million pixel loading capacity
- Dual mode switch for asynchronous or synchronous operation
- Max resolution up to 1920×1080@60Hz with wide-format support of 4096×3840 pixels
- Versatile video inputs: USB, network, and HDMI
- Features independent gamma adjustment, multi-window display, HDMI loop-out, audio transmission, and loop backup
- 24 LED outputs for large-scale LED wall applications
- Ideal for extra-large indoor/outdoor advertising displays, stadium screens, and stage rental setups
Order & Logistics
- Lead Time: Typically ships within 2–5 business days
- Packing: Cardboard box
- Shipping: Ships from local warehouses (3–7 days) if available, or from headquarters (7–25 days standard / 3–10 days express)
Key Specifications
- Loading Capacity: 2.3 million pixels
- Max Resolution: 1920×1080@60Hz
- Max Width/Height: 4096 / 3840 pixels
- LED Output: 24 LED OUT
- Video Input: USB, Network, HDMI
- Control Methods: USB/LAN/WiFi
Usage Notes / Installation Tips
- Ensure correct mode selection (asynchronous or synchronous) before deployment
- Use high-quality HDMI and network cables to maintain signal integrity
- Install in a ventilated environment to prevent overheating during prolonged use
Technical Specifications
| Parameter | MP1 | MP2 | MB4 | MB6 |
| Loading Capacity | 0.65 Million Pixels | 1.3 Million Pixels | 1.3 Million Pixels | 2.3 Million Pixels |
| Dual Mode Switch | Asynchronous | Asynchronous | Supported | Supported |
| Max Resolution | 1920×1080@60Hz | 1920×1080@60Hz | 1920×1080@60Hz | 1920×1080@60Hz |
| Max Width/Height | 1920 / 1080 | 1920 / 1080 | 4096 / 3840 | 4096 / 3840 |
| LED Output | 1 LED OUT | 1 LED OUT | 2 LED OUT | 24 LED OUT |
| Video Input | USB, Network | USB, Network | USB, Network, HDMI | USB, Network, HDMI |
| Independent Gamma Adjustment | Supported | Supported | Supported | Supported |
| HDMI Loop-Out | Not Supported | Not Supported | Supported | Supported |
| Audio Transmission | Supported | Supported | Supported | Supported |
| Loop Backup | Supported | Supported | Supported | Supported |
| Multi-Windows | Supported | Supported | Supported | Supported |
| 4G Module | Optional | Optional | Optional | Optional |
| Control Methods | USB/LAN/WiFi | USB/LAN/WiFi | USB/LAN/WiFi | USB/LAN/WiFi |
Applications
- Extra-large indoor and outdoor LED displays
- Sports stadium LED screens
- Concerts and stage rental displays
- Commercial advertising video walls
