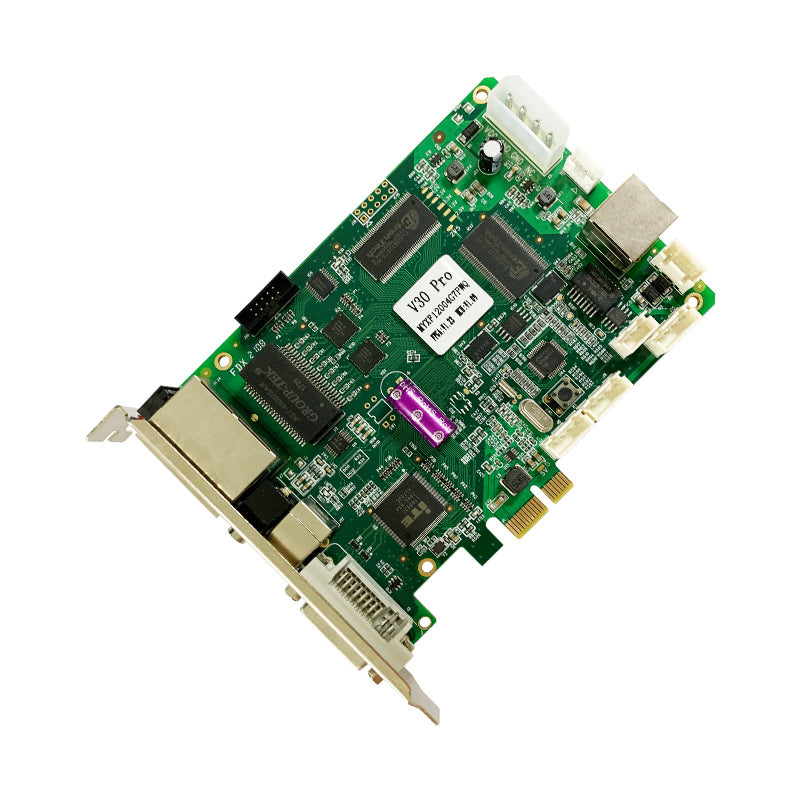

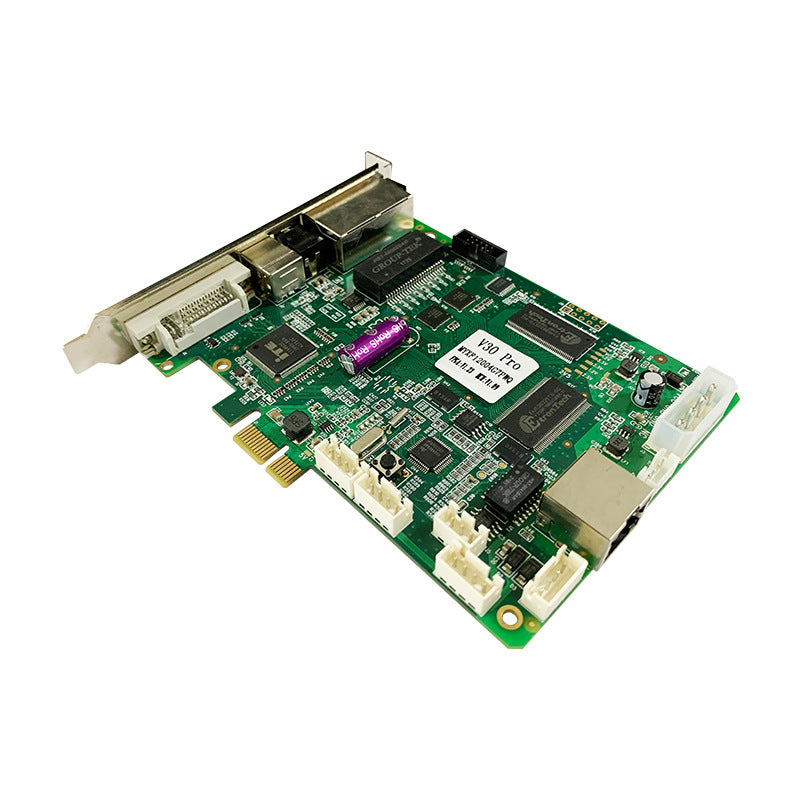

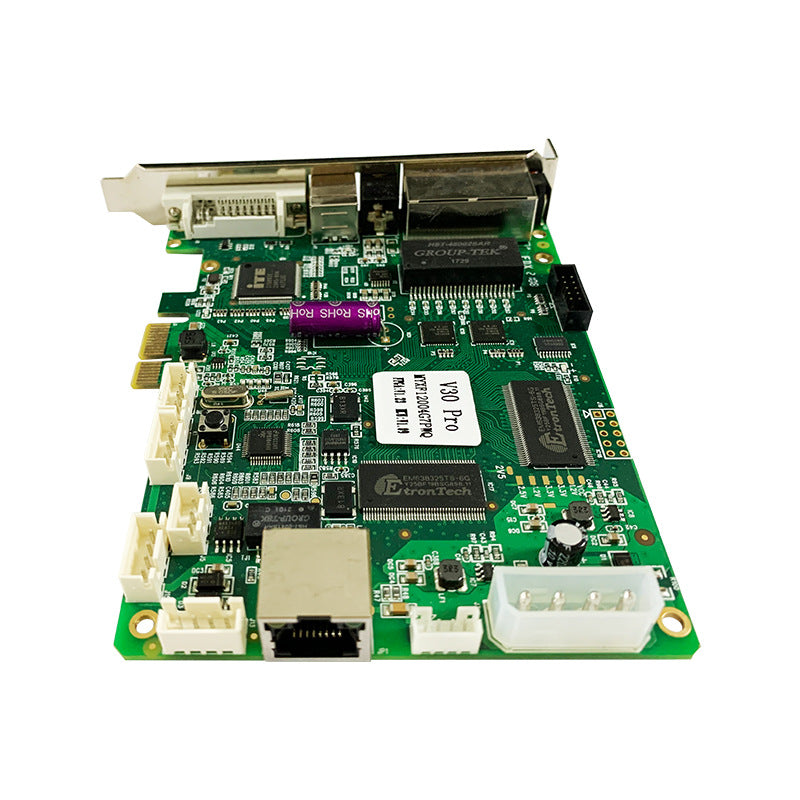

Mooncell V30 Pro Sending Card – 1.3 Million Pixels | Multi-Resolution Support | Pixel-Level Calibration

Package Included

Version	Package Included
V30 Pro	1× Mooncell V30 Pro Sending Card

About This Item

• One-click program recovery after replacing the sending card for minimal downtime
• Multi-resolution support: 1600×1200, 1920×1080, 2048×1152, 2560×960, plus customizable user-defined resolutions
• Integrated inspection tools for brightness, gamma, and position checks
• Pixel-level brightness & chroma calibration for uniform display quality
• Multiple control interfaces: USB, HID, serial port, and network communication
• Second development interface with 1× serial port for advanced integration

Order & Logistics

• Lead Time: Typically ships within 2–5 business days
• Packing: Cardboard box
• Shipping: Ships from local warehouses (3–7 days) if available, or from headquarters (7–25 days standard / 3–10 days express)

Key Specifications

• Input Ports: 1× DVI, 1× 3.5 mm Audio, 1× USB
• Output Ports: 2× Gigabit Ethernet
• Supported Resolutions: Up to 1.3 million pixels (max width 4096 pixels, max height 4096 pixels)
• Control Method: USB / Network
• Power Supply: AC 100–240 V

Usage Notes / Installation Tips

• Always power off before connecting or disconnecting signal cables
• Use shielded network cables for stable data transmission
• Ensure adequate ventilation for prolonged operation

Technical Specifications

Parameter	V30 Pro	MTB200S	MTB400E	MTB600E
Loading Capacity	1.3 Million Pixels	1.3 Million Pixels	2.6 Million Pixels	2.6 Million Pixels
Signal Input	DVI×1, Audio×1	DVI×1, Audio×1	DVI×1, HDMI×1, Audio×1	DVI×1, HDMI×1, Audio×1
Max Resolution	1920×1200@60Hz	1920×1200@60Hz	1920×1200@60Hz	1920×1200@60Hz
Max Width/Height	4096×4096	4096×4096	4096×4096	4096×4096
LED Output	2 LED OUT	2 LED OUT	4 LED OUT	6 LED OUT
Independent Gamma Adjustment	Supported	Supported	Supported	Supported
Multi-Device Splicing	Supported	Supported	Supported	Supported
Audio Transmission	Supported	Supported	Supported	Supported
Loop Backup	Supported	Supported	Supported	Supported
Control Method	USB	USB	USB/LAN	USB/LAN

Applications

• Fixed LED billboards
• Rental stage LED screens
• Indoor/outdoor advertising displays
• Conference and exhibition LED screens
