Description

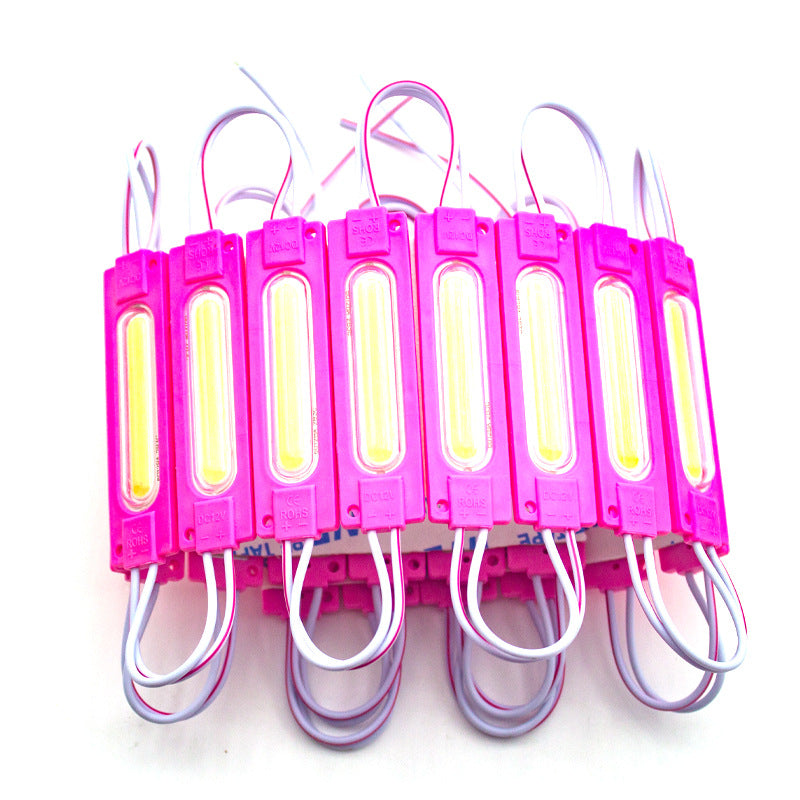

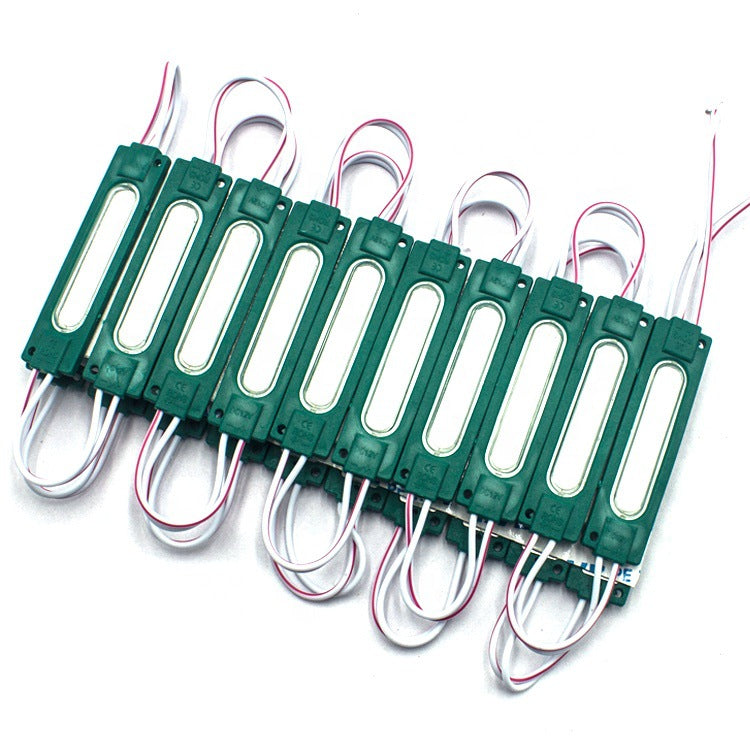

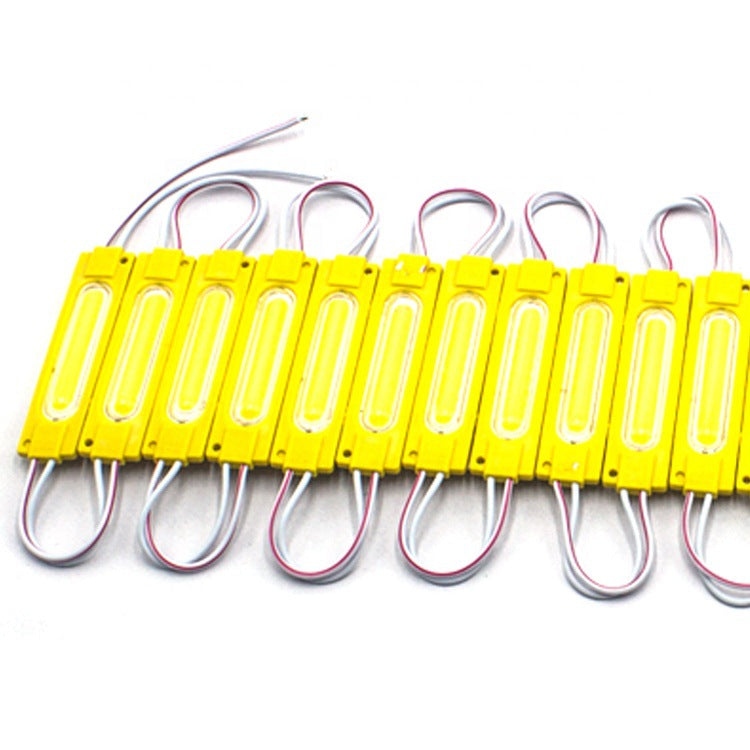

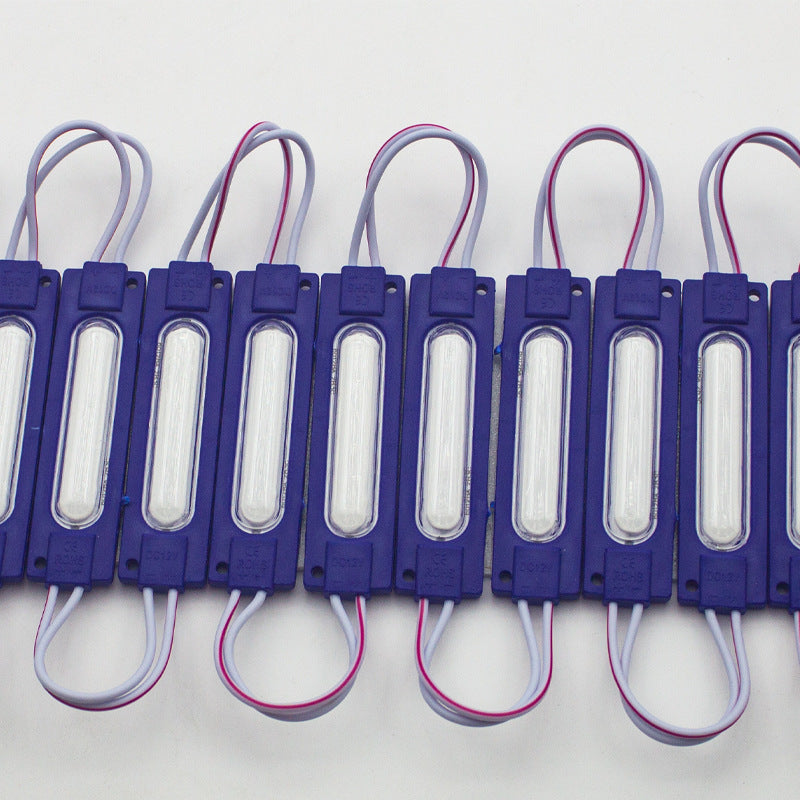

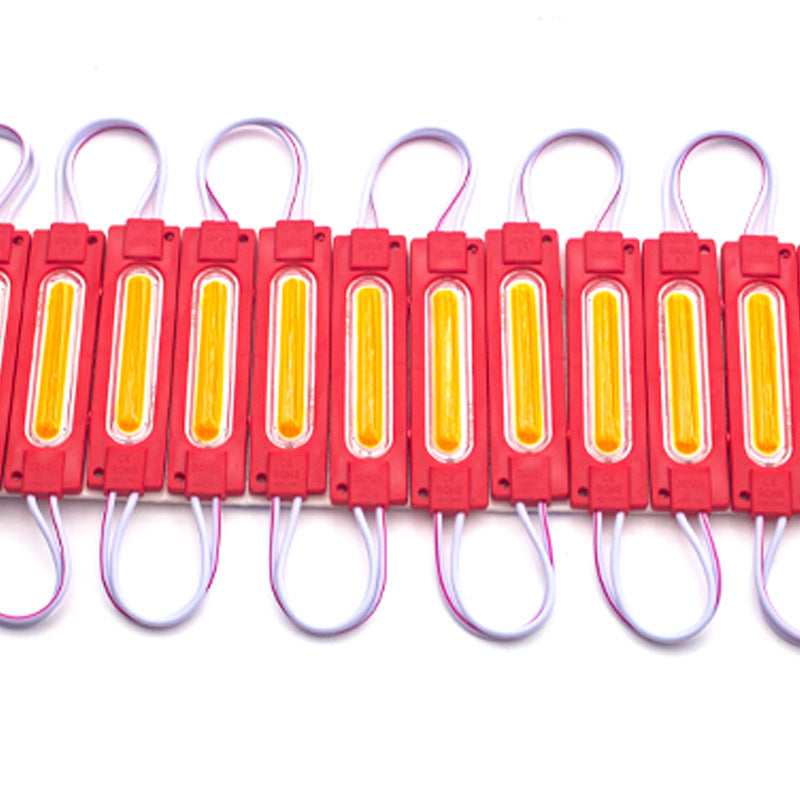

COB LED Module String – 1.8 W | 150 lm | 70×19 mm | 160° Beam | DC 12 V | Waterproof IP65 (20-pcs String) for Channel Letters & Signage– 6500K / 3000K / Red / Green / Blue / Yellow / Pink
Package Included:
| Version | Package Included |
| 5 String Pack | 5 String (20pcs/String) Total 100pcs LED Modules |
| 50 String Pack | 50 Strings (20pcs/String) Total 1000pcs LED Modules |
| 100 String Pack | 100 Strings (20pcs/String) Total 1000pcs LED Modules |
Order & Logistics:
Lead Time
- Ships directly from headquarters. Handling time 3–5 business days
Shipping Note
- This series enjoys our Free Shipping Policy for orders over $399.
- HQ Fulfillment (when local stock is unavailable): Standard 9–18 days | Express 5–9 days.
- Packing: Cardboard box, sealed with anti-static bag
Product Features
-
High-Brightness COB Module String
Each module in the string outputs approx. 150 lm at just 1.8 W power consumption, providing bright and efficient lighting ideal for signage and channel letters. -
Slim & Lightweight Form Factor
Module size of 70 × 19 mm combined with only 6 cm spacing between units makes installation on narrow profiles or thin light-boxes extremely simple. -
Wide 160° Beam + Waterproof Rating
With a 160-degree beam angle, the string ensures wide, even illumination across surfaces. Rated IP65 for outdoor use, the injection-molded PVC/ABS housing resists rain, dust and weather. -
DC12 V Low-Voltage Safety + Easy Self-Adhesive Mounting
Operates on DC 12 V common in signage applications, enhancing safety and ease of wiring. The module string comes with self-adhesive backing (tape) for quick surface mounting. -
Versatile Application & Multiple Packaging Options
Ideal for architectural channel letters, ultra-thin light boxes, retail displays, exhibition signage, home accent lighting, landscape lighting, and more. Multiple string/pack quantities (e.g., 5-string pack, 50-string pack, 100-string pack) offer flexibility for large or small projects.
Spec.
| Item | Specification |
| Product Name | COB LED Module String (20pcs per string) |
| LED Type | COB (Chip-On-Board) LED Module |
| Power per Module | 1.8 W |
| Luminous Output per Module | ~150 lm |
| Module Size | 70 mm × 19 mm |
| Spacing Between Modules | 60 mm (approx. 6 cm) |
| Beam Angle | 160° |
| Input Voltage | DC 12 V |
| Waterproof Rating | IP65 |
| Housing Material | PVC/ABS injection molding |
| Mounting Method | Self-adhesive (tape) |
| Warranty | 2 years |
| Typical Applications | Channel letters, signage, ultra-thin light box, retail display, home accent lighting, landscape lighting |
| Color Temperature Options | Warm White (3000 K) / Cool White (6500 K) / Red / Green / Blue / Yellow / Pink |
| Package Options | e.g., 5-string pack (20pcs/string × 5 = 100 modules), 50-string pack (1000 modules), 100-string pack (1000 modules) |
Applications:
1.Advertising signs, illuminated indicate signs, ultra thin light box, channel letter,Blister Word and other advertising lighting.
2.Hotel, KTV, supermarket, entertainment room ,outside wall brightness, landscape arrangement, stage decoration, city brighten ,etc.
3.Home shoes cabinet, wardrobe, dark lattice, exhibition hall, art hall, museum, office, reading room and other part decoration lighting.
