12V 1.5W LED Module with Lens, 20pcs/String, 150LM, IP65 Waterproof Sign Module for Light Box, Channel Letter, and Signage Backlighting – 6500K / 3000K / Red / Green / Blue / Yellow / Pink
Product Description
These 12V DC LED Modules with Optical Lens are designed for professional light box and channel letter signage applications. Featuring SMD high-brightness LEDs and precision lenses, they ensure uniform brightness and eliminate hotspots even in shallow boxes.
With IP65 waterproof protection and 3M adhesive backing, installation is simple and reliable both indoors and outdoors.
Ideal for use in advertising signs, display lighting, and decorative illumination.
Features
-

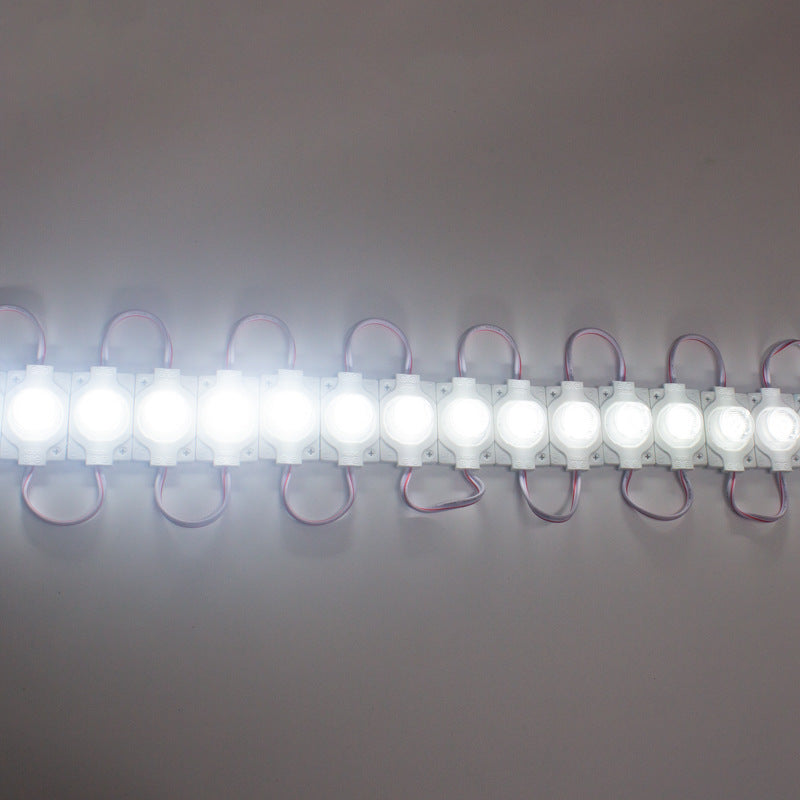

💡 High Brightness & Lens-Enhanced Light Output – Each module is equipped with a high-efficiency optical lens, delivering 150 lumens per module with uniform illumination and wide 160° beam angle—ideal for light boxes, channel letters, and signage applications.
-
⚡ Energy Efficient & Long Lifespan – Consumes only 1.5W per module (30W per string) with low heat generation, ensuring excellent performance and durability for continuous operation.
-

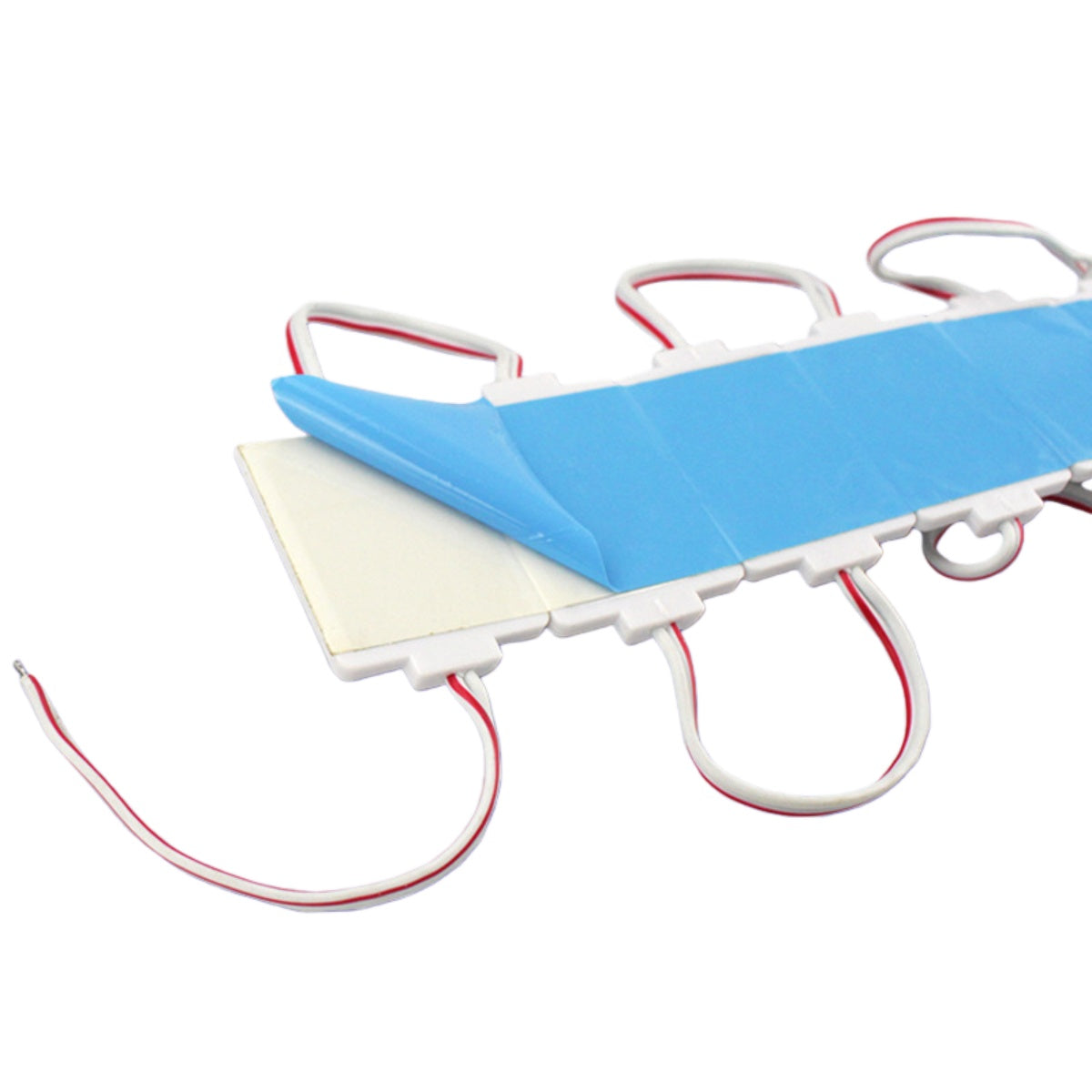

🌧️ Waterproof & Durable Design – Rated IP65 waterproof, sealed against dust and moisture; suitable for both indoor and outdoor lighting projects, with strong 3M adhesive backing for quick installation.
-

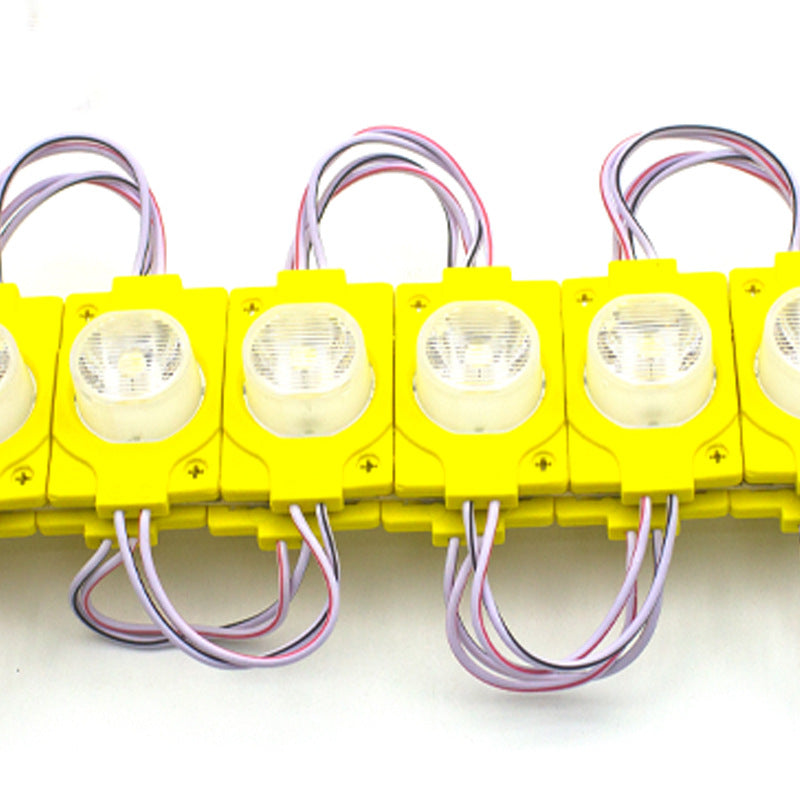

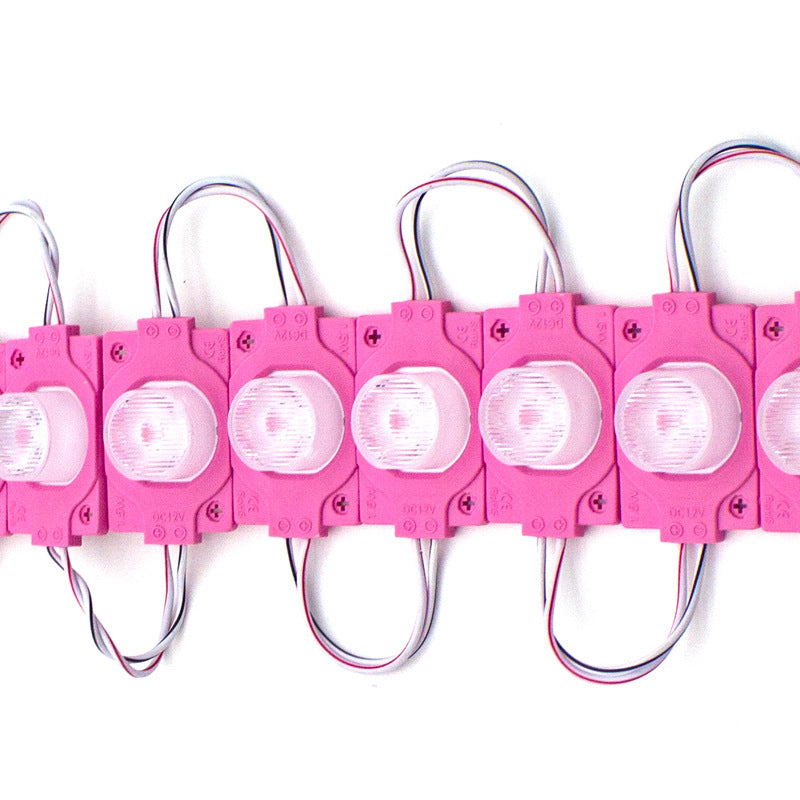

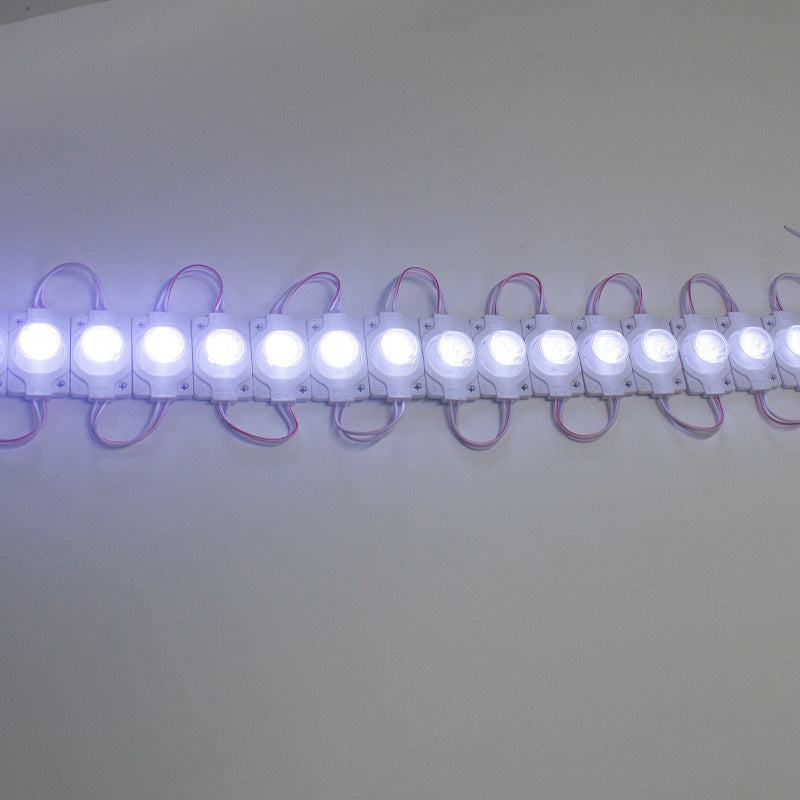

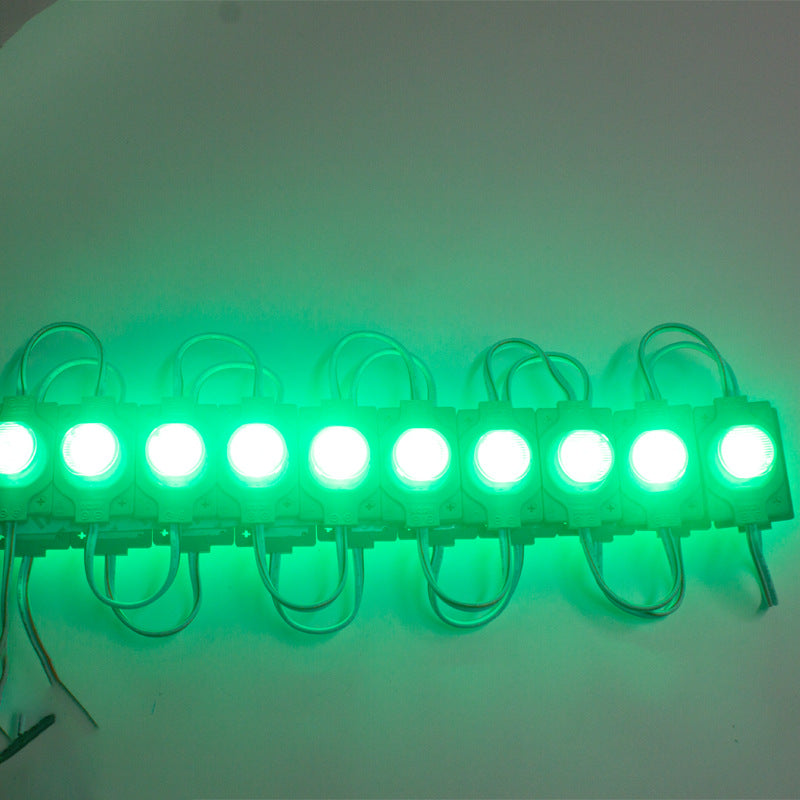

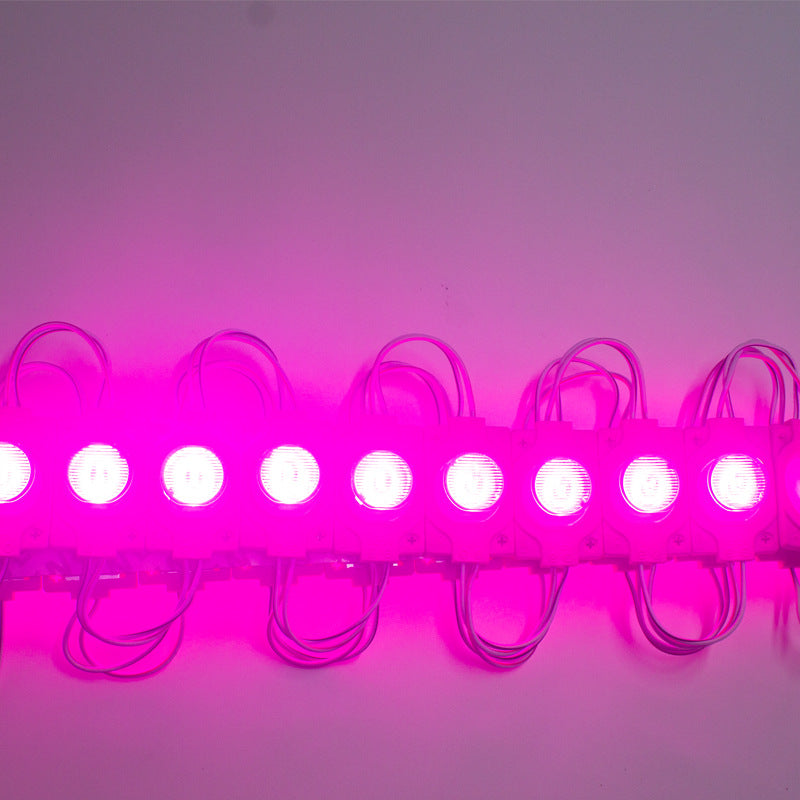

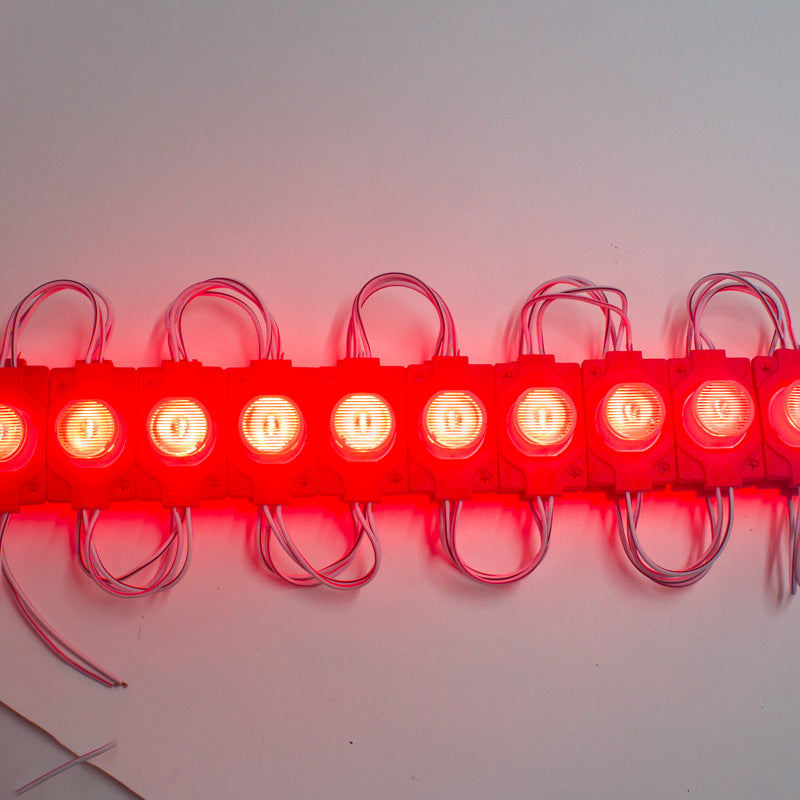

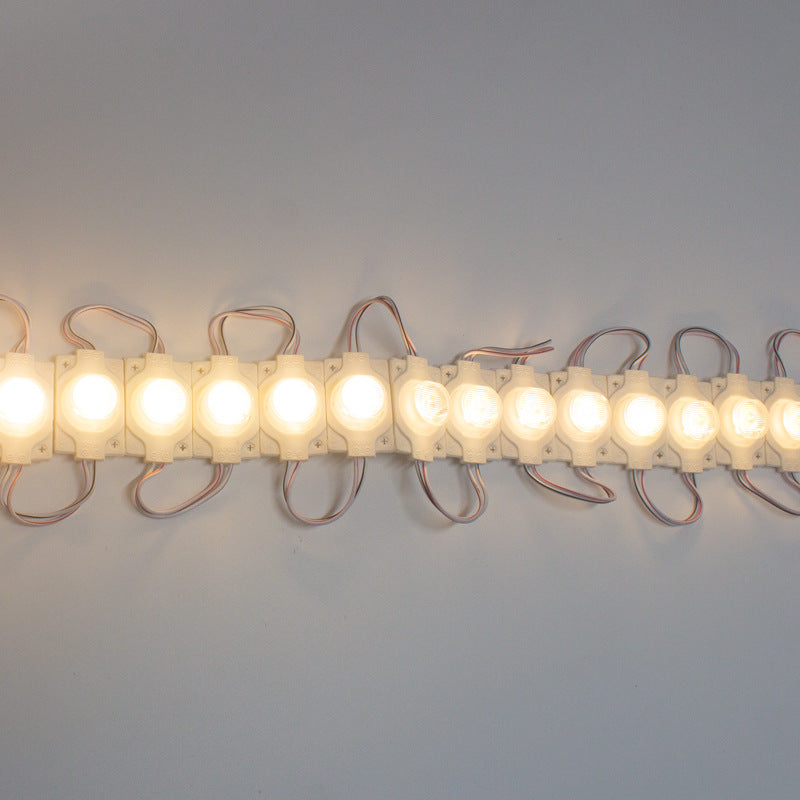

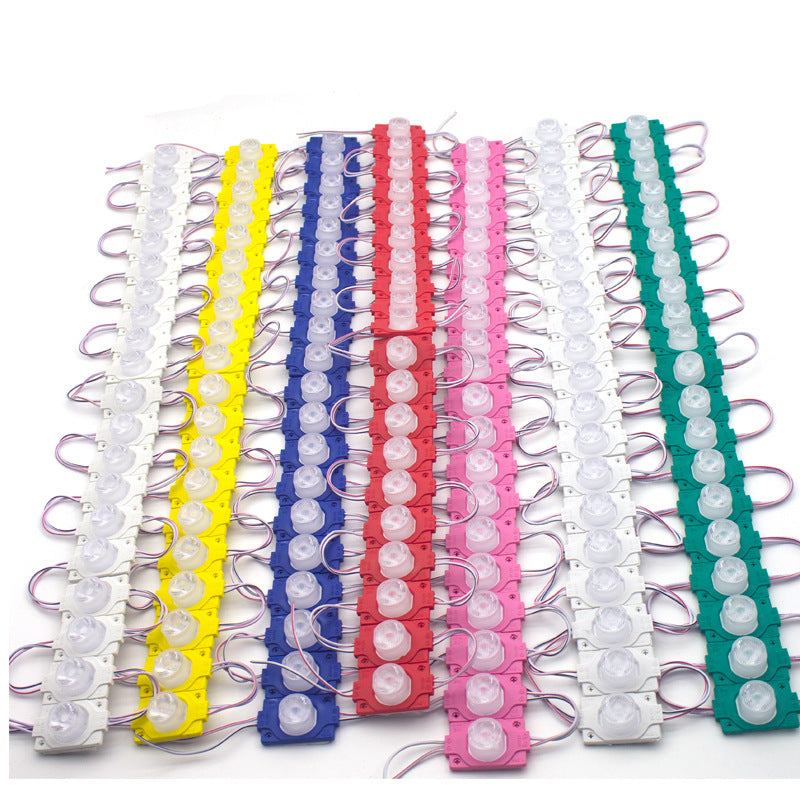

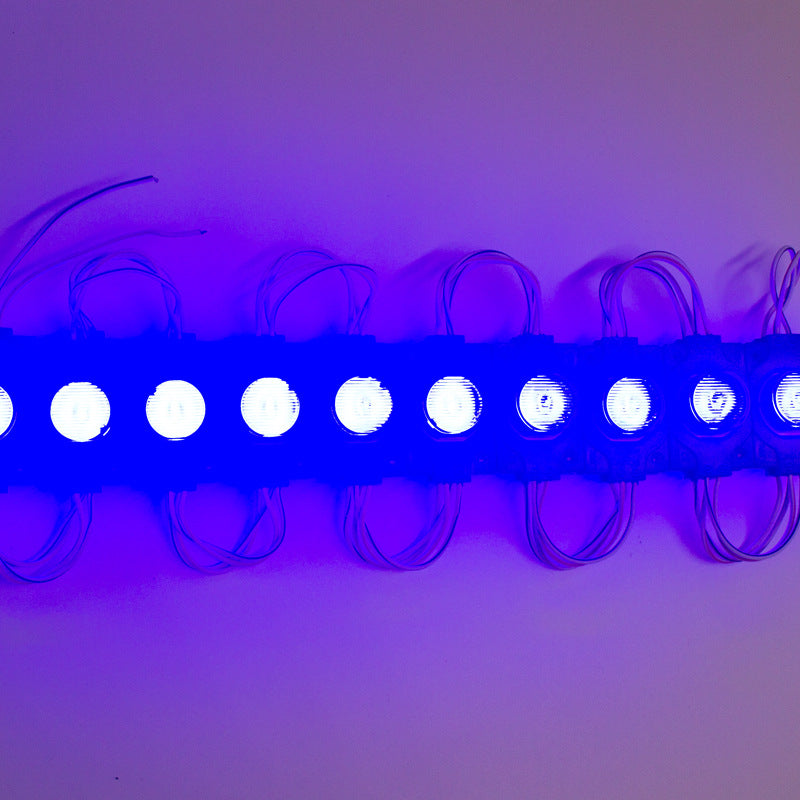

🎨 Multiple Color Options – Available in 6500K Cool White, 3000K Warm White, Red, Green, Blue, Yellow, and Pink, perfect for creating vivid lighting effects or matching brand colors.
-
🔌 Easy Installation & Expandable Setup – Each string includes 20 connected modules with pre-wired connectors; easily daisy-chain multiple strings for large signage or backlighting setups.
Specification：
| Item | Specification |
| Product Type | LED Module with Lens |
| LED Source | High Brightness SMD |
| Optical Lens | Integrated PMMA lens, 160° beam angle |
| Luminous Flux | 150 lm per module |
| Power Consumption | 1.5W per module |
| Voltage | DC 12V |

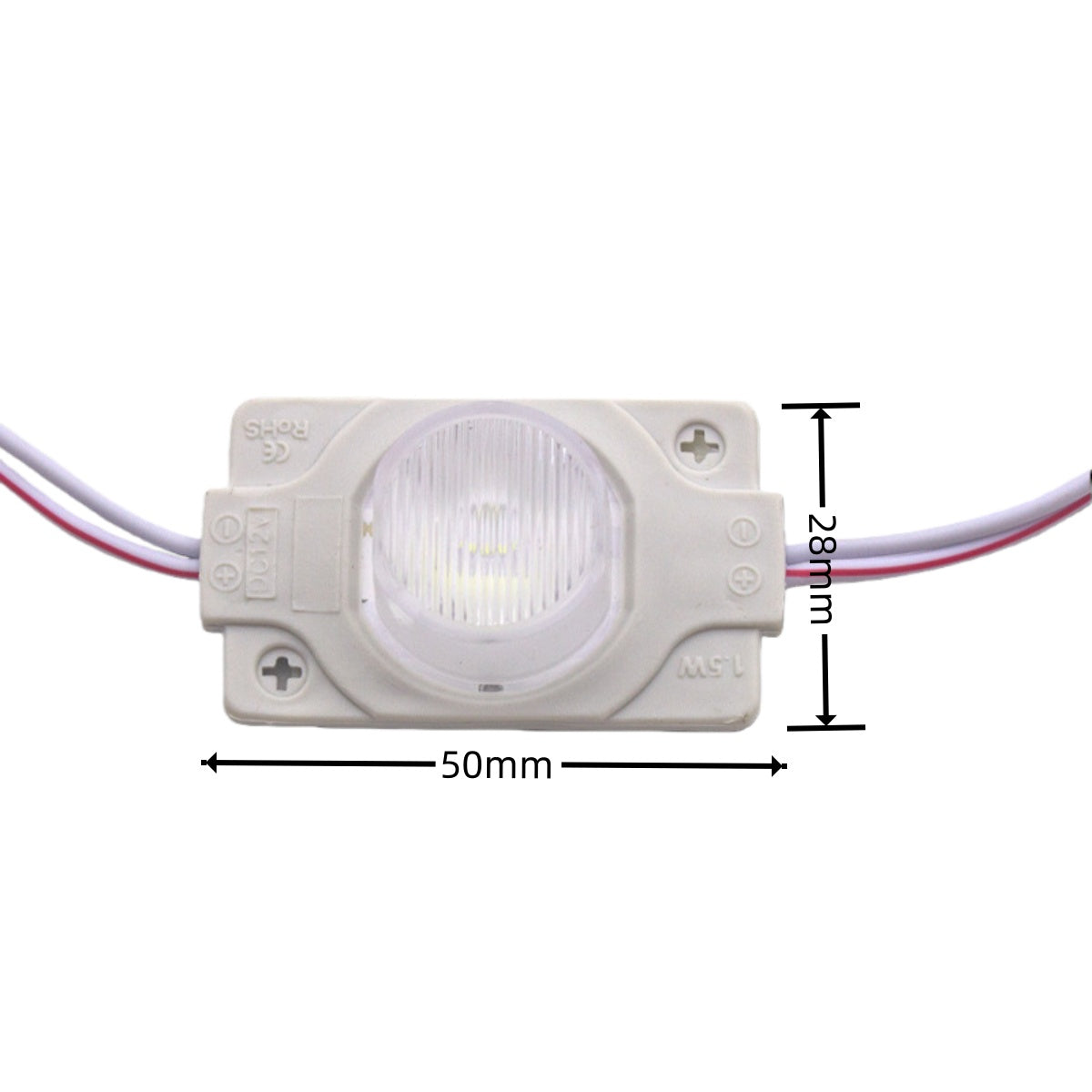

| Module Size | 50 × 28 mm |
| String Quantity | 20 modules per string |
| Available Colors | 6500K Cool White, 3000K Warm White, Red, Green, Blue, Yellow, Pink |
| Waterproof Rating | IP65 |

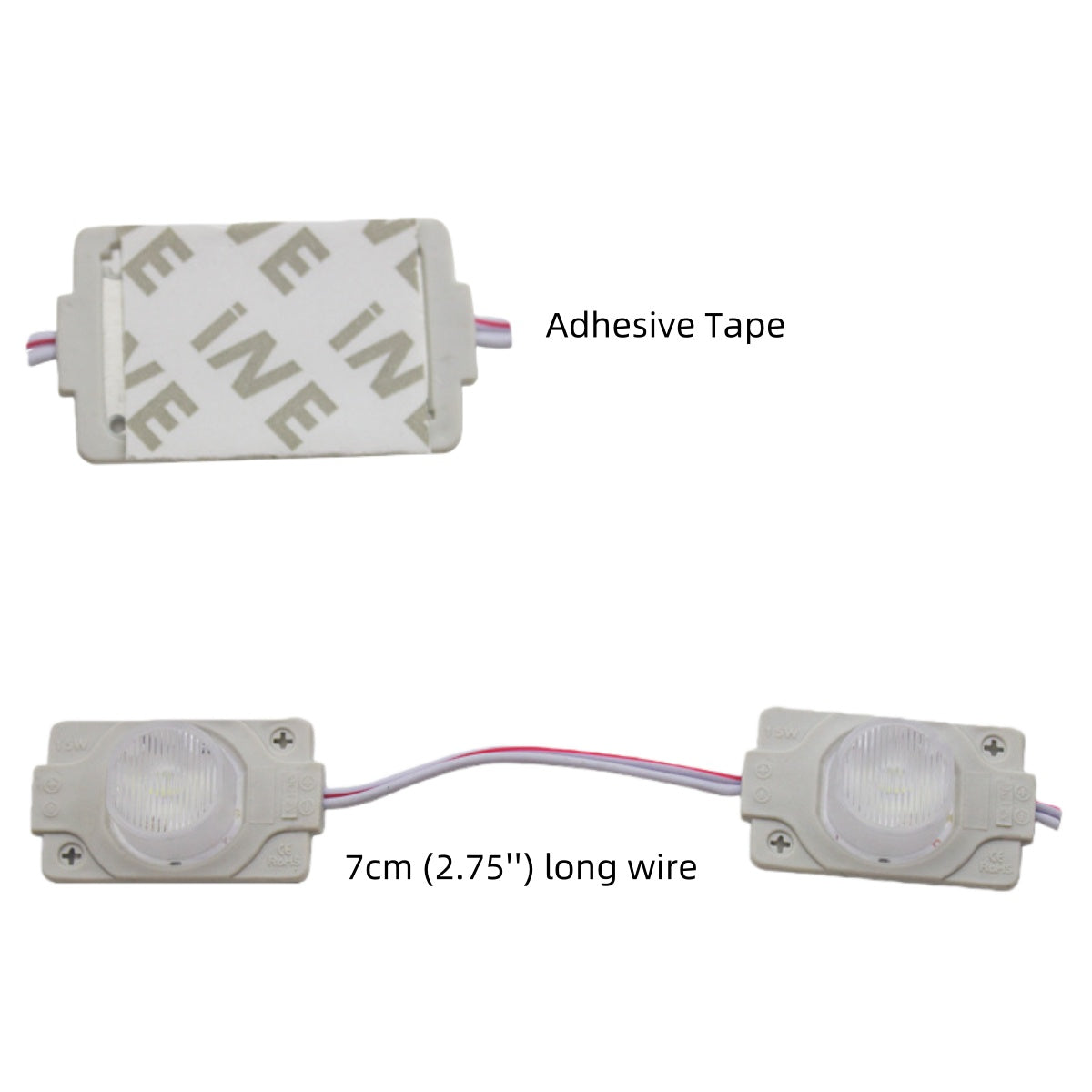

| Installation Method | 3M adhesive backing + screw holes |
| Material | ABS plastic housing |
| Working Temperature | -20°C ~ +60°C |
| Connection Type | Daisy-chain wiring |
| Package Options | 5 Strings (100 pcs) / 50 Strings (1000 pcs) / 100 Strings (2000 pcs) |
| Application | Light boxes, channel letters, signage, backlighting, decorative lighting |
