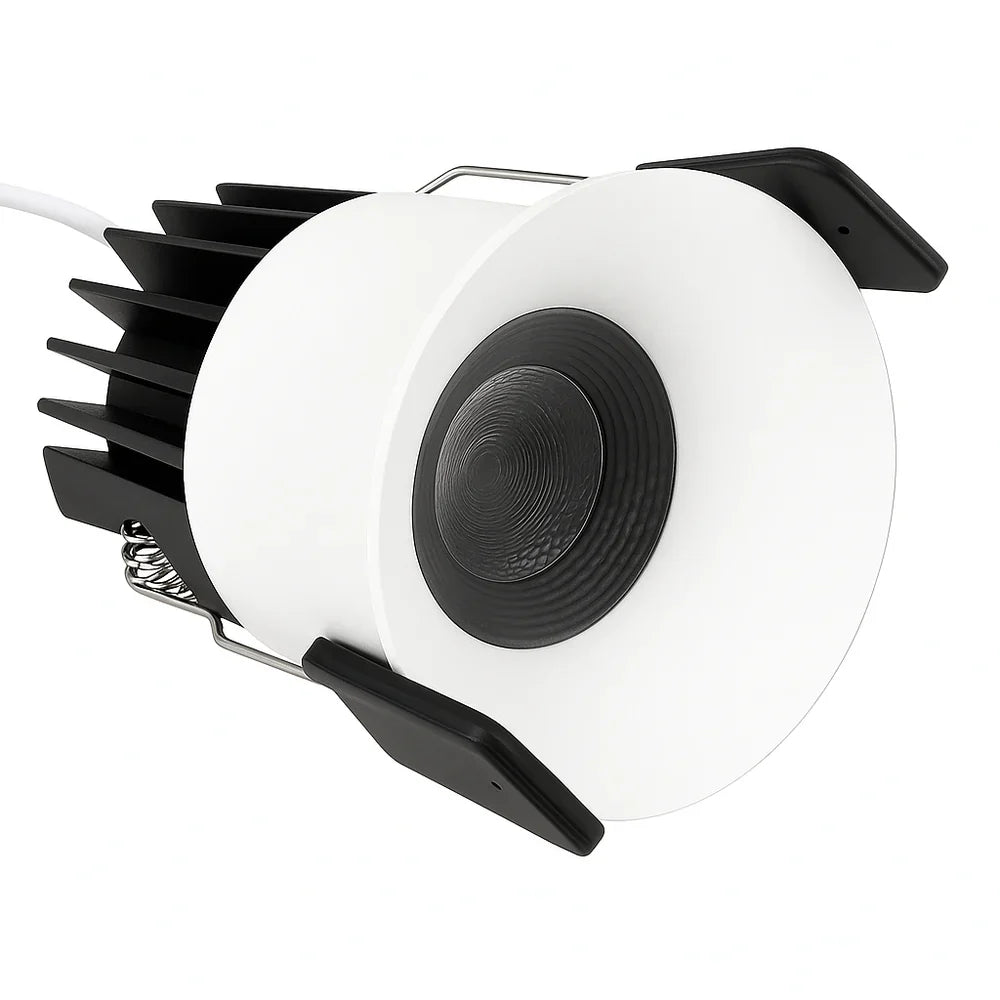

Inside Commercial Downlight Performance: Lumen Output, Beam Angle, and Thermal Control Explained

In the world of professional lighting design, commercial downlights are among the most essential and versatile fixtures. Whether illuminating offices, hotels, retail stores, or galleries, a well-designed downlight can dramatically improve visual comfort, ambiance, and energy efficiency. However, with so many technical parameters available—lumens, color rendering, beam angle, and thermal management—choosing the right fixture can be complex.

This article provides an in-depth guide to evaluating downlight performance, focusing on three critical technical aspects: lumen output, beam angle, and thermal control.

1. Lumen Output — The Core Indicator of Brightness

Lumen output represents the total amount of visible light emitted by a fixture. In commercial applications, where high and consistent brightness is required, lumen performance is a key measure of quality and efficiency.

1. Balancing Lumens and Power (Lumen/Watt Ratio)
   A premium downlight offers strong illumination with efficient energy use. For instance, 7W models producing around 700–800 lumens or 12W models achieving 1000+ lumens are ideal for offices or retail stores. A low lumen-per-watt ratio indicates wasted energy and poor LED performance.



2. High CRI (Color Rendering Index)
   The CRI value determines how accurately colors appear under artificial light. For commercial spaces like showrooms or restaurants, a CRI ≥ 90 is essential to ensure that objects and merchandise appear vibrant and true to life.



3. Lumen Maintenance and Long-Term Stability
   High-quality LEDs should retain at least 90% brightness after thousands of hours of operation. This stability is achieved through premium LED chips and constant-current drivers, preventing brightness decay and ensuring consistent lighting quality over time.



2. Beam Angle — Defining Light Distribution and Atmosphere

The beam angle determines how light spreads from the fixture, directly influencing mood, focus, and visual hierarchy in a space.

1. Narrow Beam (≤24°)
   Ideal for accent or display lighting — such as highlighting artwork, merchandise, or architectural details — narrow beams create sharp contrasts and focal points.



2. Medium Beam (30°–60°)
   The most versatile choice for general commercial lighting, providing balanced illumination suitable for corridors, conference rooms, or retail spaces.



3. Wide Beam (≥90°)
   Used for broad, uniform illumination in lobbies, open offices, or exhibition areas.



Additionally, many modern downlights integrate deep anti-glare reflectors, which shield the light source and reduce direct glare. This design enhances visual comfort, especially in workplaces and retail settings where lighting runs for long hours.

3. Thermal Control — The Hidden Power Behind Performance

LEDs are highly efficient, but they still generate heat. Without effective thermal management, excess heat can degrade brightness, shorten lifespan, and damage internal components.

1. Aluminum Heat Sink Construction
   The best downlights use aerospace-grade aluminum with high thermal conductivity. This material dissipates heat quickly, ensuring long-term reliability.



2. Optimized Thermal Layout
   Advanced designs often separate the LED module from the driver, preventing heat buildup and extending the fixture’s lifespan.



3. Smart Thermal Regulation
   High-end models include temperature sensors that automatically adjust current flow to maintain safe operating temperatures — crucial for commercial installations running 12+ hours daily.



Efficient heat dissipation not only protects the LED chips but also maintains consistent color temperature and light output throughout the product’s life cycle.

4. Practical Recommendations

When selecting commercial downlights, performance matching based on application is key:

• Hotels & Restaurants: Choose CRI ≥ 95, 3000K–4000K warm tones, and deep anti-glare design for cozy, elegant lighting.



• Retail & Showrooms: Use high-lumen, CRI ≥ 90 downlights with 24°–36° beam angles to emphasize products.



• Bathrooms & Outdoor Spaces: Require IP65 waterproof protection to ensure durability in humid or exposed environments.



5. Recommended Commercial Downlight Models

Below are some top-performing LEDLightsWorld downlight solutions designed for professional and architectural lighting projects. Each model offers a unique combination of lumen output, beam precision, and structural reliability.

6. Conclusion

Evaluating a commercial downlight requires more than checking brightness specs. Lumen output defines efficiency, beam angle shapes spatial aesthetics, and thermal control ensures longevity and stability.
By balancing these factors, you can select a fixture that delivers both performance and comfort, enhancing any commercial or architectural environment.

At LEDLightsWorld, we are committed to providing high-CRI, energy-efficient, and long-lasting lighting solutions—empowering every project to shine with precision and quality.
