Tips for Properly Sizing Your LED Power Supply to Prevent Overheating & Failure

When working with LED lighting projects, choosing the right power supply is one of the most important decisions you can make. A poorly sized power supply can lead to overheating, flickering lights, or even complete system failure. On the other hand, the right power supply ensures stability, safety, and long-term performance. Whether you are installing LED strips for a backyard patio, architectural lights on a building, or a commercial signage display, properly sizing your LED power supply is the foundation of success.

Why Power Supply Sizing Matters

LED lights are highly efficient, but they are also sensitive to fluctuations in voltage and current. If the power supply is undersized, it will be forced to run at or near maximum capacity all the time. This generates excess heat, which not only shortens the lifespan of the power supply itself but also puts your LED lights at risk.

An oversized power supply, on the other hand, may seem like a safe choice, but it can result in unnecessary costs and wasted energy. The goal is to find the “sweet spot”: a power supply that delivers the exact performance your project requires, with a little extra headroom for safety and efficiency.

Calculating the Correct Wattage

The first step in sizing your power supply is to calculate the wattage requirements of your LED system:

• Step 1: Identify the wattage per meter of your LED strip or the wattage rating of each LED fixture.



• Step 2: Multiply that number by the total length of the strip or the number of fixtures you plan to use.



• Step 3: Add a safety margin of 20–30%. This ensures the power supply isn’t constantly running at maximum load, reducing stress and heat buildup.



For example, if your LED strip consumes 10 watts per meter and you’re using 10 meters, that equals 100 watts. Adding a 30% margin means you should choose a power supply rated for at least 130 watts.

Voltage Matters Too

Another critical factor is voltage. LEDs are designed to work with a specific voltage—commonly 12V, 24V, or 48V. Using a power supply that doesn’t match the LED’s voltage can cause immediate failure. For instance, connecting a 24V LED strip to a 12V power supply will result in dim or non-functioning lights, while using a 48V power supply for a 12V strip can cause permanent damage.

Always check your LED product specifications and ensure the power supply matches the required voltage. Selecting the wrong voltage is one of the most common mistakes installers make, and it’s also one of the easiest to avoid.

Preventing Overheating in Outdoor Installations

Outdoor LED projects present unique challenges. Power supplies often need to operate in high humidity, direct sunlight, or fluctuating temperatures. These conditions make overheating a real risk if the power supply isn’t sized or protected correctly.

To prevent overheating:

• Choose power supplies with IP67 waterproof ratings for outdoor use



• Avoid enclosing power supplies in small, poorly ventilated spaces



• Provide extra wattage headroom so the unit runs cooler



• Consider multiple smaller power supplies instead of one large unit for big projects



By following these precautions, you ensure your outdoor LED lighting remains safe and reliable, even in extreme weather.

Common Mistakes to Avoid

Many LED failures trace back to improper power supply sizing. Here are some common errors to watch out for:

• Running at full load continuously: This stresses the unit and shortens its life



• Ignoring voltage drop in long cable runs: This can cause uneven brightness in LEDs



• Mixing incompatible voltages: Damaging both LEDs and the power supply



• Skipping the safety margin: Leaving no room for fluctuations or future expansion



By avoiding these pitfalls, you can extend the lifespan of your entire LED system and minimize maintenance issues.

Smarter Choices for Long-Term Performance

A properly sized LED power supply does more than just keep your lights running—it protects your investment. By ensuring your system has the right wattage, voltage, and protective features, you create a safer, more reliable, and more energy-efficient installation.

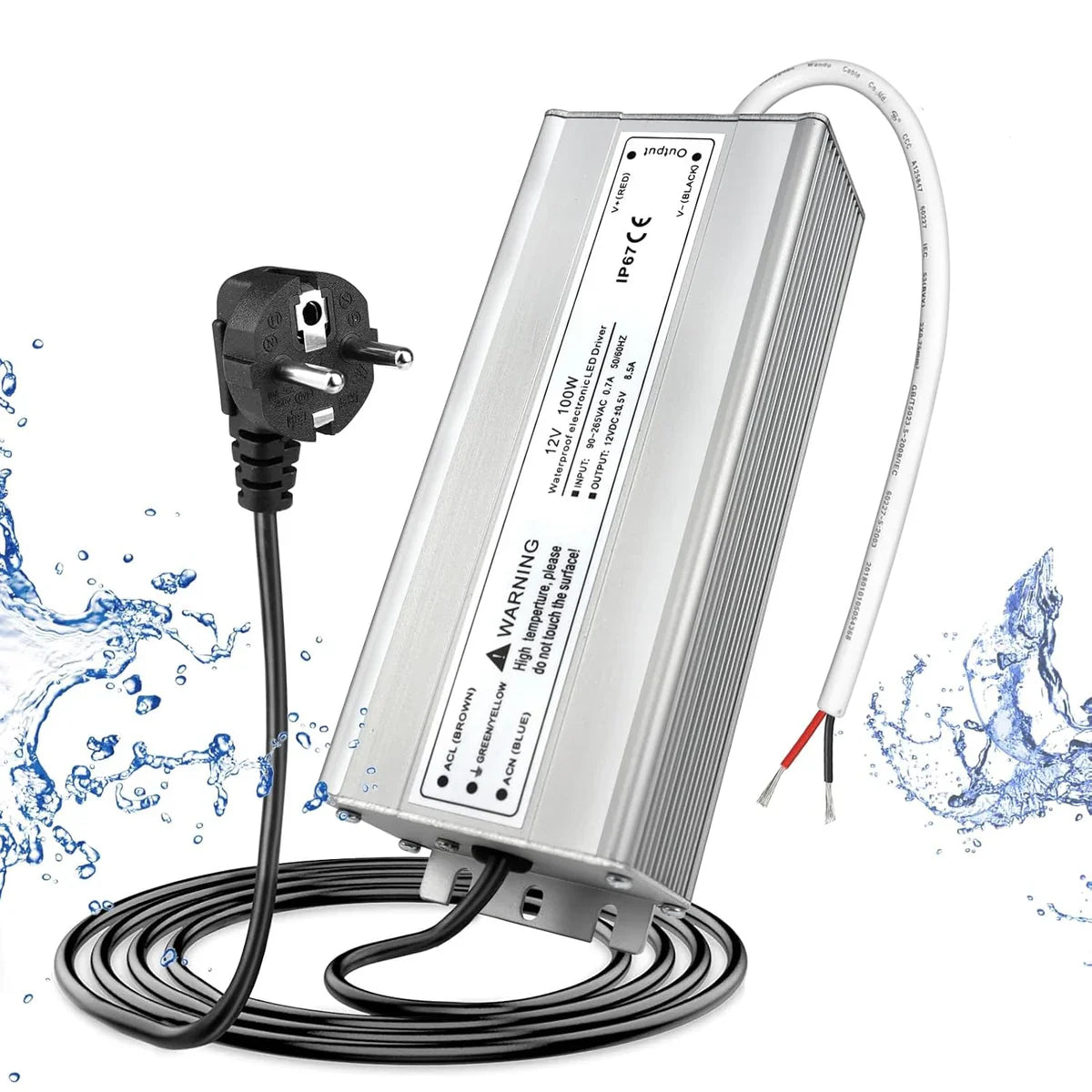

At LEDLightsWorld, we provide a wide selection of waterproof LED power supplies that are designed for long-term outdoor performance. Here are some of the most popular options:

With the right waterproof power supply, your LED lighting system will remain safe, efficient, and long-lasting—no matter the scale of your project.
