Description

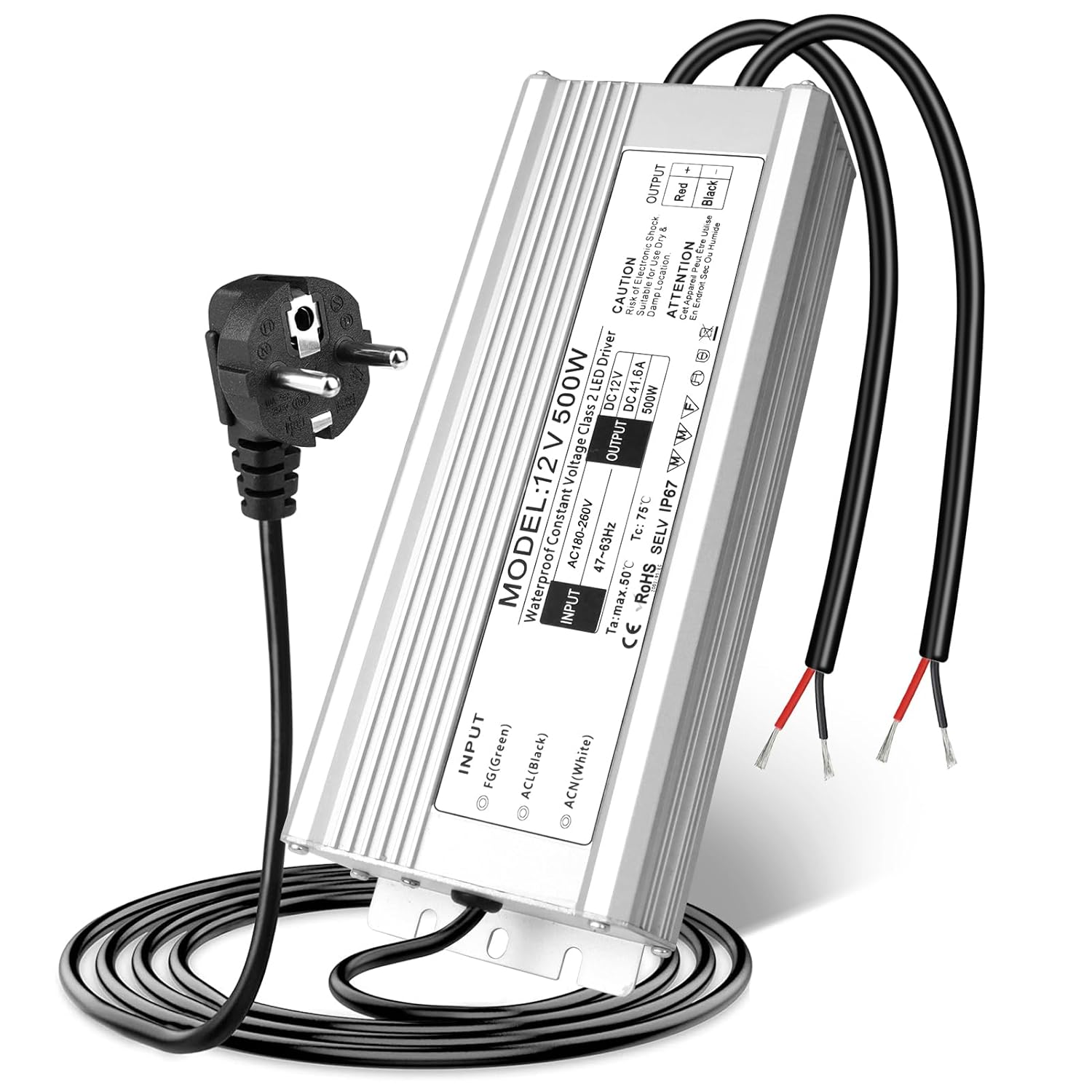

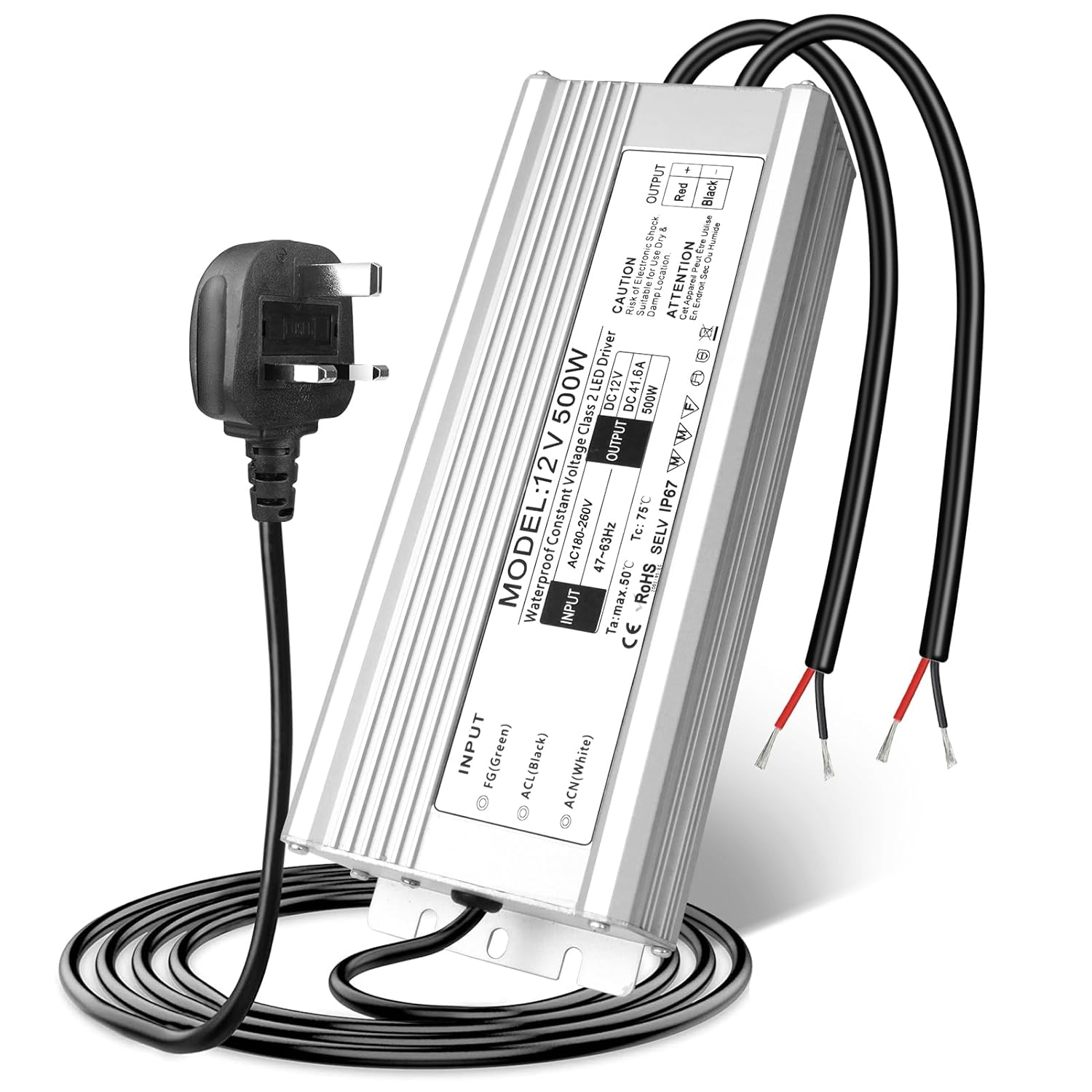

12V Waterproof LED Power Supply, 175–265V Input, 200W–500W, Single/Dual Wire Output, Outdoor LED Driver, CE/RoHS/FCC — UK/EU Plug & Wire Leads Options
Package Included
| Version | Package Included |
|---|---|
| 200W Single Wire UK Plug | 1 × 200W Waterproof LED Driver, User Manual |
| 200W Single Wire EU Plug | 1 × 200W Waterproof LED Driver, User Manual |
| 200W Single Wire Wire Leads (3-core) | 1 × 200W Waterproof LED Driver, User Manual |
| 200W Dual Wire UK Plug | 1 × 200W Waterproof LED Driver, User Manual |
| 200W Dual Wire EU Plug | 1 × 200W Waterproof LED Driver, User Manual |
| 200W Dual Wire Wire Leads (3-core) | 1 × 200W Waterproof LED Driver, User Manual |
| 350W Single Wire UK Plug | 1 × 350W Waterproof LED Driver, User Manual |
| 350W Single Wire EU Plug | 1 × 350W Waterproof LED Driver, User Manual |
| 350W Single Wire Wire Leads (3-core) | 1 × 350W Waterproof LED Driver, User Manual |
| 350W Dual Wire UK Plug | 1 × 350W Waterproof LED Driver, User Manual |
| 350W Dual Wire EU Plug | 1 × 350W Waterproof LED Driver, User Manual |
| 350W Dual Wire Wire Leads (3-core) | 1 × 350W Waterproof LED Driver, User Manual |
| 400W Single Wire UK Plug | 1 × 400W Waterproof LED Driver, User Manual |
| 400W Single Wire EU Plug | 1 × 400W Waterproof LED Driver, User Manual |
| 400W Single Wire Wire Leads (3-core) | 1 × 400W Waterproof LED Driver, User Manual |
| 400W Dual Wire UK Plug | 1 × 400W Waterproof LED Driver, User Manual |
| 400W Dual Wire EU Plug | 1 × 400W Waterproof LED Driver, User Manual |
| 400W Dual Wire Wire Leads (3-core) | 1 × 400W Waterproof LED Driver, User Manual |
| 500W Dual Wire UK Plug | 1 × 500W Waterproof LED Driver, User Manual |
| 500W Dual Wire EU Plug | 1 × 500W Waterproof LED Driver, User Manual |
| 500W Dual Wire Wire Leads (3-core) | 1 × 500W Waterproof LED Driver, User Manual |
About this item
- Wide input voltage 175–265V AC, 50/60Hz, designed for stable performance
- Converts AC to stable DC output (12V / 200W–500W options)
- Compact design with aluminum alloy waterproof housing for outdoor use
- Suitable for LED strip lights, LED bulbs, outdoor signage and decorative lighting
- Safe and reliable with overload, short-circuit, over-voltage, and high temperature protection

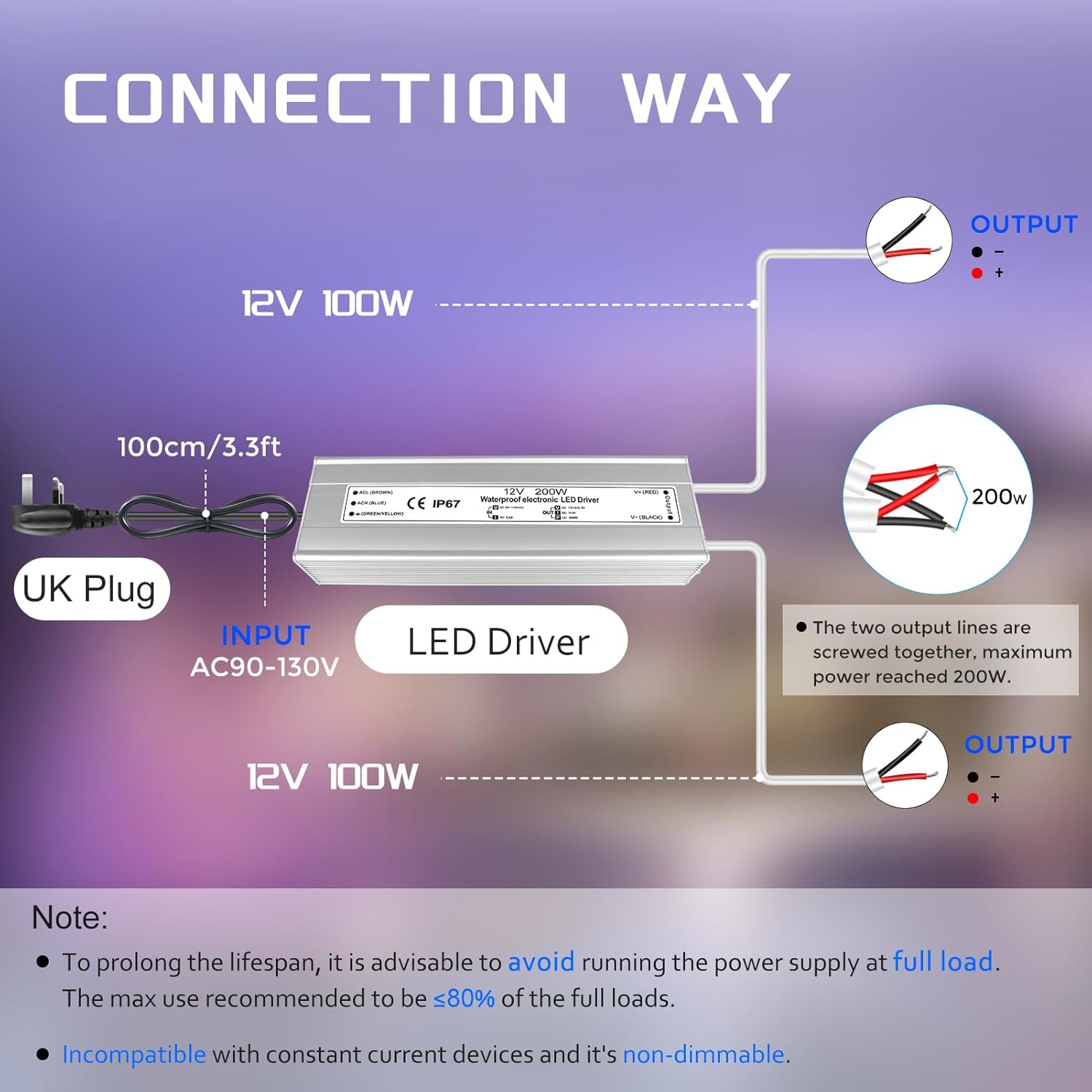

- Dual wire output design, with UK/EU plug & wire leads options available
Order & Logistics
- Lead Time: Ships within 1–3 business days
- Packing: Protective cardboard box with user manual
- Shipping: Ships from local warehouses (US, Canada, UK, Germany) with delivery in 3–7 days. In rare cases, shipment may be fulfilled from central warehouse if local stock is unavailable(9–18 days standard or 5–9 days express.)
Key Specifications
- Input Voltage: 175–265V AC, 50/60Hz
- Output Voltage / Wattage: 12V DC / 200W–500W
- Plug Type: UK / EU Plug & Wire Leads Options
- Package Qty: 1-Pack
- Housing: Aluminum Alloy Waterproof Case
- Connector: Dual Wire Output
- Protection: Overload, Short-circuit, Over-voltage, High Temperature

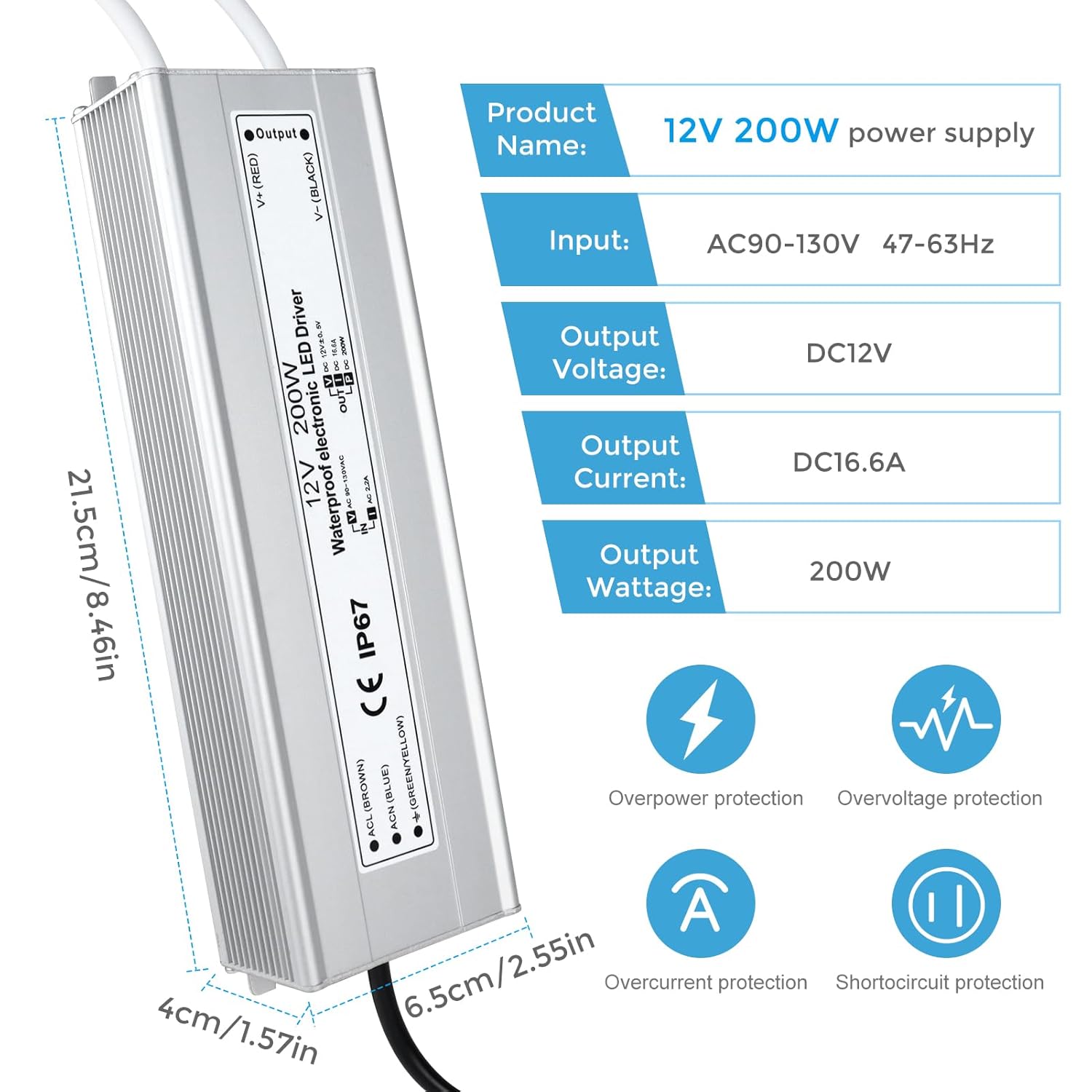

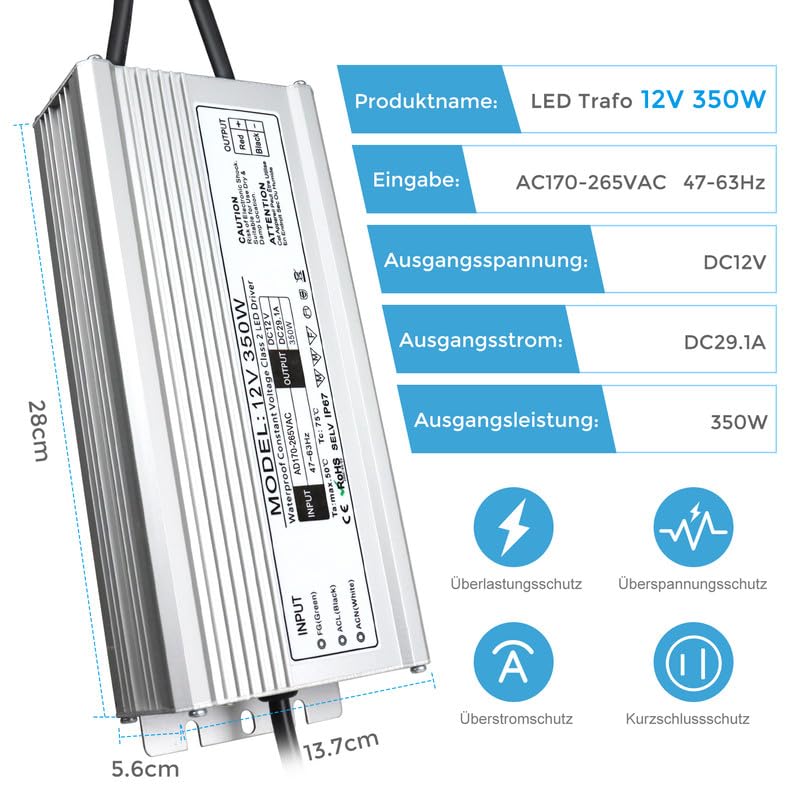

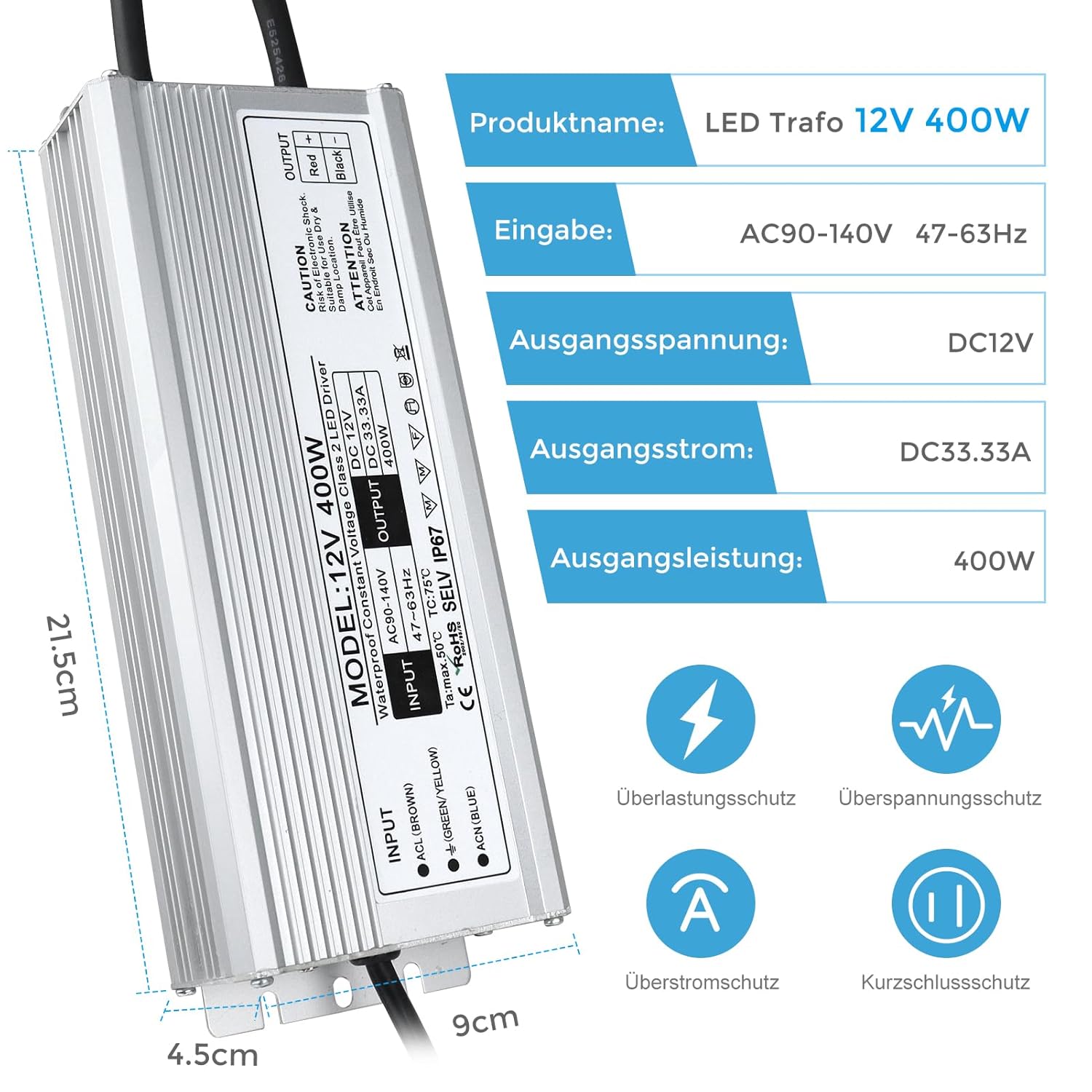

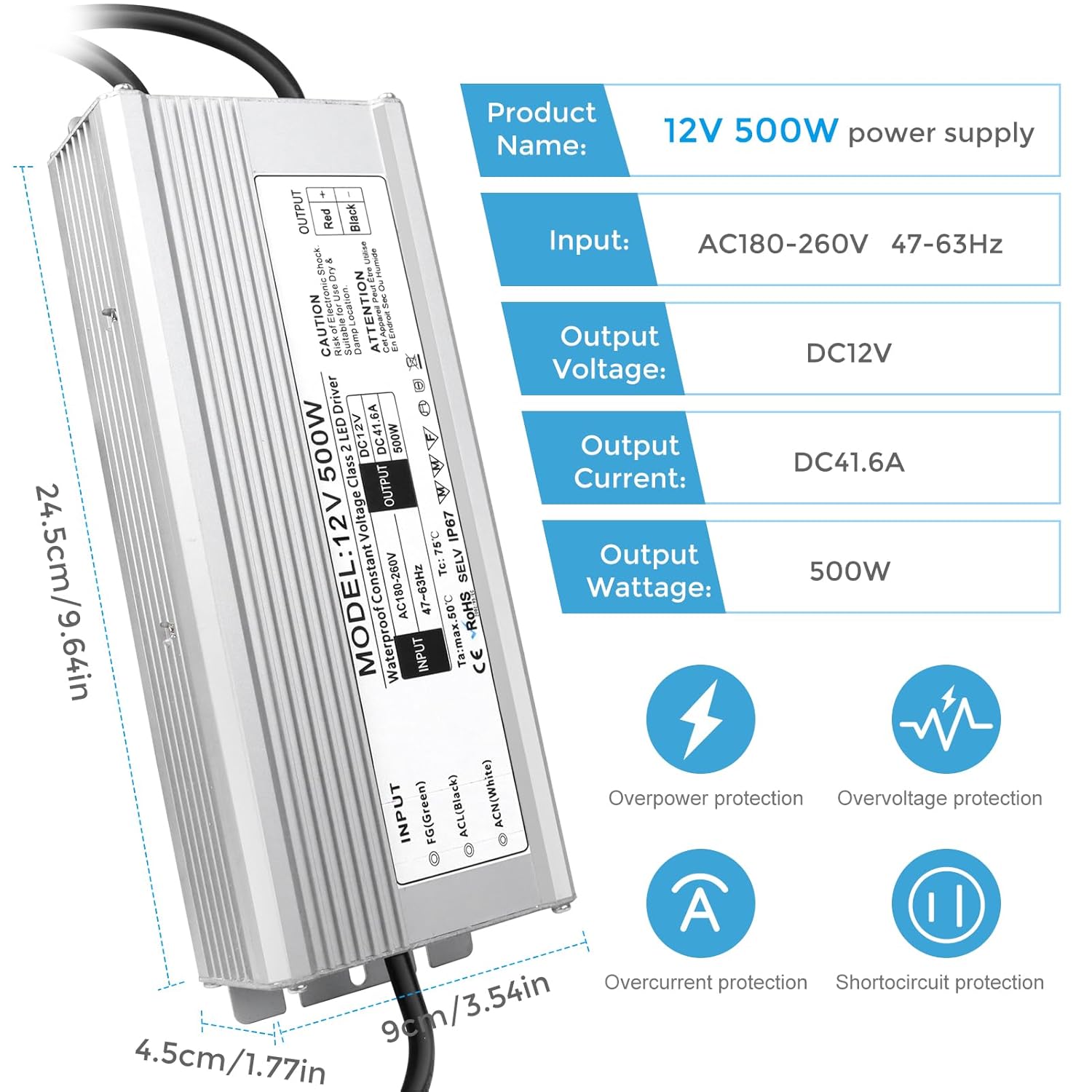

| Model | PFH-200-12 | PFH-350-12 | PFH-400-12 | PFH-500-12 |
|---|---|---|---|---|
| Input voltage range | 90~265V AC | 90~265V AC | 90~265V AC | 100~265V AC |
| Output power | 200W | 350W | 400W | 500W |
| Rated output voltage | 12V DC | 12V DC | 12V DC | 12V DC |
| Rated output current | 16.67A | 29.17A | 33.33A | 41.67A |
| Output current range | 0~16.67A | 0~29.17A | 0~33.33A | 0~41.67A |
| Weight | 1.05 kg | 1.48 kg | 1.53 kg | 1.63 kg |

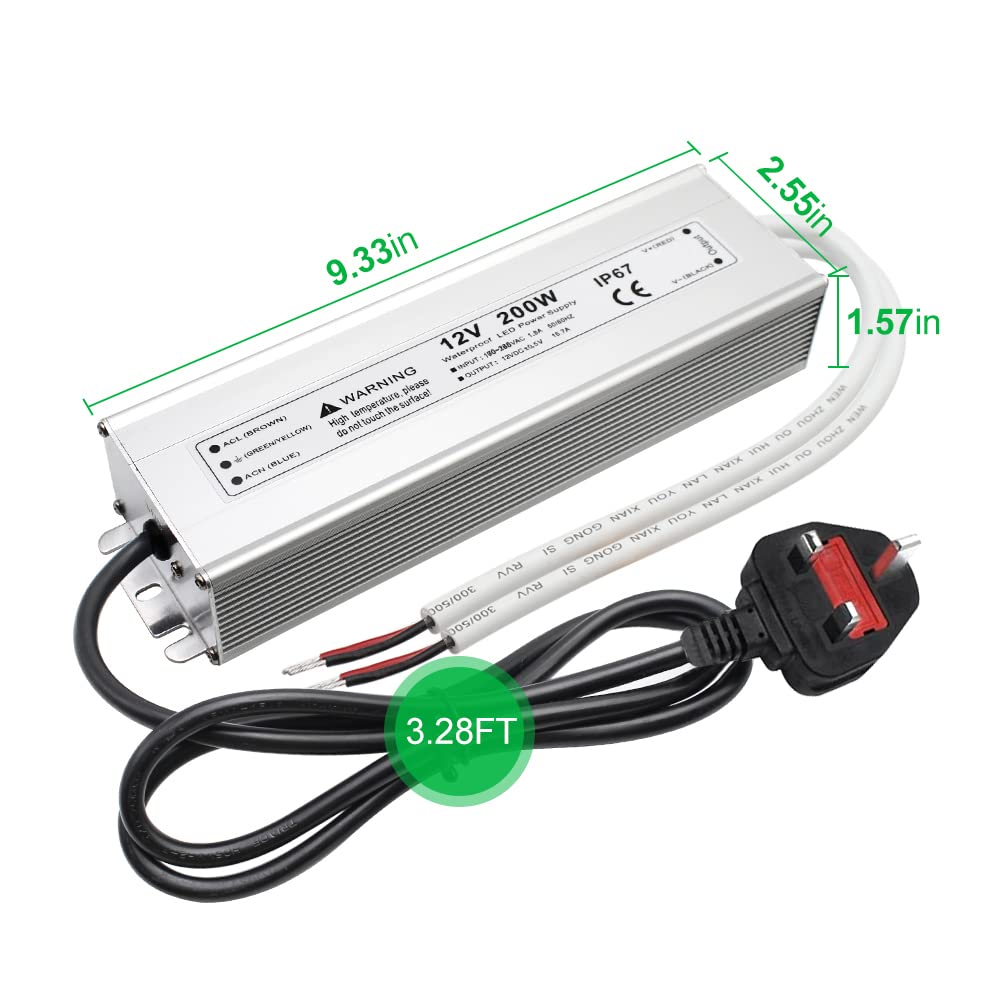

| Product dimensions | 7.2 x 2.55 x 1.57 in | 11 x 5.39 x 2.2 in | 8.46 x 1.77 x 3.54 in | 9.64 x 3.54 x 1.77 in |
| Waterproof rating | IP67 | IP67 | IP67 | IP67 |
| Safety protection | Overload, over-voltage, over-temperature, overcurrent, and short-circuit protections. | |||
| Operating temperature | -20°C to +60°C, 20% to 90% RH (non-condensing) | |||
| PCB components | Using all-glass PCB (environmentally friendly, smoldering, high-temperature resistant, and long-life), and brand-new components. | |||
| Storage temperature | -20°C to +85°C, 10% to 95% RH (non-condensing) | |||
Usage Notes / Installation Tips
- Check the rated voltage and wattage of your device before connecting
- Do not overload beyond the rated capacity (200W–500W)

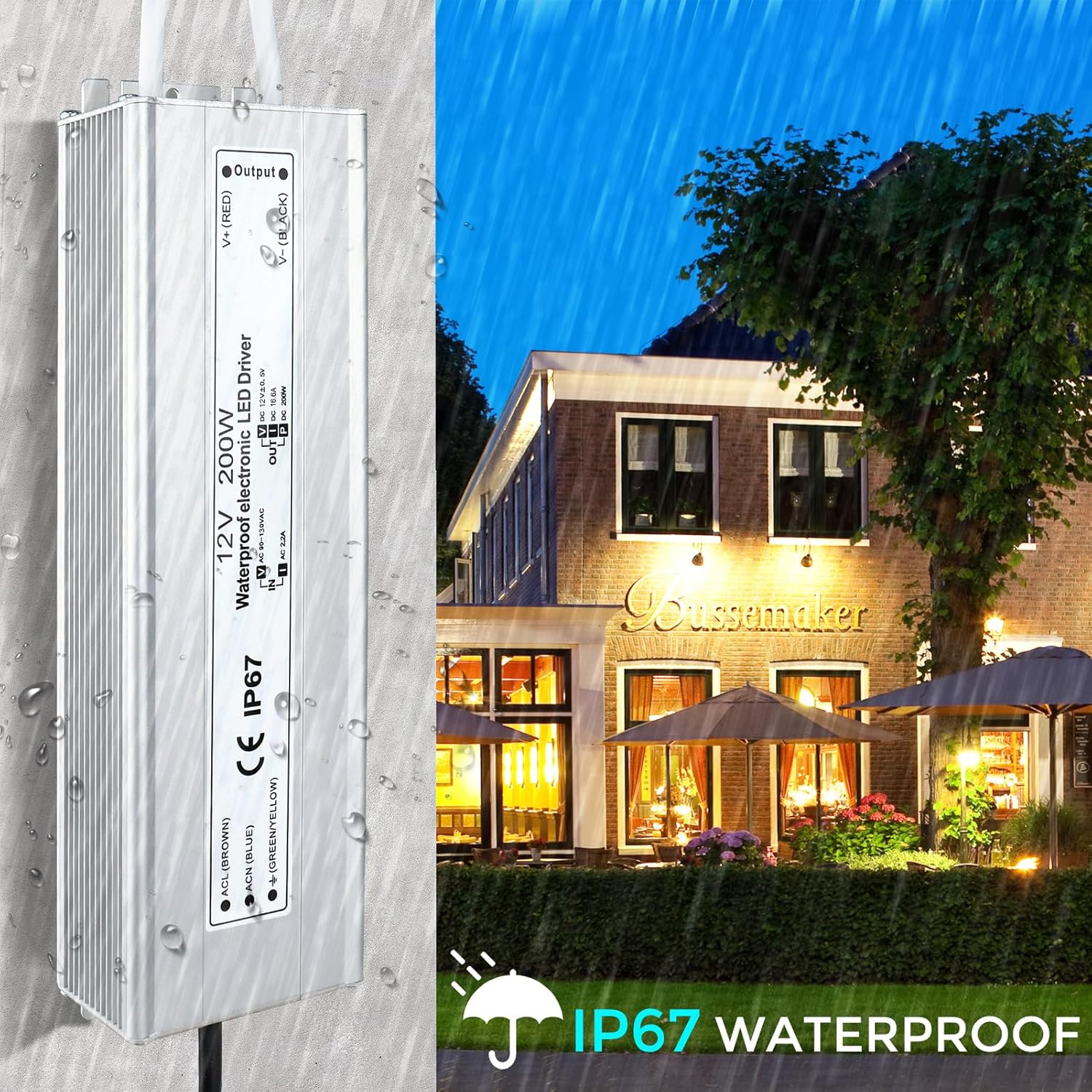

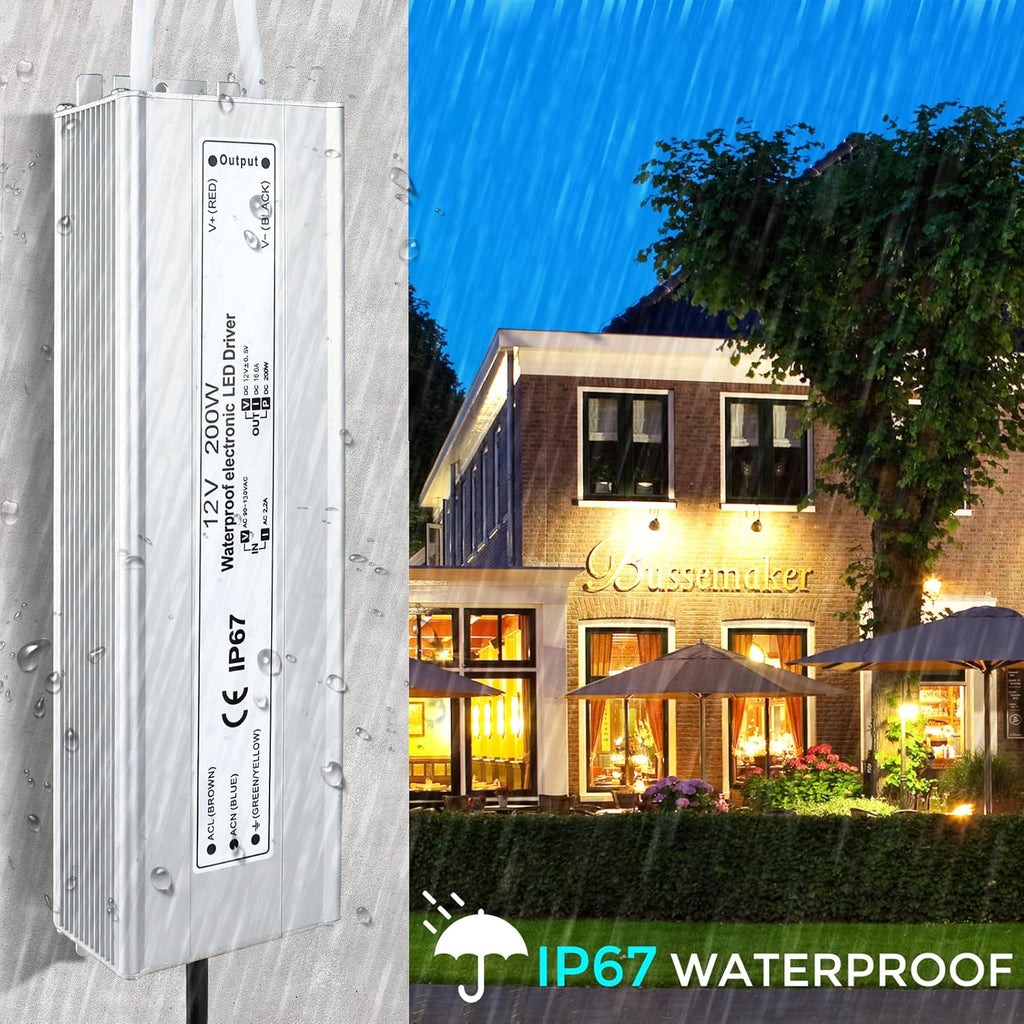

- Outdoor ready with waterproof housing; avoid direct immersion in water
- Disconnect power before installation or wiring adjustments
- For continuous heavy load, ensure ventilation and keep housing exposed for heat dissipation
Applications

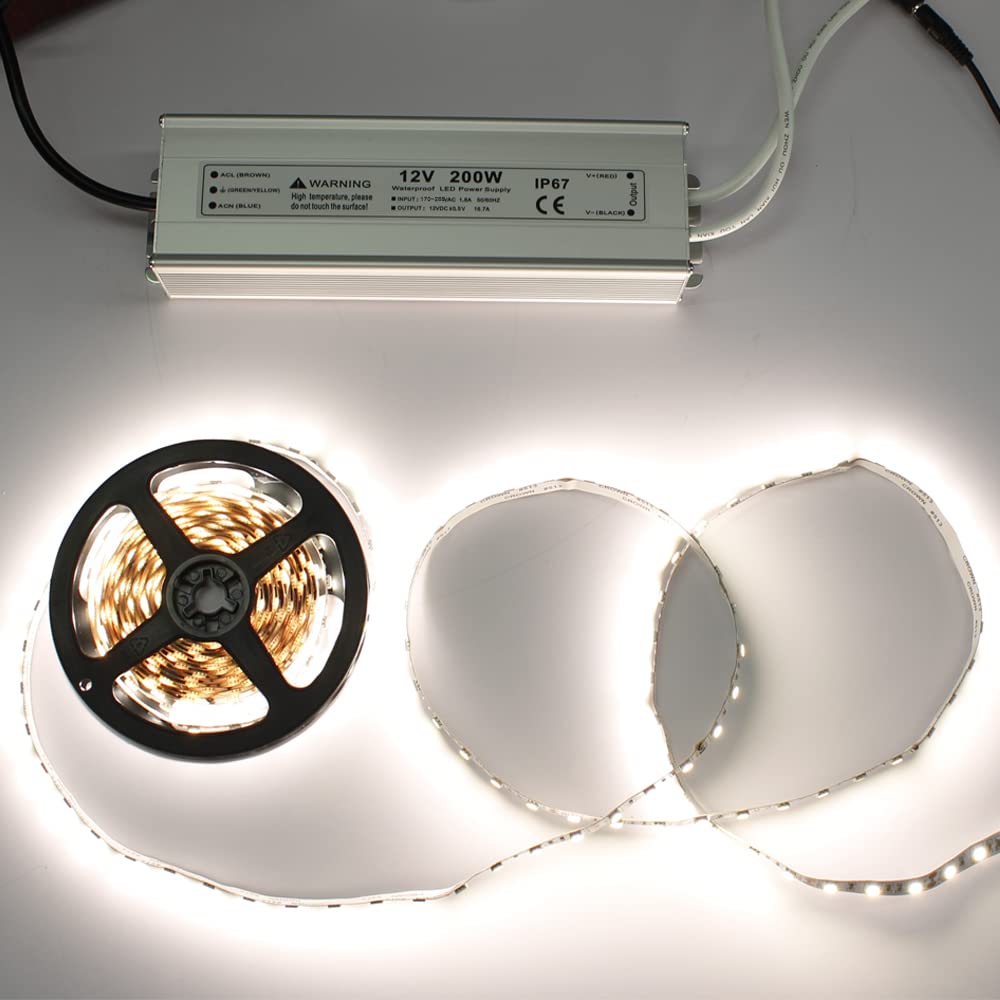

- LED strip lights and LED bulbs (≤500W)
- Outdoor landscape and decorative lighting
- Waterproof LED driver for signage
- DIY electronics projects requiring stable 12V supply
- Small appliances and pumps within 500W load
