How to Choose the Right Huidu Controller for Your LED Display Project

When building an LED display—whether for retail advertising, public information, or a creative digital installation—the control system is the heart of the project. It determines how your screen performs, how content is managed, and how smoothly visuals come to life.

Among many LED control solutions available today, Huidu LED control systems stand out for their balance of affordability, stability, and ease of use. From small single-color screens to high-resolution full-color displays, Huidu offers a wide range of controllers to match different project needs.

If you’ve ever wondered how to choose the right Huidu controller, this guide will walk you through the differences between Huidu’s product series, the distinction between synchronous and asynchronous systems, and how to match controllers with your LED display’s size and pixel pitch.



---



Understanding the Core of Huidu Control Systems

Every LED display—no matter its shape or size—requires a controller to manage how image data is transmitted and displayed. The Huidu ecosystem is composed of three main components:

• Sending or Player Controllers (HD-A Series, HD-D Series, HD-E Series) – Handle content playback and sending signals to the display.



• Receiving Cards (HD-R Series) – Installed inside LED cabinets, distributing data to each LED module.



• Software (HDPlayer or HDSet) – Used to configure, calibrate, and manage playback.



Each component works together to ensure the display shows bright, accurate, and consistent visuals.



---



Synchronous vs. Asynchronous Control Systems

Before selecting your controller, it’s crucial to understand the two main control modes:

1. Asynchronous Control Systems

Asynchronous controllers store and play content independently without needing a PC connection during playback. You upload videos or images via USB, Wi-Fi, or LAN, and the controller manages playback automatically.

This type is ideal for:

• Small to medium advertising screens



• Storefront and retail displays



• Information boards and menu screens



Advantages include flexible scheduling, remote management, and lower maintenance requirements.

2. Synchronous Control Systems

Synchronous controllers work like an external display—content is sent in real time from a computer or video processor.

They’re typically used for:

• Large outdoor billboards



• Stage and event displays



• Video walls requiring live signal input



Synchronous systems deliver higher refresh rates and real-time control but require continuous data transmission and more complex setup.



---



Comparing Huidu’s Major Controller Series

Huidu offers several series tailored to different project scales and performance needs. Let’s explore their key differences.

HD-A Series — Professional Asynchronous Players

This is the most popular Huidu controller line, designed for full-color LED screens requiring multimedia playback.

• HD-A3L / HD-A4L: Support up to 0.65 million pixels, perfect for small and medium indoor signs.



• HD-A5L: Supports 1.3 million pixels, ideal for shopfront or wall-mounted screens.



• HD-A6L: Supports 2.3 million pixels, suitable for large indoor or outdoor advertising displays.



These models allow remote content updates via Wi-Fi or cloud platforms, making them excellent for networks of advertising or information displays.



---



HD-D Series — Compact Controllers for Entry-Level Applications

The D-Series is mainly used for single- and dual-color LED signs. It’s a great entry-level option for cost-sensitive projects.

• HD-D15 / HD-D16: Common models for text-based or small monochrome LED boards.



• Compact design with basic scheduling and brightness control.



• Perfect for schools, parking lots, pharmacies, and restaurants displaying text or simple graphics.



If your display doesn’t need full video playback, the D-Series provides all the essentials without unnecessary cost.



---



HD-E Series — Smart and Cloud-Connected Options

The E-Series bridges the gap between the D and A lines. It supports small full-color displays with cloud management features and is perfect for simple digital signage setups.

• Built-in Wi-Fi and USB support for easy connectivity.



• HD-E62 and E63 are popular models for 128×128 or 192×192 resolution LED screens.



• Ideal for retail shops, community boards, and small indoor promotional displays.



The E-Series is a smart solution for users who want basic control and remote updating, but don’t need the advanced capacity of the A-Series.



---



Matching Controllers with LED Modules and Pixel Pitch

Choosing the right controller also depends on the pixel pitch (P-value) and total resolution of your LED screen.

Here’s a general guideline:

When in doubt, always calculate your total resolution by multiplying width × height × 3 (RGB), and ensure the controller’s loading capacity exceeds that number.



---



Tips for Selecting the Right Huidu Controller

1. Define the Display Purpose: Advertising, real-time feed, or decorative display? The goal determines the control type.



2. Calculate Pixel Count: Match your total resolution with the controller’s pixel loading capacity.



3. Consider Connectivity: If you need remote updates, choose controllers with Wi-Fi or cloud management (A-Series or E-Series).



4. Plan for Expansion: Leave extra capacity for future screen upgrades or reconfiguration.

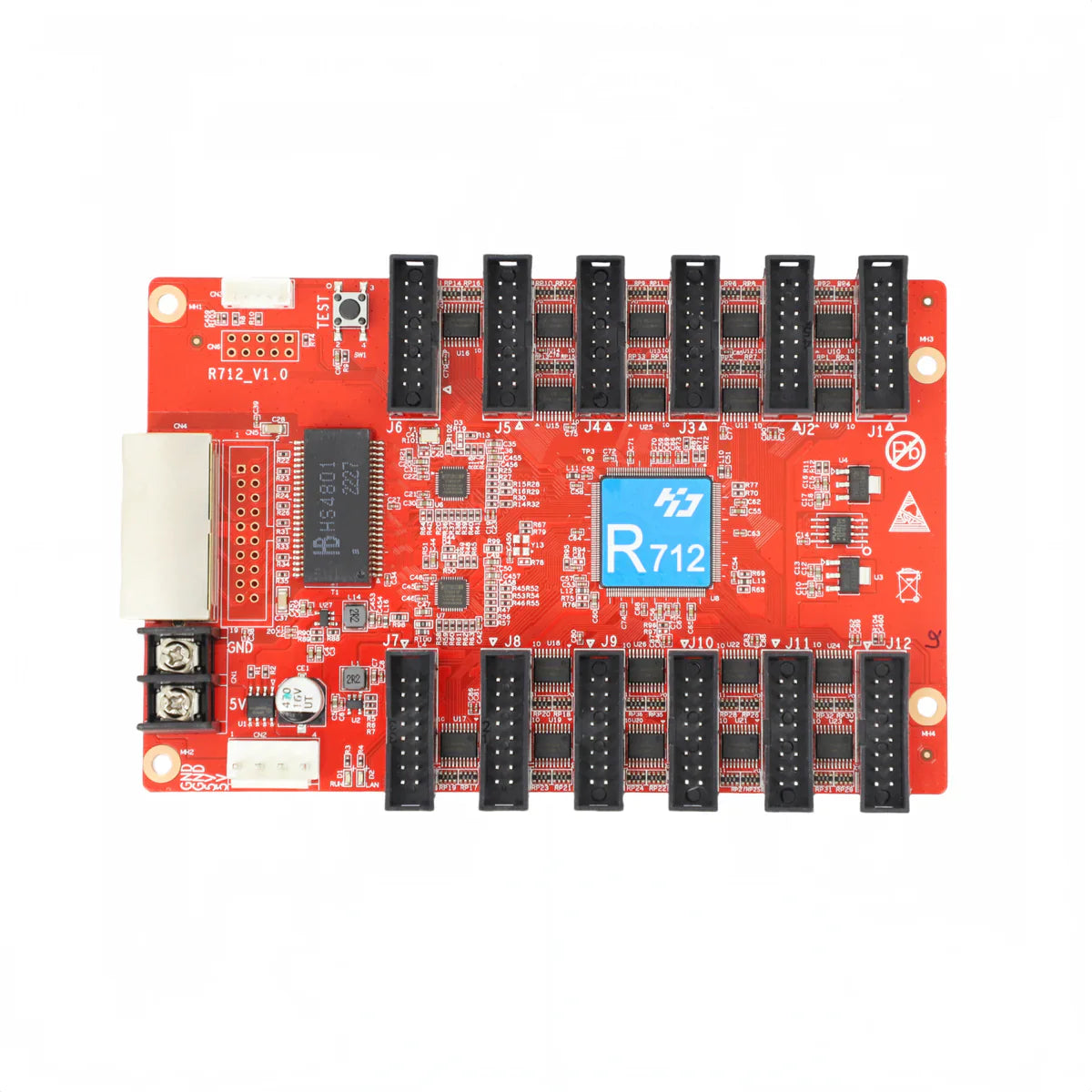

5. Match Receiving Cards Properly: For multi-module setups, use compatible Huidu HD-R Series receiving cards such as R708, R712, or R716 for stable performance.



With these factors in mind, you can build a reliable LED display system that’s easy to manage and maintain.



---



Conclusion

Huidu LED controllers provide a well-balanced solution for virtually any LED project—from a small storefront display to a large outdoor billboard.
Their modular product lineup makes it easy to scale up as your needs grow, while the intuitive HDPlayer software ensures content control stays simple and reliable.

Whether you need a compact single-color controller or a powerful multimedia player for full-color screens, choosing the right Huidu model ensures stable performance, vivid visuals, and long-term efficiency.



---
