Beginner’s Guide to Huidu LED Control Systems: HD Player, Receiver, and Software Setup

When setting up an LED display for the first time—whether for a shopfront, digital signage, or indoor advertising—many users quickly realize that the control system is the heart of everything. It determines how smoothly your videos play, how sharp the text looks, and how easily you can manage your content.

Among today’s LED control solutions, Huidu’s LED control systems have gained a reputation for reliability, affordability, and user-friendliness. They’re widely used in small to medium-sized LED displays, such as advertising screens, wall-mounted signs, and public information displays.

If you’re new to Huidu, this beginner’s guide will help you understand how the system works, what components you need, and how to set it up using HD Player and HDSet software.



---



Understanding the Huidu LED Control System — The Brains Behind the Screen

Every LED screen—no matter its size—requires a control system to send data to each pixel.
Huidu’s ecosystem is designed around three core components:

• Sending/Playback Devices (HD Player Series):
  These act as the “brain” of the system, loading and sending content to your LED screen. Depending on the model, they support different resolutions and control modes (synchronous or asynchronous).



• Receiving Cards (HD-R Series):
  These are installed inside the LED cabinet. They receive signals from the HD Player and distribute them to each LED module, ensuring every section of the screen displays the right color and motion.



• Software (HD Player & HDSet):
  The configuration and content management tools. They’re used to map the screen, adjust brightness, and schedule playback.



This trio—HD Player + Receiving Card + Software—forms a complete and flexible system that works for everything from indoor retail displays to outdoor billboards.



---



Choosing the Right Huidu Controller for Your Project

Huidu’s product line is designed to fit different screen sizes and complexity levels. Understanding your project’s resolution and pixel count helps you choose the right combination.

• HD Player Series (A3L, A4L, A5L, A6L)

These are asynchronous multimedia players, meaning they store and play content automatically without needing a constant connection to a computer.
You can upload content via USB, Wi-Fi, or LAN, and even control multiple screens remotely.

• HD-A3L: Up to 0.65 million pixels; ideal for small advertising signs.



• HD-A4L: Same pixel capacity with more ports for complex layouts.



• HD-A5L: Supports up to 1.3 million pixels; great for medium-sized indoor displays.



• HD-A6L: Handles 2.3 million pixels; perfect for larger digital signage or outdoor setups.



These players are particularly useful for retail stores, schools, hotels, transportation hubs, and any space that needs scheduled content playback.



---



• HD Receiving Card Series (R708, R712, R716)

Receiving cards are small, but they handle a huge workload. Each card takes the signal from your HD Player and distributes it evenly to LED modules across your screen.

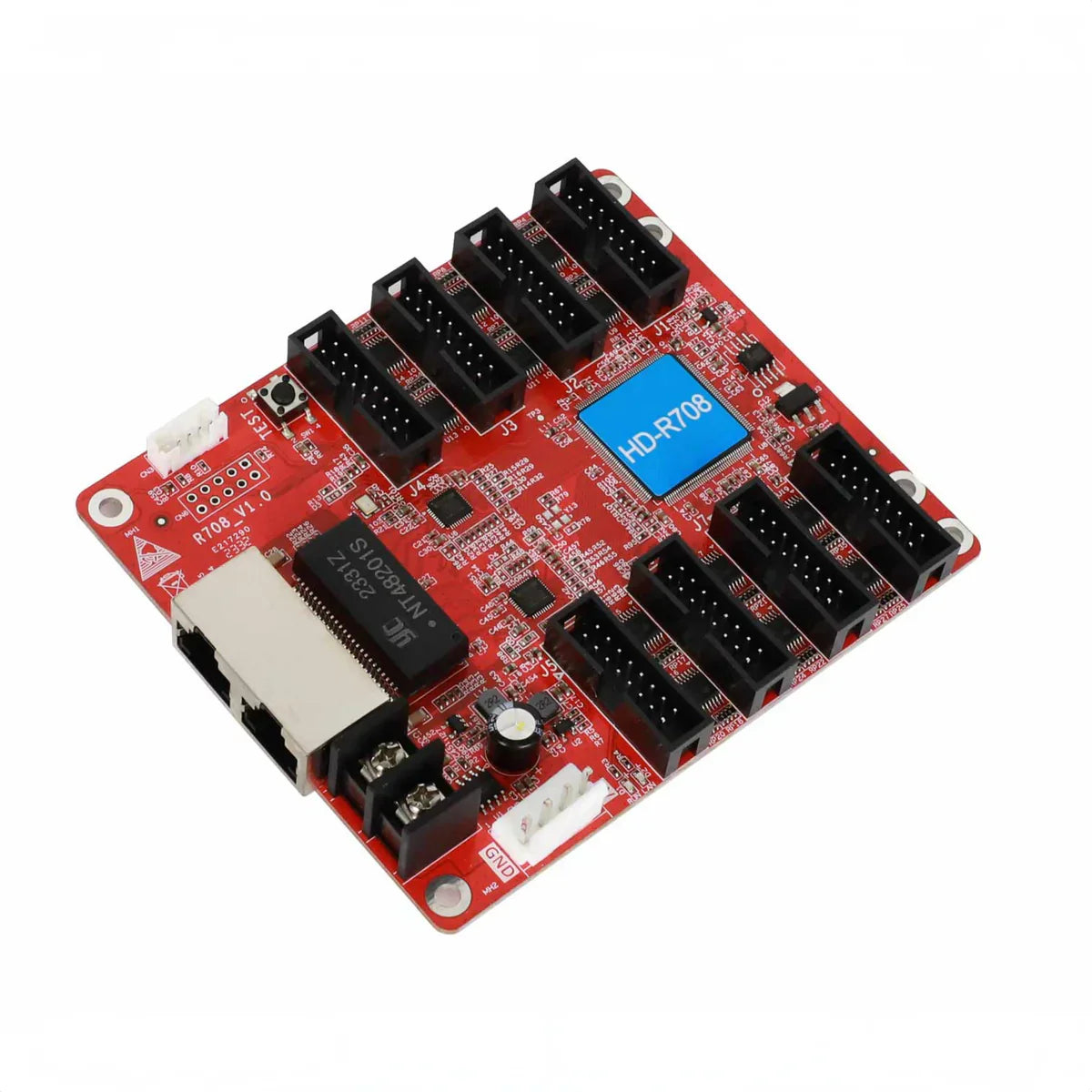

• HD-R708: Designed for basic display applications, reliable and efficient.



• HD-R712: One of the most popular models—stable performance, easy to configure, and compatible with most LED modules.



• HD-R716: Enhanced signal load capacity and more configuration flexibility for larger or complex cabinets.



These receiving cards ensure stable signal transmission, minimal flicker, and consistent color reproduction across your entire display surface.



---



Getting Started with Huidu Software — HD Player & HDSet

Huidu provides two main software tools for setup and management:

• HD Player

Used for asynchronous control systems, HD Player lets you:

• Create playlists, import videos, and add text or images.



• Schedule playback times and intervals.



• Adjust brightness, contrast, and transition effects.



• Manage multiple screens remotely via cloud synchronization.



For businesses managing multiple displays (for example, a franchise or advertising network), this centralized control saves hours of manual work.



---



• HDSet

HDSet focuses on hardware configuration—that is, defining how your LED modules and receiving cards are mapped together.
Key functions include:

• Screen layout and cabinet mapping



• Resolution and refresh rate setup



• Color calibration and brightness uniformity



• Communication and network diagnostics



Once the setup is complete, the configuration file is stored in the HD Player or sending card, so even if power is lost, the system can automatically resume playback.



---



Common Applications for Huidu Systems

Huidu controllers are known for balancing simplicity and performance, making them suitable for:

• Retail & Shopfront Displays: Running product ads, welcome messages, or promotions.



• Public Signage: Information boards in hospitals, schools, and transportation areas.



• Corporate Displays: Internal communication or meeting room screens.



• Digital Art & Exhibitions: Compact yet powerful control for creative video installations.



Their ease of use and compact structure make Huidu systems a favorite choice for projects where reliability and cost-efficiency matter most.



---



Tips for Smooth Setup and Long-Term Reliability

To ensure stable performance over time, follow these recommendations:

• Use shielded network cables between players and receiving cards to avoid interference.



• Keep adequate ventilation around control boxes and LED cabinets.



• Regularly update software and firmware for optimal compatibility.



• Back up your configuration files and playlists before making changes.



• When scaling up to multiple screens, use Huidu Cloud Control for remote management.



A well-maintained system will keep your content running flawlessly for years.



---



Final Thoughts

Setting up your first LED display can seem daunting—but with Huidu’s well-structured ecosystem, it’s much easier than you might think.
From compact retail signs to large-format digital walls, Huidu provides reliable control solutions that make LED technology accessible to everyone, not just engineers.

Once you get comfortable with HD Player, HDSet, and the core controller components, you’ll have full command over how your display looks, behaves, and engages with your audience.



---
