In LED strip installations, connectors are not only electrical interfaces but also the “turning points” and “bridges” in lighting design. Different connector shapes determine how strips can bend, branch, or extend without breaking continuity. Choosing the right connector ensures smooth light output, easier installation, and longer strip lifespan.
1. L-Shaped Connectors: Perfect for Right-Angle Turns
When installing LED strips along walls, ceilings, or cabinet edges, a 90° turn is often required. L-shaped connectors allow two strips to connect seamlessly around corners without bending the PCB, keeping it safe and tidy.
For example, in kitchen cabinet lighting, single-color strips can be paired with an 8mm 2-pin connector; while RGB ambient lighting is best matched with a 10mm 4-pin RGB connector to keep colors consistent after the turn.
2. T-Shaped Connectors: Splitting into Two Branches
When one main strip needs to extend in two directions, T-shaped connectors make “one-to-two” branching possible. They are widely used in showcases, bars, or ceiling lighting to create natural splits.
For dual white CCT strips, a 3-pin dual white connector is suitable; while RGB or RGBW strips require RGBW 5-pin connectors to keep all channels in sync.
3. X-Shaped Connectors: The Center of Four-Way Crossings
In exhibition setups, malls, or stage lighting, strips often need to extend in four directions. X-shaped connectors serve as the cross-point, ensuring light stays even without dark gaps.

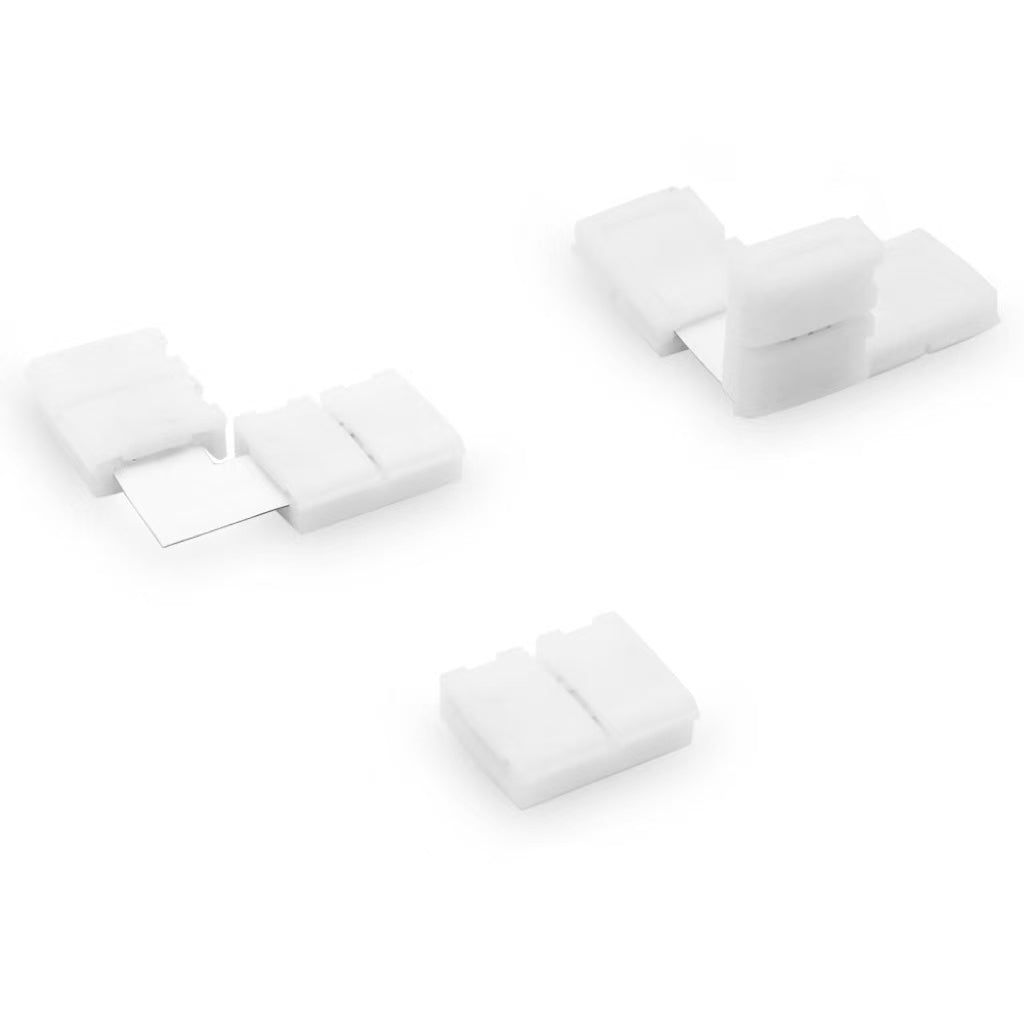

These are usually included in DIY connector kits, which also feature L- and T-shaped connectors for flexible layouts.
4. Gapless Connectors: Keeping the Light Seamless
When joining strips in long runs, visible “dark spots” can occur at joints. Gapless connectors allow end-to-end connections for smooth transitions, ideal for aluminum channels or diffusers.
For instance, a transparent gapless connector works perfectly with small single-color strips; while RGB applications benefit from 8mm/10mm RGB gapless connectors to prevent color breaks.
5. Wire-Ended Connectors: Flexible Extensions
Besides gapless joints, wire-ended connectors provide extra flexibility for installations.
-
Double-ended with wire: Useful for bridging gaps, e.g., across cabinet breaks or wall separations. A strip-to-strip jumper connector makes it easy.
-
Single-ended with wire: Typically connects strips directly to power, such as a DC extension cable with switch, making everyday use convenient.
This approach is not limited to straight lines and is particularly useful in spaces with obstacles or complex layouts.
Example Scenarios & Recommended Models
🌟 Home Cabinet Lighting: Use an L-shaped connector with an 8mm 2-pin single-color connector to achieve smooth corner transitions.
🌈 Retail Display Lighting: A T-shaped connector paired with an RGB 4-pin jumper allows one strip to branch into two directions with synchronized colors.
🎤 Exhibition or Stage Setups: Combine an X-shaped connector with a DIY connector kit to create four-way lighting layouts.
💡 Ceiling or Aluminum Channels: Use gapless connectors, such as a transparent joint, to maintain seamless light without dark spots.
🔌 Cross-Area Installations: For spanning gaps or connecting to power, choose wire-ended connectors like strip jumpers or a DC plug cable for flexible wiring.
Conclusion
Each connector type plays a unique role in LED strip installations. From corner turns to multi-directional branching, from seamless joints to flexible extensions, the right choice ensures smooth lighting and reliable performance. By selecting the proper connectors and cables for each scenario, you can achieve both efficient installation and long-lasting, beautiful lighting effects for home or commercial spaces.
