When installing LED strips, choosing the right connectors and cables is just as important as selecting the strip itself. Think of connectors as puzzle pieces—only the right match will ensure steady illumination, long lifespan, and safe performance. Many common issues, such as strips lighting up only halfway, flickering, or overheating, are often related to mismatched connectors. In this guide, we’ll walk through the most common types of LED strip connectors, how they fit different strip designs, and practical tips for installation.
1. Matching Connector Size to Strip Width
The width of an LED strip is the first factor to consider when choosing a connector. Common widths are 8mm, 10mm, and 12mm. If the connector doesn’t match, you risk loose contact or premature failure.
-

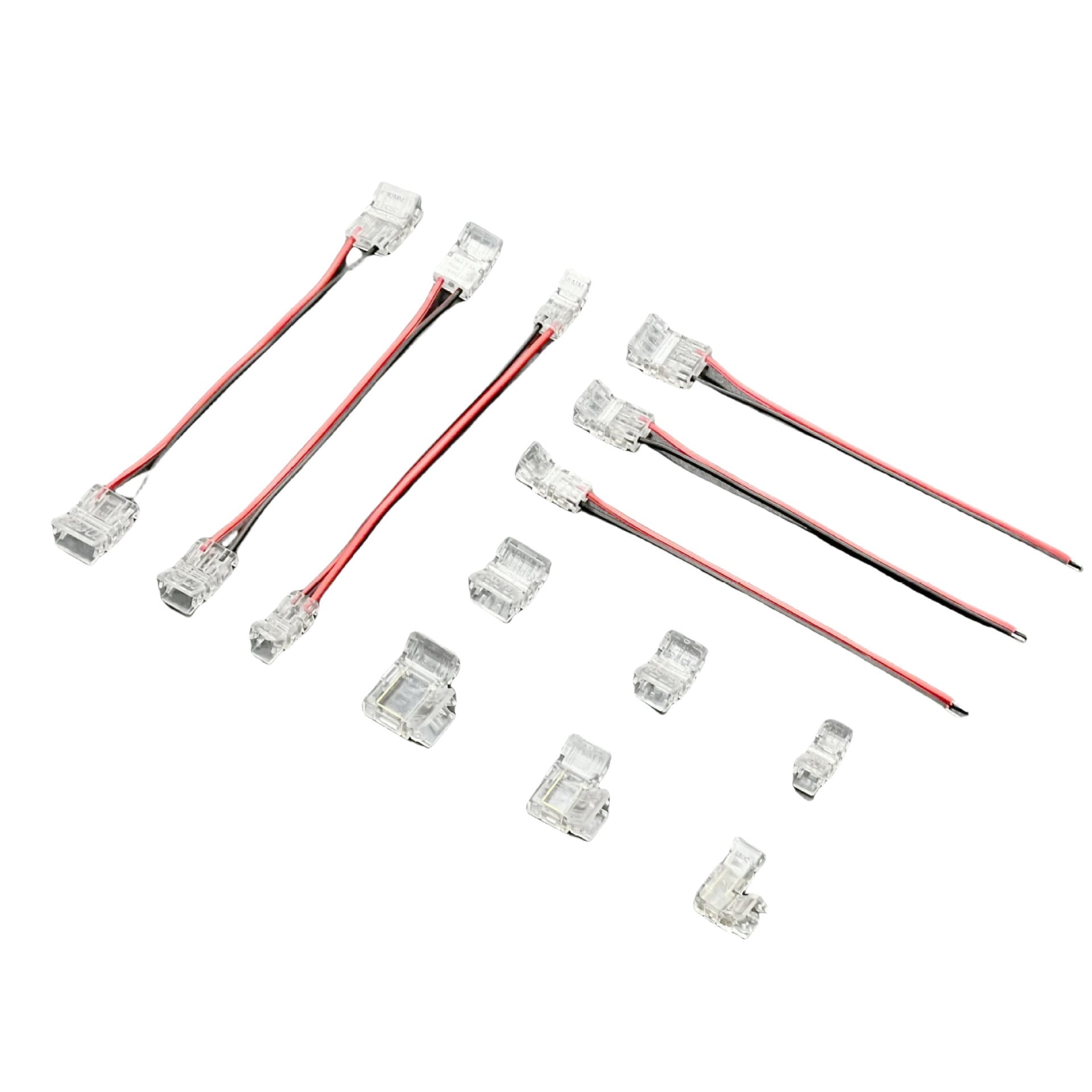

8mm single-color strips: Typically 3528 or 2835 chips, great for accent lighting. Use a slim 8mm 2-pin single-color connector.
-
10mm single-color strips: Found in 5050 or 5630 chips with higher brightness, suitable for task or general lighting. Pair with a 10mm 2-pin single-color connector.
-
RGB and multi-color strips: Require more pins to manage multiple channels, such as 10mm 4-pin RGB connectors, 12mm 5-pin RGBW, or 6-pin RGBCCT connectors.
👉 Tip: Measure the strip width with a caliper before purchasing to avoid mismatches.
2. Specialized Connectors for COB Strips
COB (Chip on Board) strips provide continuous, dot-free light, but they require specific connectors because of their thinner base and higher heat output.
-
Single-color COB strips: Use 2-pin COB connectors.
-
RGB COB strips: Require 4-pin COB RGB connectors.
When COB strips are installed in aluminum channels, bulky connectors can prevent the cover from closing. In these cases, low-profile transparent connectors such as track-style connectors are recommended.
3. Single-Color, Dual White, and Multi-Color Options
The number of colors a strip supports determines the connector type:
-
Single-color strips: Require only 2 pins.
-
Dual white (CCT) strips: Switch between warm and cool white with 3-pin connectors.
-
RGB, RGBW, and RGBCCT: Require 4-pin, 5-pin, or 6-pin connectors respectively.
⚠️ Using the wrong connector (e.g., fewer pins than required) can cause certain colors or functions to fail.
4. Power Cables and Extension Wires
Once strips are connected, power cables and extensions ensure steady operation:
-
DC connectors (5.5x2.1mm): Standard for most strips. Example: DC female-to-male cable.
-
With on/off switch: Convenient options like the inline DC extension with switch.
-
RGB/RGBW extensions: For multi-color strips, use 4-pin RGB cables or 5-pin RGBW cables.
For outdoor setups, waterproof solutions like DC waterproof connectors or 4-pin waterproof RGB connectors are essential.
5. Installation Tips for Aluminum Channels
Aluminum profiles help with heat dissipation and create a cleaner finish, but connectors must be chosen carefully:
-
Low-profile connectors prevent the diffuser cover from being blocked.
-
L- and T-shaped connectors: Use DIY kits to manage corners and branches neatly.
-
Test before fixing: Always assemble strip + connector + channel first, then secure.
6. Useful Accessories
A few extra accessories can make installation smoother:
-
Heat-resistant tape: e.g., blue double-sided tape, great for high-temperature surfaces.
-
End caps: Outdoor waterproof strips should be sealed with IP67 end caps.
-
Splitters: For multi-channel RGB setups, RGB splitter cables allow one controller to power multiple runs.
7. Practical Overview of Connectors and Accessories
To make it easier to find the right parts, here’s a quick reference table summarizing common connector and accessory options:
| Category | Recommended Products |
|---|---|
| Single-color connectors | 8mm 2-pin connector / 10mm 2-pin connector |
| RGB / RGBW / RGBCCT | 4-pin RGB connector / 5-pin RGBW connector / 6-pin RGBCCT connector |
| COB strip connectors | 2-pin COB connector / 4-pin COB RGB connector |
| Power & extension cables | DC power cable / DC extension with switch / RGB extension cable |
| Waterproof accessories | DC waterproof connector / 4-pin waterproof RGB connector / end cap |
| DIY kits | L/T-shaped connector kit / RGB splitter |
