Description

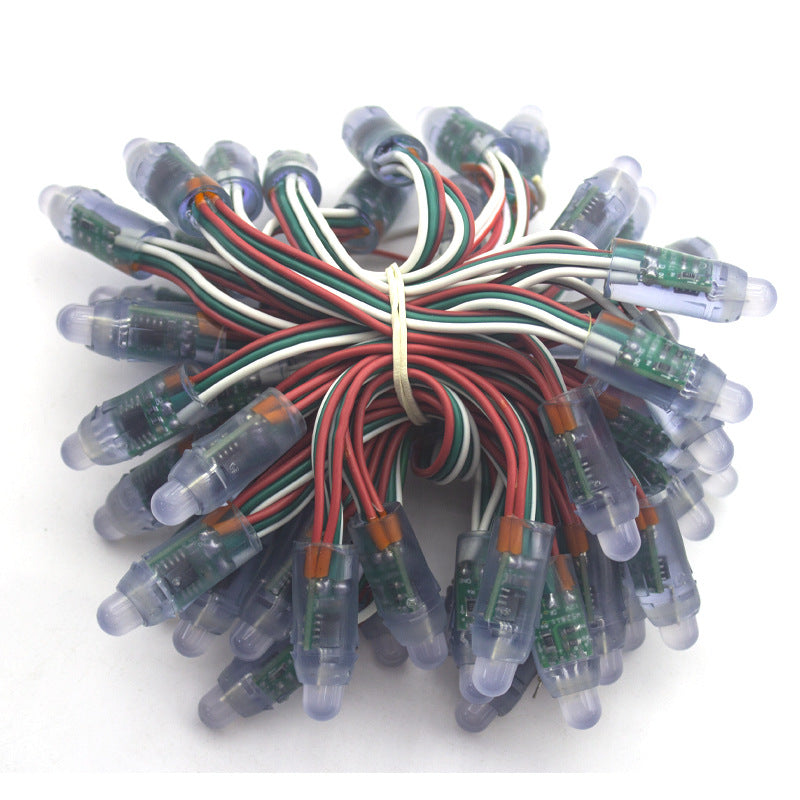

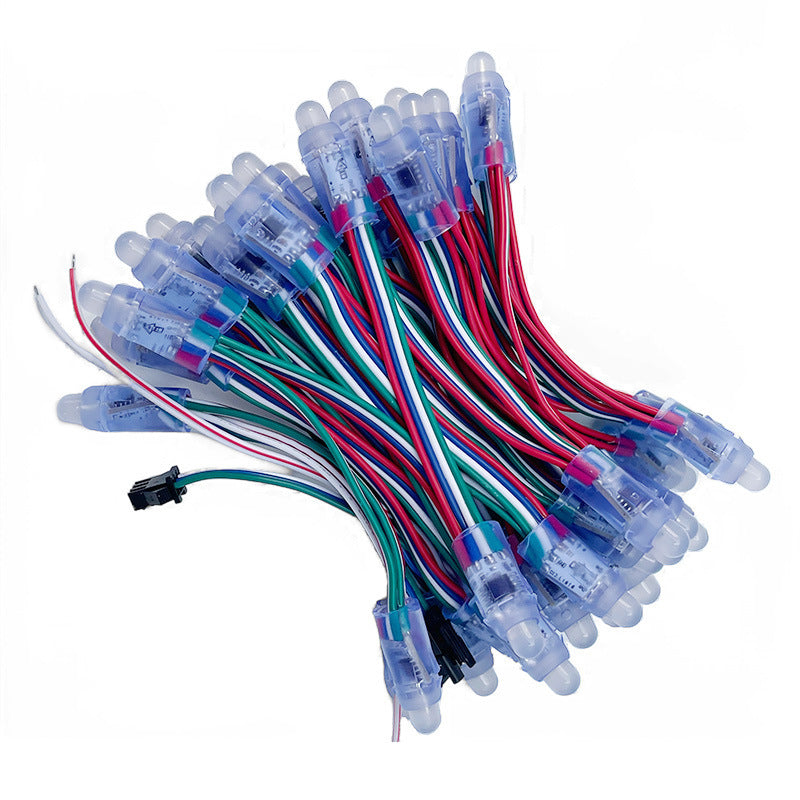

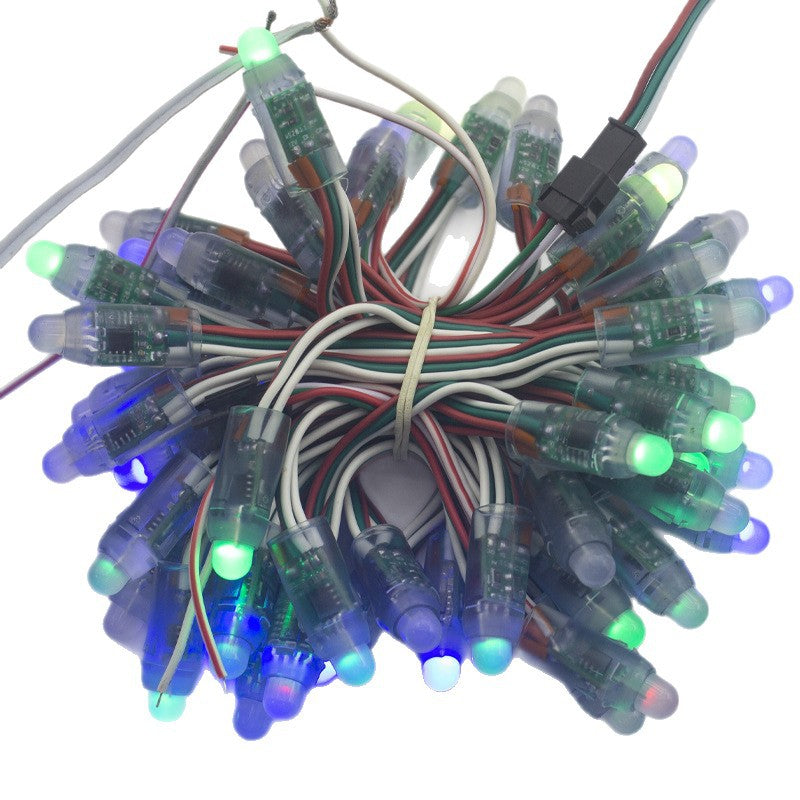

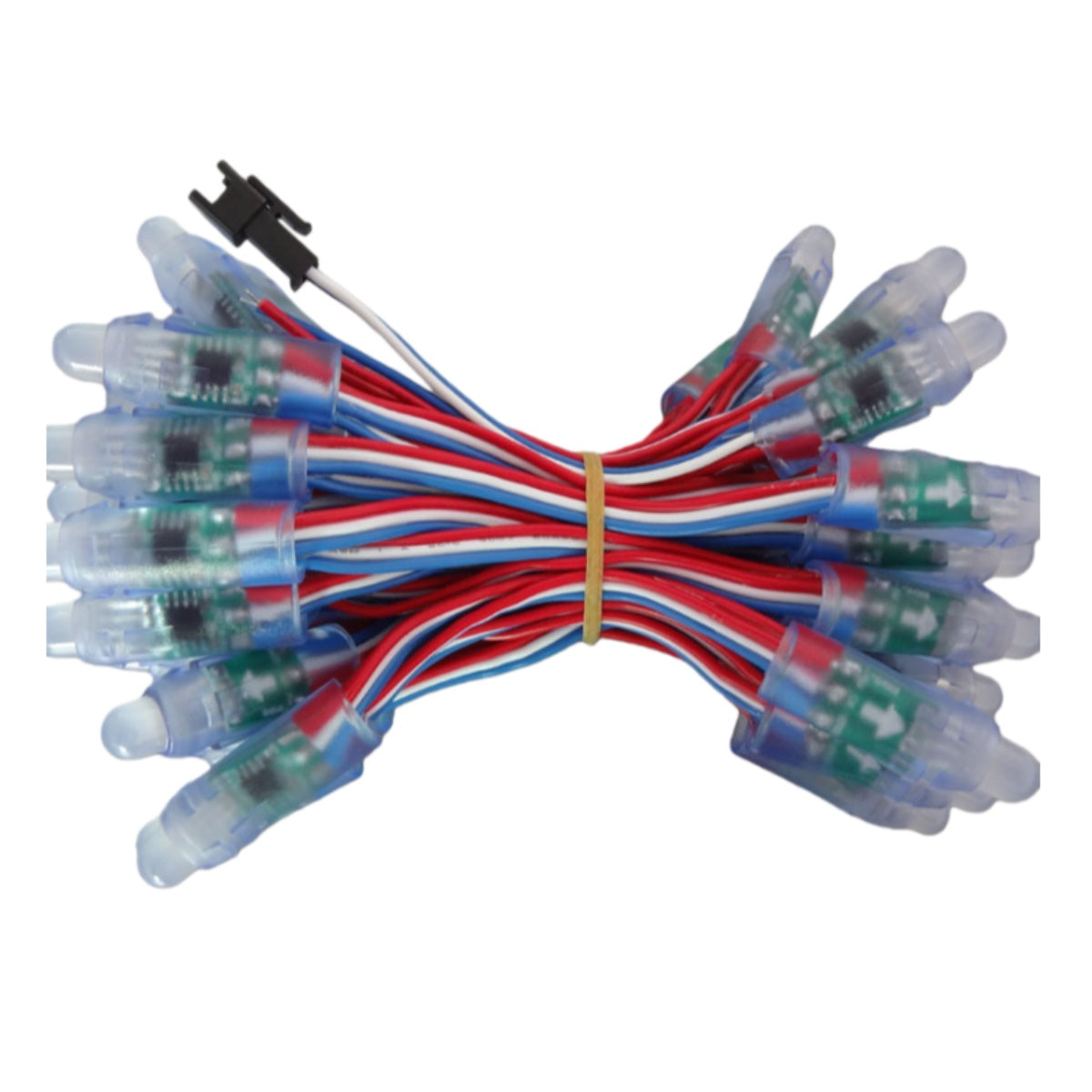

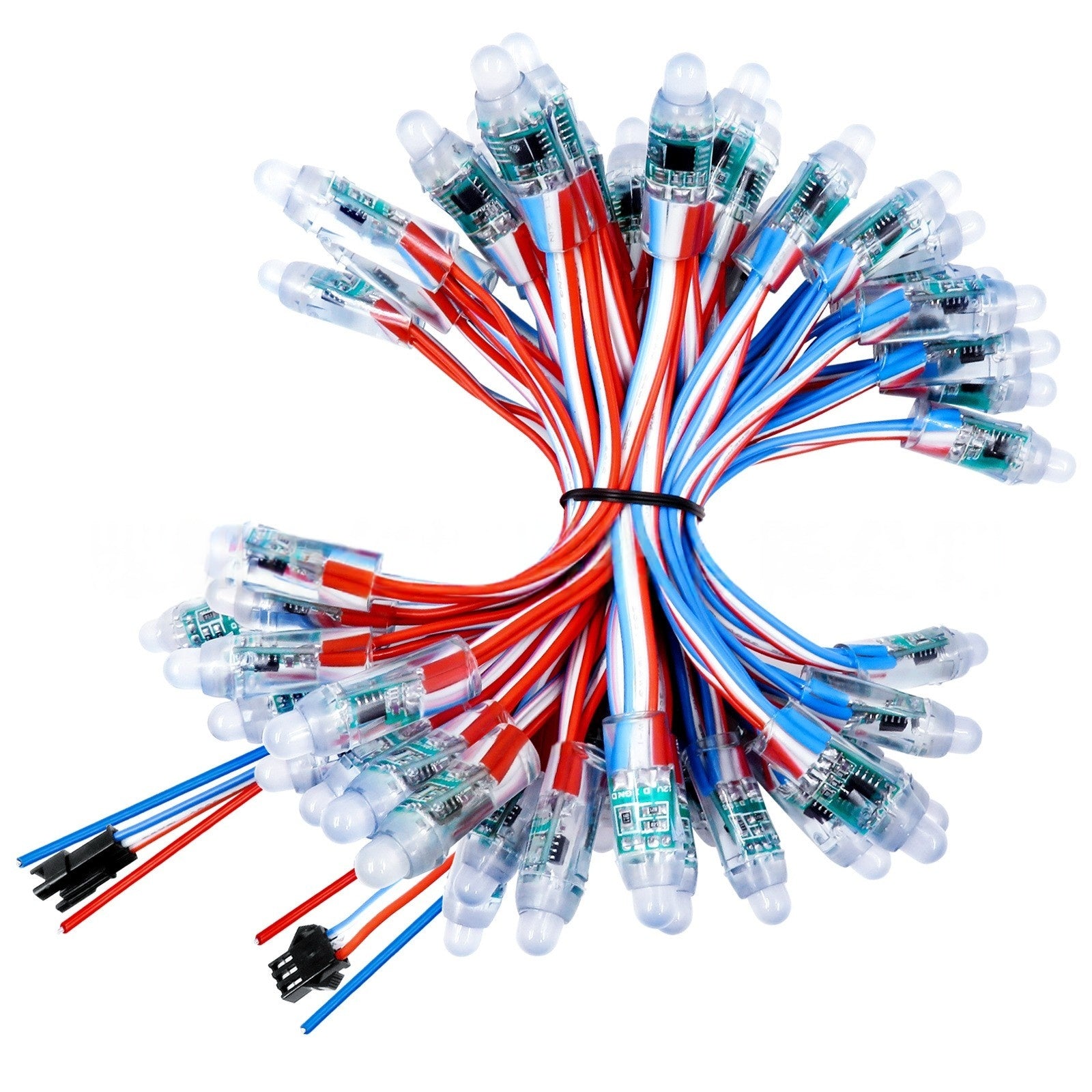

WS2811 RGBIC Addressable 12mm LED Pixel String Light, 50pcs/String, 0.3W DC12V IP68 Waterproof Color-Changing Dot Light for Channel Letter Signs, Advertising Boards & Architectural Lighting
Package Included:
| Version | Package Included |
| 10 String Pack | 10 String (50pcs/String) Total 500pcs LED Modules |
| 50 String Pack | 50 Strings (50pcs/String) Total 2500pcs LED Modules |
| 100 String Pack | 100 Strings (50pcs/String) Total 5000pcs LED Modules |
Order & Logistics:
Lead Time
- Ships directly from headquarters. Handling time 3–5 business days
Shipping Note
- This series enjoys our Free Shipping Policy for orders over $399.
- HQ Fulfillment (when local stock is unavailable): Standard 9–18 days | Express 5–9 days.
- Packing: Cardboard box, sealed with anti-static bag
Product Features
-

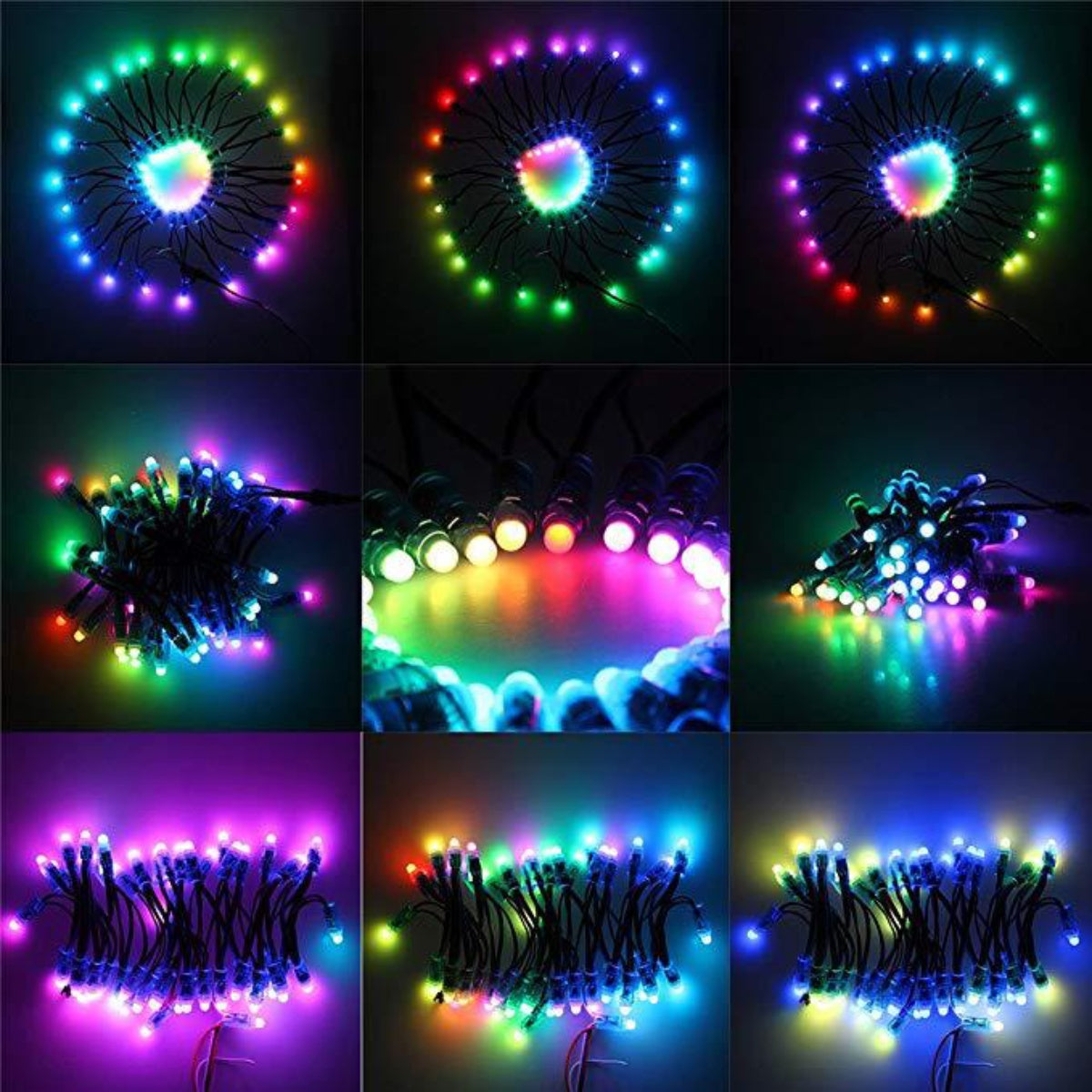

Addressable RGBIC Control – Each LED is individually addressable with WS2811 IC, supporting dynamic full-color lighting effects for creative signage and decorative installations. （Need SPI controller and power supply, which are not included).
-
High Brightness & Premium LED Chip – Equipped with high-quality 8mm RGB LEDs for vibrant colors, excellent color uniformity, and superior visual performance.
-
Durable Outdoor Design (IP68 Rated) – Fully sealed with AB resin for strong waterproofing and UV resistance, ensuring stable operation under harsh outdoor conditions.
-
Quick & Secure Installation – Special 12mm bayonet design fits standard punched holes for easy snap-in mounting — ideal for channel letters and advertising boards.
-

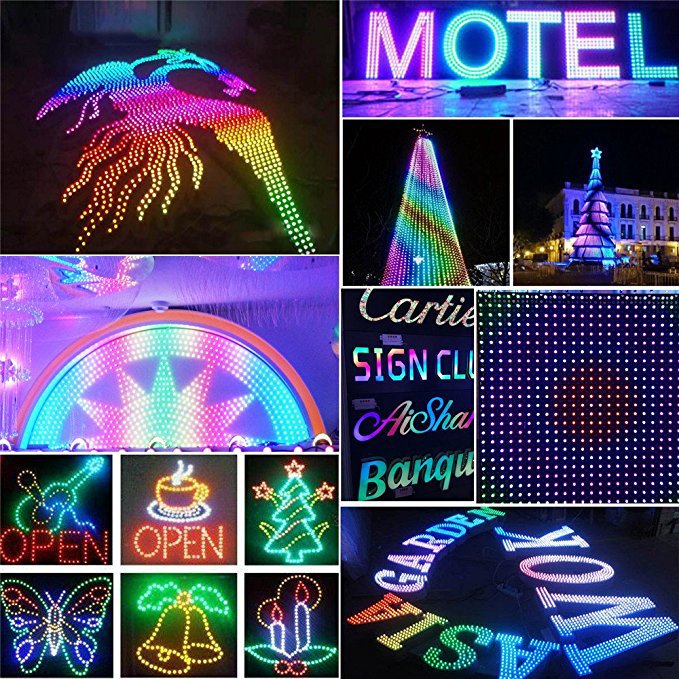

Wide Application Range – Perfect for store signage, channel letters, architectural facades, building outlines, and decorative outdoor lighting projects.
Specificaiton:
| Item | Description |
| Product Name | WS2811 RGBIC Addressable 12mm LED Pixel Light |
| LED Type | F8 RGB Full-Color LED (Epistar) |
| IC Type | WS2811 |
| Voltage | DC12V |
| Power Consumption | 0.3W per module |
| Diameter (Mounting Hole) | 12mm |
| Center-to-Center Distance | 7.6cm (wire length ~10cm) |
| Wire Gauge | 20AWG |
| Waterproof Rating | IP67 |
| LED Quantity | 50pcs per string |
| Color Type | RGBIC (Individually Addressable) |
| Wire Color Options | Red/White/Blue, All Black, All Green, or All White |
| Wiring Definition | Red: +12V / Blue: GND / White: Data |
| Weight | 6.5g per module |
| Operating Temperature | -20°C to +60°C |
| Housing Material | Cold-resistant, UV-resistant, flame-retardant PVC |
| Resin Potting | AB Resin (High mechanical strength & sealing protection) |
| Package Options | 10 Strings (500pcs) / 50 Strings (2500pcs) / 100 Strings (5000pcs) |
