Description
Waterproof IP65 Aluminum Channel Rigid LED Strip Light – White 5630 SMD, 72 LEDs/M, 0.5m / 1m Length Options, 18x11mm Housing for Indoor & Outdoor Lighting
Package Included:
| Version | Package Included |
| 10pcs Pack | 10pcs of the 0.5 Meters or 1Meter LED Rigid Strip |
| 50pcs Pack | 50pcs of the 0.5 Meters or 1Meter LED Rigid Strip |
| 100pcs Pack |
100pcs of the 0.5 Meters or 1Meter LED Rigid Strip |
Order & Logistics:
- Lead Time: Typically 5–7 business days
- Packing: Cardboard box, sealed with anti-static bag
- Shipping: 7-12 days by AIR.
Specification:
| Specification | Details |
| Product Type | Waterproof Rigid LED Strip Light |

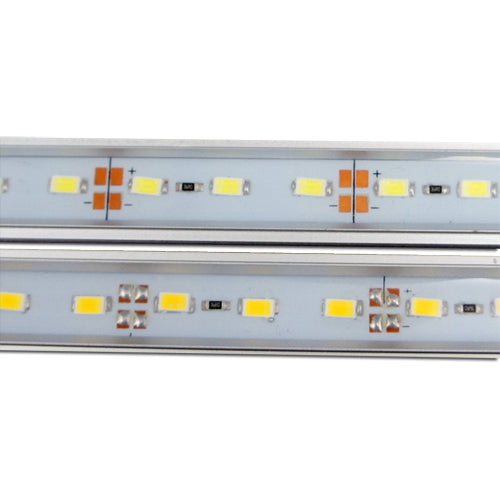

| LED Type | SMD 5630 |
| LED Density | 72 LEDs per meter |
| Size | 18 mm x 11mm - Wide by Height |
| Housing Material | Aluminum Channel with Clear Cover |

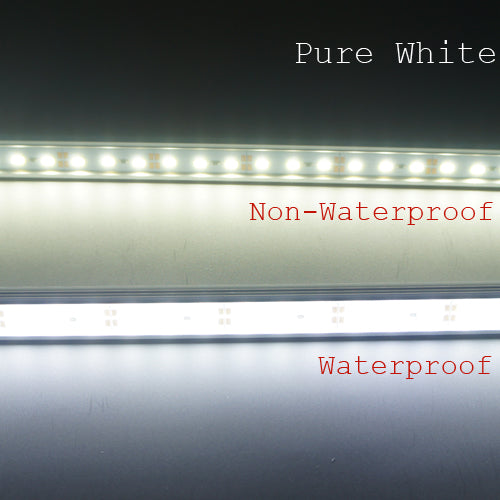

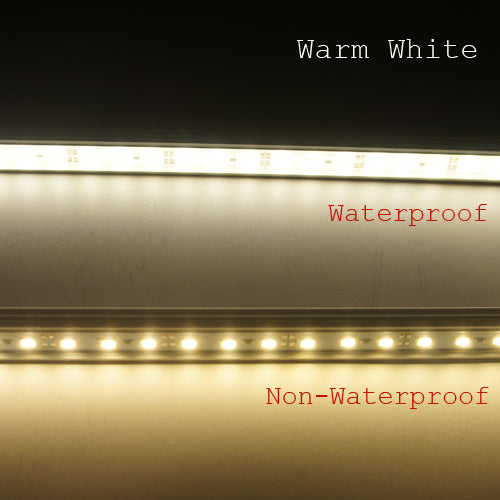

| Waterproof Rating | IP65 (Water-Resistant) |

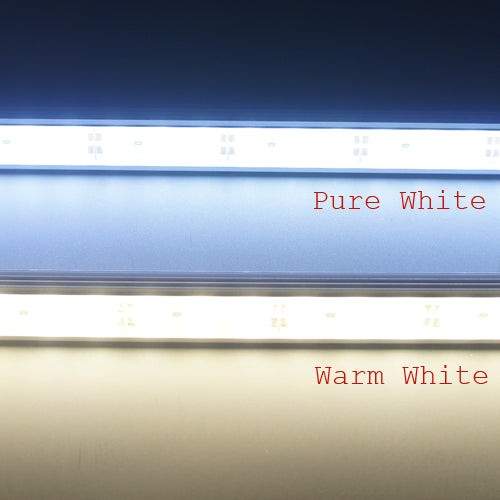

| Color Temperature Options | Pure White / Warm White |
| Input Voltage | DC 12V |
| Power Consumption | 9Watt for 0.5Meters; 18W for 1Meter |
| Beam Angle | 120° |
| Length Options | 0.5m (20”) / 1m (40”) |
| Package Options | 10 pcs / 50 pcs / 100 pcs per pack |
| Application | Indoor lighting, under-cabinet, signage, display showcase, shop decoration |
| Operating Temperature | -20°C ~ +50°C |
| Certification | CE, RoHS |
Product Features:
-
Durable Aluminum Channel Design – Provides excellent heat dissipation and rigidity, ensuring stable brightness and extended LED lifespan.
-
Waterproof IP65 Protection – Sealed aluminum housing resists moisture and dust, ideal for indoor or semi-outdoor environments such as display cabinets or shop signs.
-
High Brightness 5630 SMD LEDs – Equipped with 72 high-efficiency LEDs per meter, delivering uniform and powerful illumination with low power consumption.
-
Multiple Color Temperatures Available – Choose from >3000K (Warm White), >6500K (Cool White), to match different lighting moods.
-
Flexible Length & Packaging Options – Offered in 0.5m and 1m rigid bars, with bulk pack options (10, 50, or 100 pcs) for both DIY users and commercial installers.
Application:
- Architectural decorative lighting
- Path, Contour Marking
- Auditorium walkway lighting
- Stairway accent lighting
- Backlighting for signage letters
- Indoor and outdoor lighting and signs
NOTEs:
1. The LED light bar in Waterproof IP65 rated, the strip both ends are prewired with waterproof DC5521 female and male plug.
Below please find the connection diagram for Single Color Light Strip for reference.
Direct Powered by Transformer Run to AC Wall Outlet, On/Off controlled by a Wall Switch
Light strip On/Off/Brightness is controlled by Dimmer (Wireless or Hardwire Type available)
#1 Typical connection for one Dimmer to control one string of light bars
#2 One Dimmer to control several strings of light bars by adding Amplifier, and powered by one or several transformers. Note: The strips the Dimmer and Amplifer loaded with cannot exceed their rated max value. And in theory, you can add endless Amplifiers after the Dimmer.
