Description

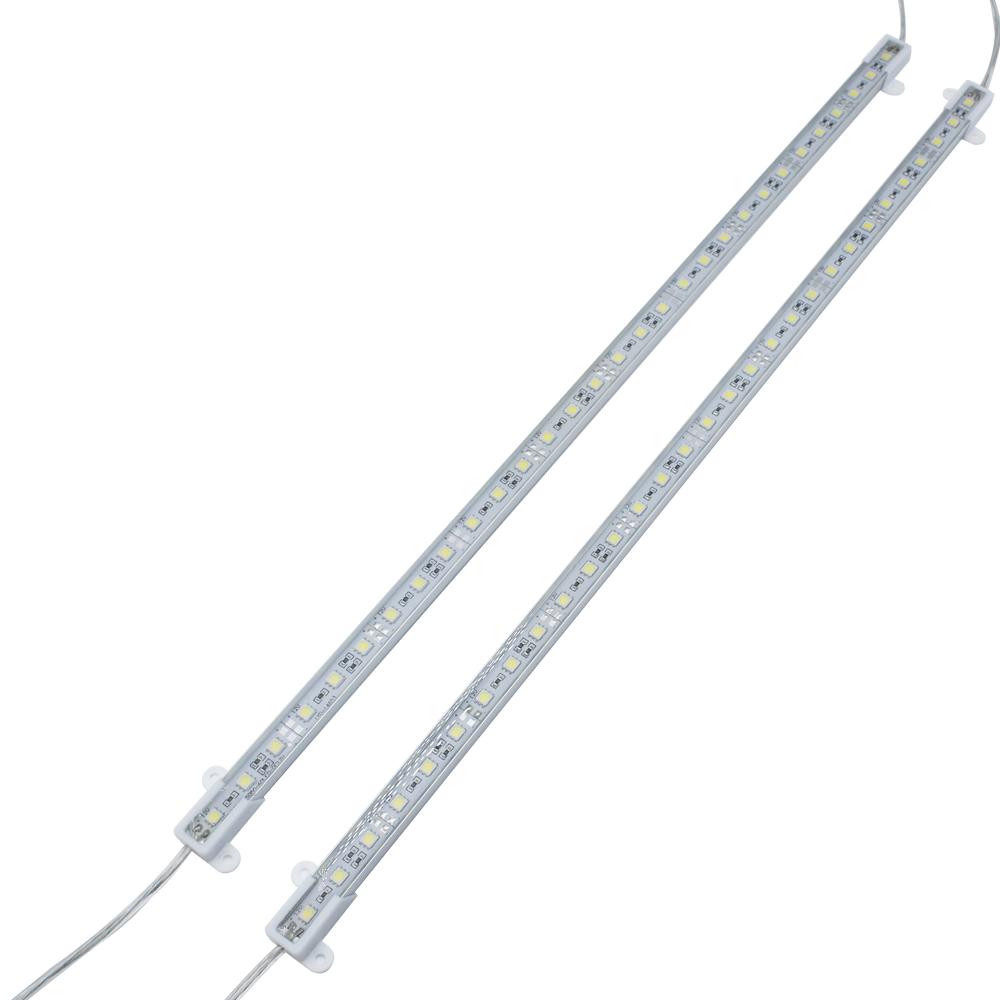

Waterproof IP65 Aluminum Channel Rigid LED Strip Light – 5630 SMD, 72 LEDs/M, 0.5m / 1m Length Options, Warm White & Pure White, 14×7mm Housing for Indoor & Outdoor Lighting
Package Included:
| Version | Package Included |
| 10pcs Pack | 10pcs of the 0.5 Meters or 1Meter LED Rigid Strip |
| 50pcs Pack | 50pcs of the 0.5 Meters or 1Meter LED Rigid Strip |
| 100pcs Pack |
100pcs of the 0.5 Meters or 1Meter LED Rigid Strip |
Order & Logistics:
- Lead Time: Typically 5–7 business days
- Packing: Cardboard box, sealed with anti-static bag
- Shipping: 7-12 days by AIR.
Product Features
-

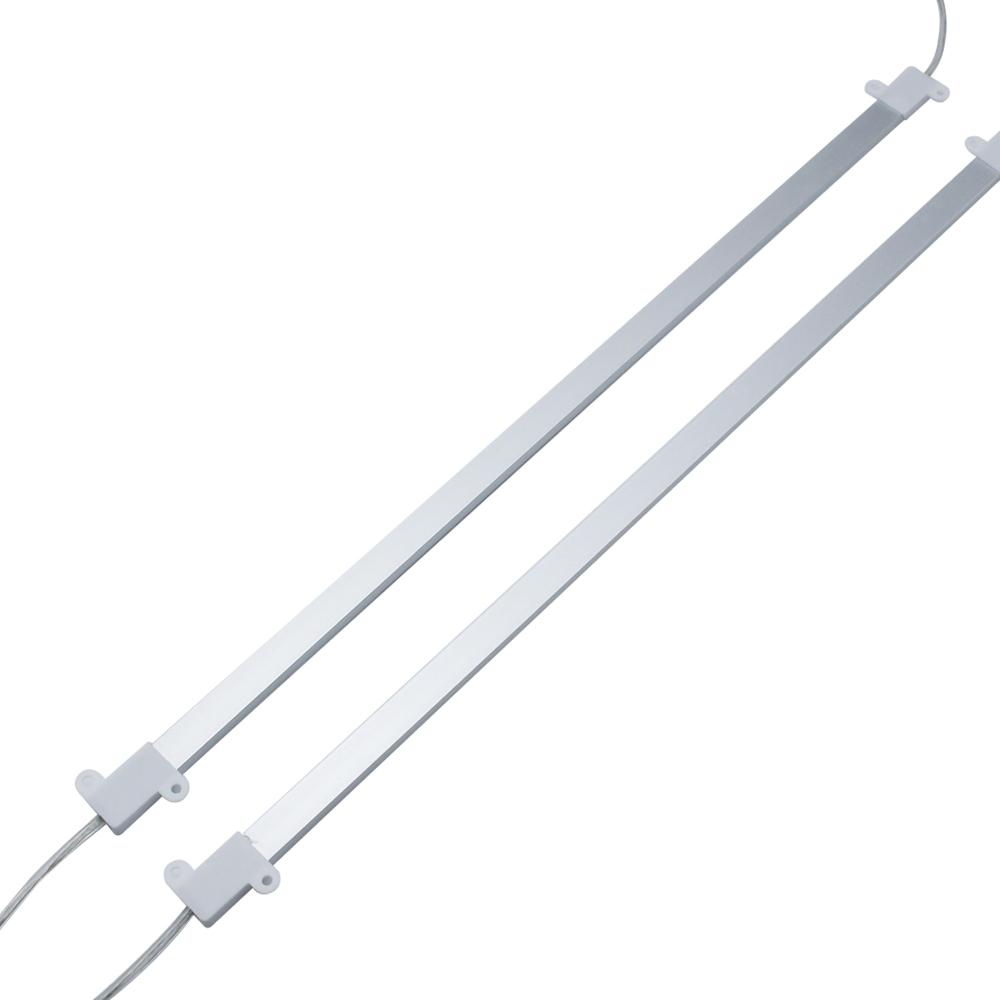

Aluminum Channel with Built-in Diffuser – Compact 14×7mm aluminum housing provides strong rigidity, effective heat dissipation, and a professional lighting finish.
-
Waterproof IP65 Rated – Silicone-sealed design protects against moisture and dust, ideal for kitchens, shop displays, or semi-outdoor covered spaces.
-
High-Efficiency 5630 SMD LEDs – Equipped with 72 high-lumen LED chips per meter for bright, even light output and superior color rendering.
-
Selectable Color Temperatures – Choose Warm White (3000K) for soft, cozy lighting or Pure White (6000K) for clean, crisp illumination.
-
Multiple Length & Pack Options – Available in 0.5m (20") and 1m (40") lengths, with bulk pack options (10 / 50 / 100 pcs) to meet both DIY and commercial project needs.
Specification
| Specification | Details |
| Product Type | Rigid LED Strip Light with Aluminum Channel |
| LED Type | SMD5630 |
| LED Density | 72 LEDs per meter |
| Housing Dimensions | 14 × 7 mm (Aluminum + Diffuser) |
| Length Options | 0.5 m (20”) / 1 m (40”) |
| Voltage | DC 12V |
| Power Consumption | 9Watt for 0.5Meters; 18W for 1Mete |
| Color Temperature Options | Warm White (3000K) / Pure White (6000K) |
| Beam Angle | 120° |
| Waterproof Rating | IP65 (Splash & Dust Resistant) |
| Material | Aluminum Channel + Silicone Cover + LED PCB |
| Operating Temperature | -20°C ~ +50°C |
| Package Quantity | 10 pcs / 50 pcs / 100 pcs per pack |
| Certifications | CE, RoHS |
| Applications | Under-cabinet lighting, shop displays, signage, shelves, outdoor decoration |
NOTEs:

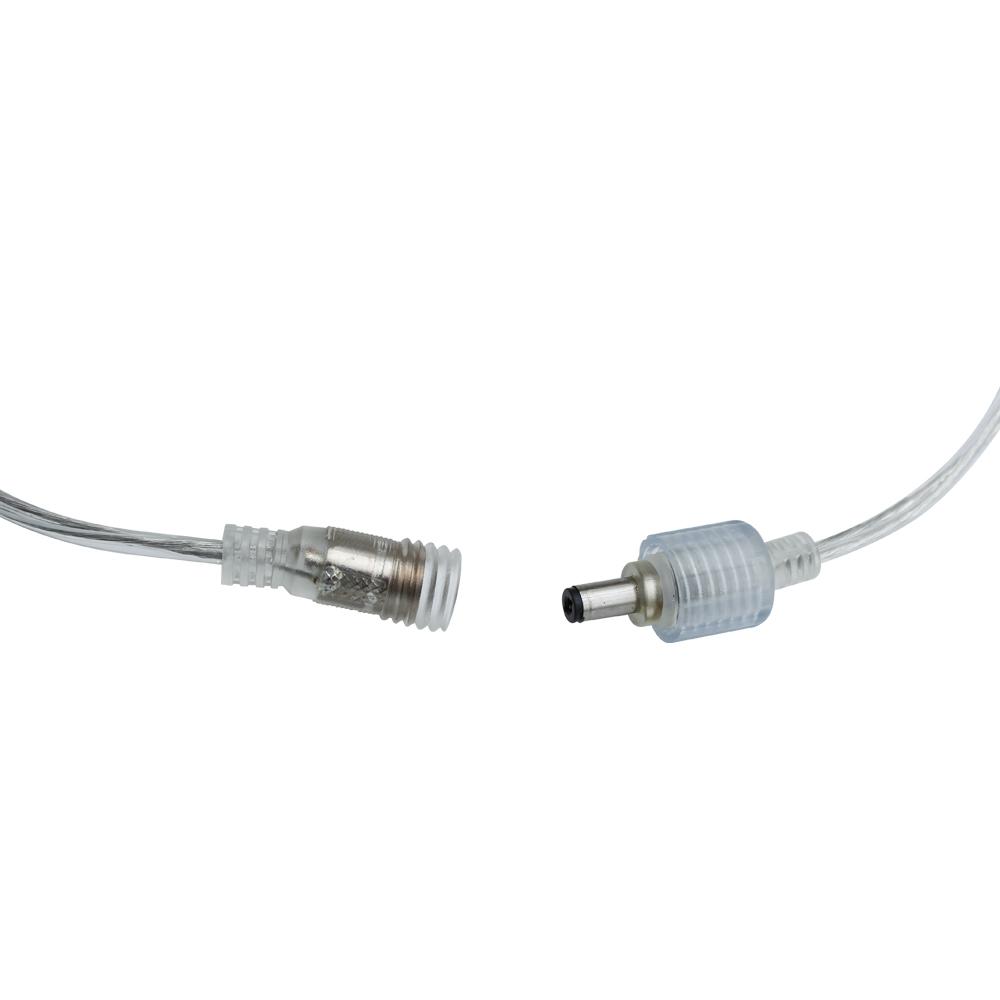

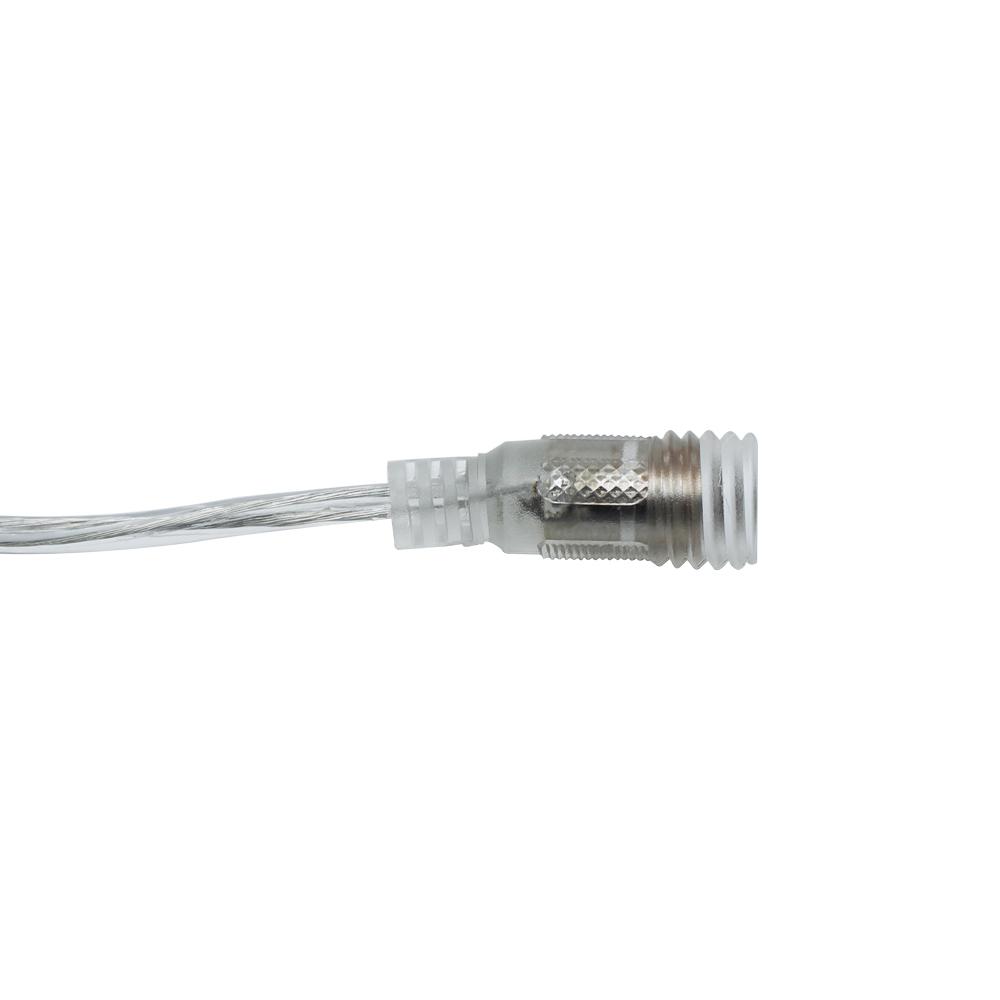

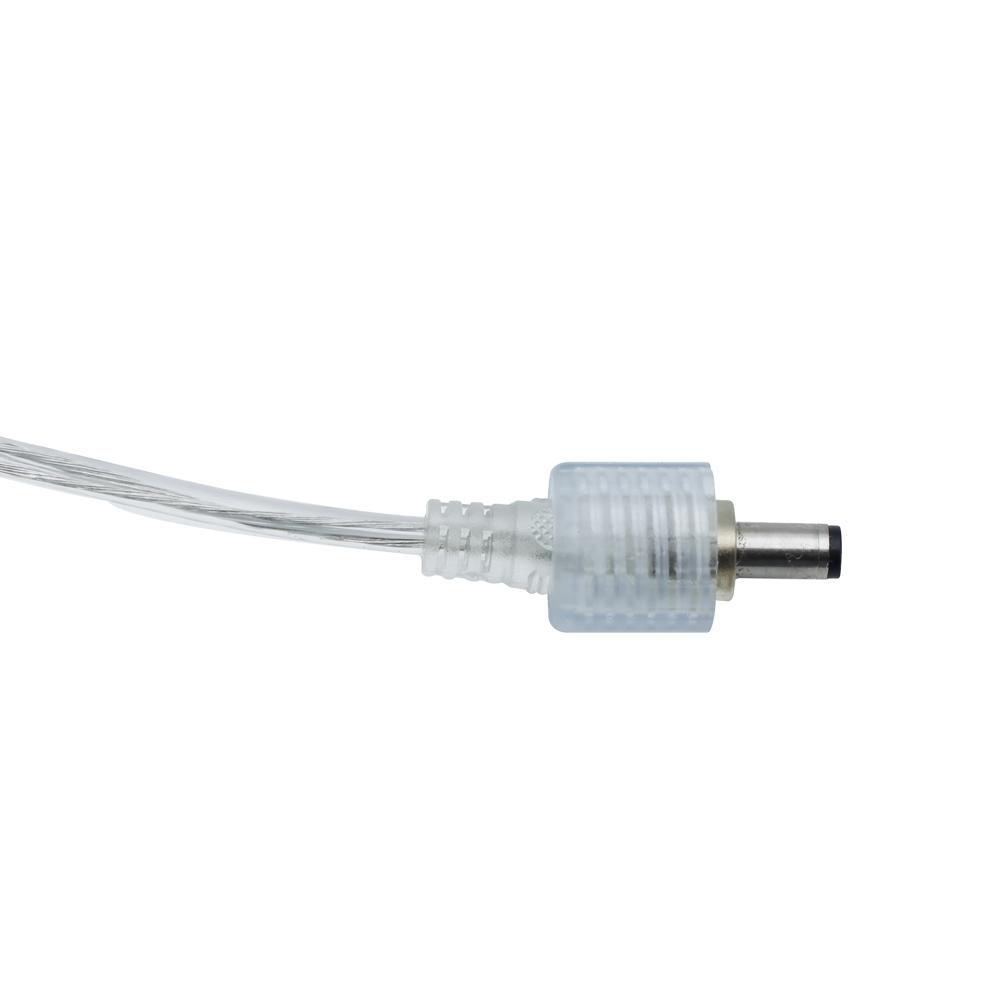

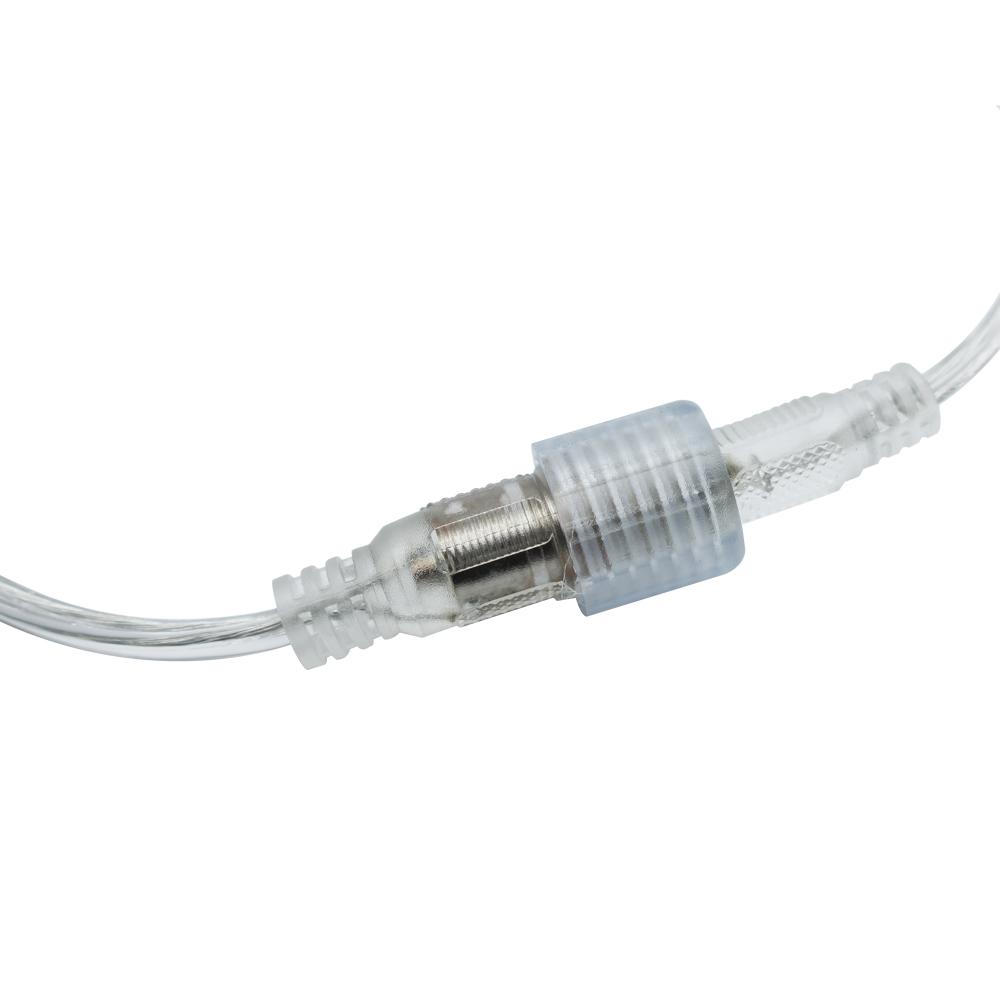

1. The LED light bar in Waterproof IP65 rated, the strip both ends are prewired with waterproof DC5521 female and male plug.
Wiring Tips
Below please find the connection diagram for Single Color Light Strip for reference.
Direct Powered by Transformer Run to AC Wall Outlet, On/Off controlled by a Wall Switch
Light strip On/Off/Brightness is controlled by Dimmer (Wireless or Hardwire Type available)
#1 Typical connection for one Dimmer to control one string of light bars
#2 One Dimmer to control several strings of light bars by adding Amplifier, and powered by one or several transformers. Note: The strips the Dimmer and Amplifer loaded with cannot exceed their rated max value. And in theory, you can add endless Amplifiers after the Dimmer.
