Description

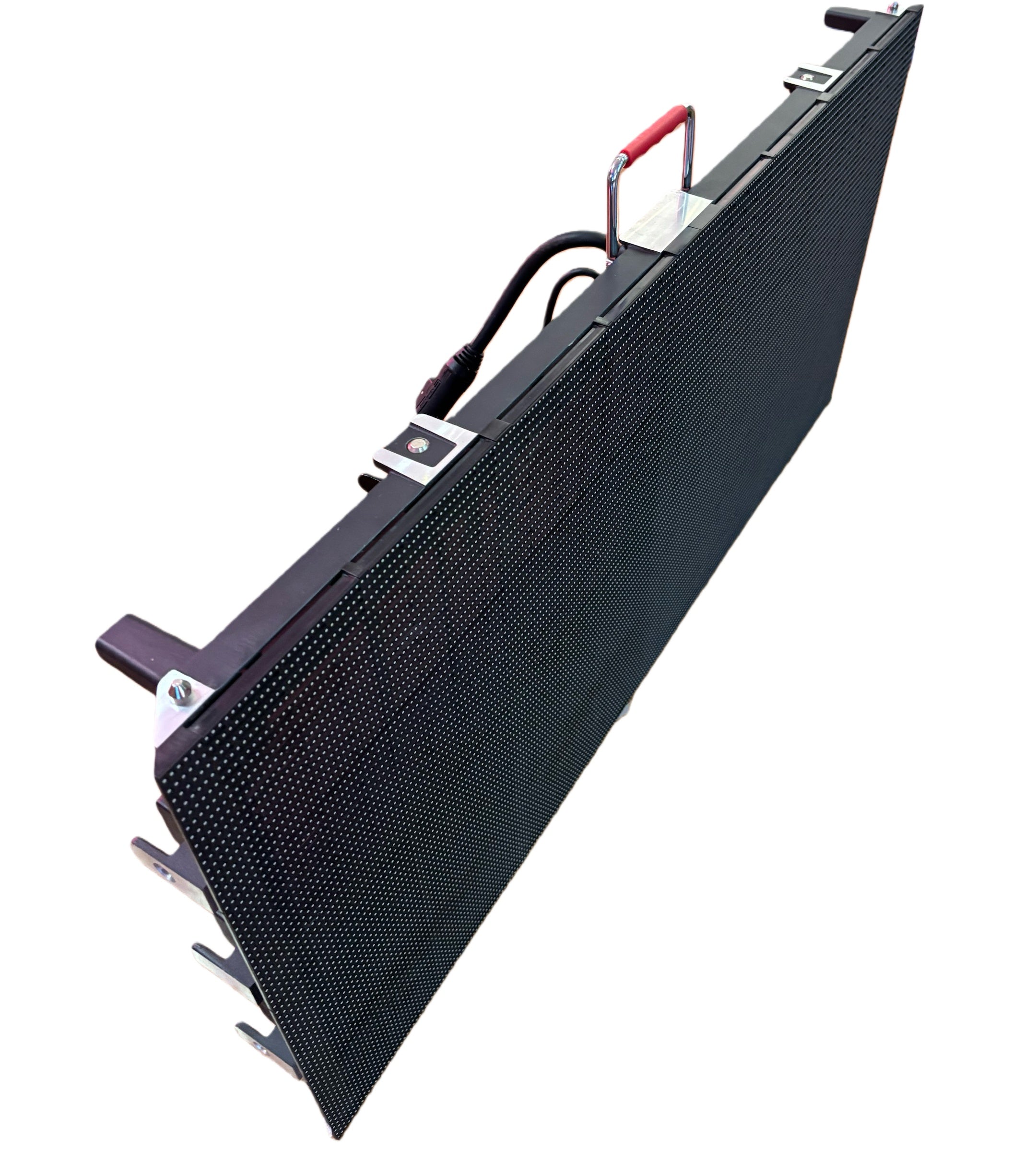

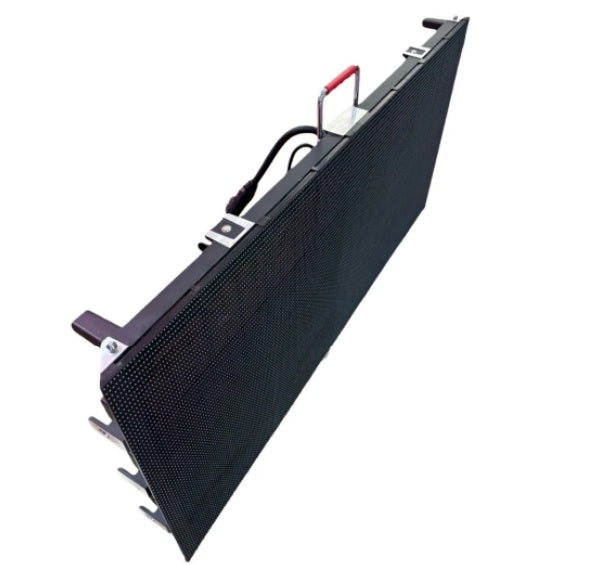

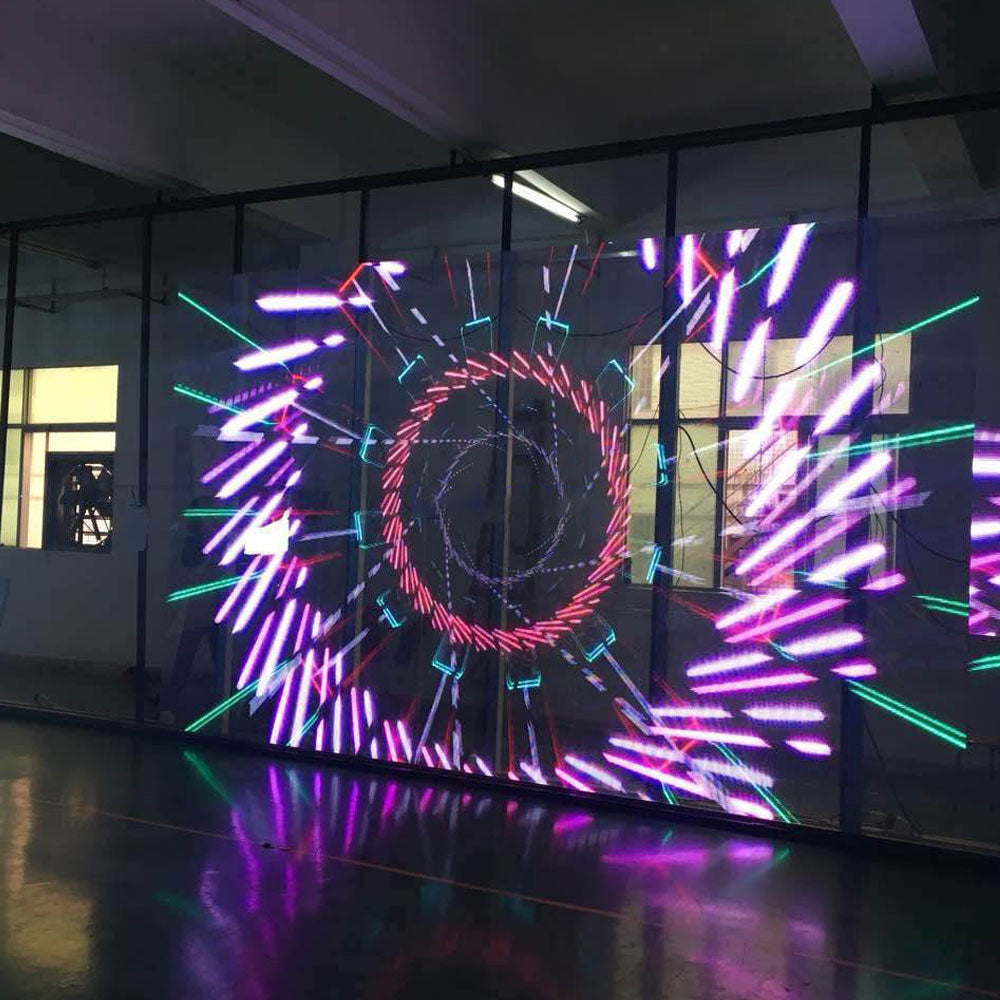

tClear Series P3.9/7.8mm Outdoor Transparent LED Display 4500nits in Size 1000x500mm Aluminum Cabinet for Outdoor Installation
Package Included
| Version | Package Included |
| 1 Square Meter Screen Only | 2pcs of 1000x500mm Screen Unit, Total 1 Square Meter |
| 1 Square Meter Screen with Controller Box | 2pcs of 1000x500mm Screen Unit, and 1pcs of Novastar TB10 Plus Controller Box |
Order & Logistics
Lead Time: Standard production lead time: 2-5 business days
Shipping Method Options :
- Free Freight: 10–20 days (Air + Ground) — economy air shipping, no additional charge.
- Priority Freight: 7–15 days (Air + Ground) — faster air delivery option at checkout.
All screen are shipped directly from our China headquarters.
DDP Term: Listed shipping methods are offered under DDP (Delivered Duty Paid), meaning customs clearance, duties, and taxes are included. If DDP service is not supported in the destination country, we will coordinate alternative terms (e.g., EXW / FOB) to ensure smooth delivery.
Product Features
1. Transparency up to 43%, strip structure design, thin and transparent, excellent light transmission
2. Positive light emission series, strip welding process, more robust and reliable

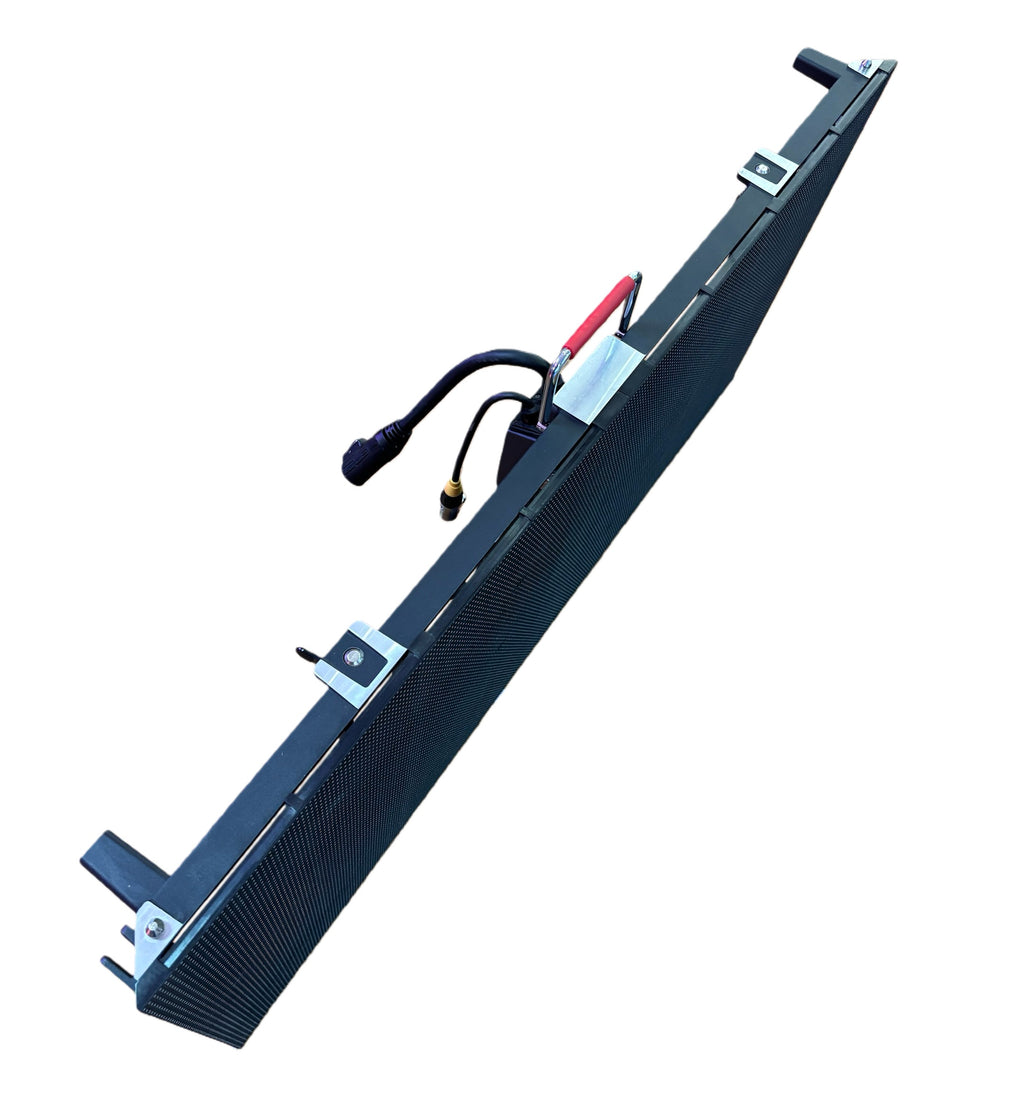

3. Ultra-thin, lightweight, easy to assemble and maintain, quick-lock design for easy and rapid installation and disassembly
4. Modular design, fast production, short delivery time, meeting the needs of various performances of all sizes
5. IP65 high protection rating, waterproof, dustproof, and windproof, suitable for outdoor use
6. High-transparency PC cover protection to avoid damage from bumps and knocks during transportation and handling
7. No damage to walls or foundations, 50% lighter than conventional displays

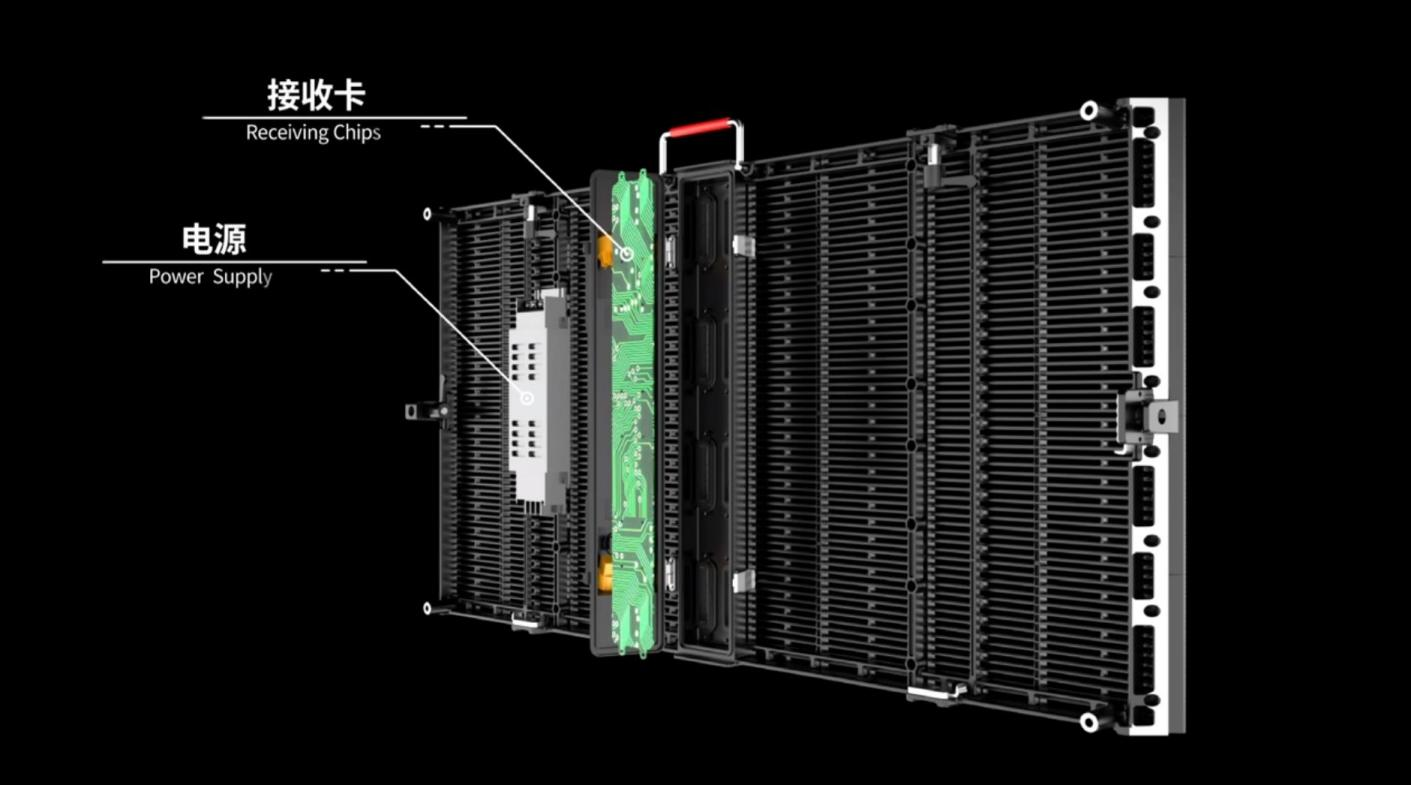

8. High-quality power supply, heat dissipation design, no need for any additional auxiliary heat dissipation equipment, low carbon footprint and environmentally friendly

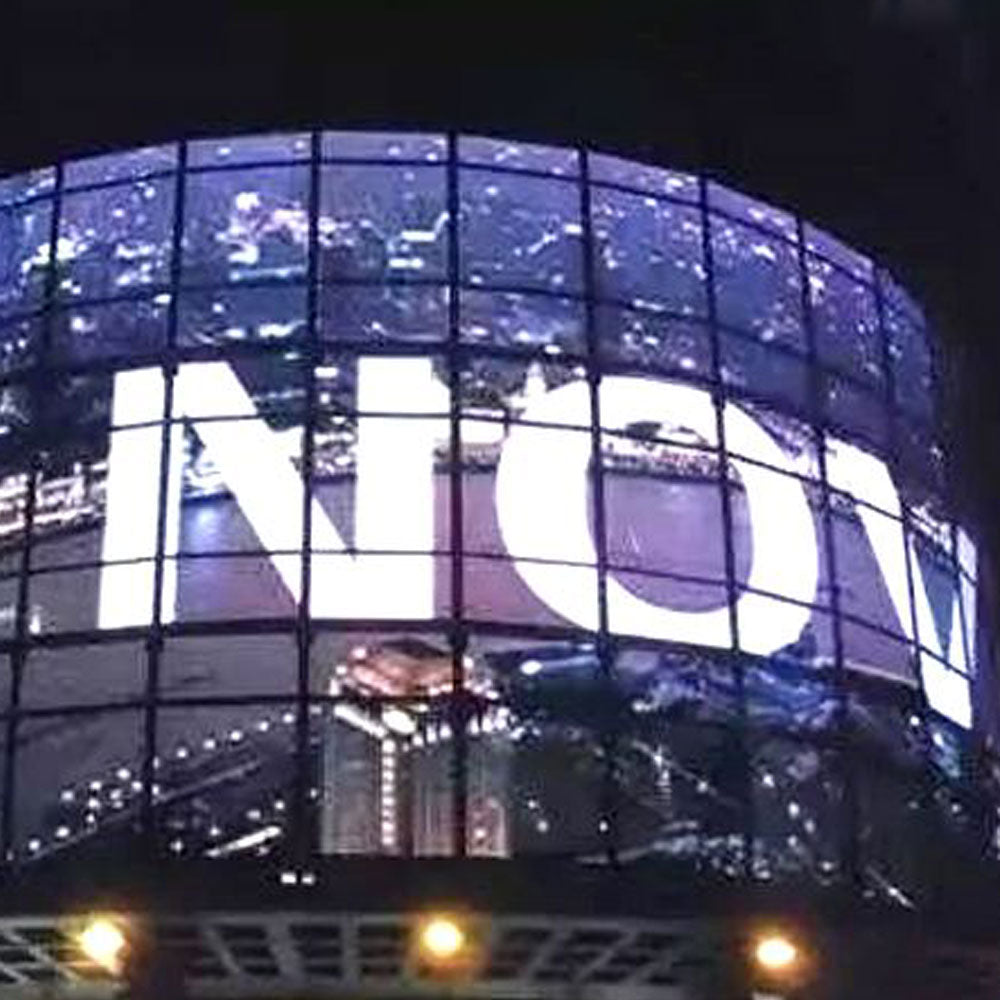

9. Customizable cylindrical, curved, and irregularly shaped product solutions according to various scenarios
Specifications:
| Part # | HKtC-P3/7-H |
| Pixel Pitch | P3.9/7.8mm |
| LED Type |
SMD1921 |
| Scan | 8 |
| Viewing Distance | >5Meter |
| Cabinet Qty./㎡ | 2pcs |
| Cabinet Pixels | 32768dots/㎡ |
| Power Consumption | Max.260W/㎡ Avg.880W/㎡ |
| Brightness | 4000-4500nits |
| Transparency Rate | 43% |
| Refresh Rate | 3840HZ |
| Protection Grade | IP65 |
| Screen Unit Weight | 11kgs/pcs |
