Description

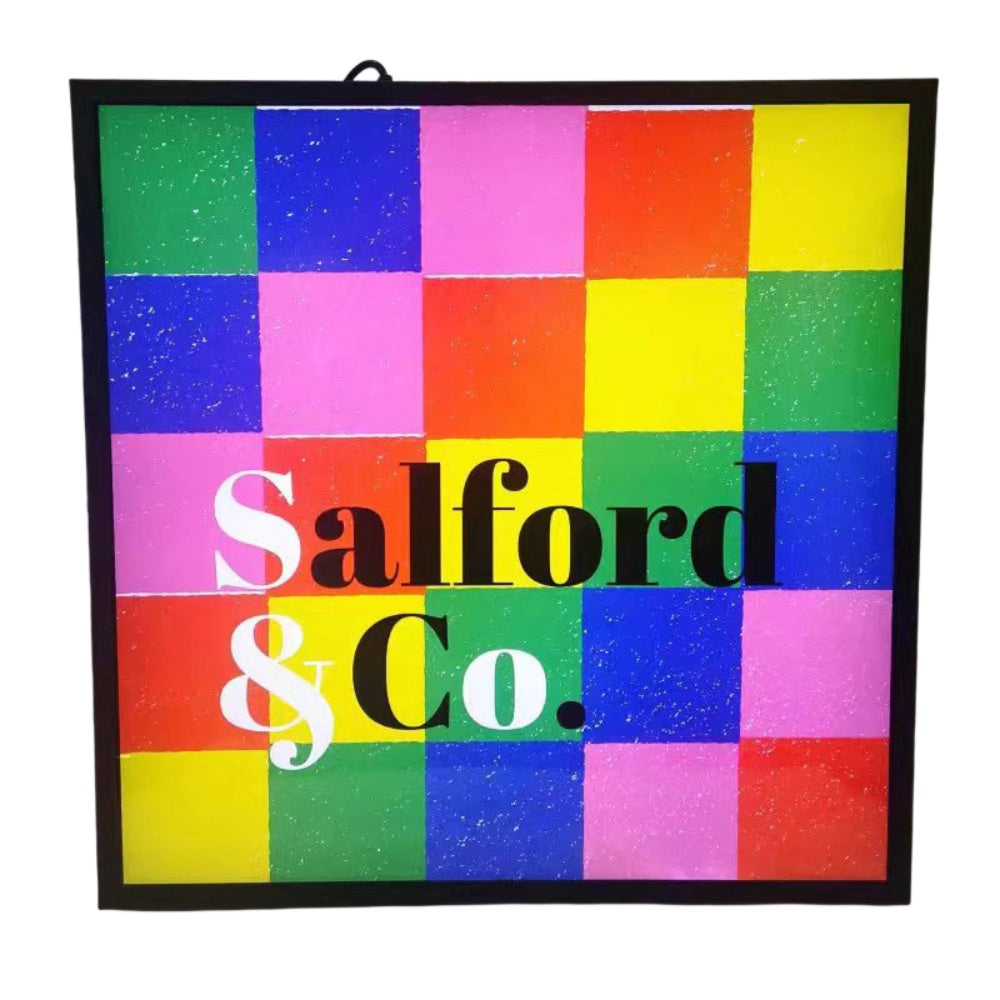

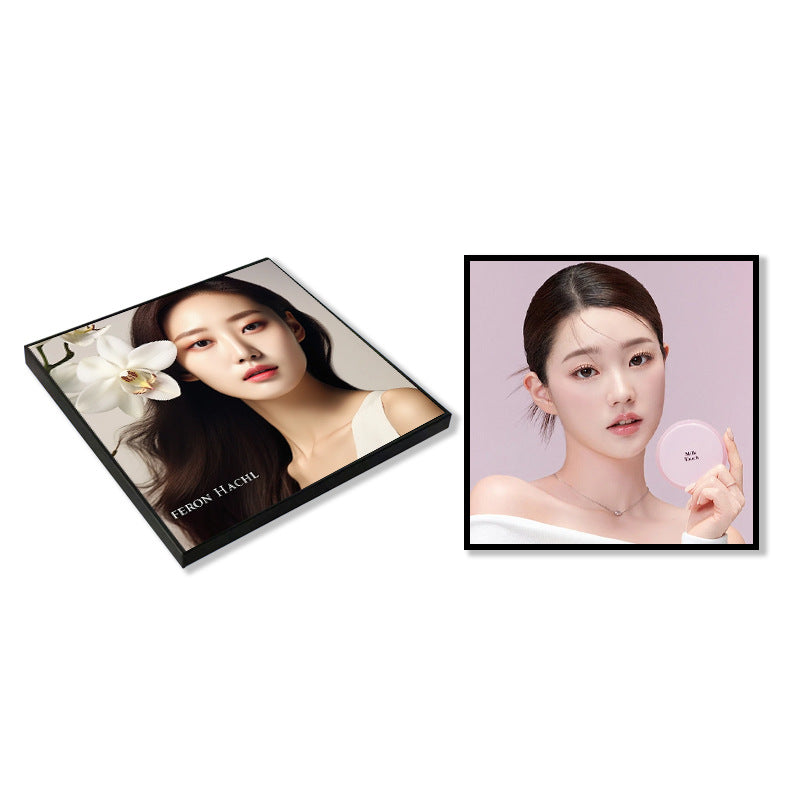

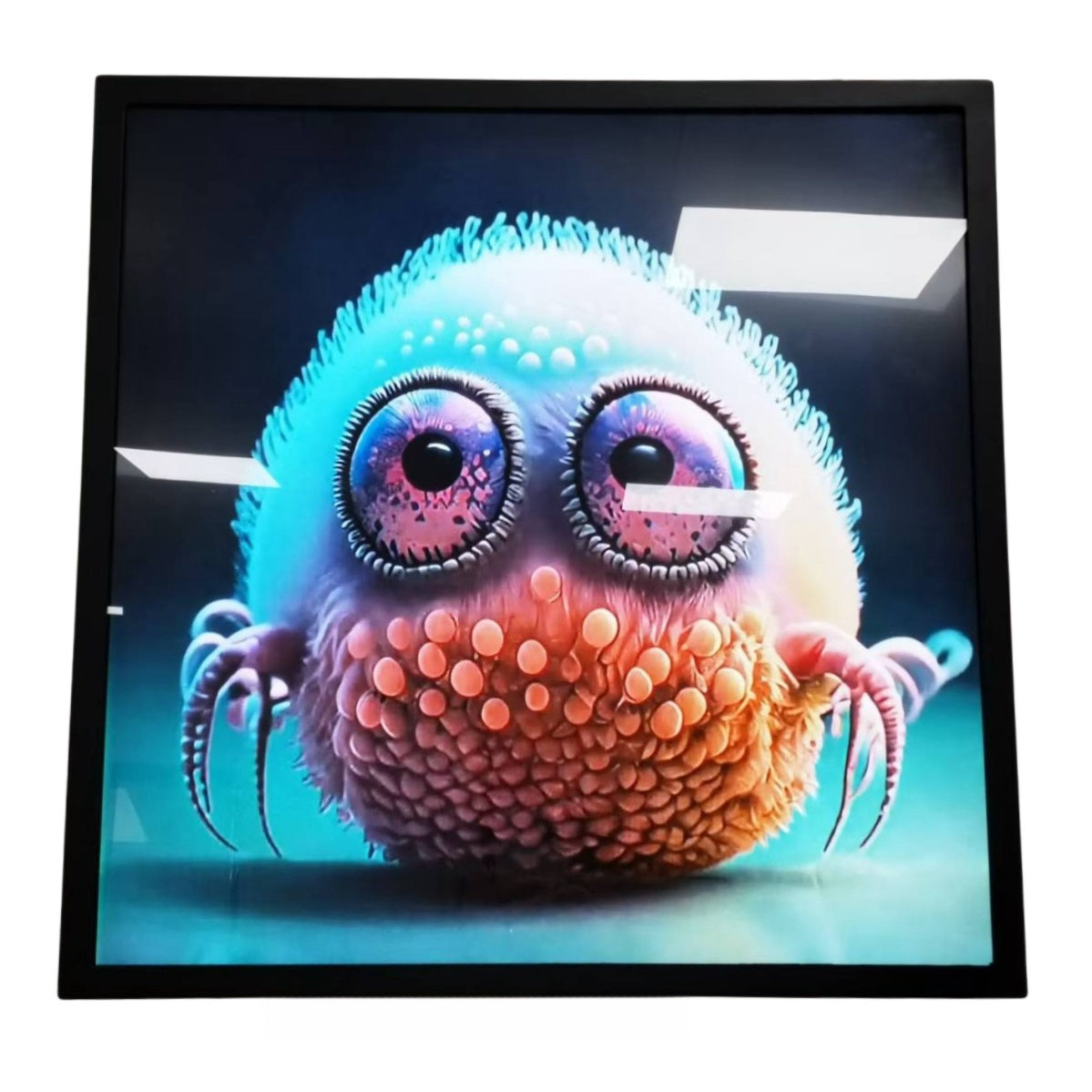

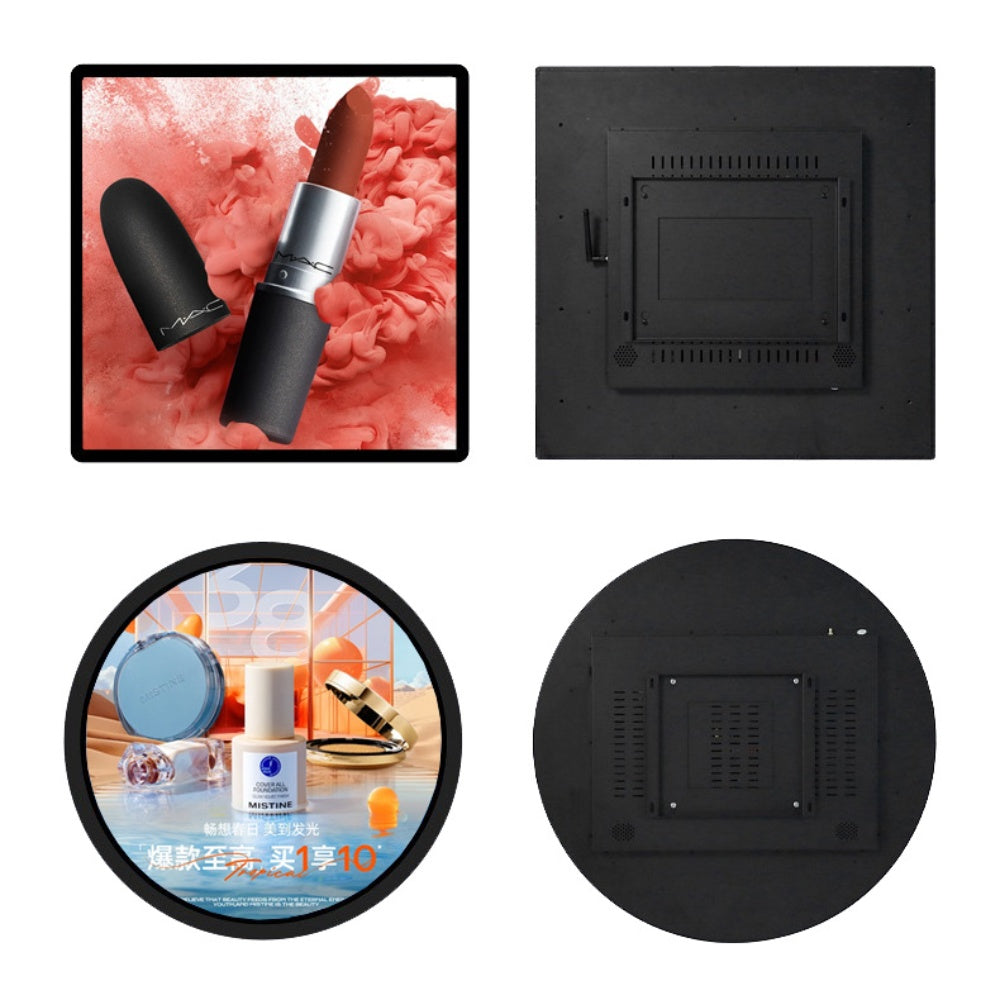

SQ Series 19.2 Inch (345×345mm Viewable) 1:1 Square Monitor LCD Display Screen, Cloud / APP / USB Disk Content Upload
Package Included
| Version | Package Included |
| 19.2" Model | Square LCD Display ×1, Power Cord ×1, Remote Controller ×1 (Battery not included), Mounting Kit ×1, Honeycomb Cardboard Box ×1 |
Order & Logistics
- Lead Time: Standard 15–20 business days; if in stock, ships within 5 business days
- Packing: Hard carton box with protective honeycomb inside
- Free Shipping: Air + UPS delivery to door; typical transportation time 12–15 days after flight
- DDP TERM: All fees included; if unavailable in destination country, we will contact the buyer
About this item
The 19.2 inch Square Shape LCD screen uses LED backlight, which has more uniform display brightness and wider color gamut. Industrial-grade design, ultra-high reliability and high stability, with an average trouble-free operation time of more than 50,000 hours. It uses the RK3568 quad-core chip solution, equipped with the Android11 system, with a maximum main frequency of up to 2.0GHz, and has super performance. Supports AFBC (frame buffer compression), 4K/H.265 hard decoding, 950P video decoding, and 4K-level video playback. Supports infrared remote control, RJ45, USB, OTG and other rich interfaces.
Features
The LCD Screen is made of metal, which is radiation-proof, magnetic-field-proof and strong-electric interference-proof
Professional hard screen technology is adopted, with large viewing angle, fast response speed and high color reproduction.
LED backlight mode is adopted, and the brightness is more uniform
High physical resolution of 1920*1920, and the picture quality is more delicate
The viewing angle can reach 178°, which is close to the horizontal
1200:1 ultra-high contrast ratio, the picture display is more vivid and the color performance is more outstanding
Industrial-grade design, high reliability, high stability and low power consumption
Parameters
| The Screen | Size | 19.2" |
| Screen supplier | LG | |
| Resolution | 950x950 | |
| Display size (mm) | 345(H)×345(V) | |
| Brightness | 400cd/m2 | |
| Contrast | 1200:1 | |
| Viewing angle (horizontal/vertical) | 89/89/89/89 (Min.)(CR≥10) | |
| Response time | 8ms (typ.) | |
| Display color | 16.7M | |
| Refresh rate | 60Hz | |
| Control Board | Motherboard | RK3568,4 Core ARM Cortex-A55, 2.0GHz，Mali-G52 GPU |
| Memory | 2+16G | |
| System | Android 11 | |
| Interface | USB3.0、OTG、TF-card、Audio、RJ45、HDMI out、DC-IN | |
| Audio | Speaker | Optional |
| Remote | Remote control | Optional |
| Weight | Net weight | 2.5kgs |
| Physical Size | Device size | 379*379*60mm |

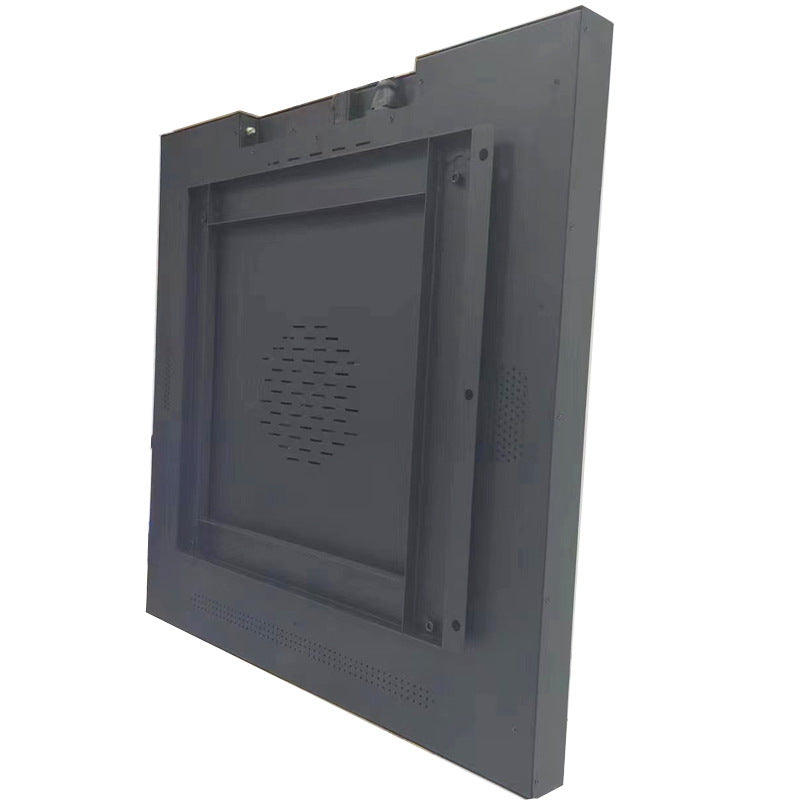

| Casing material | Metal Sheet | |
| Power Consumption | Power input voltage | DC 12V /AC90-240V with power Adapter |
| Device power | ≤40W | |
| Standby power | <1W | |
| Working Environment | Operating temperature | 0℃～+50℃ |
| Operating humidity | 10%～90% RH Non-Condensing | |
| Storage temperature | -20℃～60℃ | |
| Storage humidity | 5%～95% RH Non-Condensing | |
| Language | OSD | English / Chinese |
| Accessories | Power cord | *1 |
| Wall Hanging Bracket | *1 |
Usage Notes / Installation Tips
|
Send Program via Cloud Platform |
Send Program via LEDArt | Play Program via U-disk/SD card |
|---|---|---|
| Login cloud platform Create and edit programs Send programs to the device NOTE: The device mode needs to be adjusted to networking mode and associated with the cloud platform account. Cloud server address: http://www.led-cloud.cn / http://www.led-cloud.com
|
Run mobile APP LEDArt Create and edit programs Send program to the device NOTE: The device mode needs to be adjusted to stand-alone mode, and the mobile phone is in the same local area network
|
Save programs into U-disk or SD Card Insert U-Disk or SD Card Playback program automatically NOTE: The device mode needs to be adjusted to stand-alone mode, and the system format of the U-disk/SD Card needs to be FAT32
|
