Description

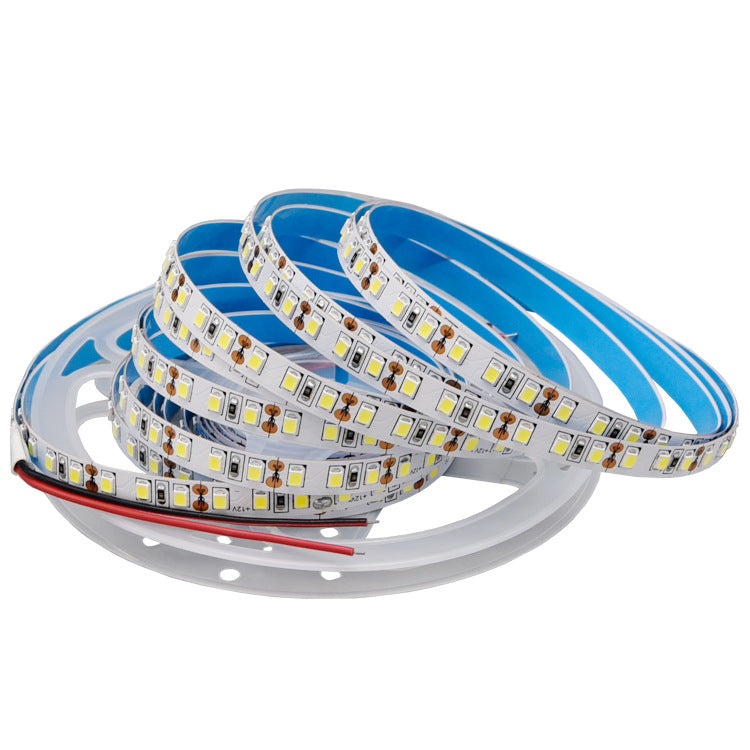

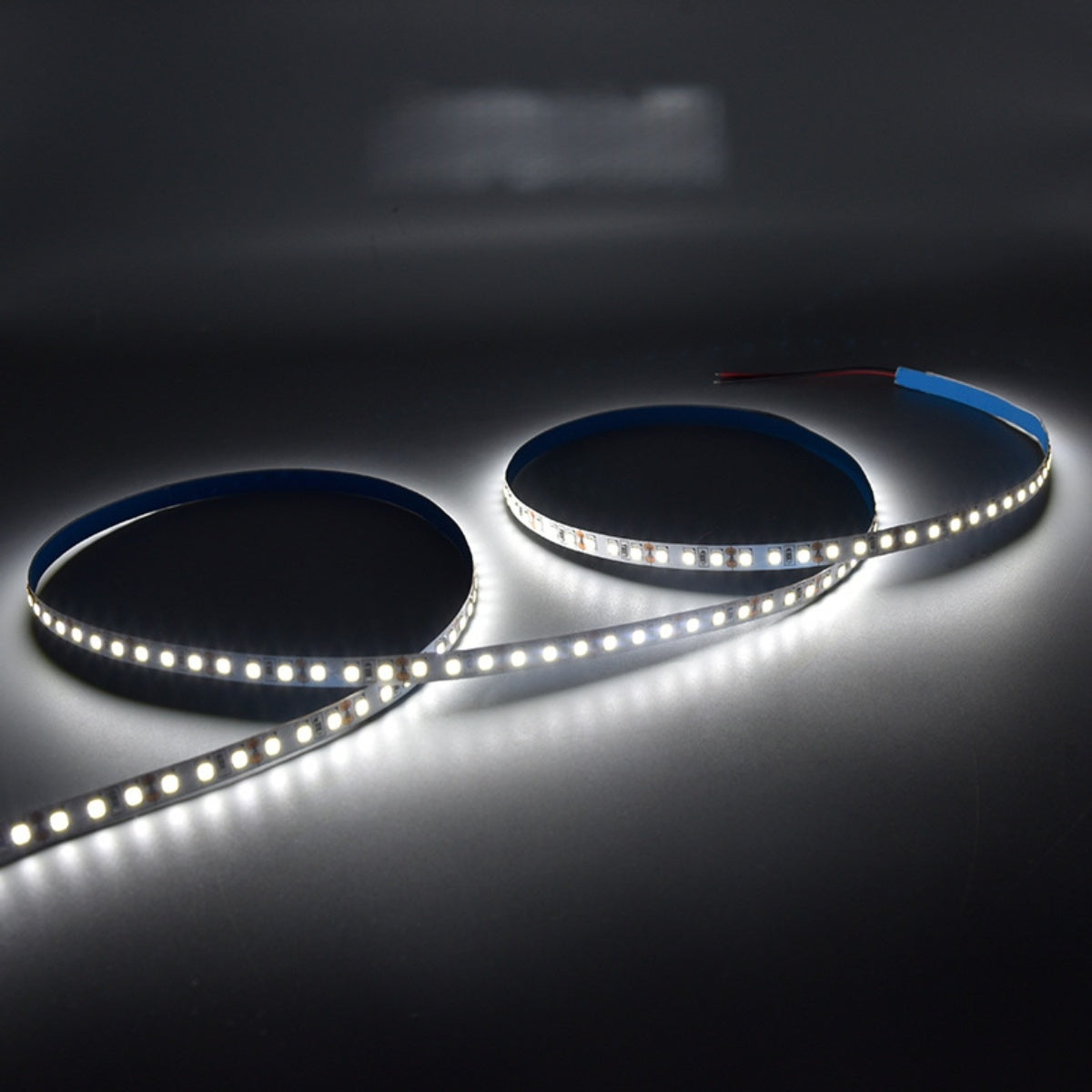

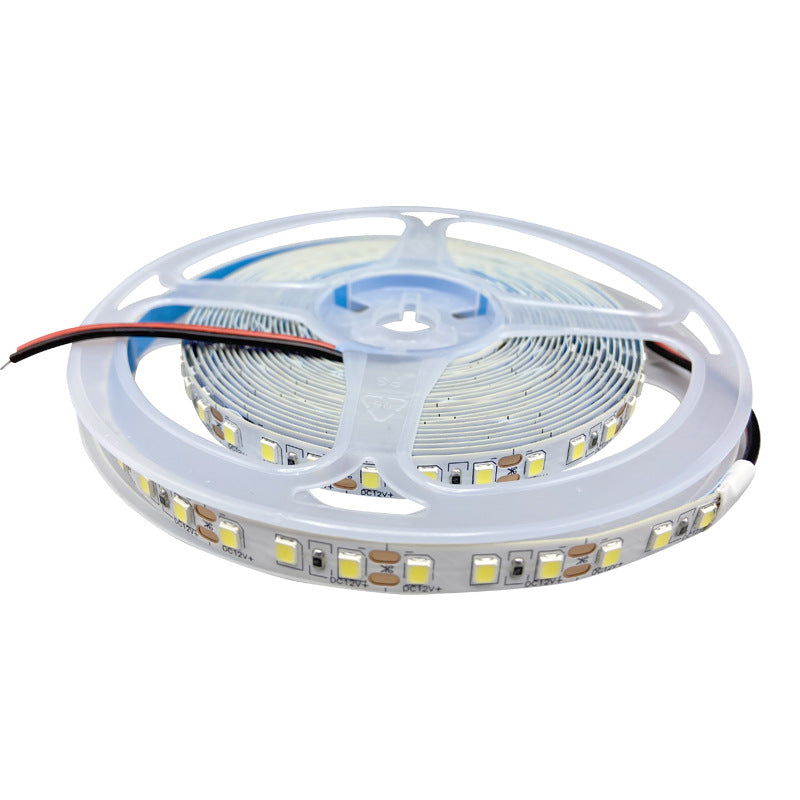

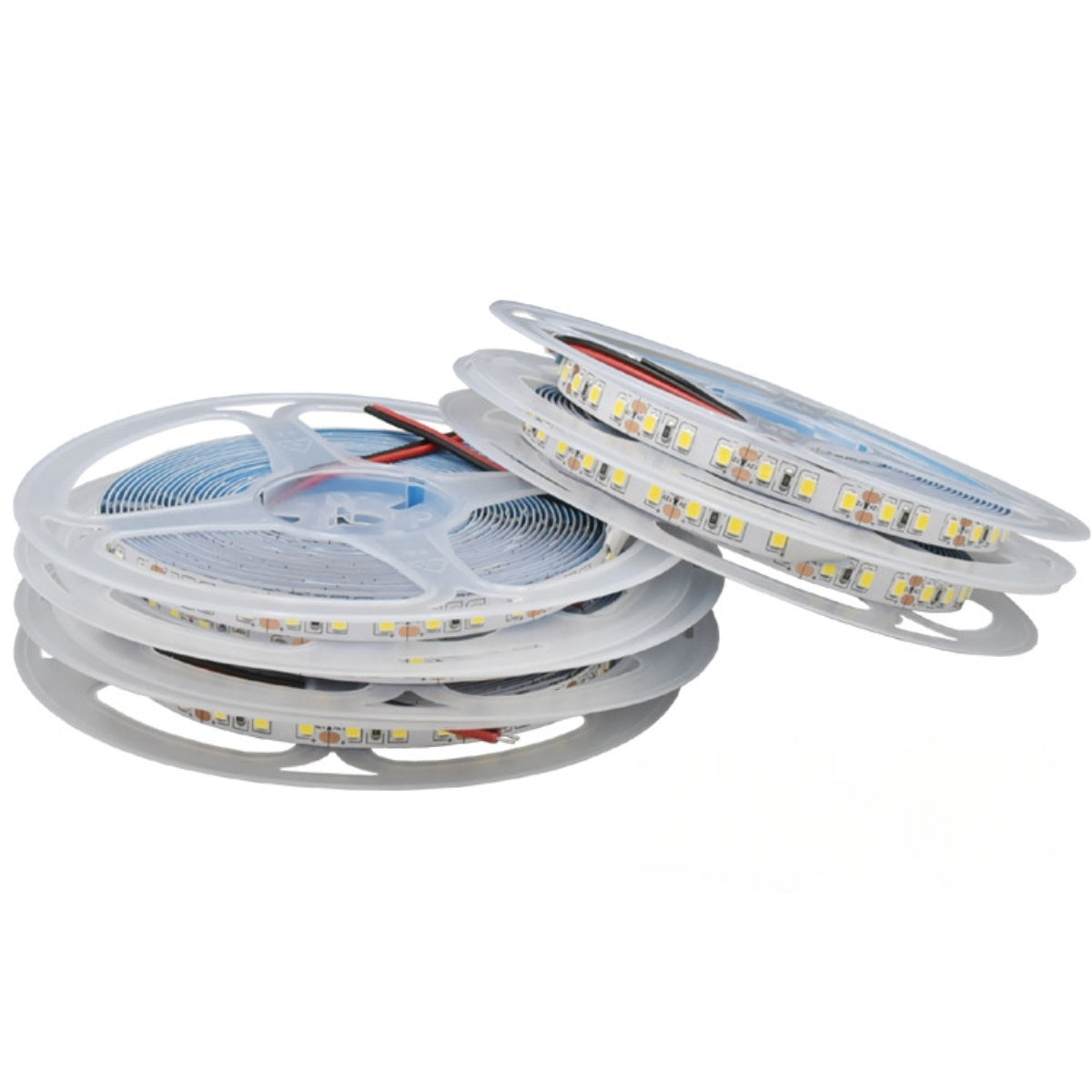

SMD2835 LED Strip Light 6000K / 4000K / 3000K | 120 LEDs/m | 12W/m | 12V / 24V DC | 8mm PCB | 5m Roll | IP00 / IP67
Package Included:
| Version | Package Included |
| 1 Roll × 5 m (16.4 ft total) (Strip Only) | 1 Roll × 5 m (16.4 ft) LED Strip Light Only, Do not include Power Supply and Controller |
| 20 Rolls × 5 m (328 ft total) (Strip Only) |
20 Rolls × 5 m (328 ft total) LED Strip Light Only, Do not include Power Supply and Controller |
| 100 Rolls × 5 m (1640 ft total) (Strip Only) | 100 Rolls × 5 m (1640 ft total) LED Strip Light Only, Do not include Power Supply and Controller |
Order & Logistics:
- Lead Time: Typically 1–3 business days
- Packing: Cardboard box, sealed with anti-static bag
- Shipping: 7-12 days by AIR.
Product Features:
-
High Density Lighting – Features SMD2835 with 120 LEDs per meter, delivering smooth, uniform illumination without dark spots.
-
Multiple Voltage Options – Available in both 12V DC and 24V DC versions, offering flexibility for different installation needs.
-

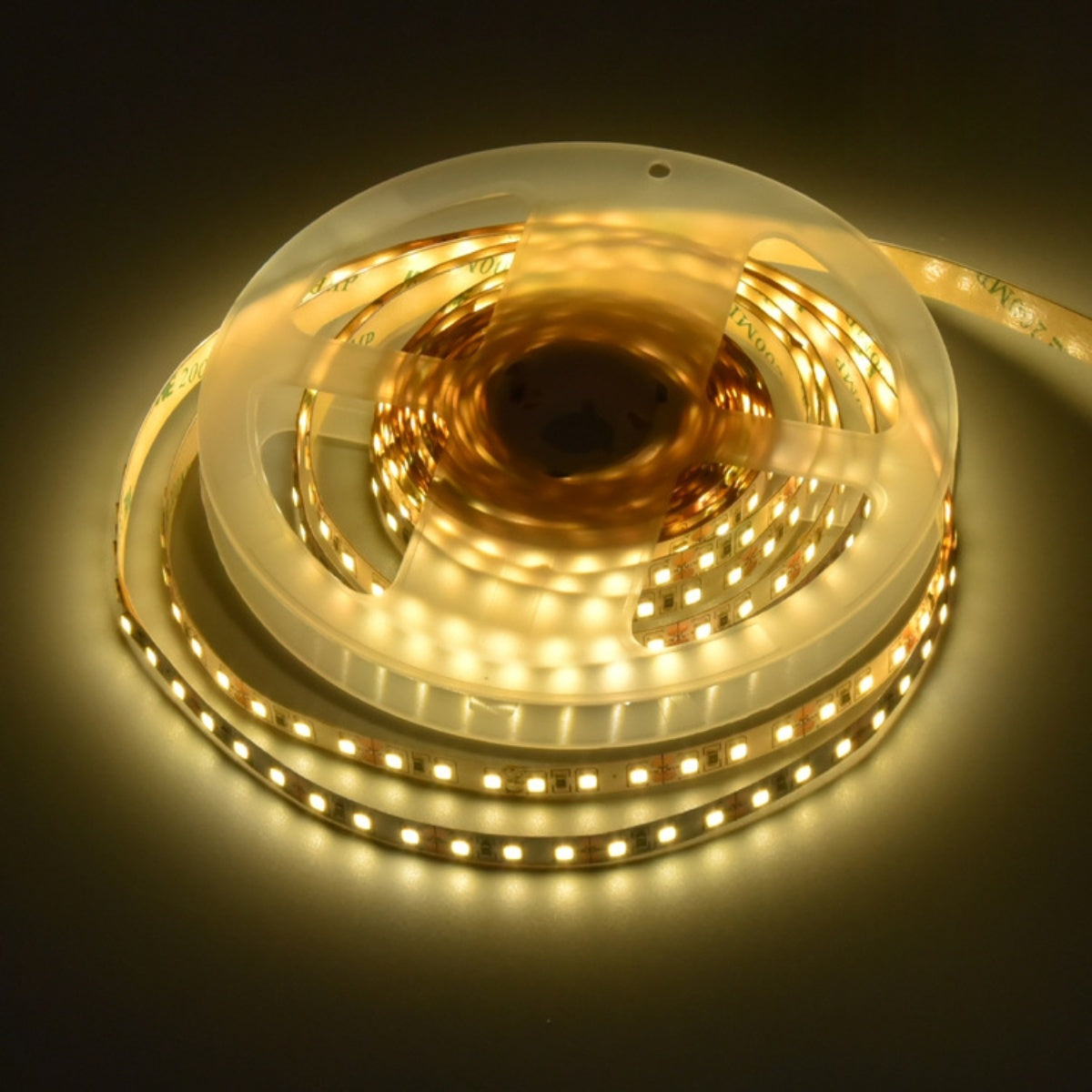

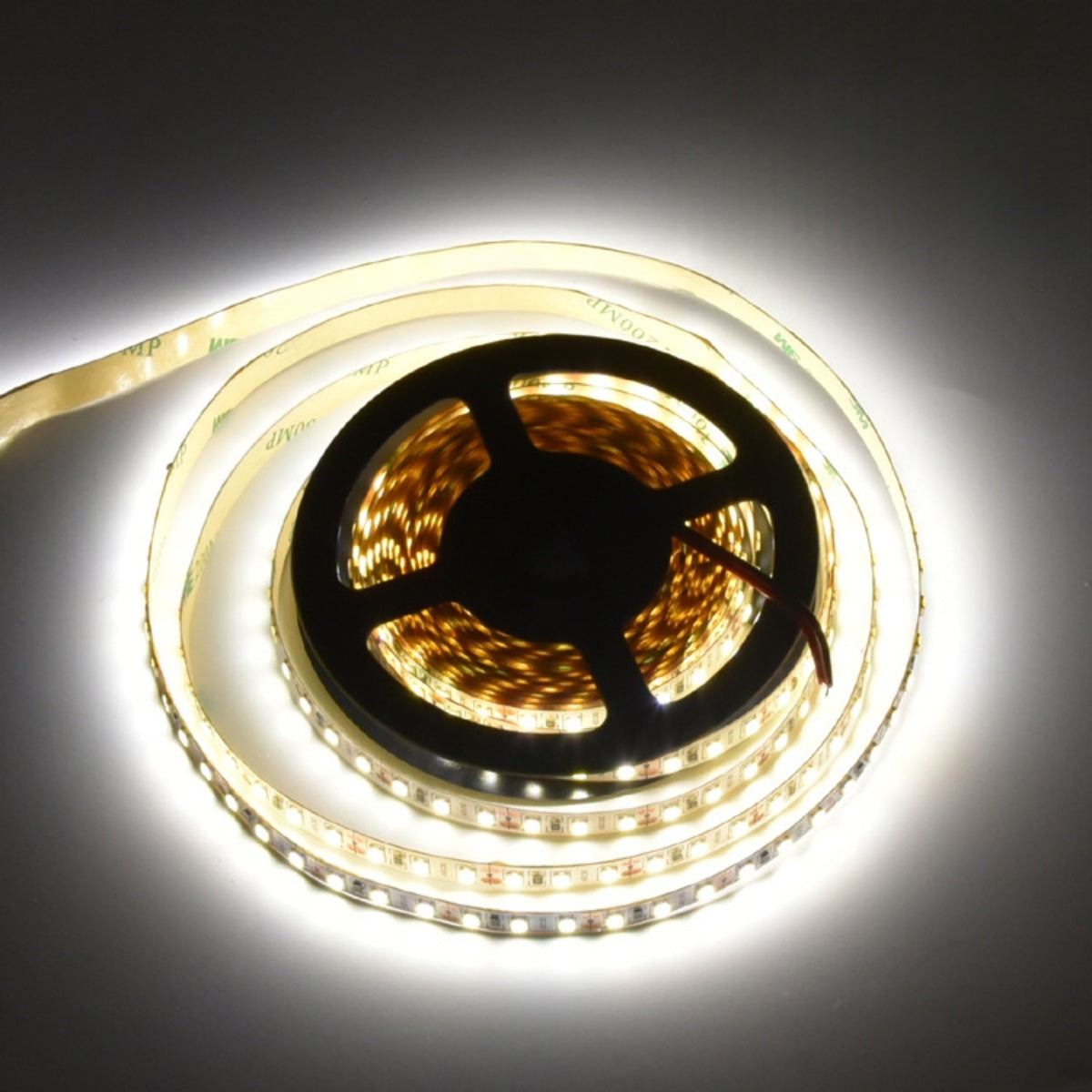

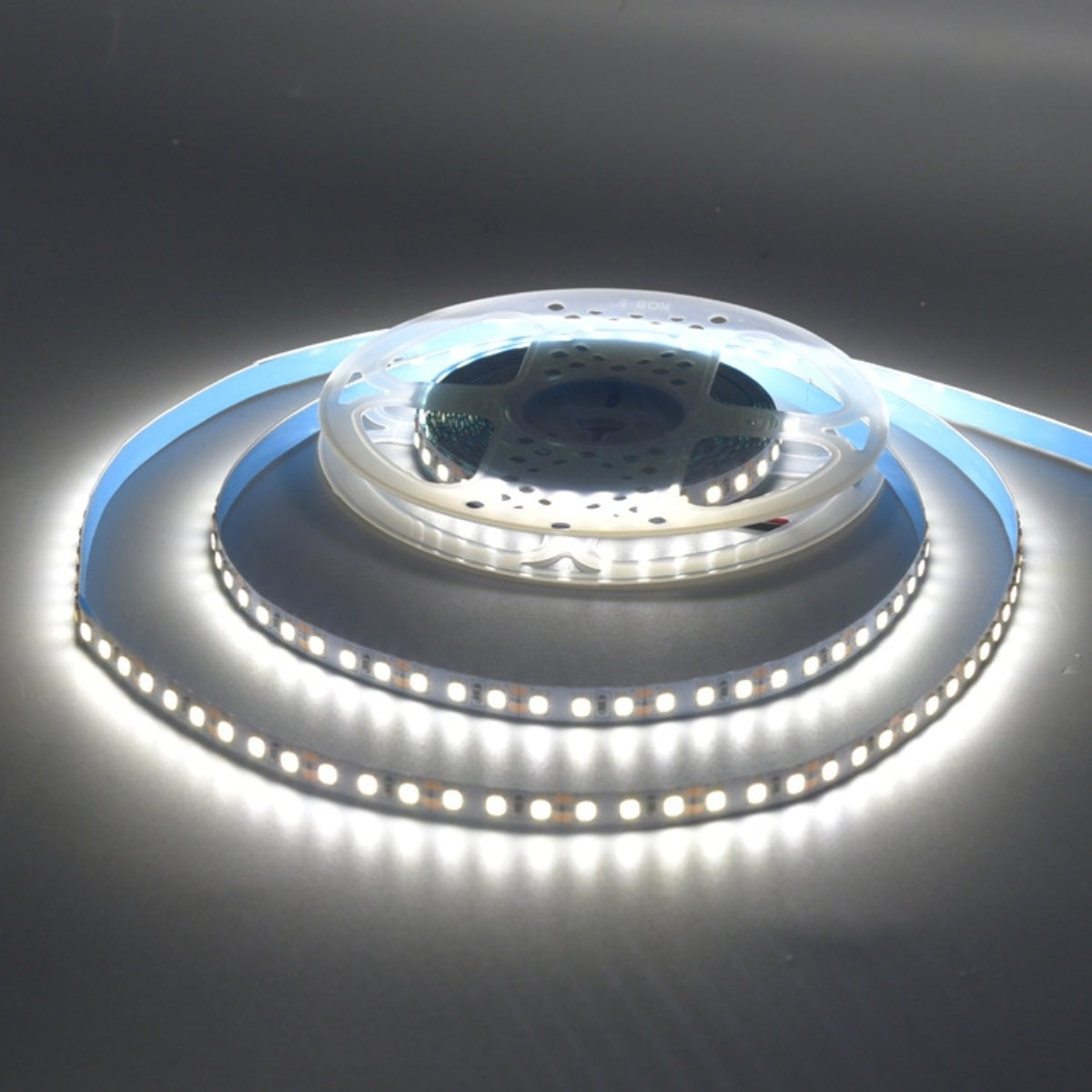

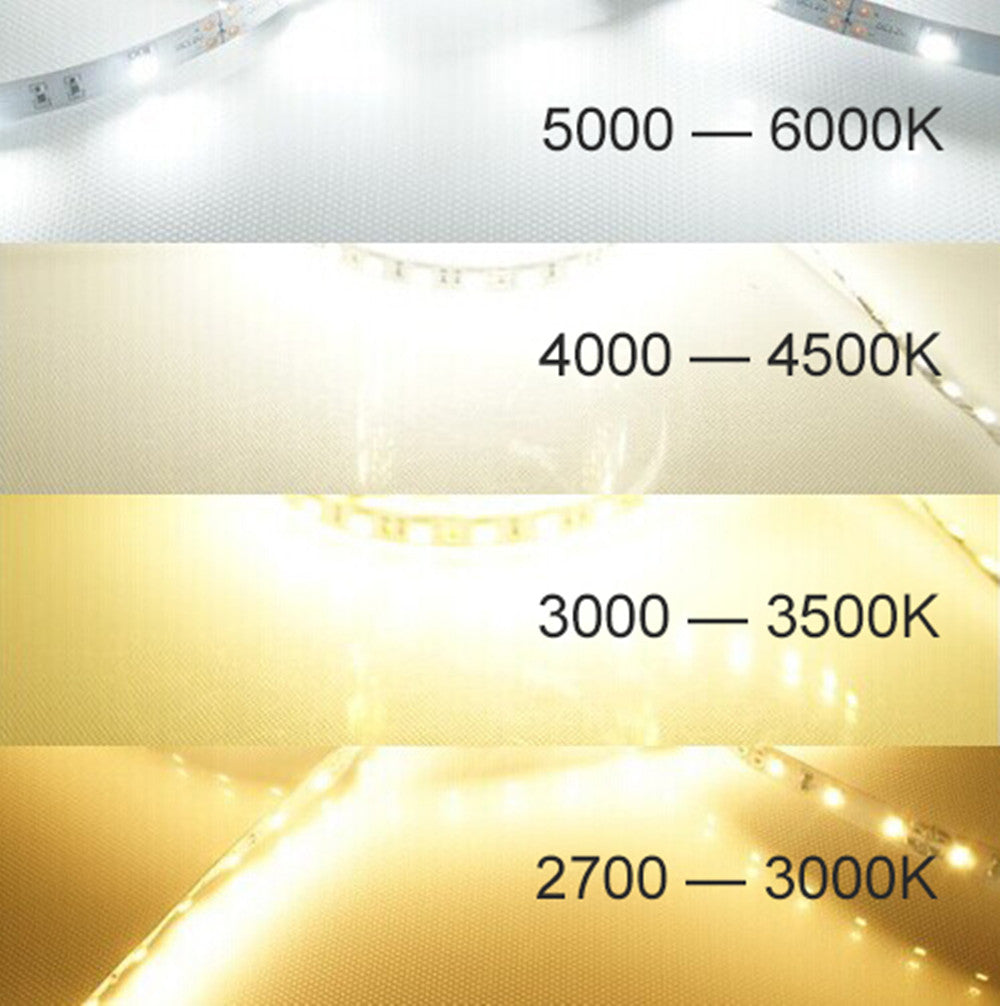

Color Temperature Choices – Select from 3000K Warm White, 4000K Neutral White, or 6000K Cool White to create the perfect ambiance.
-
Waterproof Options – Choose from IP00 (Non-Waterproof), IP67 (Silicone Tube) for indoor and outdoor applications.
-

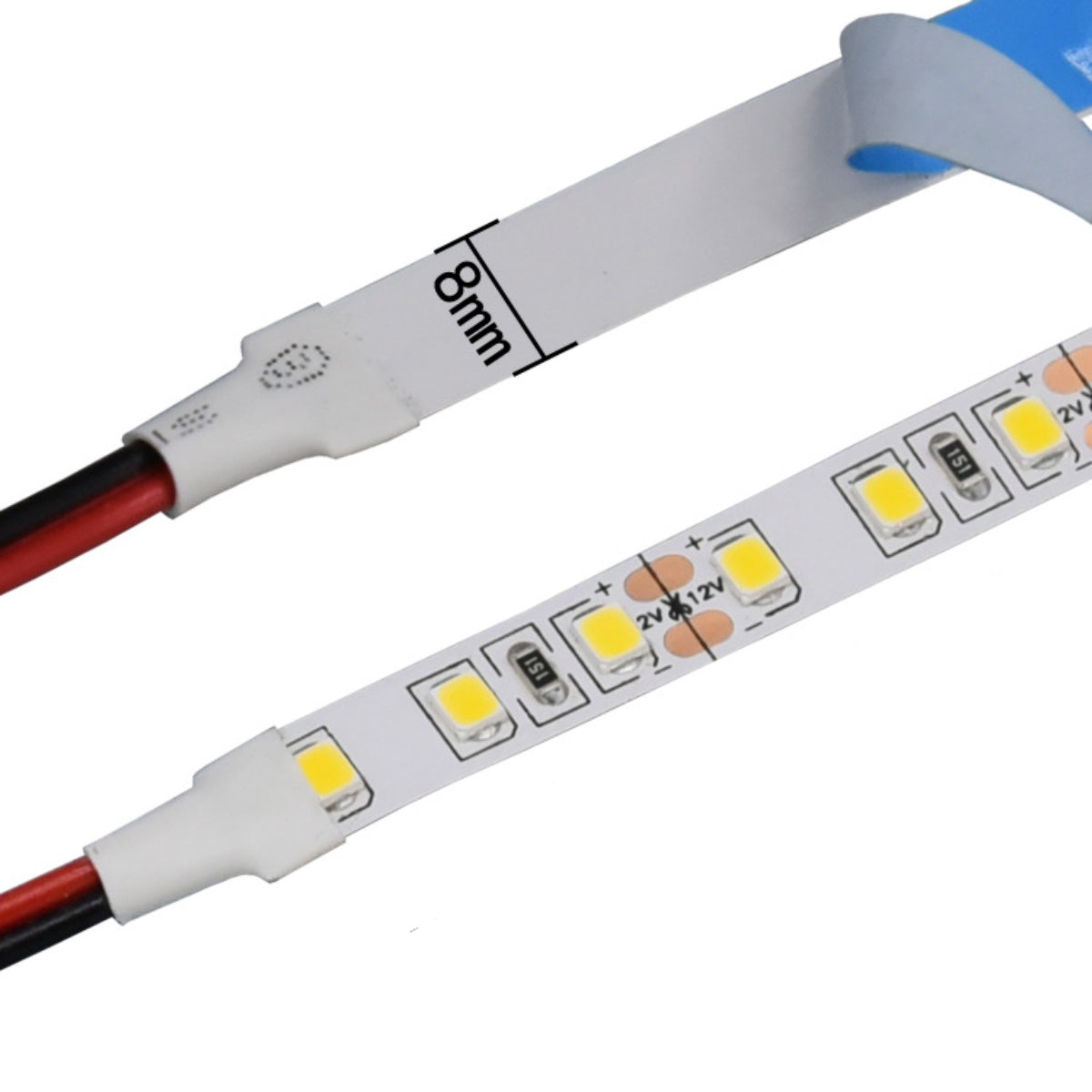

Flexible & Easy Installation – 8mm wide PCB design, cuttable every few LEDs, and compatible with standard LED strip connectors and aluminum profiles.
Technical Specifications Table：
| Parameter | Specification |
|---|---|
| LED Type | SMD2835 |
| LEDs per Meter | 120 LEDs/m |
| Power Consumption | 12W per meter |
| Voltage Options | 12V DC / 24V DC |
| Color Temperatures | 3000K (Warm White) / 4000K (Neutral White) / 6000K (Cool White) |
| Luminous Flux (Approx.) | ~960–1100 lm per meter (varies by CCT & voltage) |
| CRI (Color Rendering Index) | Ra ≥ 80 |
| PCB Width | 8mm White PCB |
| Roll Length | 5m (16.4 ft) |

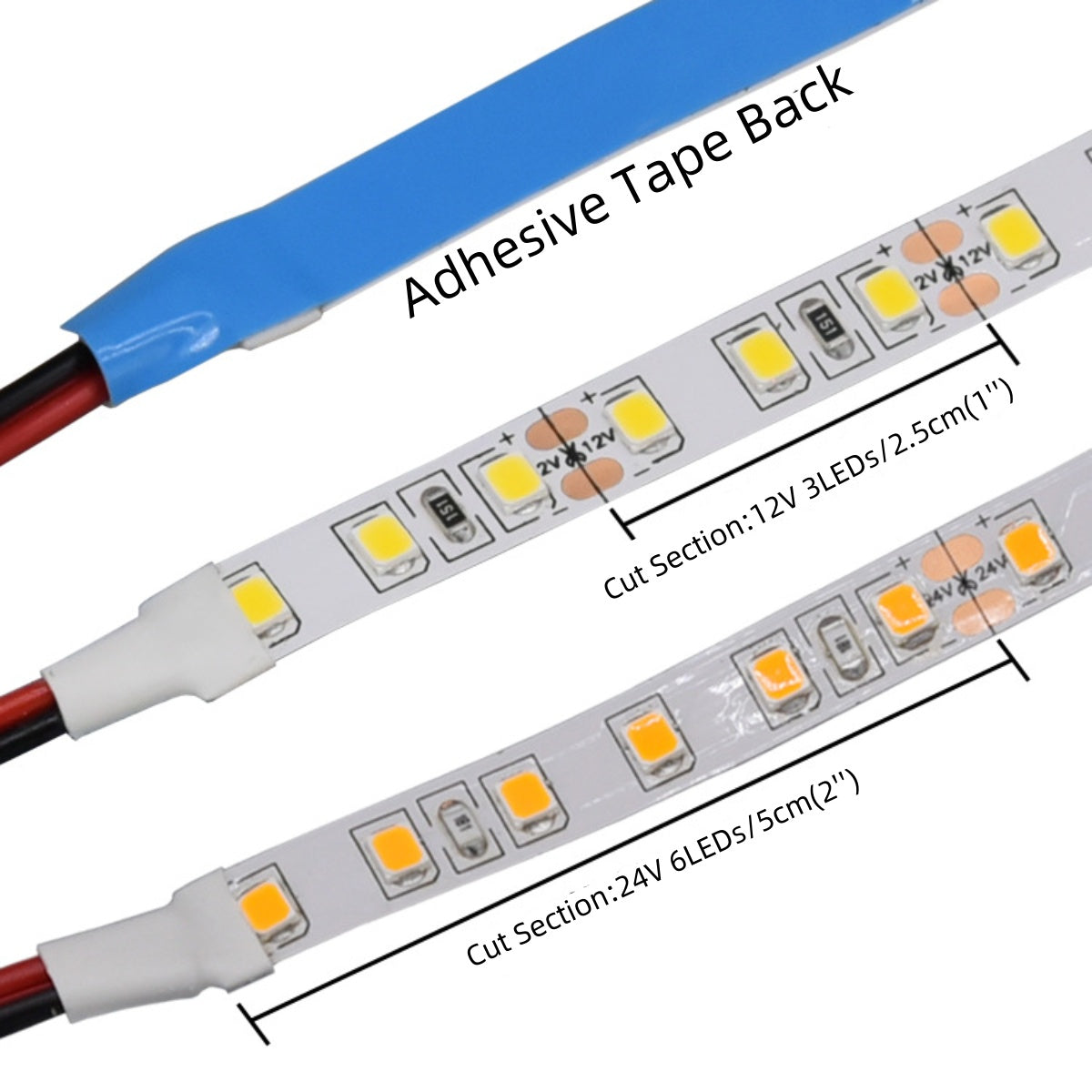

| Cutting Unit | 12V: every 3 LEDs (~25mm) / 24V: every 6 LEDs (~50mm) |
Drawing per 5000mm for 12V non-waterproof strip (1inch=25.4mm)
How to power/control the strip
When choosing the transformer, the wattage to choose depends on how many pieces light strips it power.And when choosing the transformer, we suggest to use a bigger wattage transformer than the strip rated power to avoid full load working of the transformer. And a big power transformer do no harm to the strip but good for safty.
And a big power transformer do no harm to the strip but good for safty.
Below please find the connection diagram for Single Color Light Strip for reference.
a. Direct Powered by Transformer Run to AC Wall Outlet, On/Off controlled by a Wall Switch
b. Light strip On/Off/Brightness is controlled by Dimmer (Wireless or Hardwire Type available)
#1 Typical connection for one Dimmer to control one string of light bars
#2 One Dimmer to control several strings of light bars by adding Amplifier, and powered by one or several transformers. Note: The strips the Dimmer and Amplifier loaded with cannot exceed their rated max value. And in theory, you can add endless Amplifiers after the Dimmer.
