Description

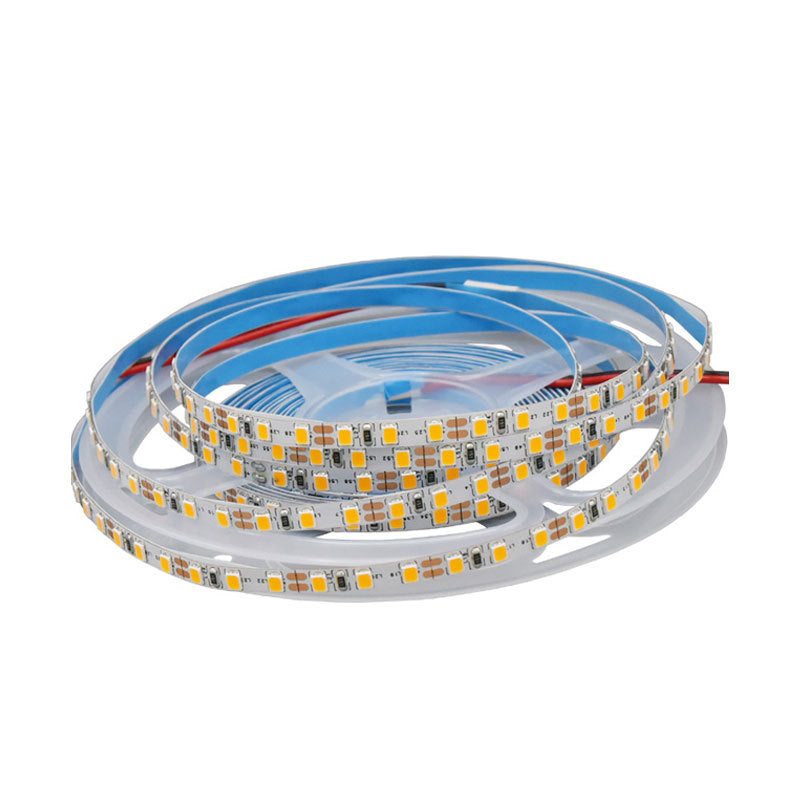

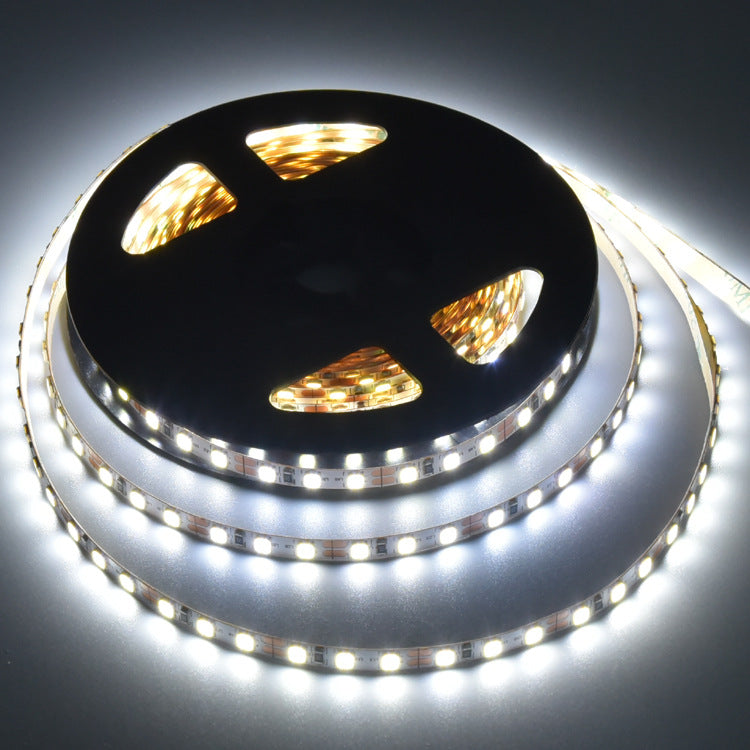

SMD2835 LED Strip Light | 3000K / 4000K / 6000K / 7000K | 120 LEDs/m | 8W/m | 12V DC | 4mm / 5mm PCB | 5m Roll | Non-Waterproof IP00
Package Included:
| Version | Package Included |
| 1 Roll × 5 m (16.4 ft total) (Strip Only) | 1 Roll × 5 m (16.4 ft) LED Strip Light Only, Do not include Power Supply and Controller |
| 20 Rolls × 5 m (328 ft total) (Strip Only) |
20 Rolls × 5 m (328 ft total) LED Strip Light Only, Do not include Power Supply and Controller |
| 100 Rolls × 5 m (1640 ft total) (Strip Only) | 100 Rolls × 5 m (1640 ft total) LED Strip Light Only, Do not include Power Supply and Controller |
Order & Logistics:
- Lead Time: Typically 1–3 business days
- Packing: Cardboard box, sealed with anti-static bag
- Shipping: 7-12 days by AIR.
Product Features:
-
Multiple Color Temperatures – Choose from 3000K Warm White, 4000K Neutral White, 6000K Cool White or 7000K Cold White to create the perfect ambiance.
-
High Density & Brightness – 120 LEDs per meter with 8W/m power for consistent and uniform illumination.
-
12V DC Low Voltage – Safe and energy-efficient, ideal for indoor applications.
-

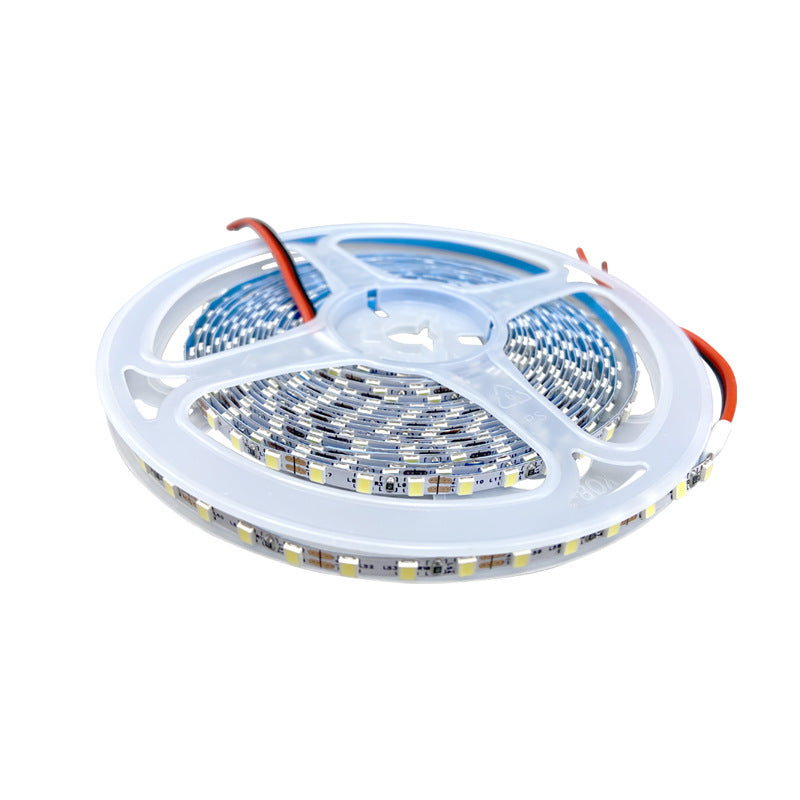

Flexible PCB Width Options – Available in 4mm or 5mm PCB to suit different installation requirements and space constraints.
-
Easy Installation – 5m roll, cuttable at specified intervals, compatible with standard LED strip connectors and aluminum channels.
Technical Specifications Table：
| Parameter | Specification |
|---|---|
| LED Type | SMD2835 |
| LEDs per Meter | 120 LEDs/m |
| Power Consumption | 8W per meter |
| Voltage | 12V DC |
| Color Temperatures | 3000K / 4000K / 6000K / 7000K |
| PCB Width | 4mm / 5mm |
| Roll Length | 5m (16.4 ft) |
| Cutting Unit | Every 3 LEDs (~25mm) |
| Waterproof Rating | IP00 – Non-Waterproof |
| Working Temperature | -20°C to +50°C |
| Lifespan | 50,000 hours+ |
| Package Options | 1 Roll × 5m / 20 Rolls × 5m / 100 Rolls × 5m |
| CRI (Color Rendering Index) | Ra ≥ 80 |
| Beam Angle | 120° approx. |
How to power/control the strip
When choosing the transformer, the wattage to choose depends on how many pieces light strips it power.And when choosing the transformer, we suggest to use a bigger wattage transformer than the strip rated power to avoid full load working of the transformer. And a big power transformer do no harm to the strip but good for safty.
And a big power transformer do no harm to the strip but good for safty.
Below please find the connection diagram for Single Color Light Strip for reference.
a. Direct Powered by Transformer Run to AC Wall Outlet, On/Off controlled by a Wall Switch
b. Light strip On/Off/Brightness is controlled by Dimmer (Wireless or Hardwire Type available)
#1 Typical connection for one Dimmer to control one string of light bars
#2 One Dimmer to control several strings of light bars by adding Amplifier, and powered by one or several transformers. Note: The strips the Dimmer and Amplifier loaded with cannot exceed their rated max value. And in theory, you can add endless Amplifiers after the Dimmer.
