Description

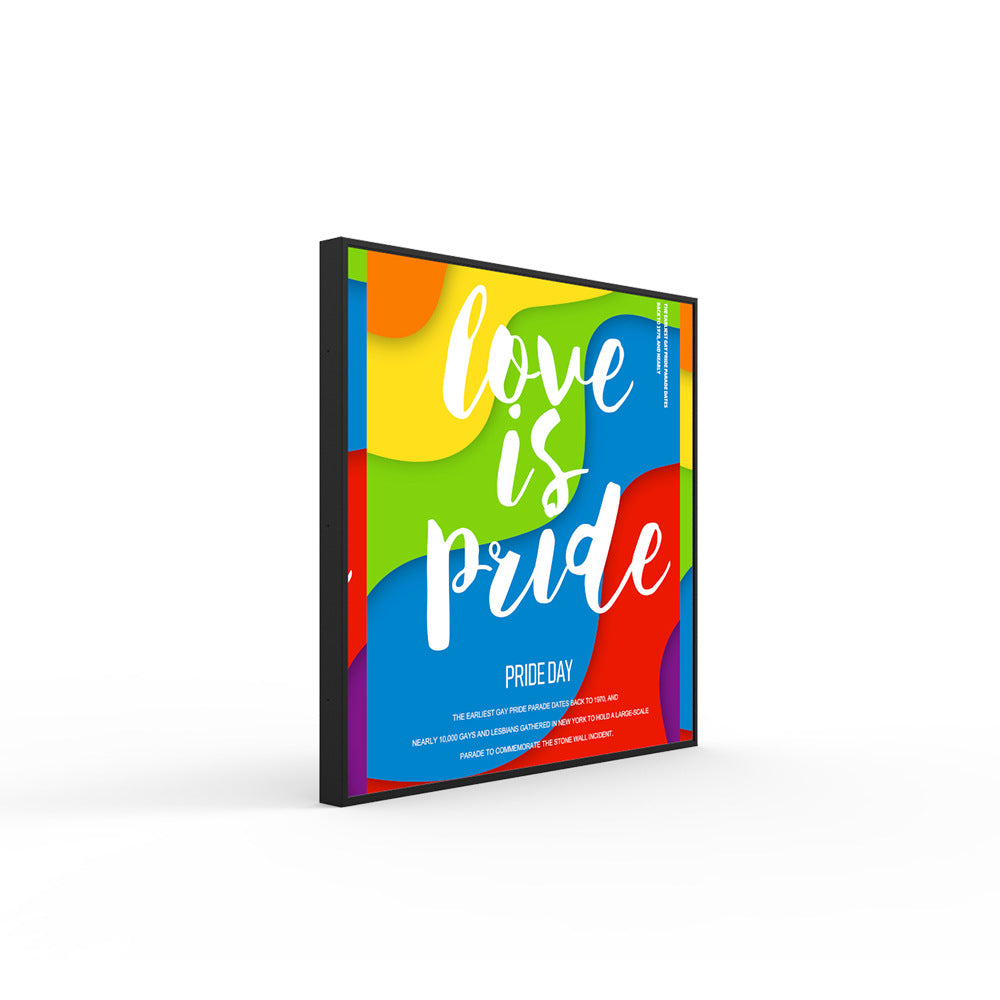

SL Series 51.7 Inch (928.26x928.26mm Viewable) 22mm Super Slim Square LCD Digital Screen, No Touch, Content Upload via Dadonlion Platform / USB Disk
Package Included
| Version | Package Included |

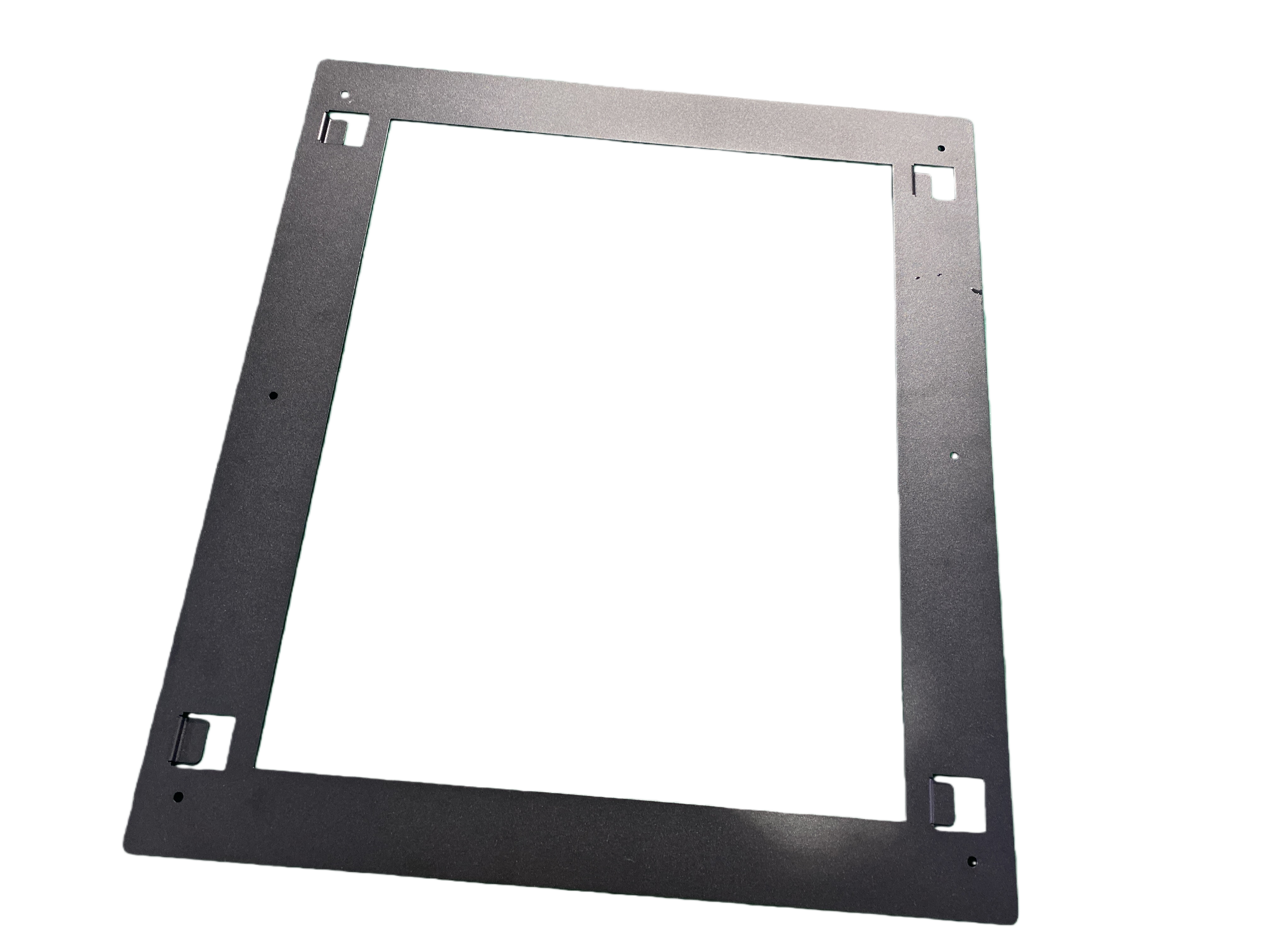

| 51.7" Model | Square LCD Display ×1, Power Cord ×1, Mounting Bracket Kit ×1, Honeycomb Cardboard Box ×1 |
Order & Logistics
Lead Time: Standard production lead time: 15–18 business days
Shipping Method Options:
- Free Freight: 10–20 days (Air + Ground) — economy air shipping, no additional charge.
- Priority Freight: 7–15 days (Air + Ground) — faster air delivery option at checkout.
All models are shipped directly from our China headquarters.
DDP Term: Listed shipping methods are offered under DDP (Delivered Duty Paid), meaning customs clearance, duties, and taxes are included. If DDP service is not supported in the destination country, we will coordinate alternative terms (e.g., EXW / FOB) to ensure smooth delivery.
Specification (DOWNLOAD FULL DATASHEET)
|
Screen Parameters |
Model | 51.7‘’ |
| Panel Type | a-Si TFT-LCD | |
| Display Area | 928.26mm(H)x928.26mm (V) | |
| Aspect Ratio | 1 ：1 | |
| Resolution | 2160X2160 | |
| Display Colors | 16.7M | |
| Dot Pitch | 0.42975×0.42975 mm | |
| Brightness | 400CD | |
| Contrast Ratio | 4000 ：1 | |
| Viewing Angle | 178 ° | |
| Response Time | 8ms | |
| Refresh Rate | 60Hz | |
| Menu Language | Chinese/English | |
|
Display Interfaces |
Video Port | N/A |
| Audio Port | N/A | |
| Other Ports | N/A | |
|
System Parameters |
CPU | ARM Cortex-A55 |
| Memory | 2G DDR3 | |
| HDD | 16G EMMC | |
| Wi-Fi |
2.4G WIFI 802.11b : DQPSK, DBPSK, CCK 802.11g/n : 64-QAM,16-QAM, QPSK, BPSK |
|
| Bluetooth | N/A | |
| Ethernet Port | N/A | |
| Supported Interfaces | TF Card×1/USB×1 Type-cX1 | |
| OS Version | Android 9.0 | |
| Power | Input Voltage | ~AC 100-240V 50/60Hz |
| Maximum Power Consumption | ≤95W | |
| Standby Power Consumption | ≤0.5W（ Board only） | |
| Others | Storage Temperature | -20--60 ° |
| Amplifier Wattage | 2×5W | |

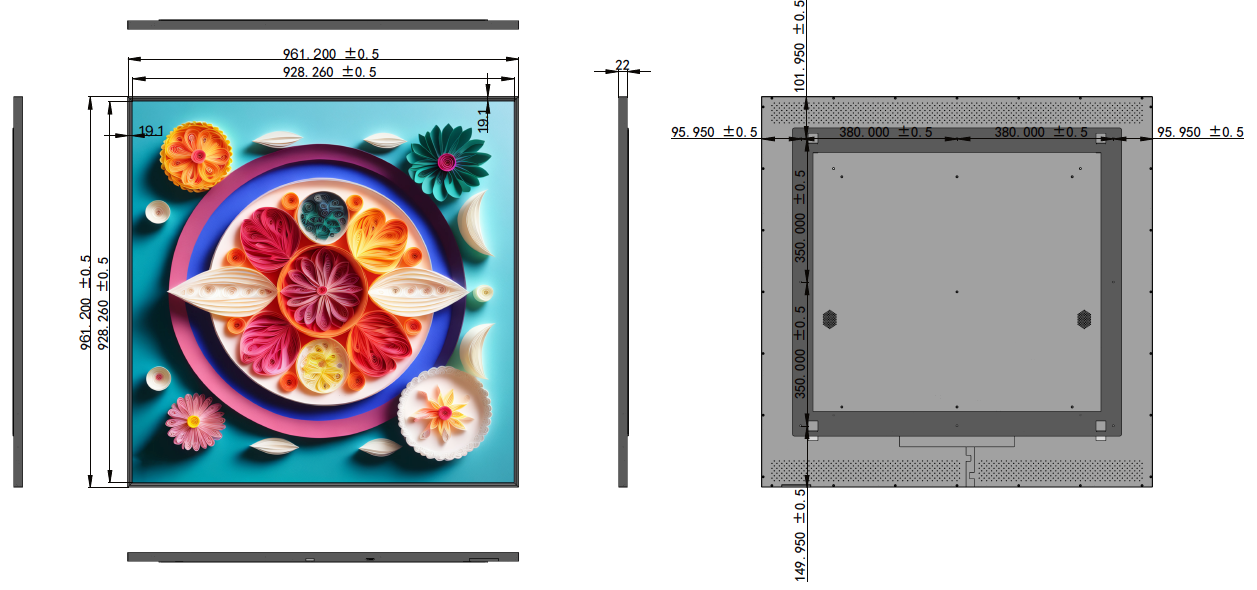

| Dimensions | 961.2×961.2×22mm | |
| Net Weight | 19.5KG | |
| Mounting Method | Wall Mounting | |
| Wall Mounting Location | 700mmX720mm | |
| Accessories | Remote Control | X1 |
| Warranty Card, Certificate of Confo | X1 |
Dadonlion CMS Operation Guidance
-
Dadonlion Platform Operation Guidance
- Upload and Publish by USB Disk Guidance
Product Details
can be used in many places， like Digital Signage Display, Built-in ShopDisplays, Advertisement Display
