Description

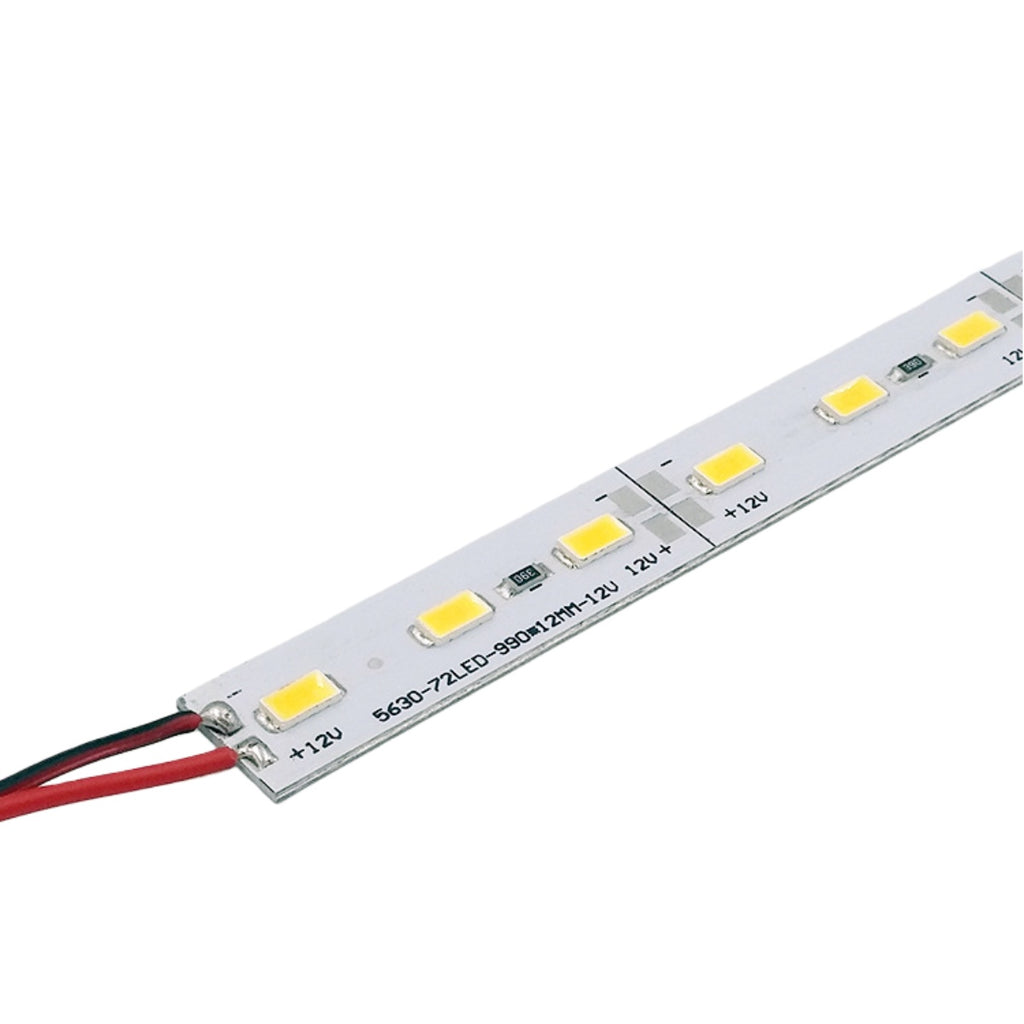

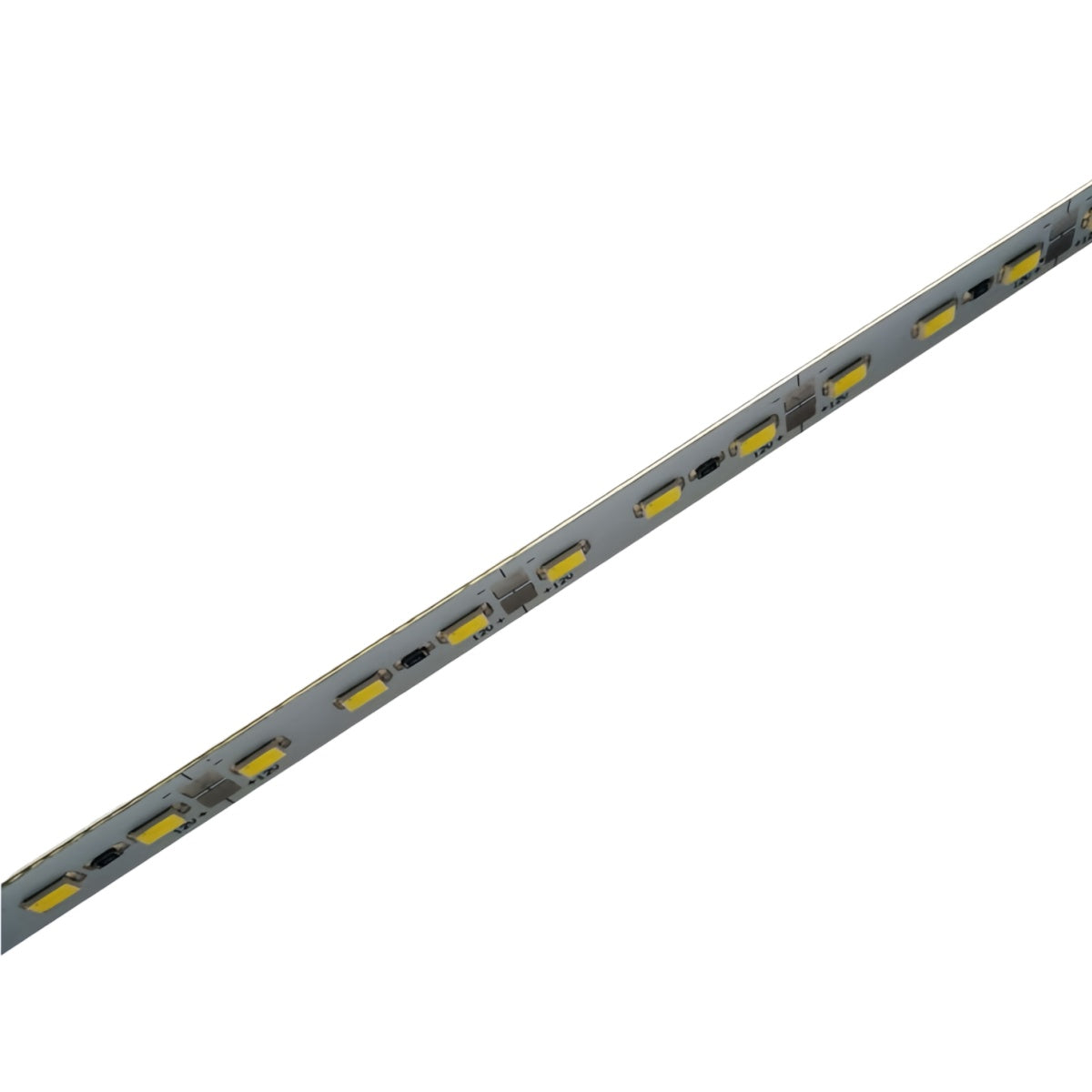

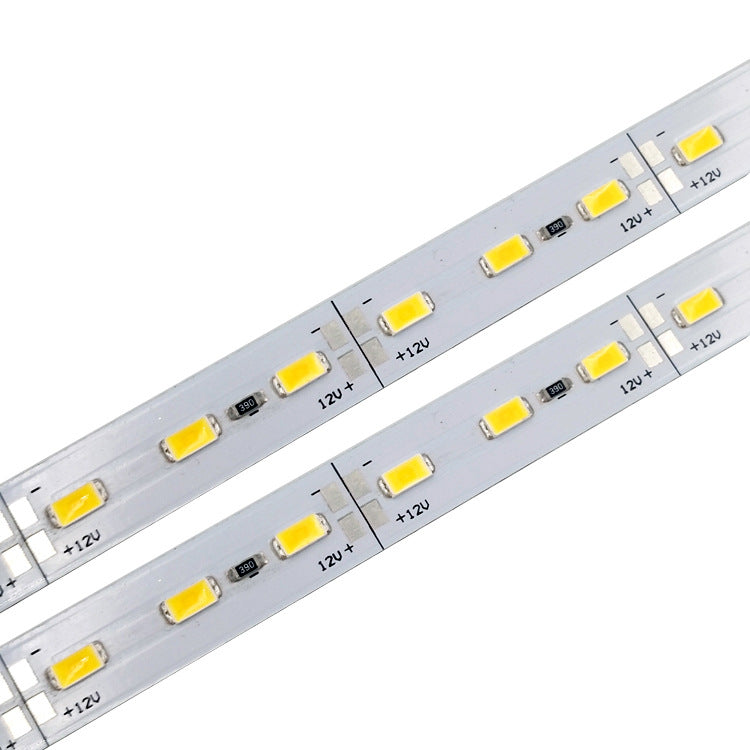

Rigid LED Strip Light – SMD5630, 72 LEDs/M, 12mm Bare PCB, 39 Inch Length, 12V / 24V DC, Available in 3000K / 4000K / 6500K / 8000K White, Indoor Linear Lighting Bar
Package Included:
| Version | Package Included |
| 20pcs Pack | 20pcs of the 39'' LED Rigid Strip |
| 50pcs Pack | 50pcs of the 39'' LED Rigid Strip |
| 100pcs Pack |
100pcs of the 39'' LED Rigid Strip |
Order & Logistics:
- Lead Time: Typically 3–5 business days
- Packing: Cardboard box, sealed with anti-static bag
- Shipping: 7-12 days by AIR.
Product Features:
-
High-Brightness SMD5630 Chips:
Equipped with premium SMD5630 LEDs delivering strong and uniform illumination — ideal for display cases, under-cabinet lighting, and linear architectural accents. -
12V or 24V Options for Versatility – Compatible with both 12V and 24V DC power inputs, offering flexibility for different project requirements or system setups.
-

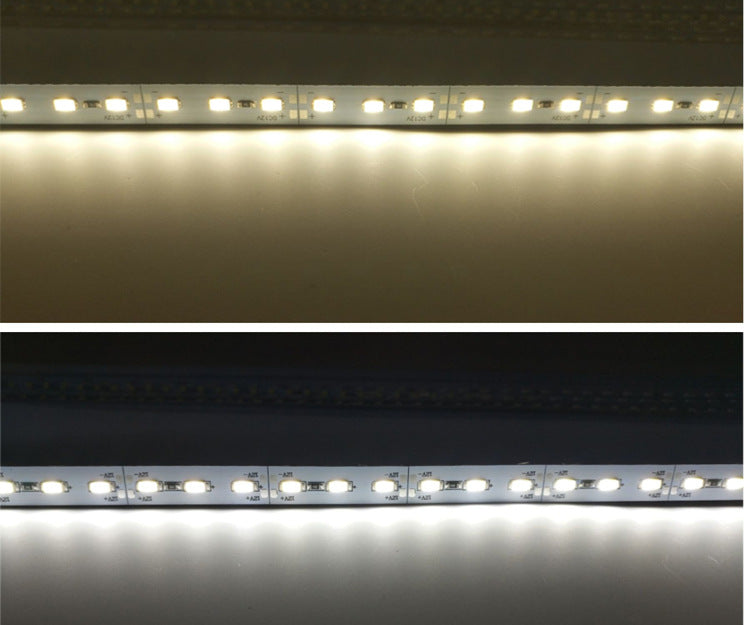

Multiple White Color Temperatures:
Available in 3000K warm white, 4000K neutral white, 6500K daylight white, and 8000K cool white — providing flexibility for any interior lighting environment. -
Rigid 10mm Bare PCB Design:
Made with durable aluminum or FR-4 PCB substrate, ensuring excellent heat dissipation and stable performance for long-term use in indoor applications. -
Easy Installation & Customization:
Each strip is 1 meter (39 inches) long, can be easily connected or cut, and supports simple screw or clip mounting for a clean linear layout. -
Energy-Efficient and Reliable:
Low 12V DC operation with low power consumption and high lumen output — a safe, efficient solution for DIY projects, shelves, cabinets, signage, and more.
Specification:
| Item | Description |
| Product Type | Rigid LED Strip Light (Bare PCB Type) |
| LED Type | SMD5630 |
| LED Density | 72 LEDs per meter |
| PCB Width | 12mm |
| Length | 990mm (≈39 inches) |
| Operating Voltage | 12V DC |
| Power Consumption | Approx. 14.4W/m |
| Color Temperature Options | 3000K / 4000K / 6500K / 8000K |
| CRI (Color Rendering Index) | ≥80 |
| Light Output | ~1300–1500 lm/m (varies by CCT) |
| PCB Material | Aluminum or FR-4 rigid board |
| Beam Angle | 120° |
| Working Temperature | -20°C ~ +50°C |
| IP Rating | IP20 (Indoor use only) |
| Dimmable | Yes (with compatible 12V dimmer) |
| Connection Type | Solder pads on both ends |
| Package Options | 20 pcs / 50 pcs / 100 pcs per pack |
| Applications |
Display lighting, cabinet lighting, signage, indoor accent, DIY light box, retail shelf illumination |
12V DC
24V DC
Application:
- Architectural decorative lighting
- Path & Contour Marking
- Auditorium walkway lighting
- Stairway accent lighting
- Backlighting for signage letters
- Indoor lighting and signs
