Description
Rigid LED Strip Light SMD2835 – 120 LEDs/M, 12V / 24V DC, 12W per Meter, 10mm Bare PCB for Indoor Lighting – Available in 3000K~12000K & Blue Colors
Package Included:
| Version | Package Included |
| 20pcs Pack | 20pcs of the 1Meter LED Rigid Strip |
| 50pcs Pack | 50pcs of the 1Meter LED Rigid Strip |
| 100pcs Pack |
100pcs of the 1Meter LED Rigid Strip |
Order & Logistics:
- Lead Time: Typically 3–5 business days
- Packing: Cardboard box, sealed with anti-static bag
- Shipping: 7-12 days by AIR.
Features
-

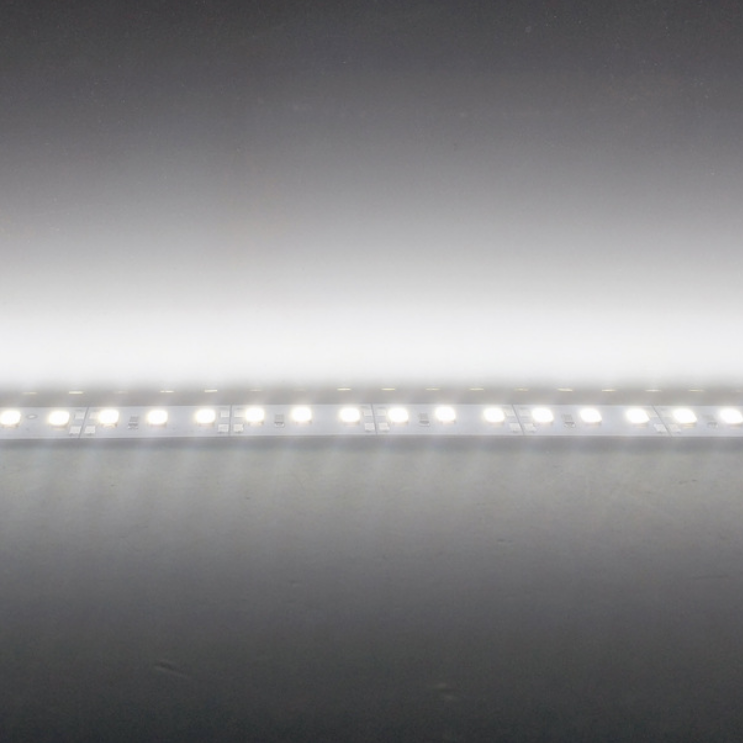

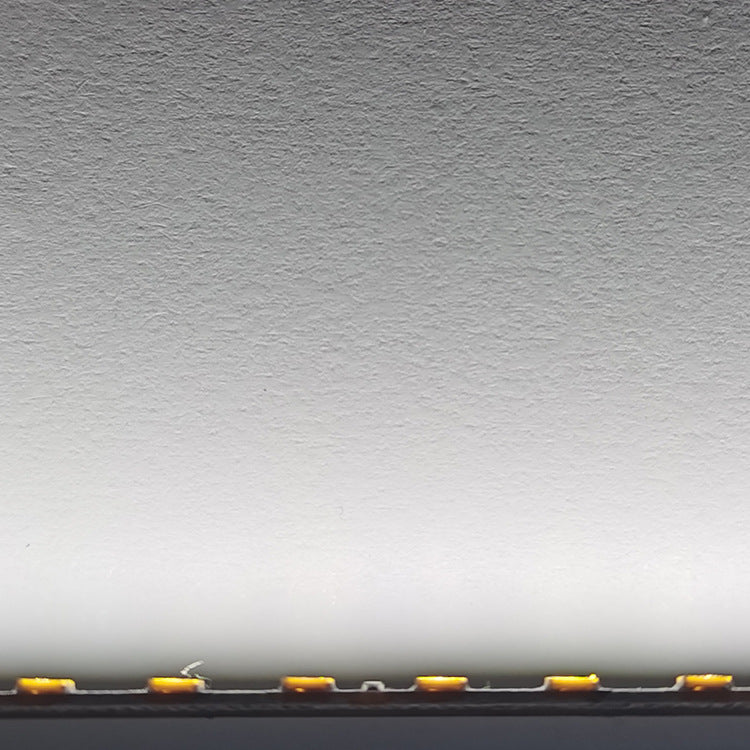

High Brightness SMD2835 LEDs – Features 120 high-lumen chips per meter, providing uniform and brilliant illumination ideal for showcase, cabinet, or general indoor lighting.
-
12V or 24V Options for Versatility – Compatible with both 12V and 24V DC power inputs, offering flexibility for different project requirements or system setups.
-

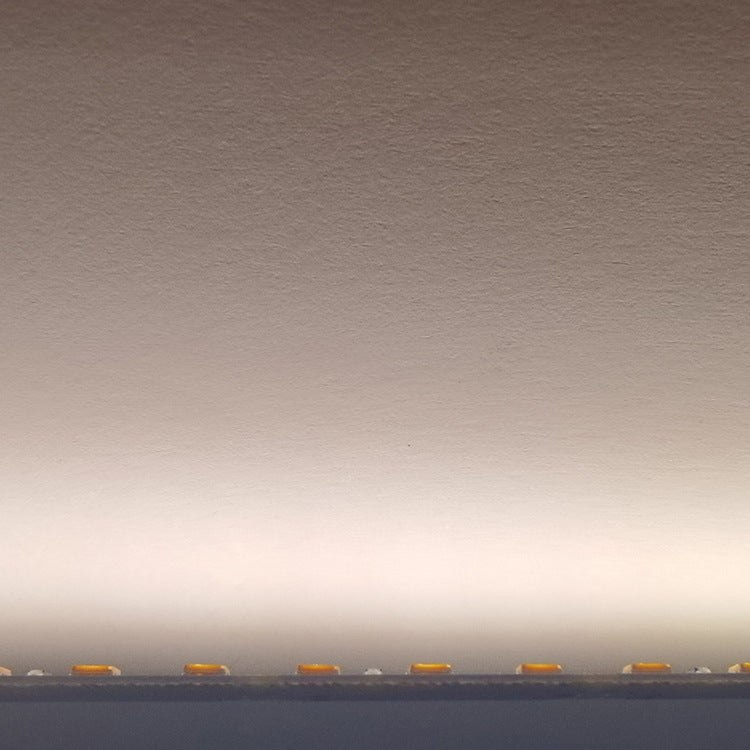

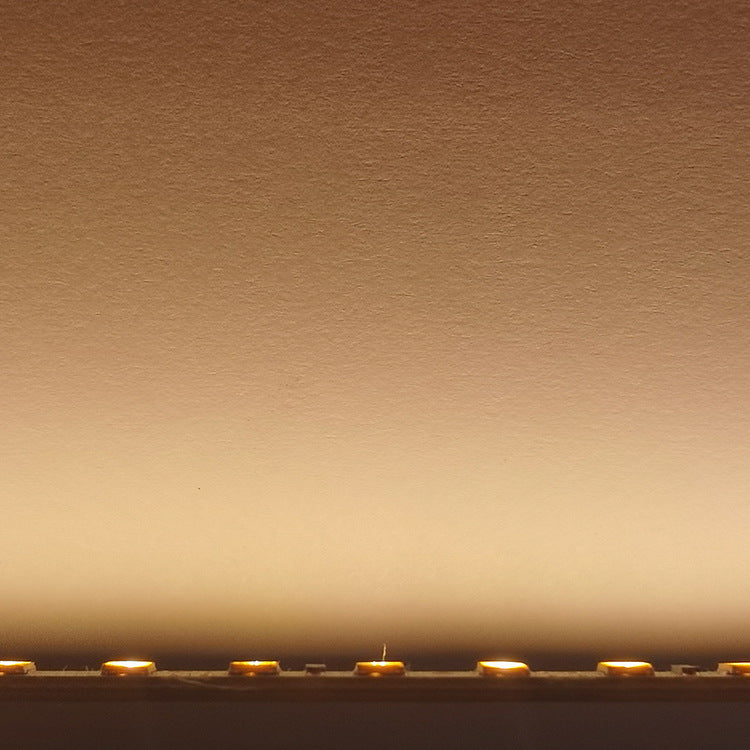

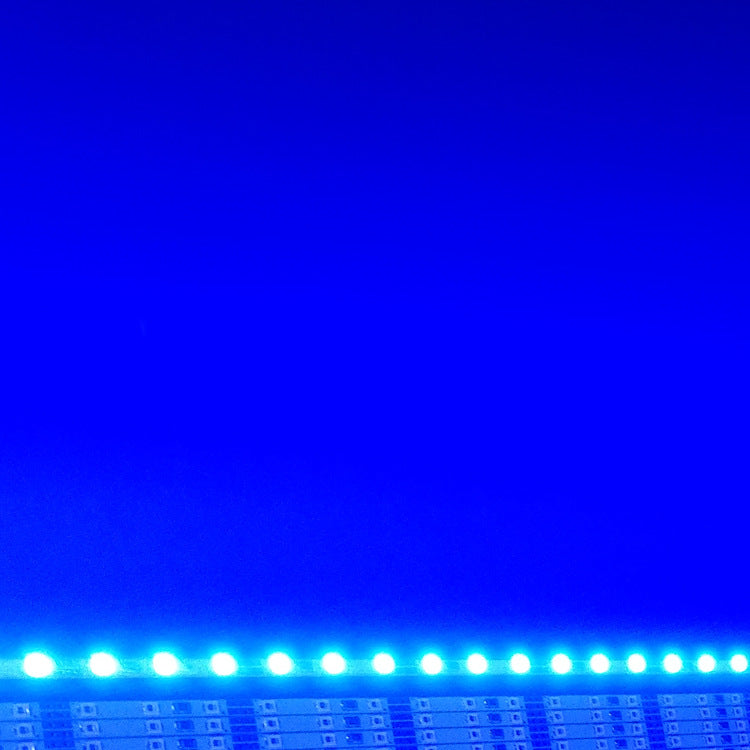

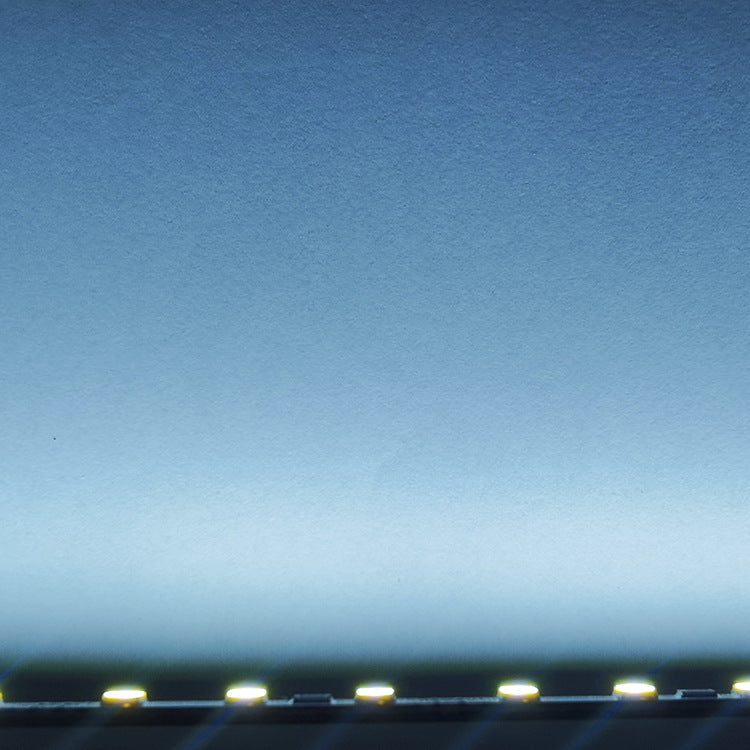

Multiple Color Temperatures & Blue Option – Available in 3000K (Warm White), 4000K (Neutral White), 6500K (Cool White), 8000K–12000K (Daylight Blue White), and Blue, meeting diverse lighting moods and applications.
-

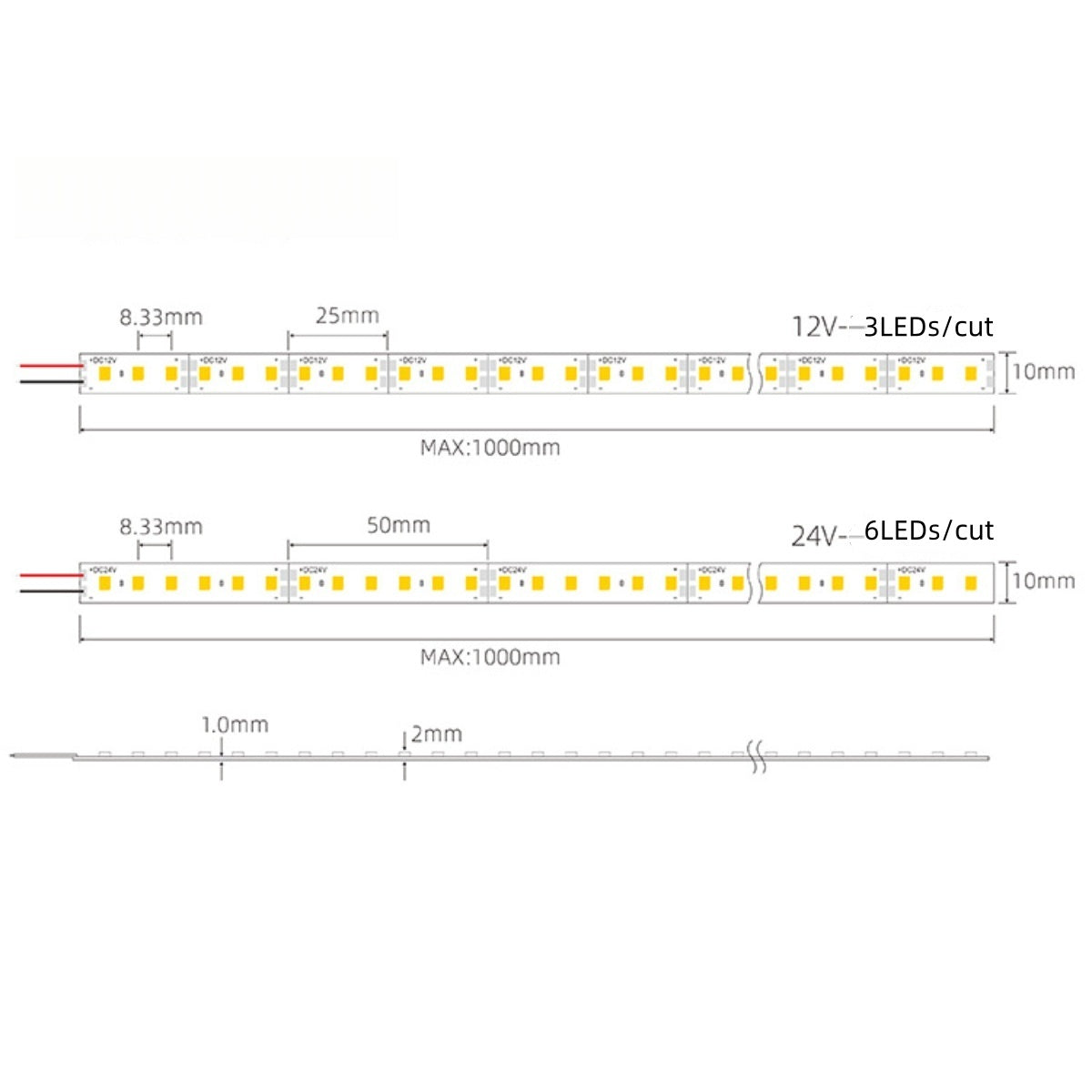

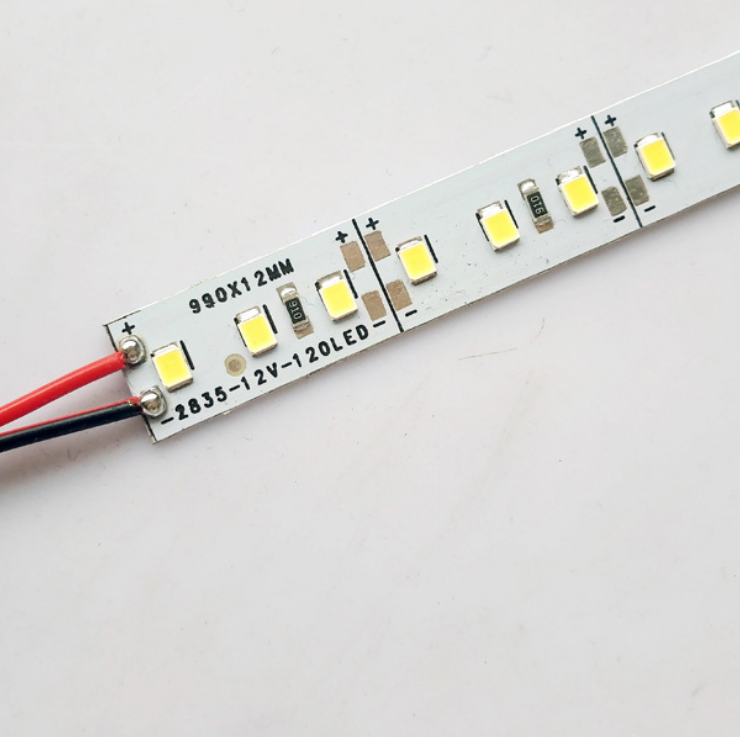

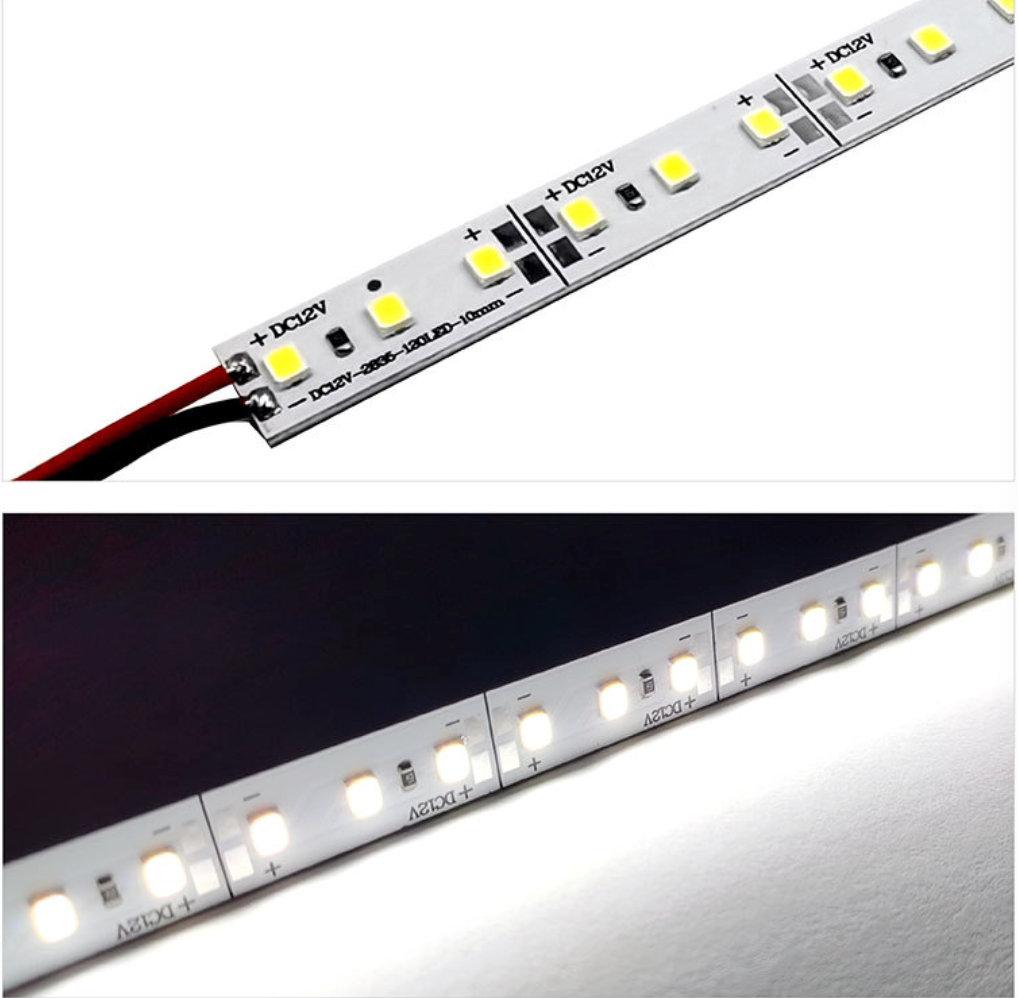

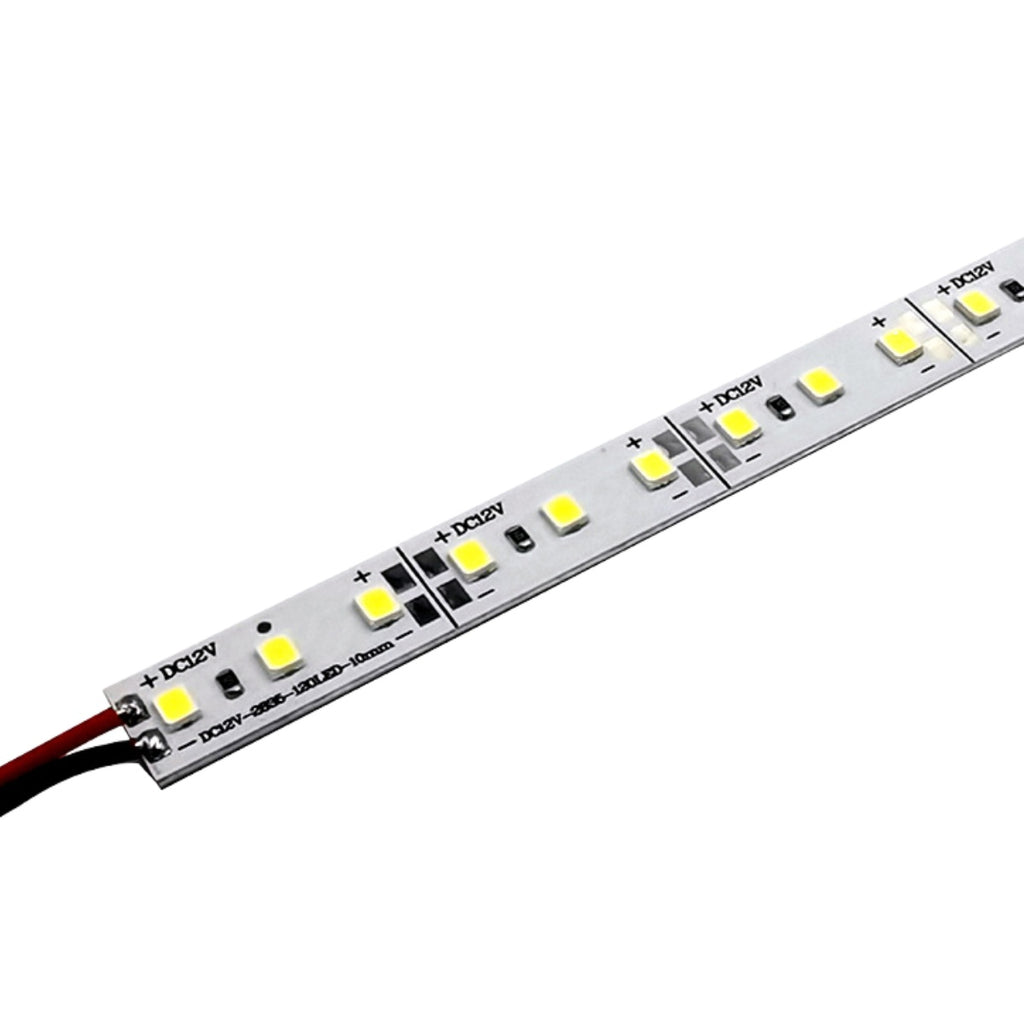

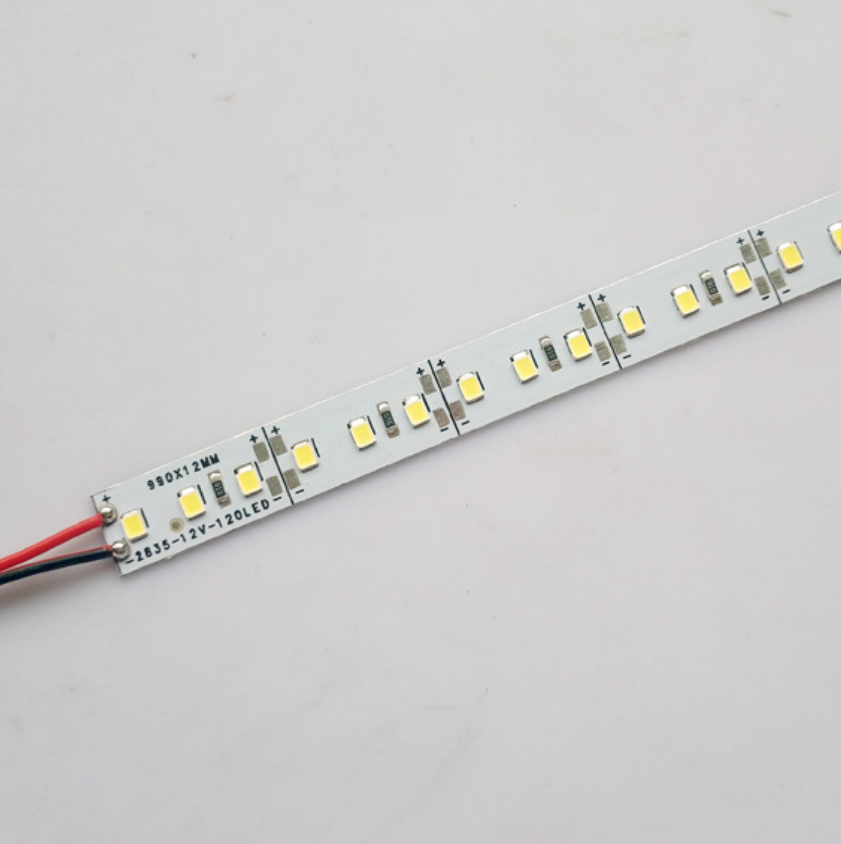

Bare 10mm PCB for Easy Integration – Slim, rigid 10mm wide PCB allows simple installation into aluminum profiles or light fixtures, perfect for DIY and professional lighting projects.
-
Energy-Efficient & Long Lifespan – Consumes only 12W per meter with low heat generation, ensuring stable performance and long-term reliability.
Specification
| Item | Details |
| Product Type | Rigid LED Strip Light (Bare PCB) |
| LED Type | SMD2835 |
| LED Density | 120 LEDs per meter |
| PCB Width | 10 mm |
| Voltage Options | DC 12V / DC 24V |
| Power Consumption | 12W per meter |
| Color Temperature Options | 3000K–3500K / 4000K–4500K / 6000K–6500K / 8000K–12000K / Blue |
| Beam Angle | 120° |
| Waterproof Rating | Non-waterproof (Indoor Use Only) |
| Length | Customizable by meter |
| Package Options | 20 pcs / 50 pcs / 100 pcs per pack |
| Material | Bare PCBA (no housing) |
| Operating Temperature | -20°C ~ +50°C |
Wiring Tips
Below please find the connection diagram for Single Color Light Strip for reference.
Direct Powered by Transformer Run to AC Wall Outlet, On/Off controlled by a Wall Switch
Light strip On/Off/Brightness is controlled by Dimmer (Wireless or Hardwire Type available)
#1 Typical connection for one Dimmer to control one string of light bars
#2 One Dimmer to control several strings of light bars by adding Amplifier, and powered by one or several transformers. Note: The strips the Dimmer and Amplifer loaded with cannot exceed their rated max value. And in theory, you can add endless Amplifiers after the Dimmer.
