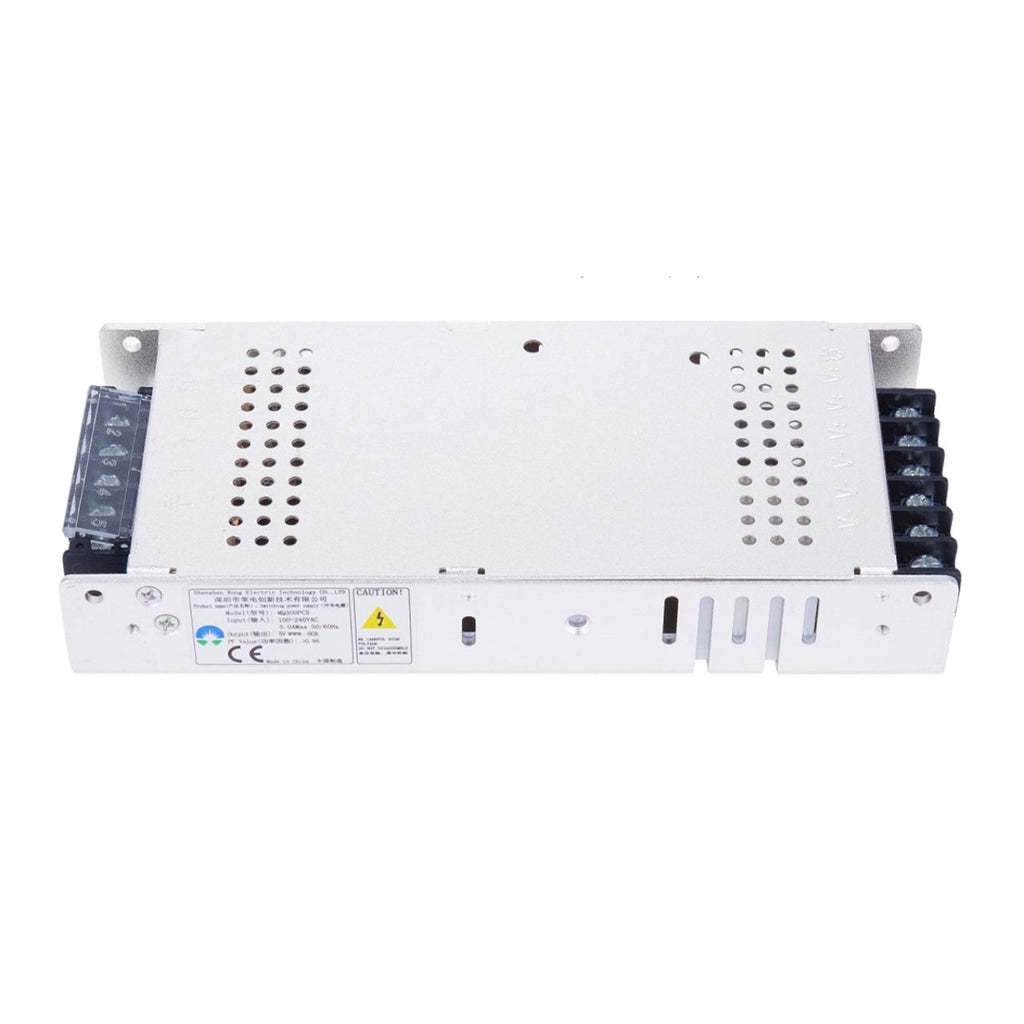

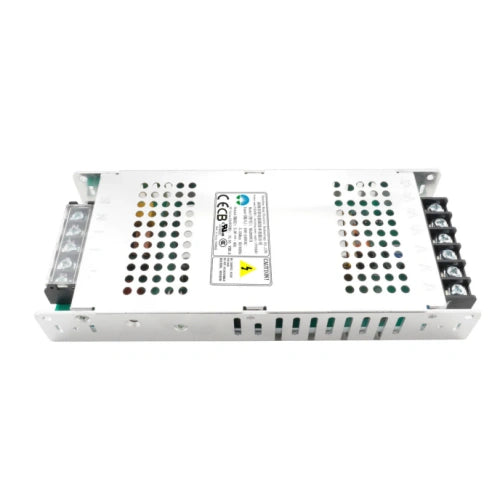

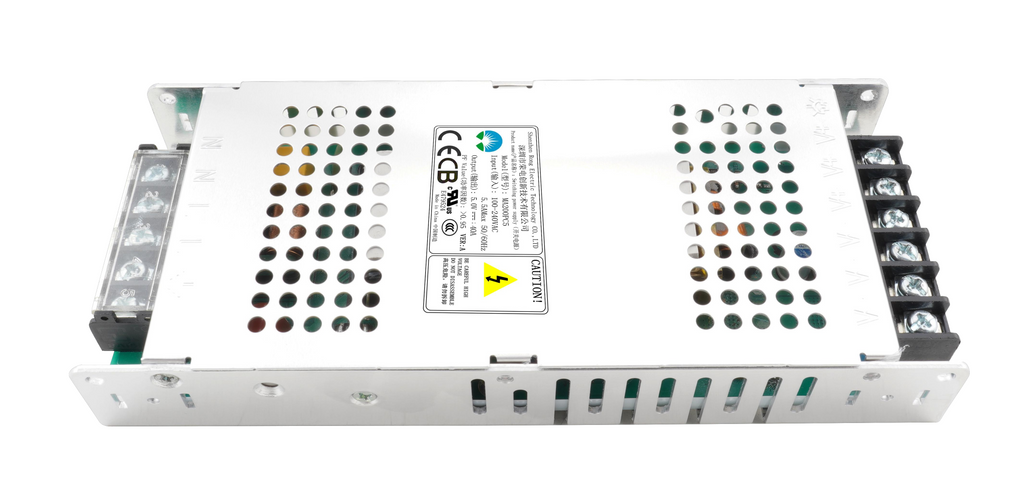

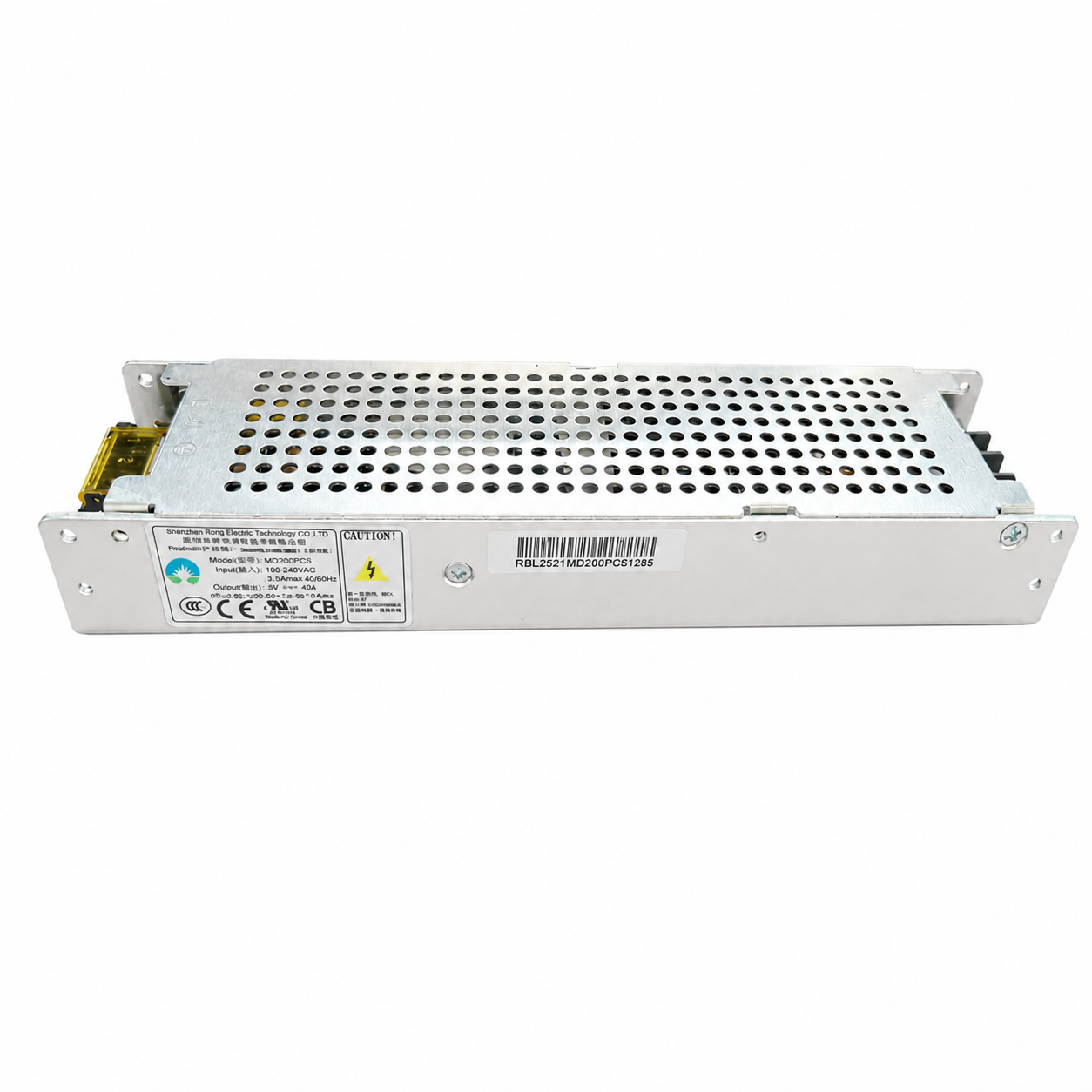

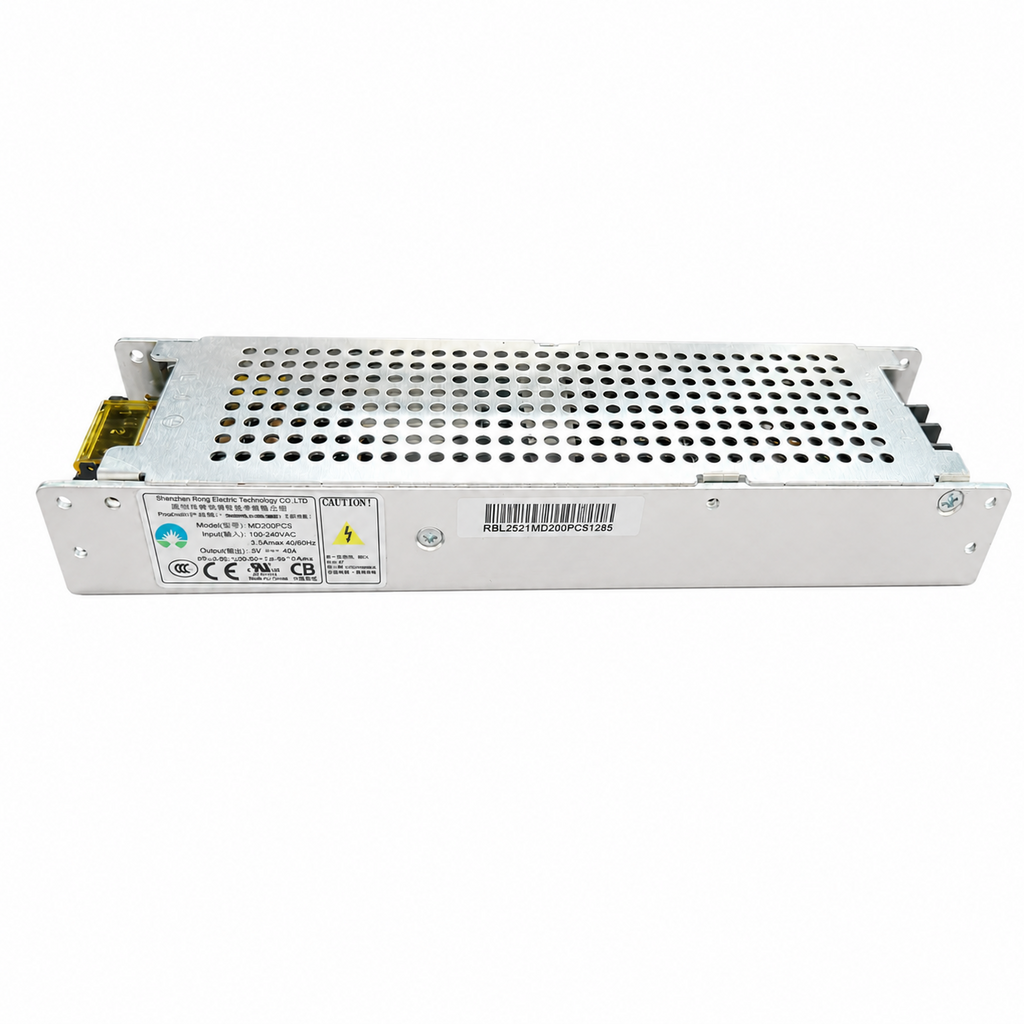

RD Series CE UL Certified Enclosed Power Supply – MD200PC5 / MQ300PC5 | 5V Output | 200W / 300W | For Indoor & Outdoor LED Display Projects

Output Voltage: 5V

Model | Output Power: MD-200PC5 | 200W

Variant

Price:

$19.95 USD

Quantity:

Share this product

MD200PC5

• Small size: L190mm * W83mm * H30mm

• Light weight: About 600g

• High efficiency: ≥86% (see figure 4.3)

• Small Leakage current: ≤1.0mA (Vin=242Vac)

• Output voltage range: 4.90 – 5.10Vdc

• Wide operating temp. range: -30 – 70°C (+50°C – +70°C linear de-rated, See Figure 4.2.)

• Wide Input voltage range: 90Vac – 264Vac

• Power factor: ≥0.95

• Cooling mode: Ventilation cooling

• Protection Features: Output over-current protection, short-circuit protection
