Description

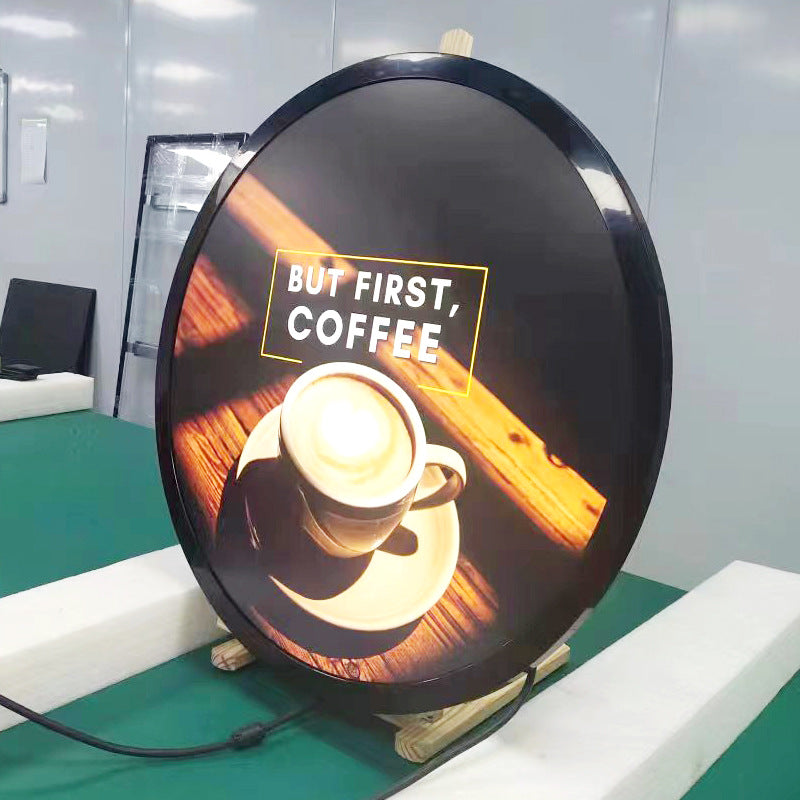

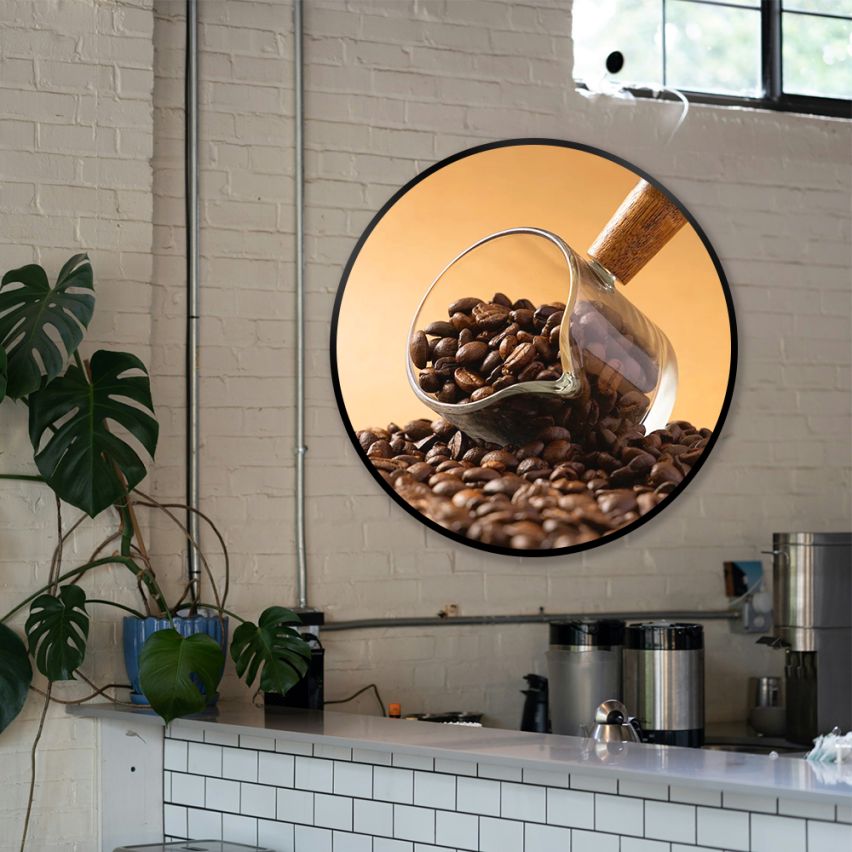

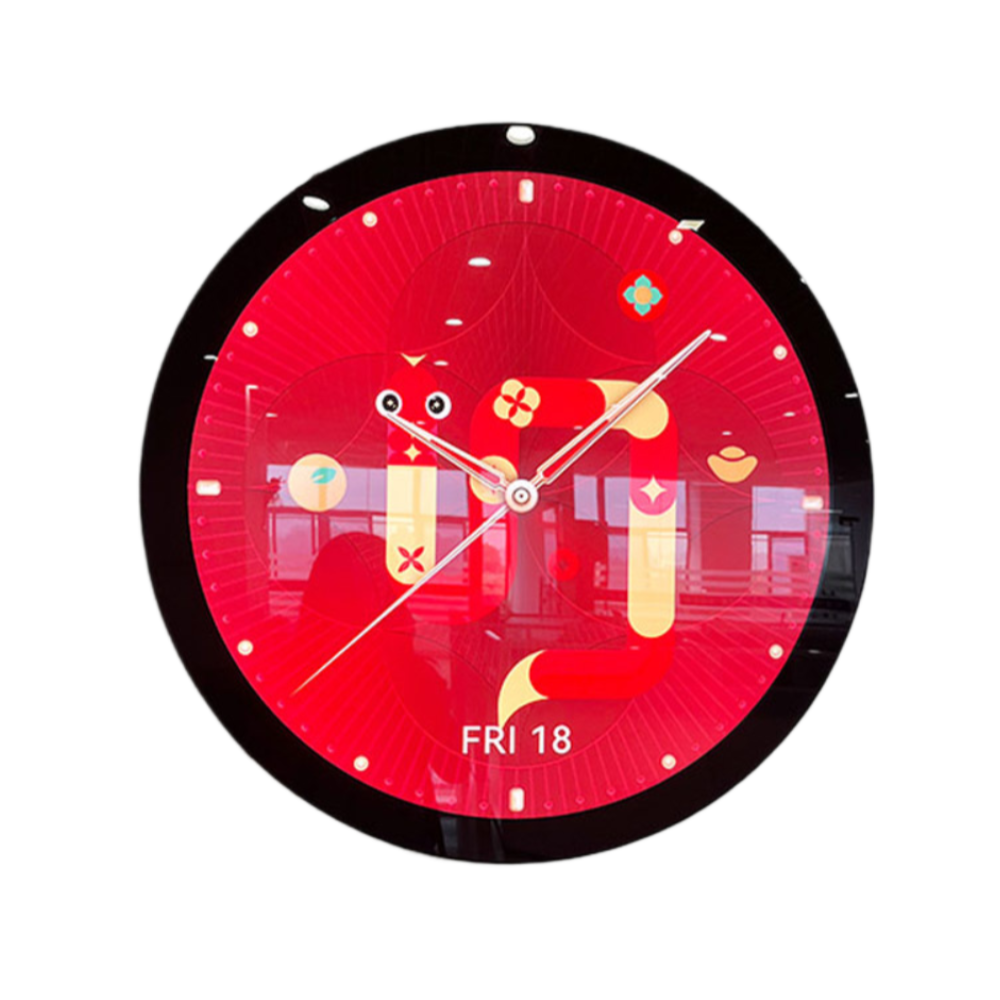

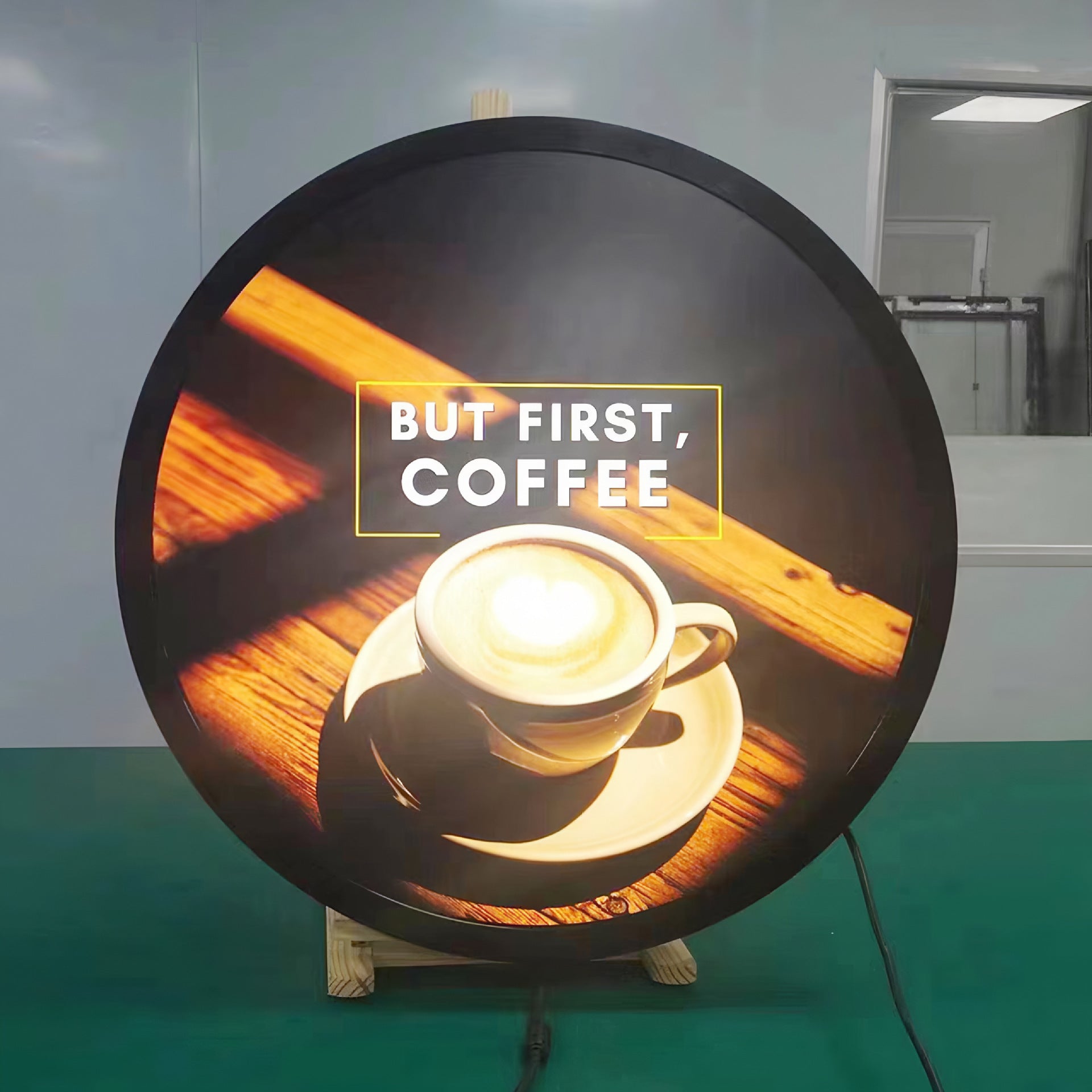

RD Series 23.6 Inch (Dia.599.4mm Viewable) Round / Circular LCD Digital Display Screen, Capacitive Touch (Optional), Cloud / APP / USB Disk
Package Included
| Version | Package Included |
| 23.6" Model | Round LCD Display ×1, Power Cord ×1, Remote Controller ×1 (Battery not included), Mounting Kit ×1, Honeycomb Cardboard Box ×1 |
Order & Logistics
Lead Time: Standard production lead time: 10–15 business days
Shipping Method Options:
- Free Freight: 10–20 days (Air + Ground) — economy air shipping, no additional charge.
- Priority Freight: 7–15 days (Air + Ground) — faster air delivery option at checkout.
All models are shipped directly from our China headquarters.
DDP Term: Listed shipping methods are offered under DDP (Delivered Duty Paid), meaning customs clearance, duties, and taxes are included. If DDP service is not supported in the destination country, we will coordinate alternative terms (e.g., EXW / FOB) to ensure smooth delivery.
Features:
- HD: HD full-view LCD display, ultra-HD resolution.
- Ultra-thin: Industrial-grade appearance, reasonable design, stable and strong.
- Performance: Internal heat dissipation adopts convection method, long-term load work without worry.
- Android 11 System: Powerful 3568 motherboard solution, equipped with Android 11 operating system.
- Multiple control options: Cloud CMS, LEDArt App, USB/SD playback, LAN, and Wi-Fi
- Appearance: Unique round eye-catching shape.
- Capacitive Touch or IR Touch Screen (optional), Make to Request.
Parameters (Download Datasheet) |
||
| The Screen | Size | 23.6"-YXLCD |
| LCD screen specifications | Brand new original LCD panel | |
| Viewing angle | 89/89/89/89 | |
| Color | 16.7M, 72% NTSC | |
| Refresh rate | 60HZ | |
| Display area | 599.4*599.4 mm | |
| Screen size | 23.6'' | |
| Brightness | 1500cd/m2 (customizable) | |
| Contrast ratio | 1000:1(TYP, different OC contrast ratios vary, subject to actual conditions) | |
| Lifespan | 50000H | |
| Resolution | 1280*1280 | |
| Control Board | Chip | RK3568 |
| CPU | Quad-core ARM Cortex-A55, 2.0G | |
| RAM | 2G | |
| System | Android 11 | |
| GPU | Mali-G52 Quad-core | |
| ROM | 16G (customizable) | |
| Interface | Headphones, HDMI out, RJ45, HDMI IN, USB 3.0*2, DC-IN | |
| Network | Gigabit wired network port; support 2.4G wireless network access (2.4G/5G dual-band optional); Bluetooth; support 3G/4G wireless module | |
| Physical Features | Frame material | Sheet metal/profile |
| Body color | Black | |
| Frame color | Black and other options available | |
| Tempered glass | Default: None, optional 3mm explosion-proof tempered glass | |
| Dimensions | Φ657.1 * 71.3 (non-touch)/Φ680 * 71.3 (capacitive) mm | |
| Touch Function (Optional) | Touch type | Capacitive touch |
| Minimum recognition | 6mm | |
| Writing surface screen hardness | 7H | |
| Response time | ＜25ms | |
| Number of touch points | 20 points | |
| Input method | Finger, capacitive pen | |
| Communication method | Full-speed USB | |
| Touch accuracy | ±1.5mm (more than 90% touch area) | |
| Power Consumption | Power input voltage | DC 12V |
| Device power | ≤100W | |
| Standby power | <1W | |
| Working Environment | Input voltage | AC110-220V/DC12-24V |
| Usage environment | Temperature ‐0℃~55℃/Humidity 10%RH~90%RH | |
| Standby power consumption | ≤1W | |
| Storage environment | Temperature ‐5℃~60℃/Humidity 10%RH~90%RH | |
| Language | OSD | English / Chinese |
| Accessories | Power cord*1, Wall Hanging Hardware *1 | |

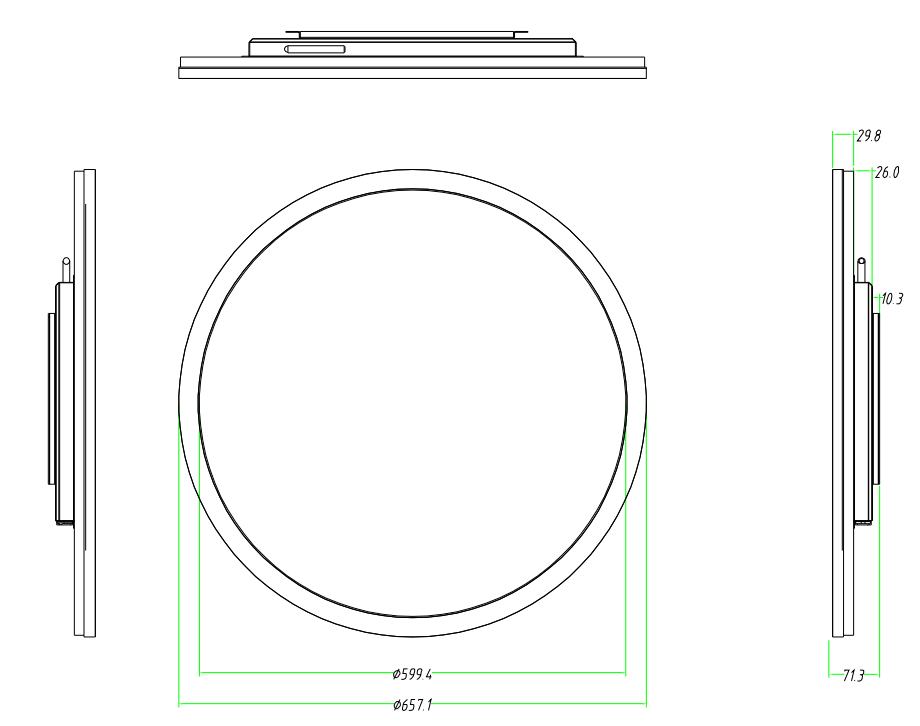

Dimension (unit: mm)
Usage Notes / Installation Tips
|
Send Program via Cloud Platform |
Send Program via LEDArt | Play Program via U-disk/SD card |
|---|---|---|
| Login cloud platform Create and edit programs Send programs to the device NOTE: The device mode needs to be adjusted to networking mode and associated with the cloud platform account. Cloud server address: http://www.led-cloud.cn / http://www.led-cloud.com
|
Run mobile APP LEDArt Create and edit programs Send program to the device NOTE: The device mode needs to be adjusted to stand-alone mode, and the mobile phone is in the same local area network
|
Save programs into U-disk or SD Card Insert U-Disk or SD Card Playback program automatically NOTE: The device mode needs to be adjusted to stand-alone mode, and the system format of the U-disk/SD Card needs to be FAT32
|
