Description

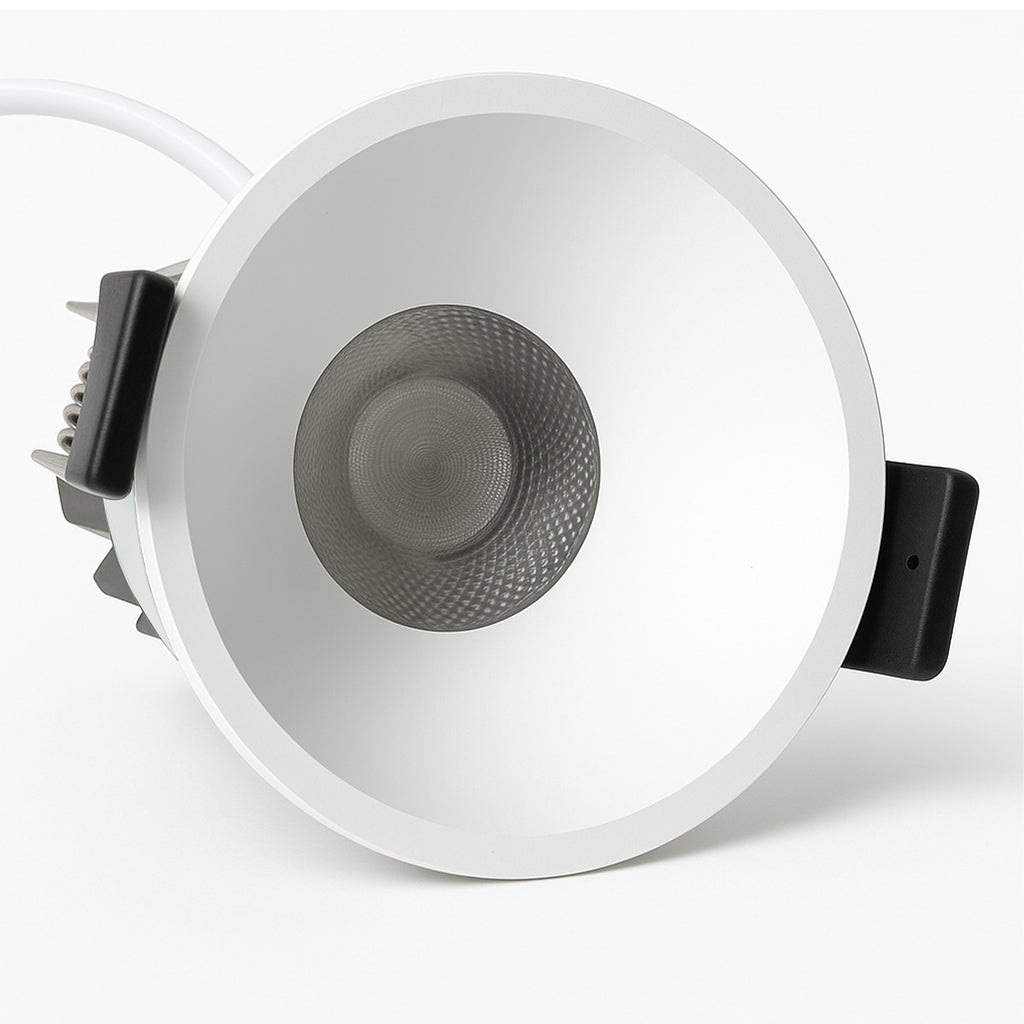

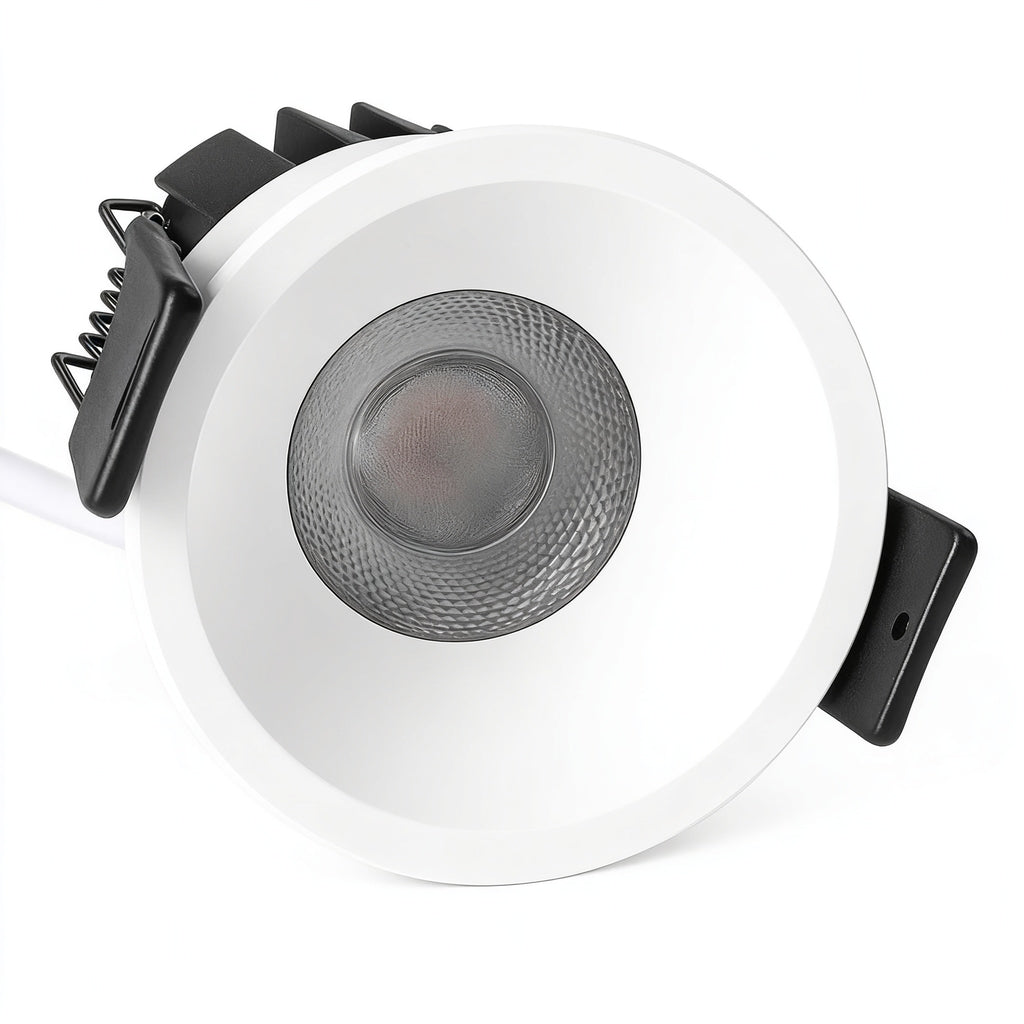

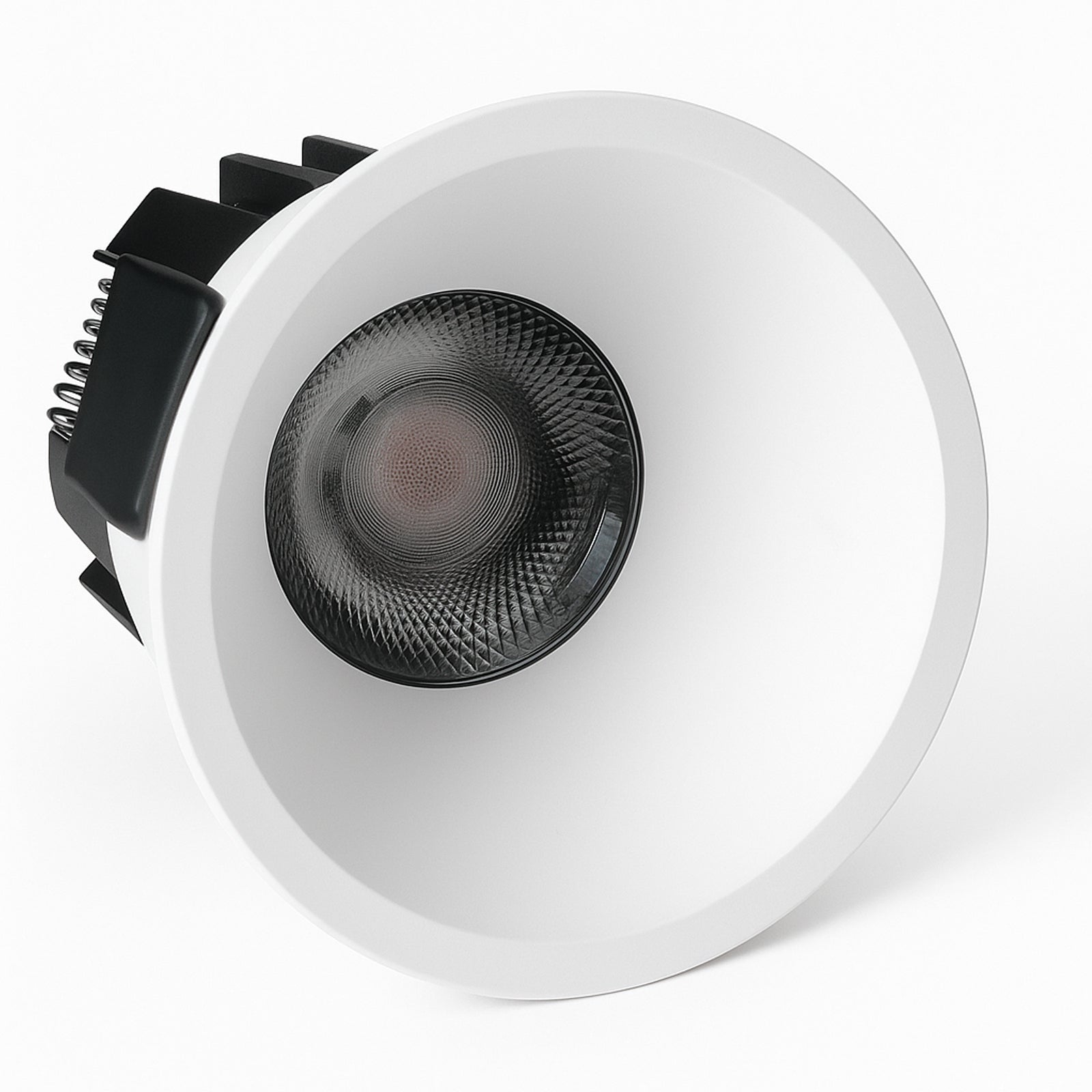

PRO-1 Series Deep Anti-Glare Full Spectrum LED Downlight Sample Pack – 1 Pack | 100–130V | Choose Any Model (PRO-1A / 1B / 1C) | CRI>97 | 24° Beam | 5CCT Adjustable (2700K–5000K) | White Housing
Package Included
| Sample Model Option | Package Included |
| PRO-1A Sample (7W / 9W / 12W) | 1 × Deep Anti-Glare Full Spectrum LED Downlight (PRO-1A) 1 × Integrated LED Driver 1 × User Manual |
| PRO-1B Sample (7W / 9W / 12W) | 1 × Deep Anti-Glare Full Spectrum LED Downlight (PRO-1B) 1 × Integrated LED Driver 1 × User Manual |
| PRO-1C Sample (5W / 9W) | 1 × Deep Anti-Glare Full Spectrum LED Downlight (PRO-1C) 1 × Integrated LED Driver 1 × User Manual |
About this item
- Sample Pack Overview: This single-sample pack allows lighting professionals and buyers to test any model from the PRO-1 Series (PRO-1A, PRO-1B, or PRO-1C) before bulk purchasing — ideal for quality inspection or project evaluation.
- Deep Anti-Glare Optical Design: Engineered with a recessed reflector and precision light distribution to eliminate glare, ensuring comfortable and professional illumination for interior projects.
- Full Spectrum & High CRI>95: Provides natural, true-to-life color rendering with minimal visual fatigue — perfect for showrooms, residential interiors, or art lighting.
- 5CCT Adjustable: Easily switch among 2700K / 3000K / 3500K / 4000K / 5000K to achieve the desired ambience for each application scenario.
- Durable & Sleek Design: White aluminum alloy housing with efficient heat dissipation and elegant deep-reflector appearance, built for 50,000-hour service life.
- Energy Efficient & Flicker-Free: Stable 100–130V driver with TRIAC dimming support delivers smooth dimming and up to 90% energy savings compared to halogen downlights.
Order & Logistics
- Lead Time: Ships within 7-15 business days
- Packing: Individual sample packed in protective foam and cardboard box
- Shipping Note: This sample pack follows our Free Shipping Policy for orders over $399. Most samples are stocked in our local warehouses in the US, UK, and Germany for 3–7 day delivery. If out of stock locally, it will ship from our headquarters warehouse: 9–18 days standard or 5–9 days express.
Key Specifications
- Input Voltage: 90–140V AC
- Power Options: 5W / 7W / 9W / 12W (depends on sample model)
- Beam Angle: 24° narrow focus
- Color Temperature: 5CCT Adjustable (2700K–5000K)
- CRI: >97 Full Spectrum
- Housing: White Aluminum Alloy
- Dimming: TRIAC dimmable (10–100%)
- Mounting Type: Recessed ceiling mount
- Lifespan: 50,000 hours
Technical Specifications Comparison
| Item | PRO-1A | PRO-1B | PRO-1C |
| Product Name | PRO-1A LED Downlight | PRO-1B LED Downlight | PRO-1C LED Downlight |
| Model / Version | TD071-55 (7W) / TD071-65 (9W) / TD071-75 (12W) | OW-7W (TD072-55) / OW-9W (TD072-65) / OW-12W (TD072-75) | TSD011-55 (5W) / TSD011-75 (9W) |
| Power | 7W / 9W / 12W | 7W / 9W / 12W | 5W / 9W |
| Beam Angle | 7W / 9W / 12W: 24° | 7W / 9W / 12W: 15° / 24° / 36° | 5W: 24° ; 9W: 15° / 24° / 36° |
| Cutout Size | Ø 55 (7W) / Ø 65 (9W) / Ø 75 mm (12W) | Ø 55 / Ø 65 / Ø 75 mm | 5W: Ø 55 mm ; 9W: Ø 75 mm |
| Product Size | 7W: D62×H69 mm ; 9W: D72×H71 mm ; 12W: D80×H73.5 mm | 7W: D62×H69 mm ; 9W: D72×H71 mm ; 12W: D80×H73.5 mm | 5W: D60×H68 mm ; 9W: D81×H85 mm |
| Light Efficacy | 7W/9W: 75 lm/W ; 12W: 70 lm/W | 7W/9W: 75 lm/W ; 12W: 70 lm/W | 5W: 70 lm/W ; 9W: 70 lm/W |
| Housing Color | White (Top) + Black (Bottom) | ||
| Optical Structure | Deep anti-glare design; slanted reflector cup with black inner wall | ||
| Light Source Type | Full-spectrum COB, dual-color (2700K / 6500K) | ||
| Input Voltage | AC 90–140V | ||
| Dimmable | TRIAC dimmable | ||
| Visible Color Temp / Notes | 5CCT selectable ; High CRI | ||
| CRI | > 97 | ||
| Driver / Power Supply | Metal housing driver; TRIAC dimmable; 5CCT DIP-switch driver; ETL certified; AC 90–140V | ||
| Flicker | Flicker-free | ||
| Blue Light | Low blue light | ||
| Installation Type | Recessed ceiling mount | ||
| Use Environment | Indoor use only | ||
| Packaging Notes | Single units; individual box | ||
Usage Notes / Installation Tips
- Ensure power is turned off before installation or wiring adjustments.
- Confirm ceiling cut-out size and depth compatibility for the selected model.
- Set desired CCT using the switch before installation.
- Use compatible TRIAC dimmers for smooth and stable dimming control.
- Recommended for indoor dry or damp locations; avoid direct water exposure.
Applications
- Lighting evaluation for commercial and residential projects
- Sample testing for architectural and interior design applications
- Retail and hospitality lighting inspection and comparison
- Demonstration units for showroom or lighting consultant use
