Description

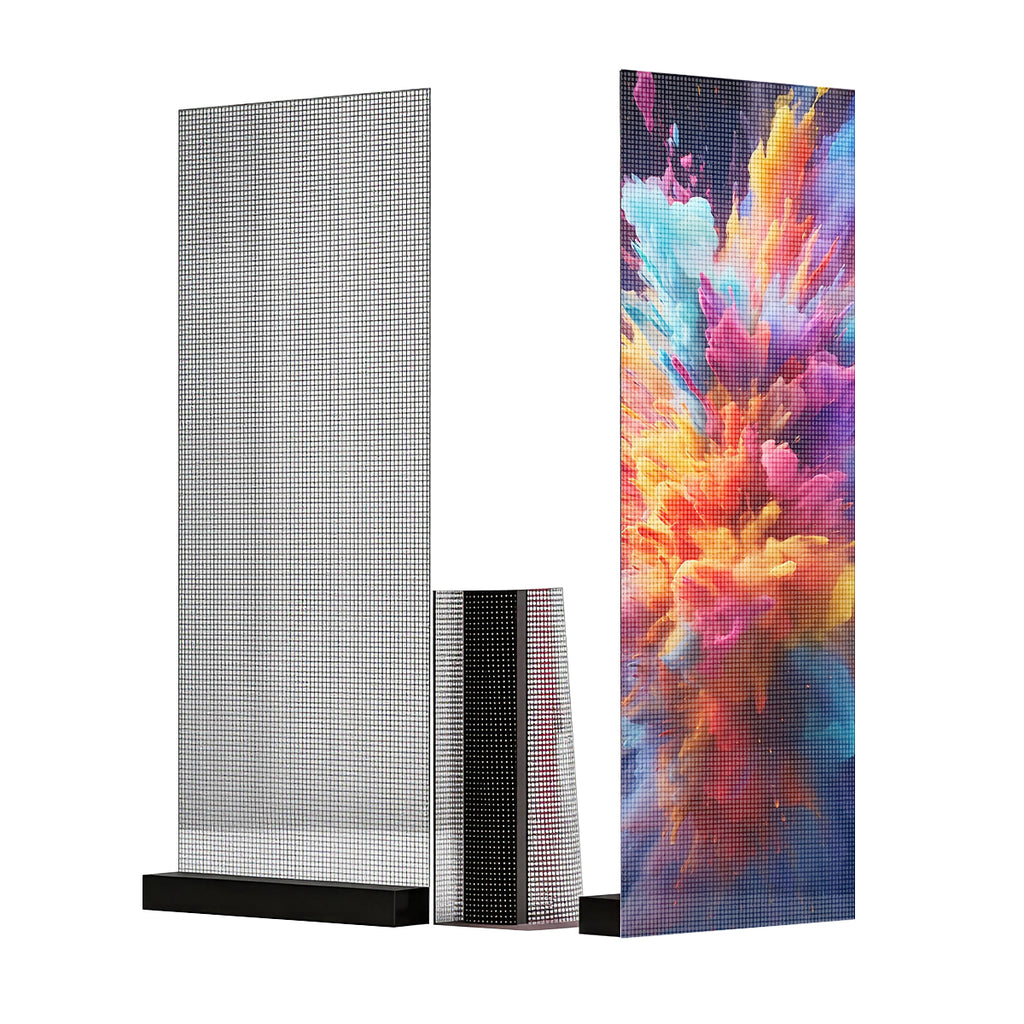

P6.25 High Transparency Adhesive LED Film – 400×1000 mm (15.75×39.37 in) | 2000 / 4000nits | 90% Transparency Glass Sticker Display for Shopfronts & Interior Glass Walls | Multiple Kit Options | Plug & Play
Features
- Invisible PCB & Mesh Technology, Super high transparency up to more than 90%.
- Slim & Soft for Creative Design,Ultra-thin and ultra-light
- Easy Installation & Anti-UV, self-adhesive Film which paste on the glass without frames or other gaps.
- Flexible during installation, the size and layout of the film can be customized to suit different installation areas.
- Sufficient brightness,Excellent color performance
IMPORTANT NOTICE!
Because of the existence of the control board, The LED Film has A and B two directions. 1 piece A and 1 piece B can form a seamless display area, while the control box will be at control board will be located at both sides. Please choose according to your project.
Buyer's Guide
| Desired Screen Size | What to Select First | Additional Panels to Add | Resulting Kit Contents |
| 400×1000 mm | Single Panel Kit (A Type) | — | 1× A Type Screen + 1× Controller + Cables |
| 800×1000 mm (Side-by-Side) | Single Panel Kit (A Type) | 1× A Type Panel Only | 2× A Type Screens + 1× Controller + Cables |
| 400×2000 mm (Stacked) | Single Panel Kit (A Type) | 1× B Type Panel Only | 1× A + 1× B Screens + 1× Controller + Cables |
| 1200×1000 mm (Side-by-Side) |
Single Panel Kit (A Type) | 2× A Type Panel Only | 3× A Type Screens + 1× Controller + Cables |
| 800×2000 mm(Side-by-Side + Stacked) | Single Panel Kit (A Type) | 1× A Type Panel Only + 2× B Type Panel Only | 2× A + 2× B Screens + 1× Controller + Cables |
| Custom Large Size | Contact us for configuration advice | — | Based on project requirements |
Buyer’s Guide – How to Choose Your Kit & Panels
Tip: For splicing, select panels with the same brightness rating (2000nits or 4000nits) to maintain consistent display quality.
1. Single Panel Purchase
• If you only need a 400×1000 mm screen, simply select Single Panel Kit (A Type Screen + Controller + Cables).
2. Width Extension (Side-by-Side)
• To extend the width, purchase the Single Panel Kit (A Type) and add the required number of A Type Panel Only modules.
• Example:
• 800×1000 mm → 1× Single Panel Kit (A Type) + 1× A Type Panel Only
• 1200×1000 mm → 1× Single Panel Kit (A Type) + 2× A Type Panel Only
3. Height Extension (Stacked)
• To extend the height, stack A Type and B Type panels.
• Example:
• 400×2000 mm → 1× Single Panel Kit (A Type) + 1× B Type Panel Only
4. Width + Height Extension (Side-by-Side + Stacked)
• For 2000 mm height and extended width, combine multiple A and B panels.
• Example:
• 800×2000 mm → 1× Single Panel Kit (A Type) + 1× A Type Panel Only + 2× B Type Panel Only
⸻
Additional Notes:
• Each panel’s control box includes a built-in power supply and receiving card — no need to purchase these separately.
• When splicing multiple panels, please choose the same brightness level (e.g., all 2000nits or all 4000nits) to ensure uniform display performance.
• Controller capacity (maximum panels per controller):
• P4: 38 pcs
• P5: 45 pcs
• P6.25: 57 pcs
• P8: 93 pcs
• P10: 146 pcs
• P15: 342 pcs
• P20: 589 pcs
• We will match the appropriate cables based on your order.
• We will ship the correct power plug according to your country (US / UK / EU / AU).
• For special sizes or configurations not listed above, please contact us for a custom solution.
PAKAGE INCLUDED:
A) Single Panel Kit (A Type Screen + Controller + Cables)
- 1x A Type Screen (with power supply & receiving card included per each film)
- 1x TB10 Plus Novastar Media Player Box
- 1x Power Cable for connecting to line electricity
B) A Type Panel Only (No Controller)
- 1x A Type Screen (with power supply & receiving card included per each film)
- 1x Power Cable for connecting to line electricity
C) B Type Panel Only (No Controller)
- 1x B Type Screen (with power supply & receiving card included per each film)
- 1x Power Cable for connecting to line electricity
ABOUT SHIPPING !
- 【Lead Time】: The products take 15-20days to make if non in stock.
- 【Packing】：The adhesive LED Film display is packed in one-time hard carton box for shipping.
- 【Free Shipping】：
- For shipping, the price on this page is include free shipping by AIR +Delivery to door by truck. It's by flight + UPS delivery to door which in regular would take around 12-15days at least in transportation after flight departure;
- DDP TERM (all fee included) except the to destination country that this shipping service is not available, then we will contact the buyer if this clause does not apply to his country.
LED flexible transparent film Data sheet |
|||||
| MODEL | P6.25 | P8 | P10 | P15 | P20 |
| Module size (mm) | 1000*400 | 1000*400 | 1000*400 | 990*390 | 1000*400 |
| LED light | REE1515 | REE1515 | REE1515 | REE2121 | REE2121 |
| Pixel composition | R1G1B1 | R1G1B1 | R1G1B1 | R1G1B1 | R1G1B1 |
| Pixel spacing (mm) | 6.25*6.25 | 8*8 | 10*10 | 15*15 | 20*20 |
| Module pixel | 160*64=10240 | 125*50=6250 | 100*40=4000 | 66*26=1716 | 50*20=1000 |
| Pixel/m2 | 25600 | 16500 | 10000 | 4356 | 2500 |
| Brightness | 2000-4000 cd/m² | 2000-4000 cd/m² | 2000-4000 cd/m² | 3000 cd/m² | 2400 cd/m² |
| Permeability | 90% | 92% | 94% | 94% | 95% |
| Angle of view ° | 160 ° | 160 ° | 160 ° | 160 ° | 160 ° |
| Input voltage | AC110-240V50/ 60Hz | AC110-240V50/ 60Hz | AC110-240V50/ 60Hz | AC110-240V50/ 60Hz | AC110-240V50/ 60Hz |
| Peak power | 600w/㎡ | 600w/㎡ | 600w/㎡ | 600w/㎡ | 600w/㎡ |
| Average power | 200w/㎡ | 200w/㎡ | 200w/㎡ | 200w/㎡ | 200w/㎡ |
| Work environment |
Temp.: -20~55°C RH: 10-90% |
Temp.: -20~55°C RH: 10-90% |
Temp.: -20~55°C RH: 10-90% |
Temp.: -20~55°C RH: 10-90% |
Temp.: -20~55°C RH: 10-90% |
| Weight | 1.3kg | 1.3kg | 1.3kg | 1.3kg | 1.3kg |
| Thickness | 2.5mm | 2.5mm | 2.5mm | 2.5mm | 2.5mm |
| Drive mode | Static state | Static state | Static state | Static state | Static state |
| Control system | Nova/Colorlight | Nova/Colorlight | Nova/Colorlight | Nova/Colorlight | Nova/Colorlight |
| Typical value of life | 100000H | 100000H | 100000H | 100000H | 100000H |
| Grayscale level | 16bit | 16bit | 16bit | 16bit | 16bit |
| Refresh rate | 3840 Hz | 3840 Hz | 3840 Hz | 3840 Hz | 3840 Hz |
