Description

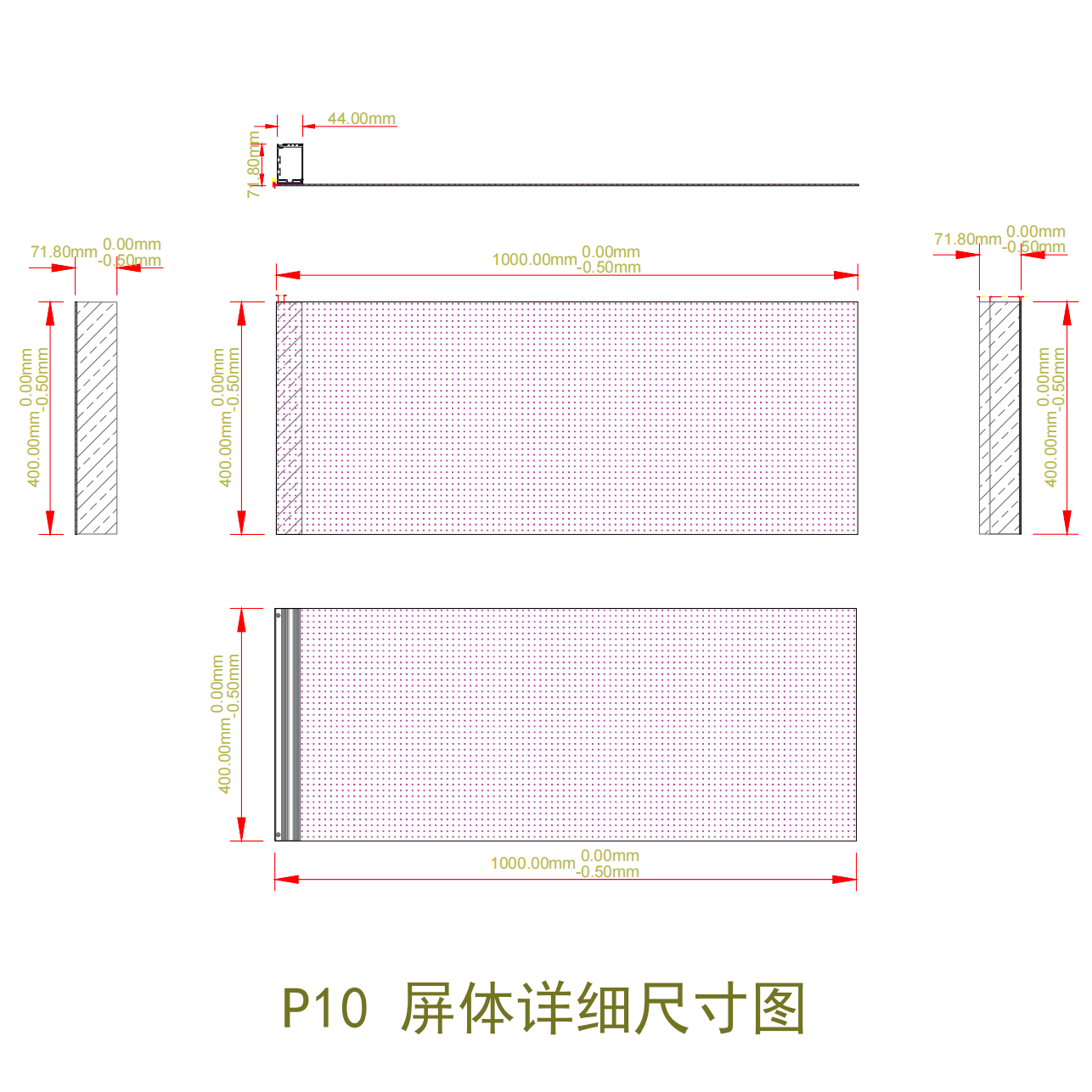

P10 Large Panel Transparent Adhesive LED Film – 400×1000 mm (15.75×39.37 in) | 2000 / 4000nits | 94% Transparency Glass Sticker Display for Storefront Facades & Glass Walls | Multiple Kit Options | Plug & Play
Features
* Invisible PCB & Mesh Technology, Super high transparency up to more than 95%.
* Slim & Soft for Creative Design,Ultra-thin and ultra-light
* Easy Installation & Anti-UV, self-adhesive Film which paste on the glass without frames or other gaps.
* Flexible during installation, the size and layout of the film can be customized to suit different installation areas.
* Sufficient brightness,Excellent color performance
| LED flexible transparent film Data sheet | |||||
| MODEL | P6.25 | P8 | P10 | P15 | P20 |
| Module size (mm) | 1000*400 | 1000*400 | 1000*400 | 990*390 | 1000*400 |
| LED light | REE1515 | REE1515 | REE1515 | REE2121 | REE2121 |
| Pixel composition | R1G1B1 | R1G1B1 | R1G1B1 | R1G1B1 | R1G1B1 |
| Pixel spacing (mm) | 6.25*6.25 | 8*8 | 10*10 | 15*15 | 20*20 |
| Module pixel | 160*64=10240 | 125*50=6250 | 100*40=4000 | 66*26=1716 | 50*20=1000 |
| Pixel/m2 | 25600 | 16500 | 10000 | 4356 | 2500 |
| Brightness | 2000-4000 cd/m² | 2000-4000 cd/m² | 2000-4000 cd/m² | 3000 cd/m² | 2400 cd/m² |
| Permeability | 90% | 92% | 94% | 94% | 95% |
| Angle of view ° | 160 ° | 160 ° | 160 ° | 160 ° | 160 ° |
| Input voltage | AC110-240V50/ 60Hz | AC110-240V50/ 60Hz | AC110-240V50/ 60Hz | AC110-240V50/ 60Hz | AC110-240V50/ 60Hz |
| Peak power | 600w/㎡ | 600w/㎡ | 600w/㎡ | 600w/㎡ | 600w/㎡ |
| Average power | 200w/㎡ | 200w/㎡ | 200w/㎡ | 200w/㎡ | 200w/㎡ |
| Work environment |
Temp.: -20~55°C RH:10-90% |
Temp.: -20~55°C RH:10-90% |
Temp.: -20~55°C RH:10-90% |
Temp.: -20~55°C RH:10-90% |
Temp.: -20~55°C RH:10-90% |
| Weight | 1.3kg | 1.3kg | 1.3kg | 1.3kg | 1.3kg |
| Thickness | 2.5mm | 2.5mm | 2.5mm | 2.5mm | 2.5mm |
| Drive mode | Static state | Static state | Static state | Static state | Static state |
| Control system | Nova/Colorlight | Nova/Colorlight | Nova/Colorlight | Nova/Colorlight | Nova/Colorlight |
| Typical value of life | 100000H | 100000H | 100000H | 100000H | 100000H |
| Grayscale level | 16bit | 16bit | 16bit | 16bit | 16bit |
| Refresh rate | 3840 Hz | 3840 Hz | 3840 Hz | 3840 Hz | 3840 Hz |
IMPORTANT NOTICE!
Because of the existence of the control board, The LED Film has A and B two directions. 1 piece A and 1 piece B can form a seamless display area, while the control box will be at control board will be located at both sides. Please choose according to your project.
PAKAGE INCLUDED:
A) Single Panel Kit (A Type Screen + Controller + Cables)
- 1x A Type Screen (with power supply & receiving card included per each film)
- 1x TB10 Plus Novastar Media Player Box
- 1x Power Cable for connecting to line electricity
B) A Type Panel Only (No Controller)
- 1x A Type Screen (with power supply & receiving card included per each film)
- 1x Power Cable for connecting to line electricity
C) B Type Panel Only (No Controller)
- 1x B Type Screen (with power supply & receiving card included per each film)
- 1x Power Cable for connecting to line electricity
ABOUT SHIPPING !
- 【Lead Time】: The products take 15-20days to make if non in stock.
- 【Packing】：The adhesive LED Film display is packed in one-time hard carton box for shipping.
- 【Free Shipping】：
- For shipping, the price on this page is include free shipping by AIR +Delivery to door by truck. It's by flight + UPS delivery to door which in regular would take around 12-15days at least in transportation after flight departure;
- DDP TERM (all fee included) except the to destination country that this shipping service is not available, then we will contact the buyer if this clause does not apply to his country.
