Description
Novastar TU20 Pro LED Playback Control Processor 3.9 Million Loading Capacity Intelligent Control Solution
Package Included
| Version | Package Included |
|---|---|
| TU20 Pro | 1x TU20 Pro Processor, 1x Power Cable, 1x User Manual |
About this item
- High-performance LED screen controller supporting 2x HDMI 1.3, 3x USB 2.0 inputs, and 5x Ethernet outputs
- Supports up to 3.9 million pixels for indoor LED screens
- Features wireless screen mirroring, remote, and app control for flexible operation
- Compact design suitable for wall mounting or surface placement
- Ideal for corporate exhibition halls, meeting rooms, hotels, and telemedicine consultation setups
Order & Logistics
- Lead Time: Typically ships within 2–5 business days
- Packing: Cardboard box
- Shipping: Ships from local warehouses (3–7 days) if available, or from headquarters (7–25 days standard / 3–10 days express)
Key Specifications
- Input Ports: 2x HDMI 1.3, 3x USB 2.0
- Output Ports: 5x Ethernet, 1x HDMI 1.3, 1x 3.5mm Audio, 1x SPDIF
- Supported Resolutions: Up to 4096×1920 pixels
- Control Method: Remote, App, USB Drive
- Power Supply: DC 12V 3A
- Operating Temperature: Standard indoor range
Usage Notes / Installation Tips
- Always power off before connecting/disconnecting signal cables
- Use shielded network cables for stable data transmission
- Ensure adequate ventilation for prolonged operation
Downloads
Technical Specifications
| Specifications | TU4K PRO | TU20 Pro | TU15 Pro |
|---|---|---|---|

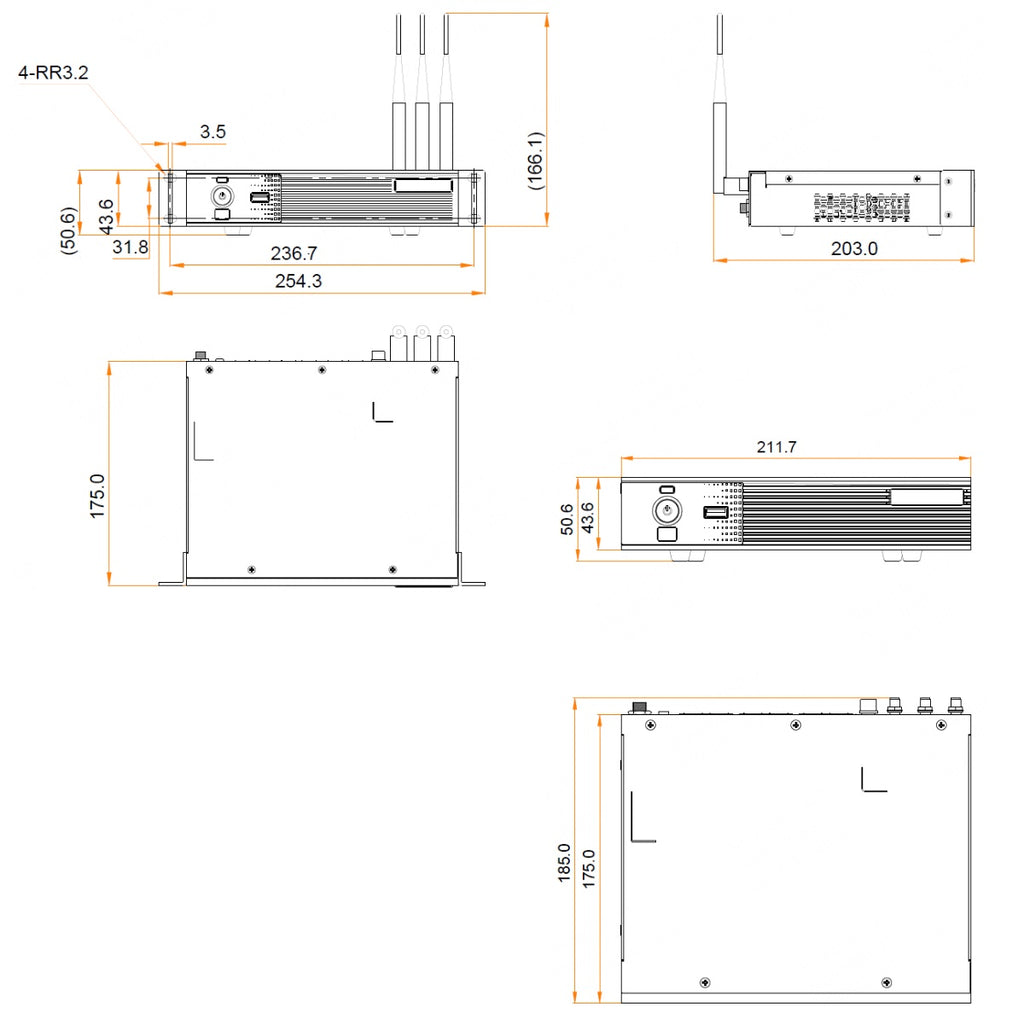

| Size | 445.0 mm×381.8 mm×50.1 mm | 211.7 mm×185.0 mm×50.6 mm | |
| Input voltage | 100-240V~, 50/60Hz, 2.5A Max, 53.9W | DC 12V 3A | |
| Loading capacity | 13 Million | 3.9 Million | 2.6 Million |
| Maximum Width & Height | Width 16384, Height 8192 pixels | Width 4096, Height 1920 pixels | |
| Android | Android 13.0 | Android 11 | |
| Wi-Fi | Wi-Fi6 (AP); Wi-Fi5 (Station) | Wi-Fi6 (AP); Wi-Fi5 (Station) | |
| Memory Space | 8GB/128GB | 4GB/32GB | |
| Input Ports | 2x HDMI 2.0, 1x HDMI 1.3, 1x USB 3.0, 2x USB 2.0 | 2x HDMI 1.3, 3x USB 2.0 | |
| Output Ports | 20x RJ45, 1x HDMI 1.3, 2x OPT, 1x SPDIF, 1x 3.5mm Audio | 6x RJ45, 1x HDMI 1.3, 1x 3.5mm Audio, 1x SPDIF | 4x RJ45, 1x HDMI 1.3, 1x 3.5mm Audio, 1x SPDIF |
Applications
- Fixed LED billboards
- Rental stage LED screens
- Indoor/outdoor advertising
- Conference / exhibition displays
