Description

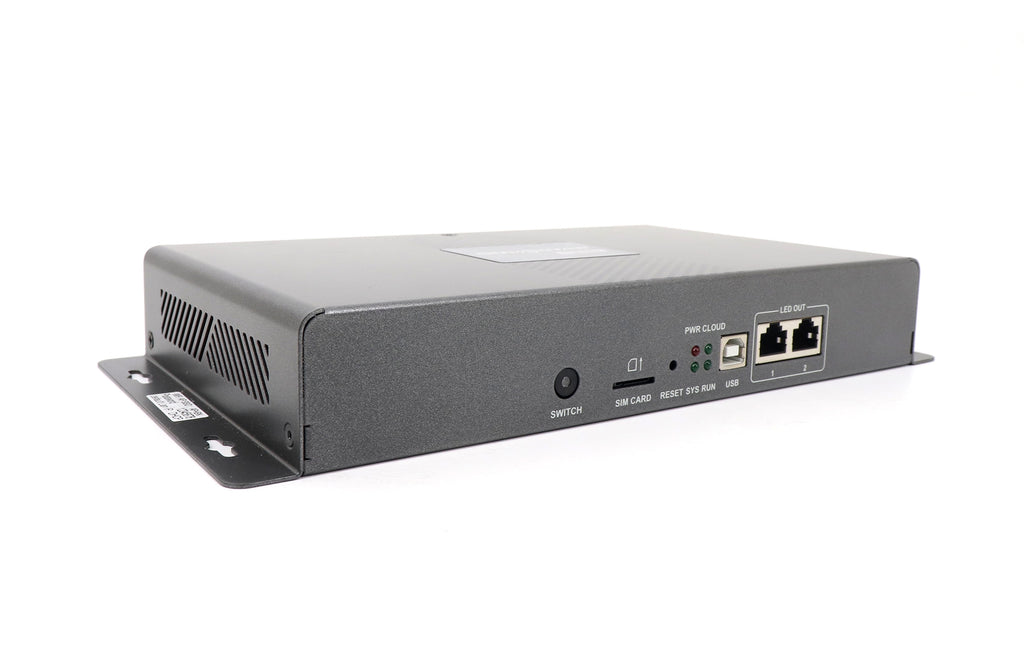

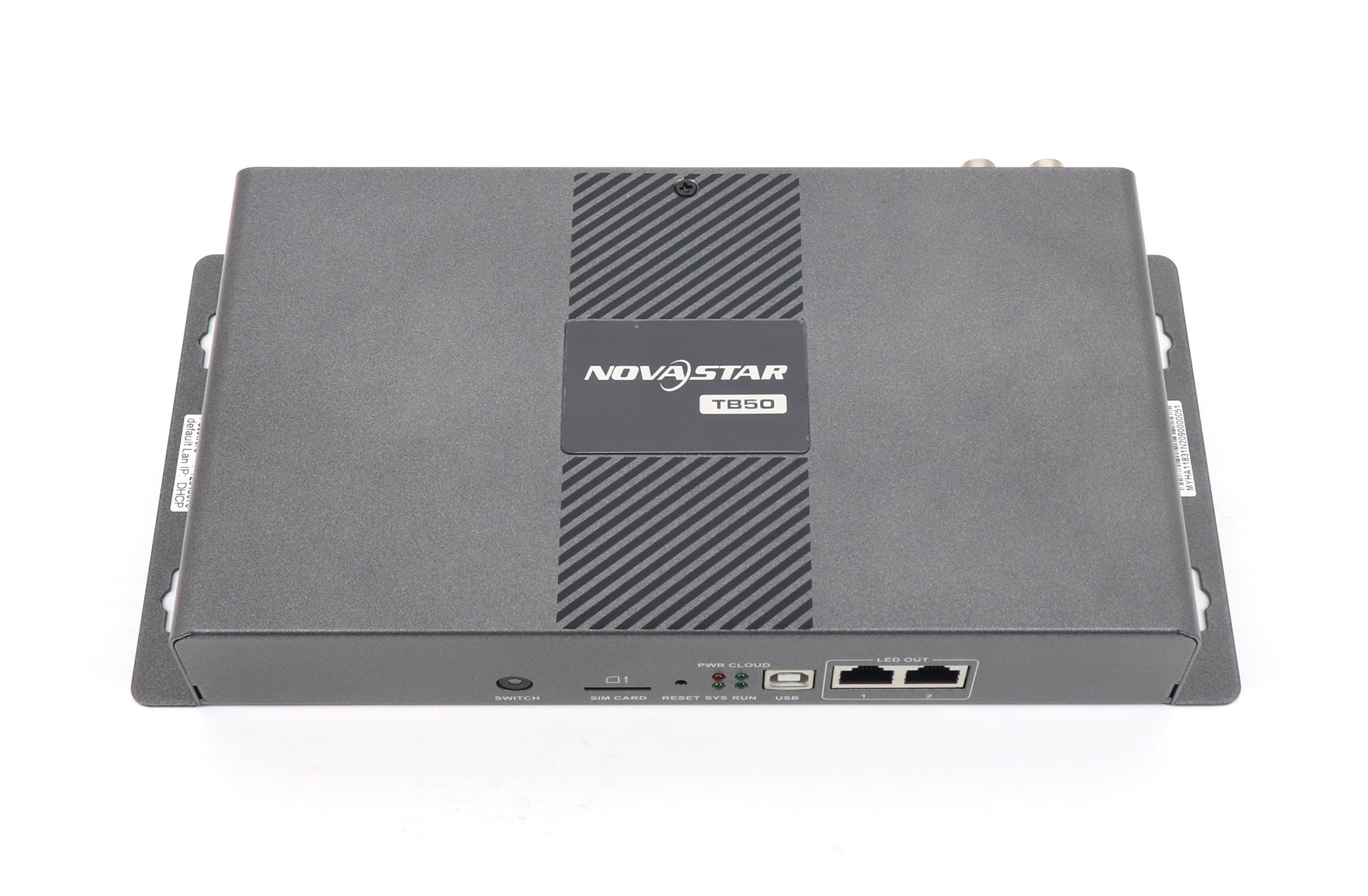

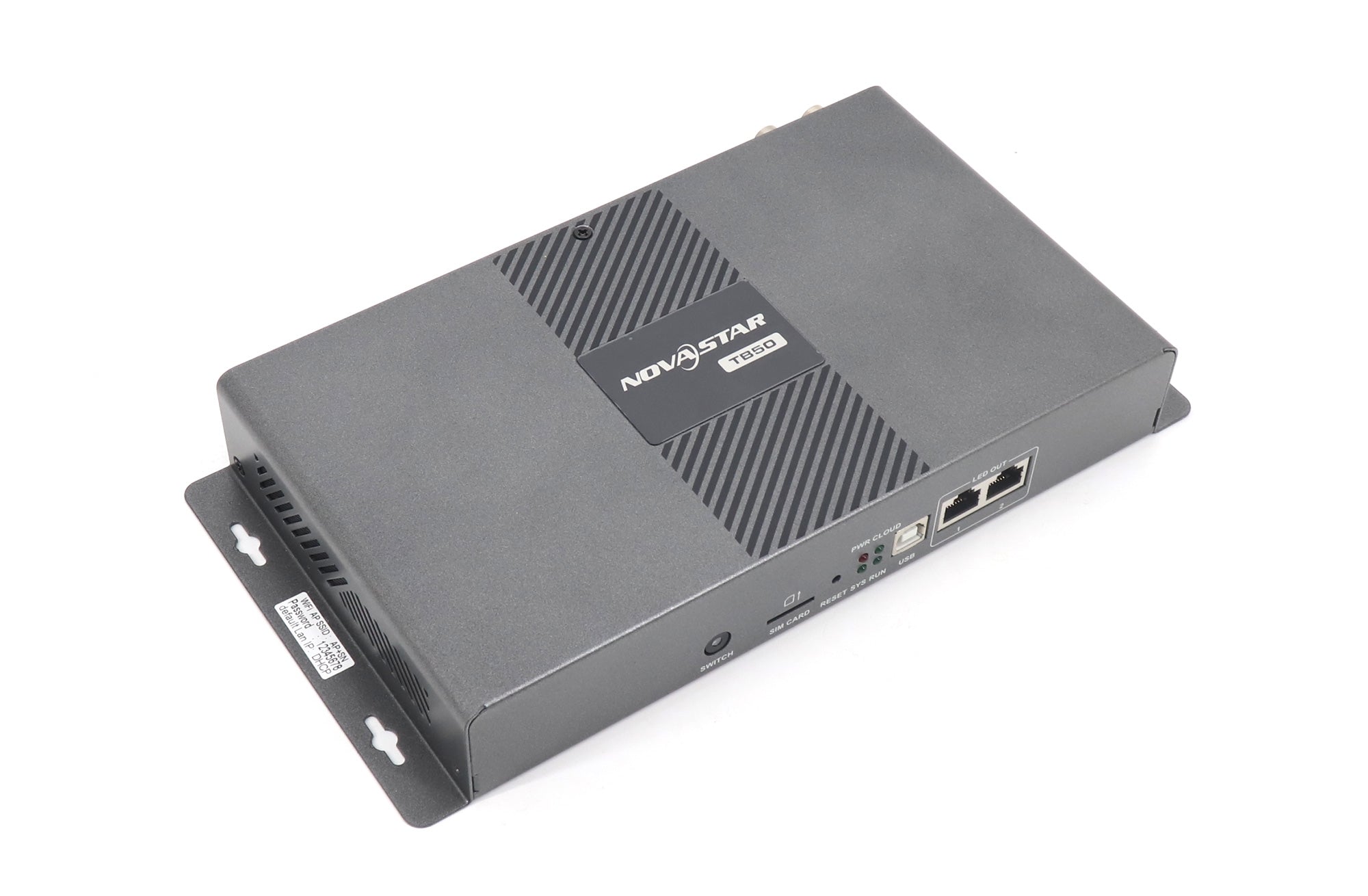

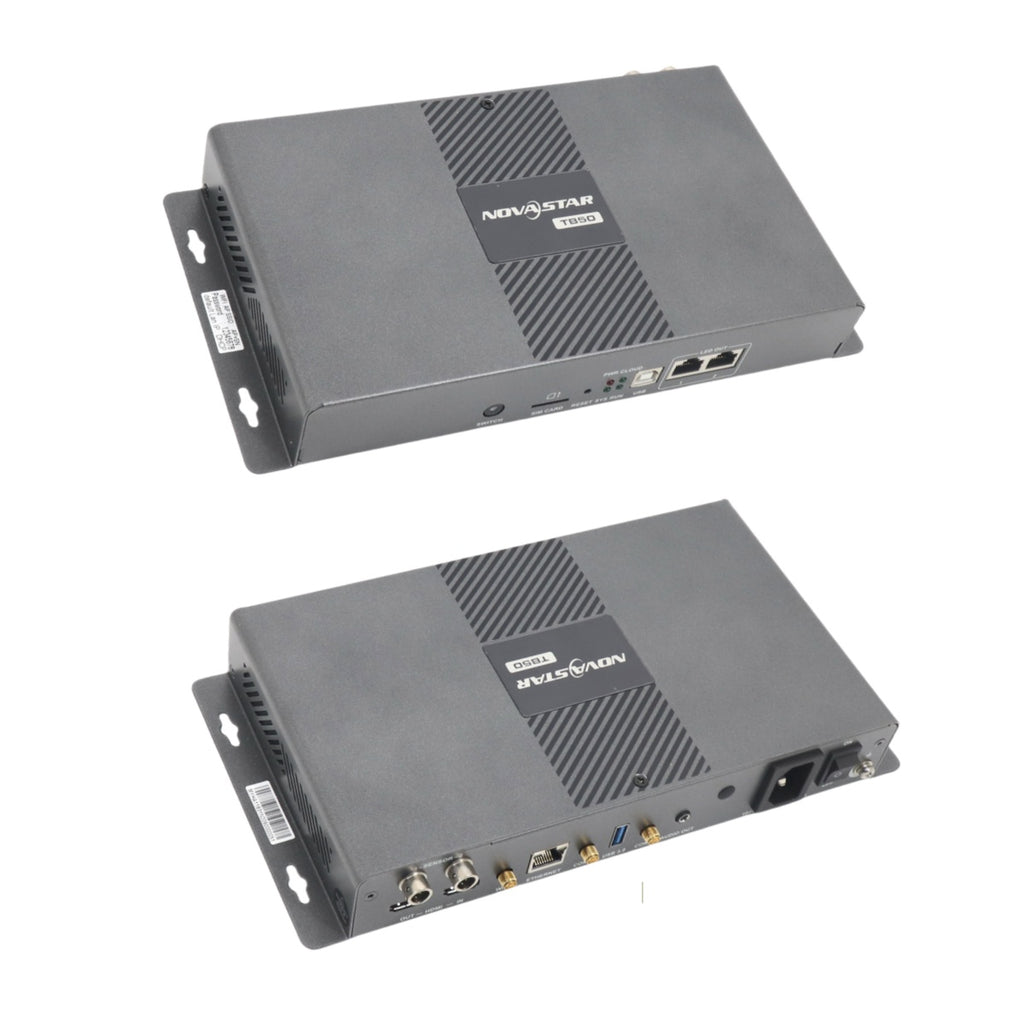

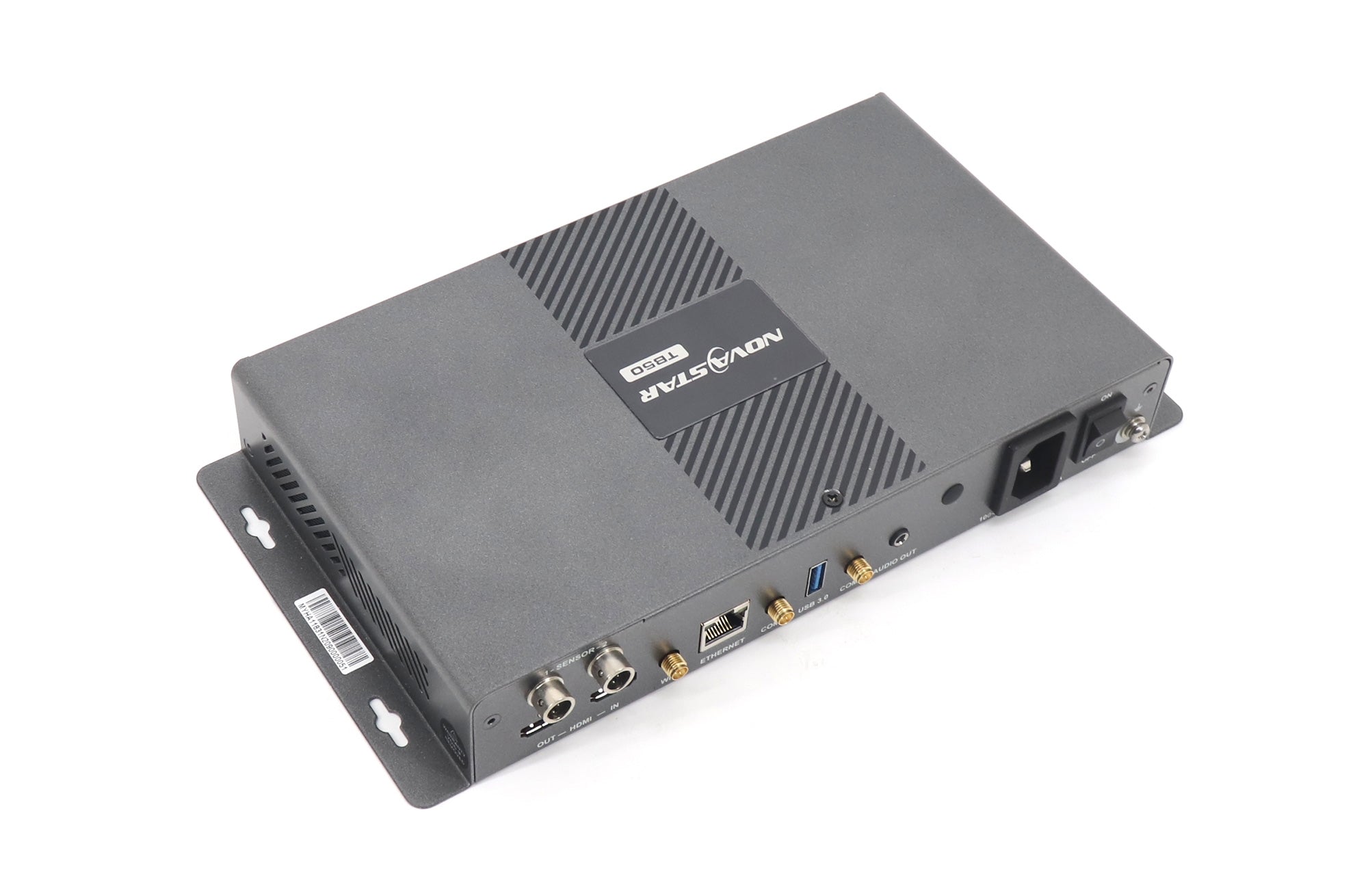

Novastar TB50 Taurus Multimedia Player w/ 1.3 Million Pixels Loading Capacity
Package Included
| Version | Package Included |
|---|---|

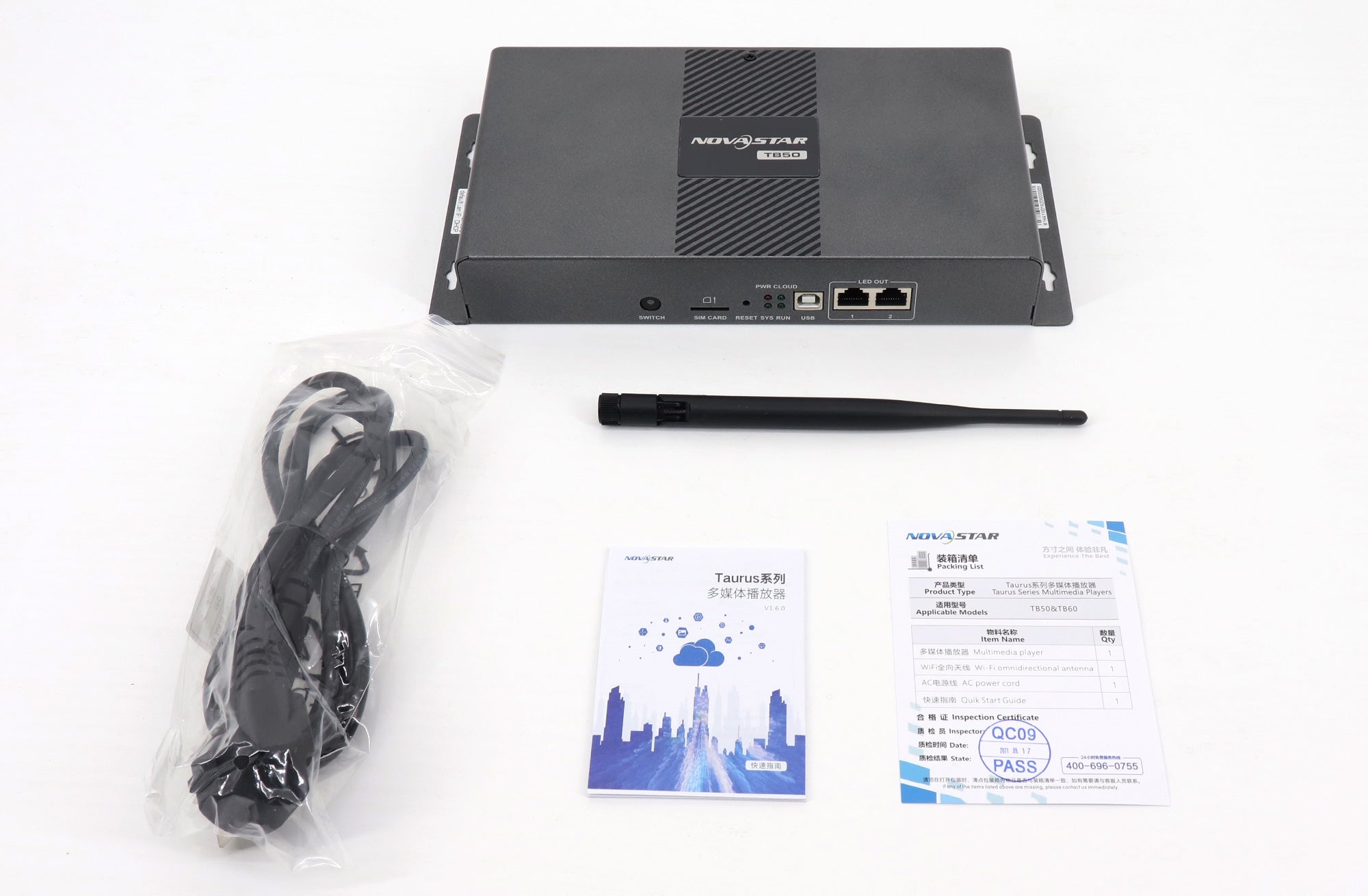

| TB50 | 1x TB50 Multimedia Player, Power Adapter, User Manual |
NOTE: The TB6 has stopped production, replaced by TB50
About this item
- High-performance LED controller, 1.3 million pixel loading capacity
- Supports multiple screen playback synchronization for seamless visuals
- Advanced NovaStar functions: dual mode, dual WiFi, 4G support, redundant backup
- Comprehensive control: PC, mobile, LAN, remote management
- Compact metal case with air cooling for stability and reliability
- Suitable for indoor/outdoor LED displays, rental stage screens, exhibitions
Order & Logistics
- Lead Time: 2–5 business days
- Packing: Cardboard box
- Shipping: Local warehouse 3–7 days; HQ 7–25 days standard / 3–10 days express
Key Specifications
- Input Ports: HDMI, USB 3.0
- Output Ports: 2x Ethernet RJ45
- Supported Resolutions: Up to 4096×4096
- Control: USB / Network / WiFi / 4G (optional)
- Power: AC 100–240V
- Operating Temp: -20°C ~ 60°C
Usage Notes / Installation Tips
- Requires professional operation
- Power off before connecting/disconnecting cables
- Use shielded network cables
- Ensure ventilation
- For high sync, use timing module (consult NovaStar)
- 4G requires country/region-specific module
Technical Specifications
| Model | TB10 Plus | TB20 Plus | TB30 | TB40 | TB50 | TB60 |
|---|---|---|---|---|---|---|
| CPU | 4C A35/1.4GHz | 4C A35/1.4GHz | 4C A55/1.8GHz | 4C A55/1.8GHz | 4C A55/1.8GHz | 4C A55/1.8GHz |
| Storage | 2GB+32GB | 2GB+32GB | 1GB+32GB | 1GB+32GB | 1GB+32GB | 1GB+32GB |
| Decode | 4K 60fps | 4K 60fps | 4K 60fps | 4K 60fps | 4K 60fps | 4K 60fps |
| OS | Android 10 | Android 10 | Android 11 | Android 11 | Android 11 | Android 11 |
| Max Capacity | 0.65M | 0.65M | 0.65M | 1.3M | 1.3M | 2.3M |
| Max WxH | 2048×2048 / 8192×2084 | 2048×2048 / 8192×2084 | 4096×4096 | 4096×4096 | 4096×4096 | 4096×4096 |
| Video Windows | 1x4K/3x1080P/8x720P/16x480P/20x360P | Same | 1x4K/2x1080P/4x720P/4x480P/6x360P | Same | Same | Same |
| LED Output | 1 Main 1 Backup | 1 Main 1 Backup | 1 Main 1 Backup | 2 Main | 2 Main | 4 Main |
| Sync | NTP,GPS | NTP,GPS | NTP,GPS | NTP,GPS | NTP,GPS | NTP,GPS |
| Dual Mode | X | √ | X | √ | √ | √ |
| HDMI Splicing | X | X | X | √ 1080p(8) | √ 1080p(8) | √ 1080p(8) |
| Audio | √ | √ | √ | √ | √ | √ |
| Sensor | 1 Aviation | 1 Aviation | 2 Aviation | 2 Aviation | 2 Aviation | 2 Aviation |
| USB | √ USB2.0 | √ USB2.0 | √ USB3.0 | √ USB3.0 | √ USB3.0 | √ USB3.0 |
| LAN | 100 Mbps | 100 Mbps | 1000 Mbps | 1000 Mbps | 1000 Mbps | 1000 Mbps |
| WiFi | 2.4G AP/STA | Same | Same | Same | Same | Same |
| 4G | Optional | Optional | Optional | Optional | Optional | Optional |
| 5G | X | X | Optional | Optional | Optional | Optional |
| Viplex | √ | √ | √ | √ | √ | √ |
| SDK | √ | √ | √ | √ | √ | √ |
| Case | Metal | Metal | Metal | Metal | Metal | Metal |
| Power | AC100–240V | AC100–240V | AC100–240V | AC100–240V | AC100–240V | AC100–240V |
| Certification | CE, FCC, RoHS, IC, RED, UKCA, UL, RCM, PSE, FAC, PSB, KC, MIC, CB, NBTC (TB40 includes CQC, SRRC) | |||||
Applications
- Fixed LED billboards
- Rental stage LED screens
- Indoor/outdoor advertising
- Conference / exhibition displays
Documents & Downloads
Requires professional operation!
