Description

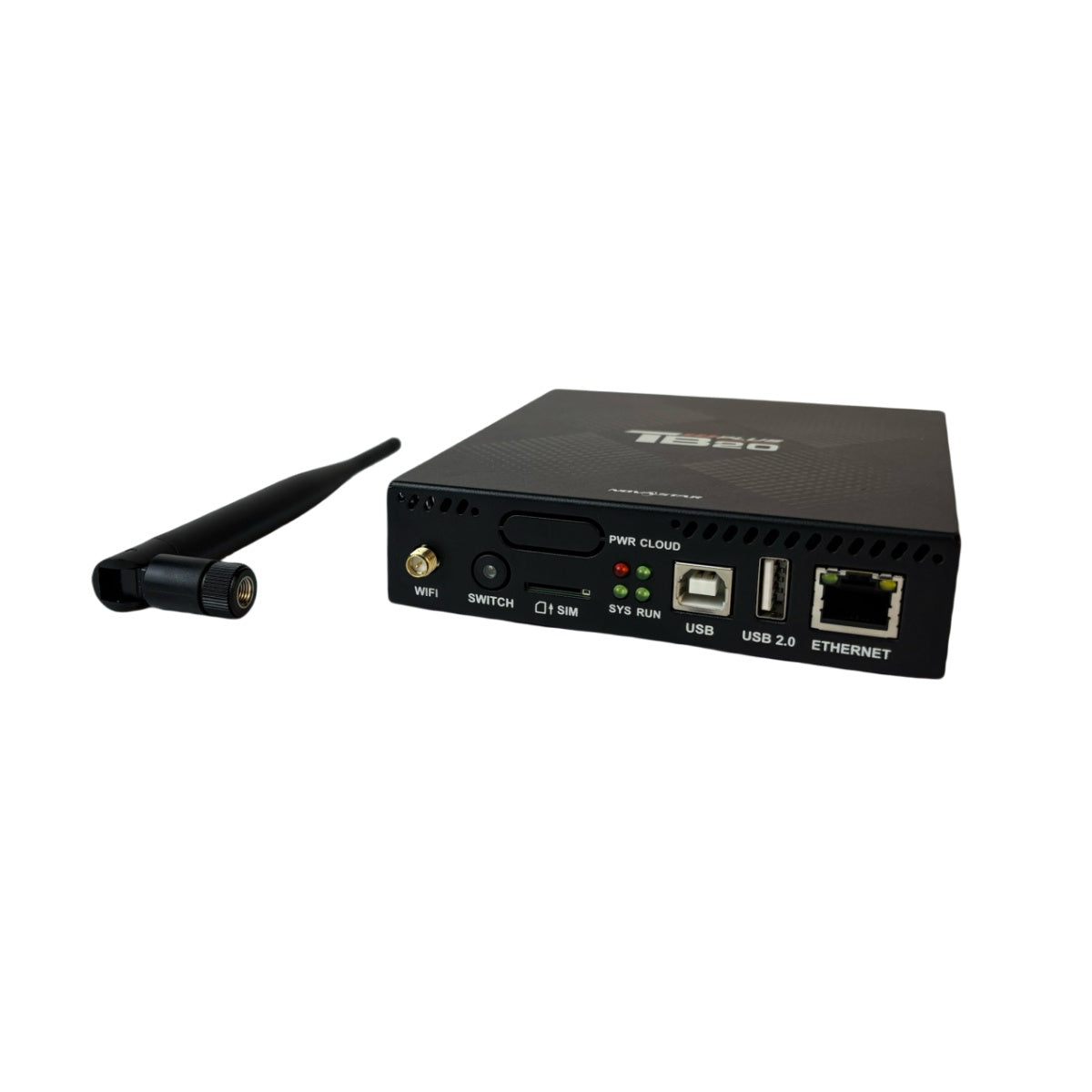

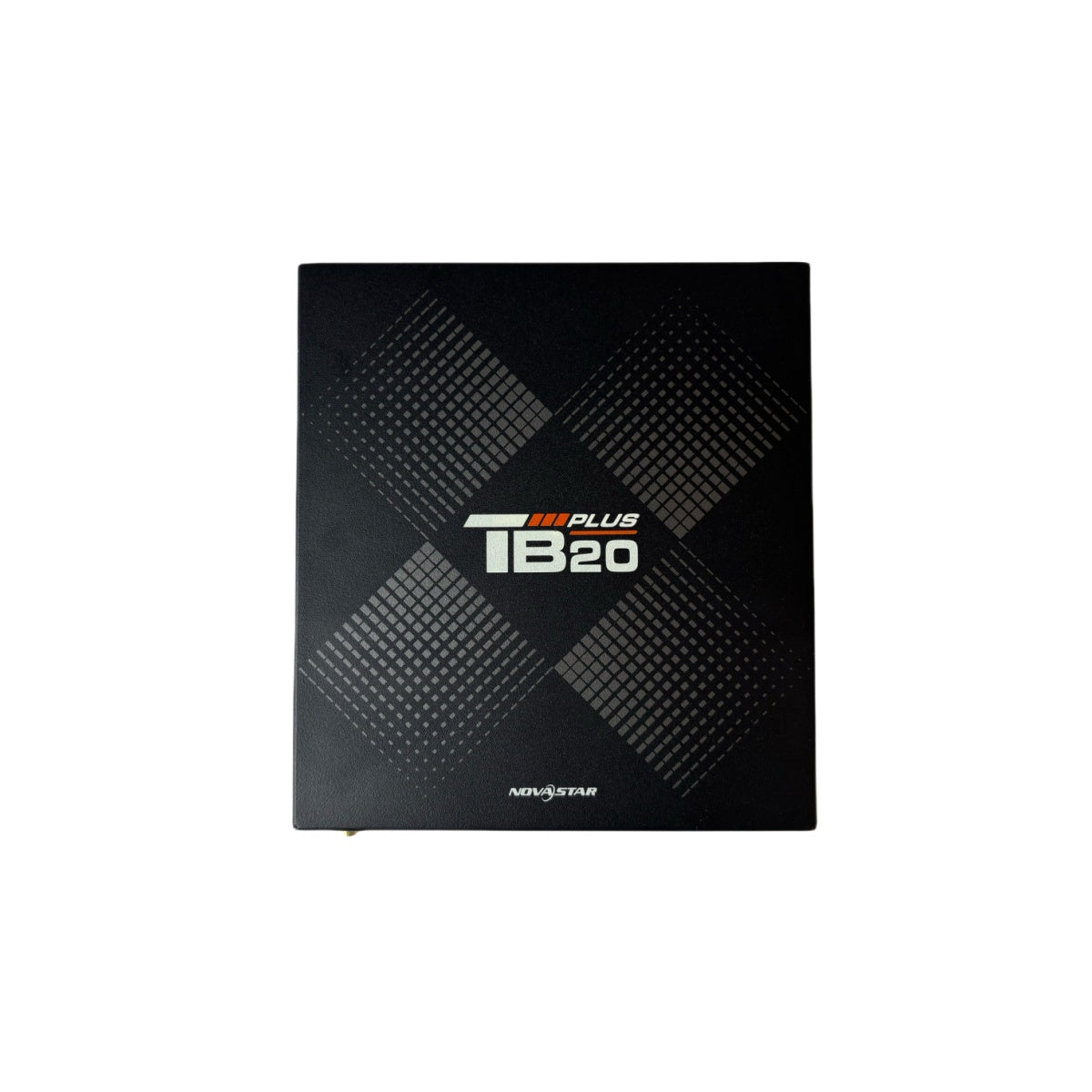

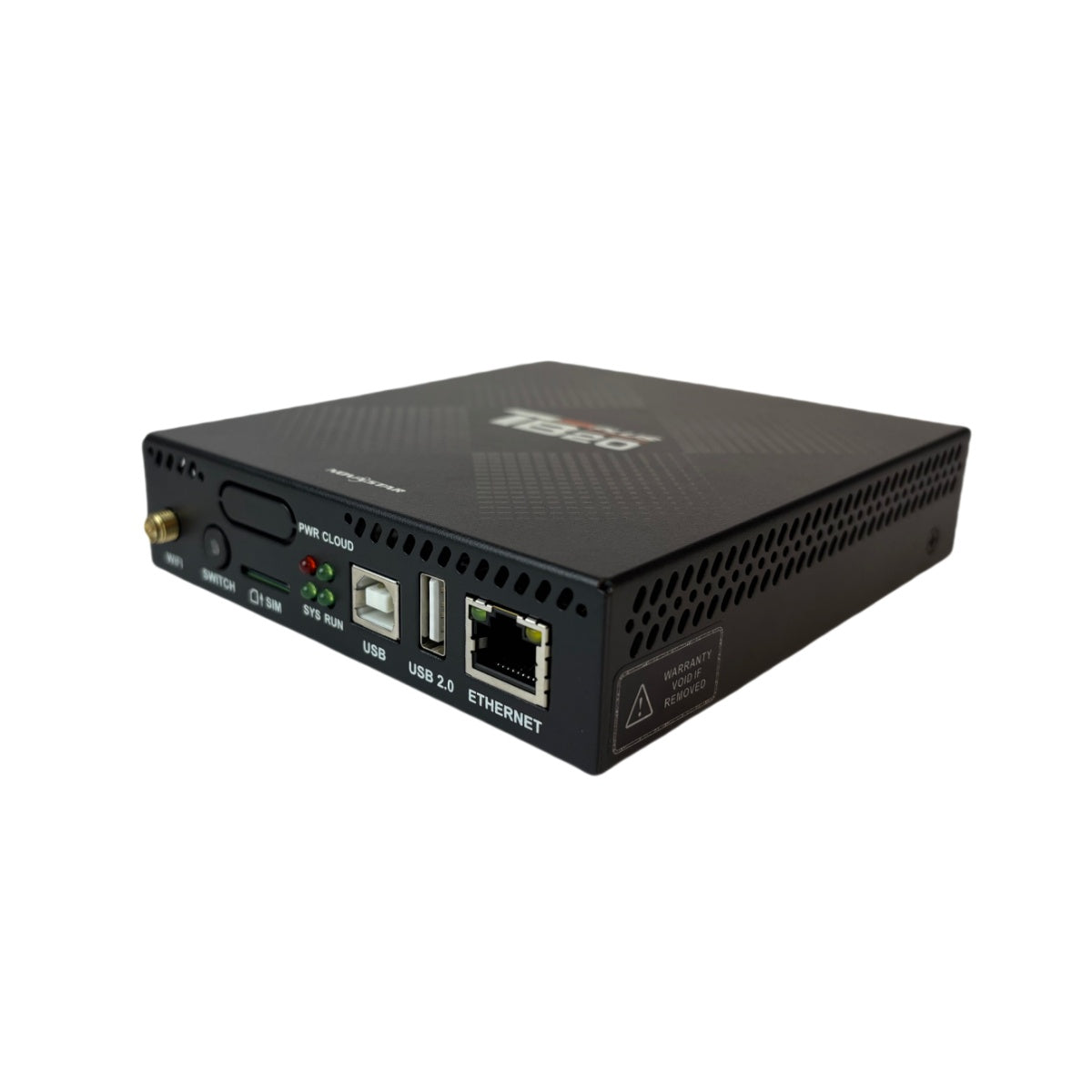

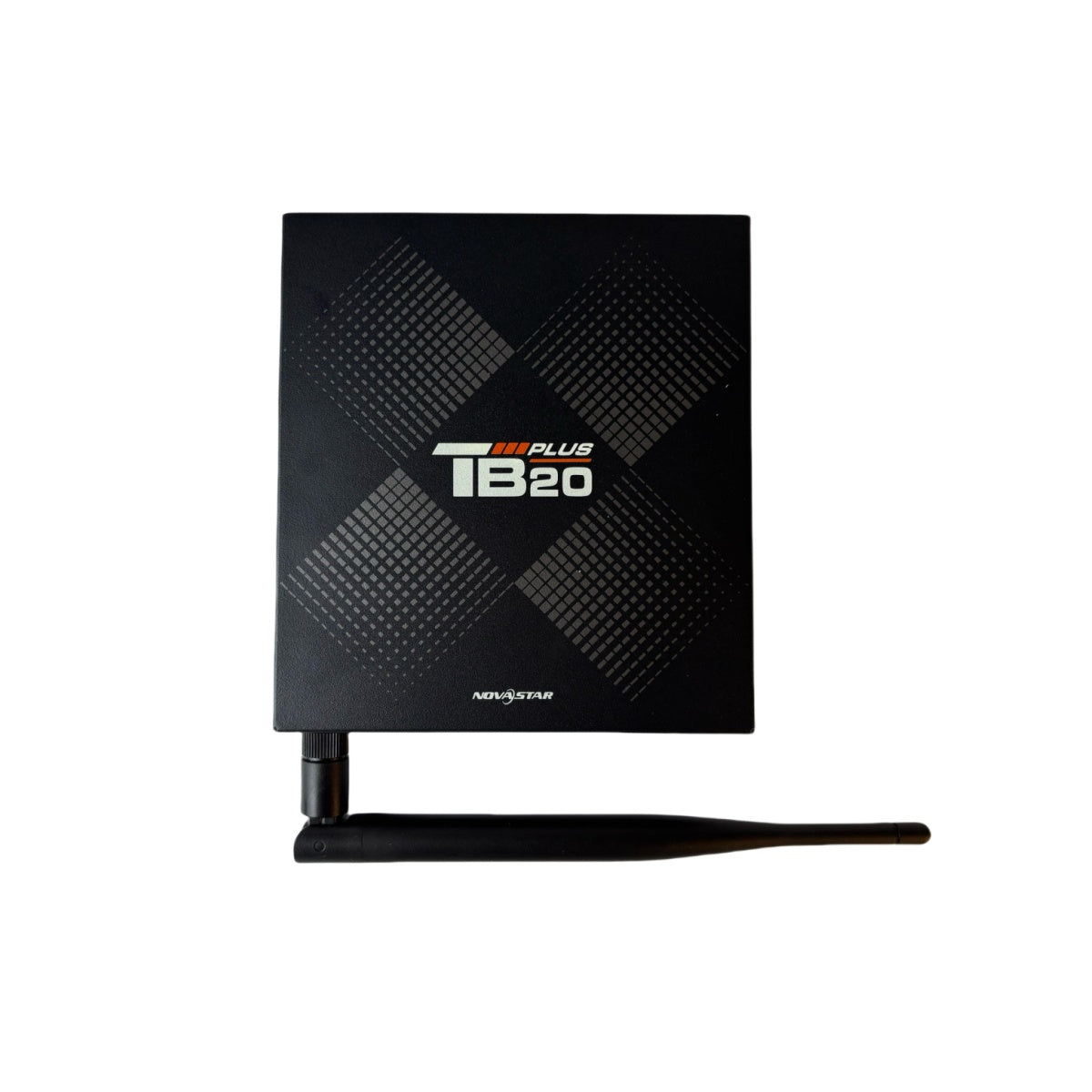

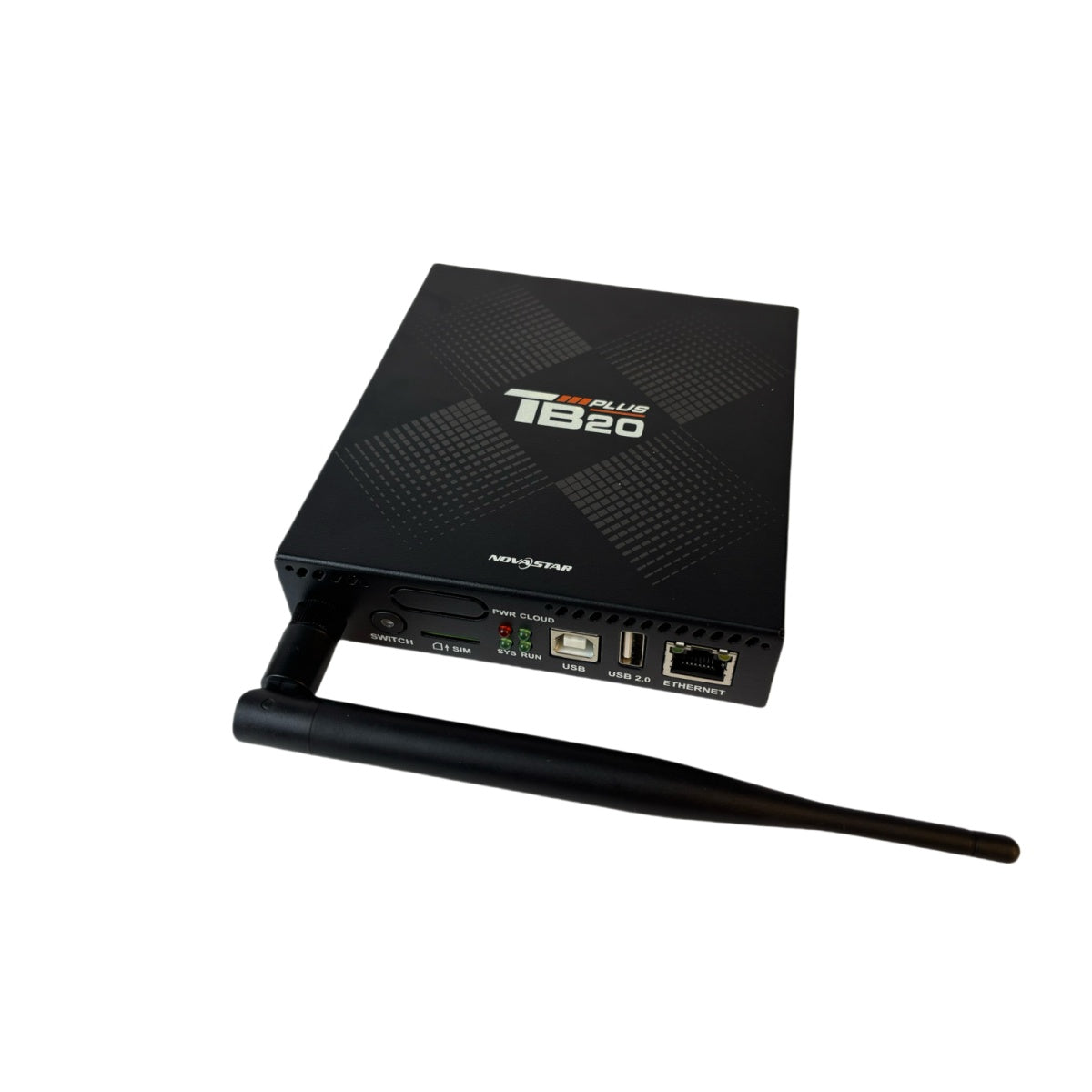

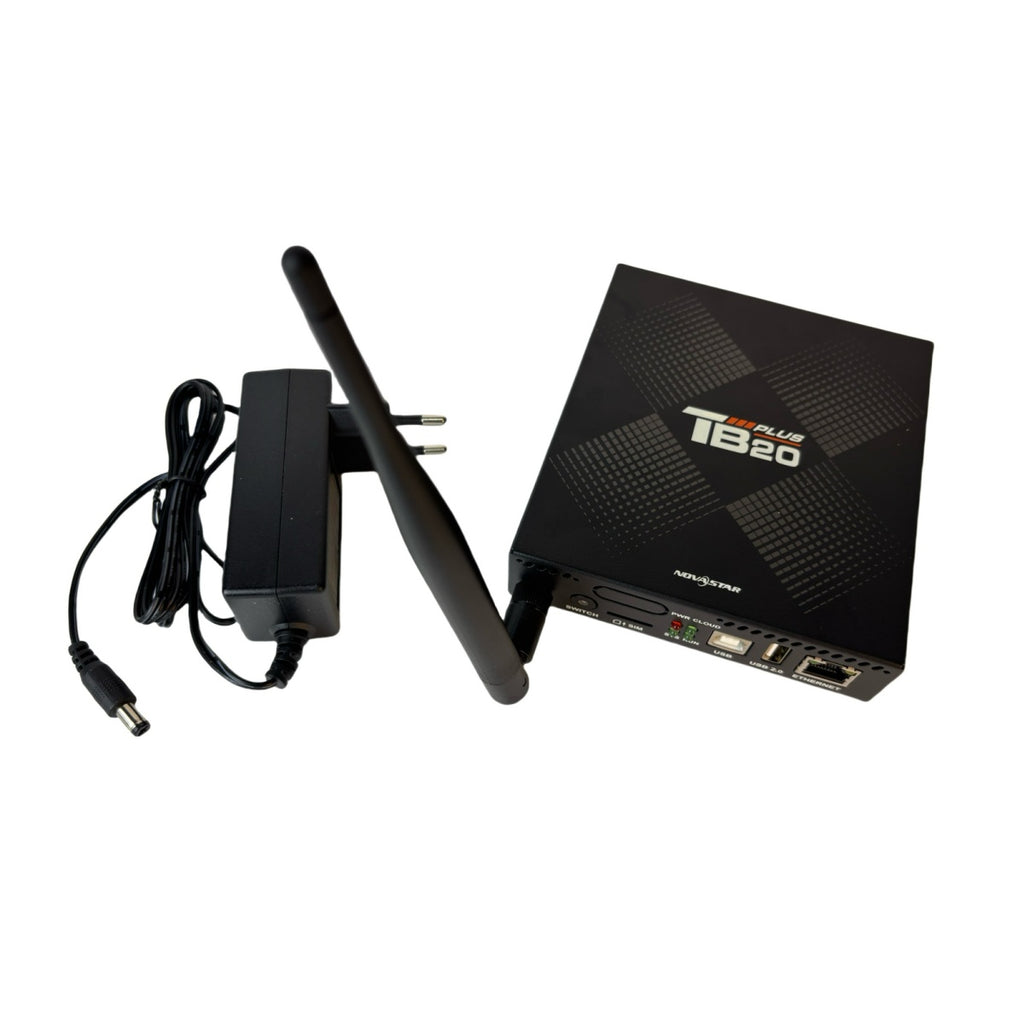

Novastar TB20 Plus Taurus Multimedia Player w/ 0.65 Million Pixel Loading Capacity

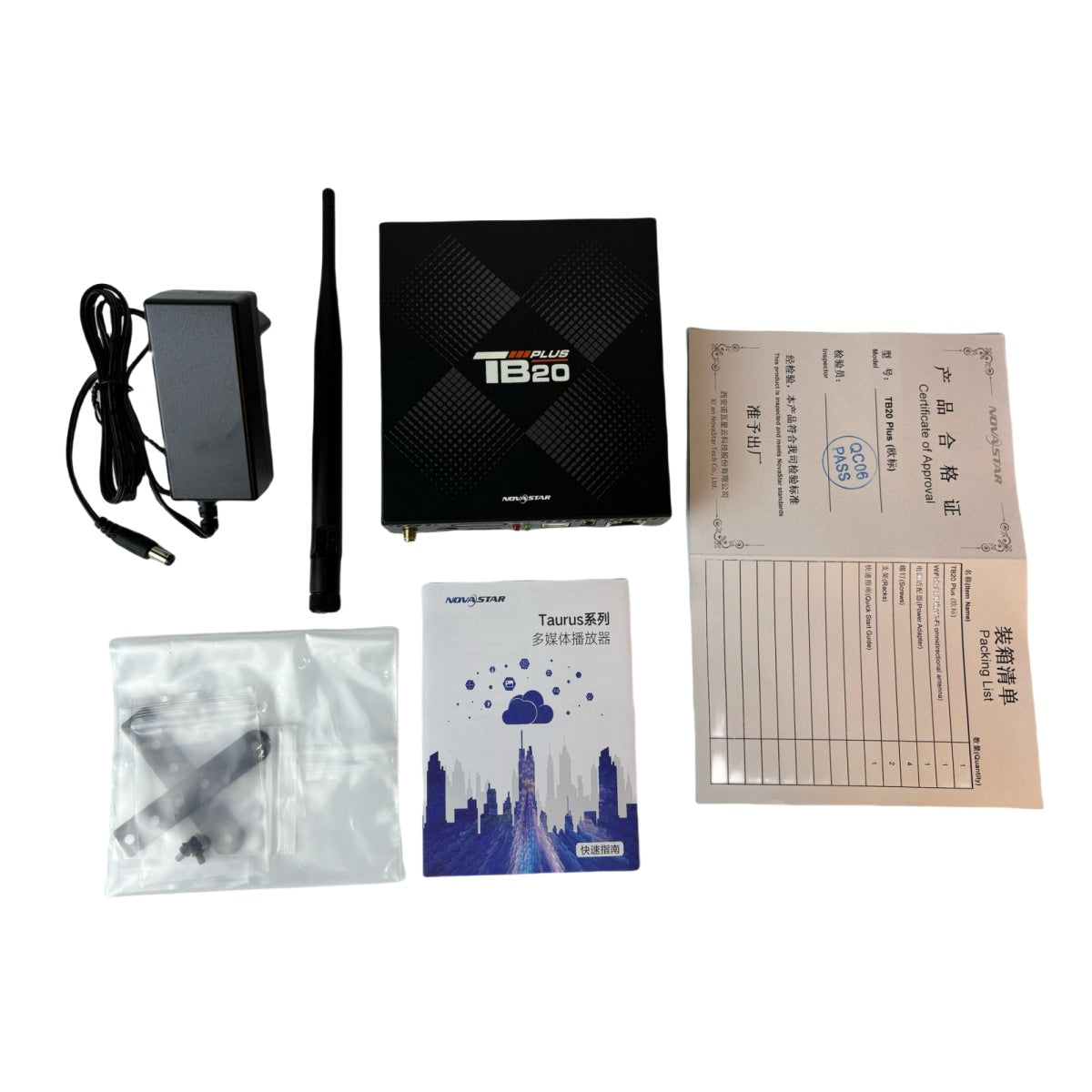

Package Included
| Version | Package Included |
| TB20 Plus | TB20 Plus Multimedia Player |
About this item
- High-performance LED screen controller supporting 1×Gigabit Ethernet output and stereo audio output
- Compatible with multiple LED module pixel pitches, up to 2048×2048 pixels (8192×2048 for ultra-long screens)
- Dual-mode operation with synchronous and asynchronous playback for enhanced stability
- Compact design with metal case for long-term reliability
- Ideal for fixed LED displays, lamp-post displays, retail store screens, chain store advertising, and smart city projects
Order & Logistics
- Lead Time: Typically ships within 2–5 business days
- Packing: Cardboard box
- Shipping: Ships from local warehouses (3–7 days) if available, or from headquarters (7–25 days standard / 3–10 days express)
Key Specifications

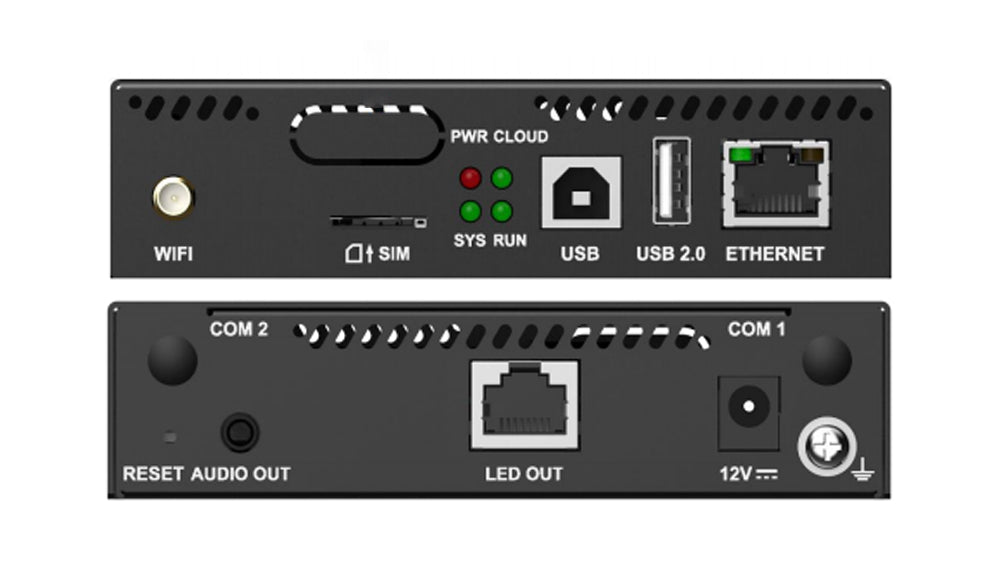

- Input Ports: USB2.0 local playback, WiFi, LAN

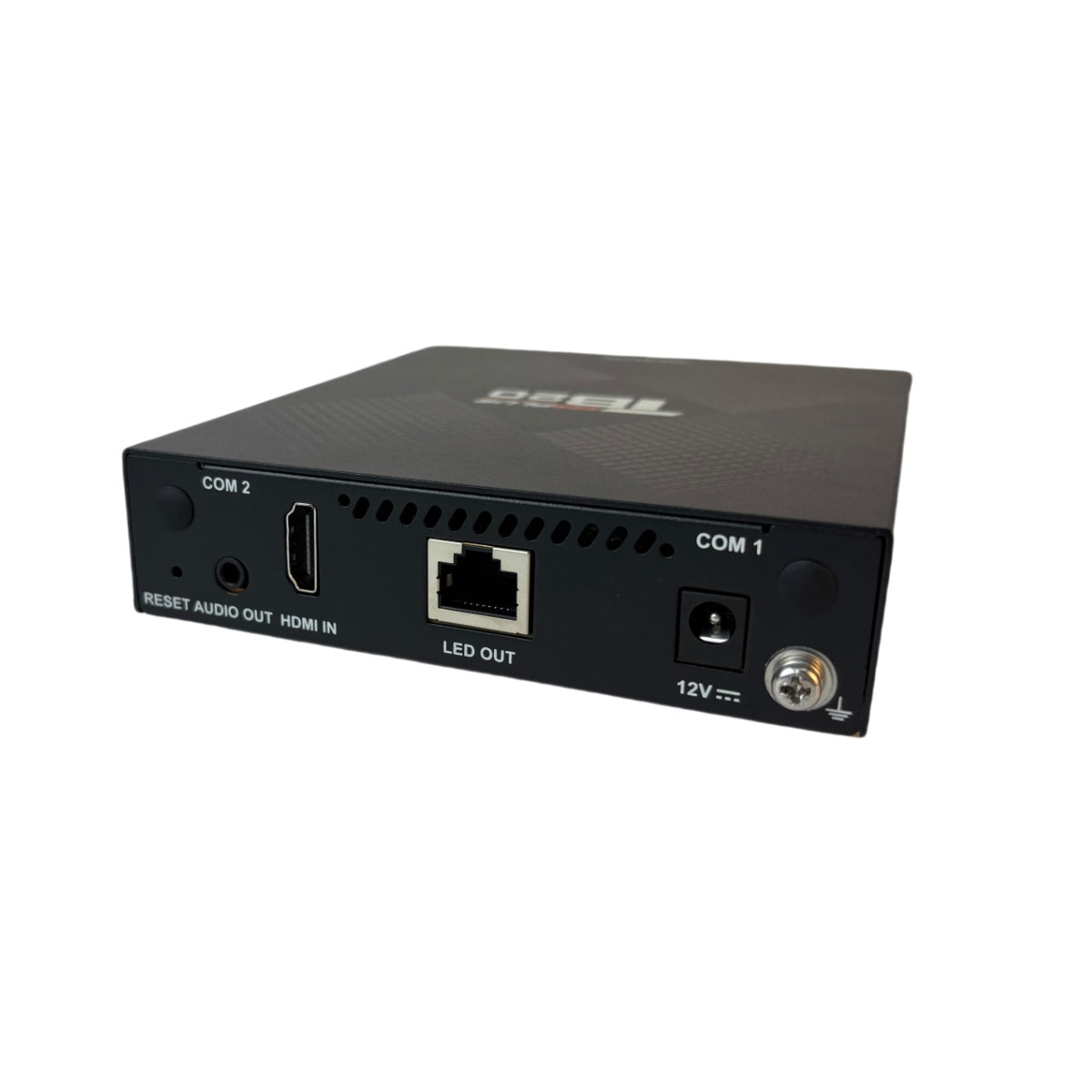

- Output Ports: 1×RJ45 main, 1×RJ45 backup, stereo audio output
- Supported Resolutions: Up to 2048×2048 pixels (8192×2048 for ultra-long screens)
- Control Method: Cloud, PC, mobile phone via Viplex Handy; Network; WiFi; optional 4G
- Power Supply: AC 100–240V
- Operating Temperature: Not specified in listing
Usage Notes / Installation Tips
- Always power off before connecting/disconnecting signal cables
- Use shielded network cables for stable data transmission
- Ensure adequate ventilation for prolonged operation
Technical Specifications
| Model | TB10 Plus | TB20 Plus | TB30 | TB40 | TB50 | TB60 |
| CPU | 4 Core A35 Processor / 1.4GHz | 4 Core A35 Processor / 1.4GHz | 4 Core A55 Processor / 1.8GHz | 4 Core A55 Processor / 1.8GHz | 4 Core A55 Processor / 1.8GHz | 4 Core A55 Processor / 1.8GHz |
| Storage | 2GB + 32GB | 2GB + 32GB | 1GB + 32GB | 1GB + 32GB | 1GB + 32GB | 1GB + 32GB |
| Decode Ability | 4K 60fps | 4K 60fps | 4K 60fps | 4K 60fps | 4K 60fps | 4K 60fps |
| Operating System | Android 10 | Android 10 | Android 11 | Android 11 | Android 11 | Android 11 |
| Max Capacity | 0.65 million pixels | 0.65 million pixels | 0.65 million pixels | 1.3 million pixels | 1.3 million pixels | 2.3 million pixels |
| Max Width / Max Height | 2048 (Max Width), 2048 (Max Height); For stretched screen, 8192 (Max Width), 2084 (Max Height) | 2048 (Max Width), 2048 (Max Height); For stretched screen, 8192 (Max Width), 2084 (Max Height) | 4096 (Max Width), 4096 (Max Height) | 4096 (Max Width), 4096 (Max Height) | 4096 (Max Width), 4096 (Max Height) | 4096 (Max Width), 4096 (Max Height) |
| Number of Video Windows | 1×4K / 3×1080P / 8×720P / 16×480P / 20×360P | 1×4K / 3×1080P / 8×720P / 16×480P / 20×360P | 1×4K / 2×1080P / 4×720P / 4×480P / 6×360P | 1×4K / 2×1080P / 4×720P / 4×480P / 6×360P | 1×4K / 2×1080P / 4×720P / 4×480P / 6×360P | 1×4K / 2×1080P / 4×720P / 4×480P / 6×360P |
| LED Output Port RJ45 | 1 Main, 1 Backup | 1 Main, 1 Backup | 1 Main, 1 Backup | 2 Main | 2 Main | 4 Main |
| Sync Mode | NTP, GPS | NTP, GPS | NTP, GPS | NTP, GPS | NTP, GPS | NTP, GPS |
| Dual Mode Switch | X | √ | X | √ | √ | √ |
| HDMI Splicing Playback | X | X | X | √ 1080p, up to level 8 | √ 1080p, up to level 8 | √ 1080p, up to level 8 |
| Audio Output | √ | √ | √ | √ | √ | √ |
| Sensor Access | √ | √ | √ | √ | √ | √ |
| Remote Power Control | Need Connect Multifunction Card | Need Connect Multifunction Card | Need Connect Multifunction Card | Need Connect Multifunction Card | Need Connect Multifunction Card | Need Connect Multifunction Card |
| Sensor | One aviation plug | One aviation plug | Two aviation plug | Two aviation plug | Two aviation plug | Two aviation plug |
| USB Local Playback | √ USB2.0 | √ USB2.0 | √ USB3.0 | √ USB3.0 | √ USB3.0 | √ USB3.0 |
| LAN | 100 Mbps | 100 Mbps | 1000 Mbps | 1000 Mbps | 1000 Mbps | 1000 Mbps |
| WiFi | 2.4G Switchable AP & STA | 2.4G Switchable AP & STA | 2.4G Switchable AP & STA | 2.4G Switchable AP & STA | 2.4G Switchable AP & STA | 2.4G Switchable AP & STA |
| 4G | Support (Option) | Support (Option) | Support (Option) | Support (Option) | Support (Option) | Support (Option) |
| 5G | X | X | Support (Option) | Support (Option) | Support (Option) | Support (Option) |
| Viplex Handy (Cloud / PC / Mobile) | √ | √ | √ | √ | √ | √ |
| Novastar SDK Agreement | √ | √ | √ | √ | √ | √ |
| Appearance Material | Metal Case | Metal Case | Metal Case | Metal Case | Metal Case | Metal Case |
| Power Port | AC 100–240V | AC 100–240V | AC 100–240V | AC 100–240V | AC 100–240V | AC 100–240V |
| Certification | CE EMC, LVD, RoHS, FCC, FCC ID, IC, RED, UKCA, UL, RCM, PSE, FAC, PSB, KC, MIC, CB, NBTC | CE EMC, LVD, RoHS, FCC, FCC ID, IC, RED, UKCA, UL, RCM, PSE, FAC, PSB, KC, MIC, CB, NBTC | CE EMC, LVD, RoHS, FCC, FCC ID, IC, RED, UKCA, UL, RCM, PSE, FAC, PSB, KC, MIC, CB, NBTC | CQC, SRRC, RoHS, IC, RED, UKCA, UL, RCM, PSE, FAC, PSB, KC, MIC, CB, NBTC | CE EMC, LVD, RoHS, FCC, FCC ID, IC, RED, UKCA, UL, RCM, PSE, FAC, PSB, KC, MIC, CB, NBTC | CE EMC, LVD, RoHS, FCC, FCC ID, IC, RED, UKCA, UL, RCM, PSE, FAC, PSB, KC, MIC, CB, NBTC |
Applications
- Fixed LED billboards
- Lamp-post LED displays
- Indoor/outdoor advertising
- Retail store and chain store displays
- Shelf and door head displays
- Conference and exhibition screens
Description
Novastar TB2 Playbox is upgraded to TB20 plus
