Description

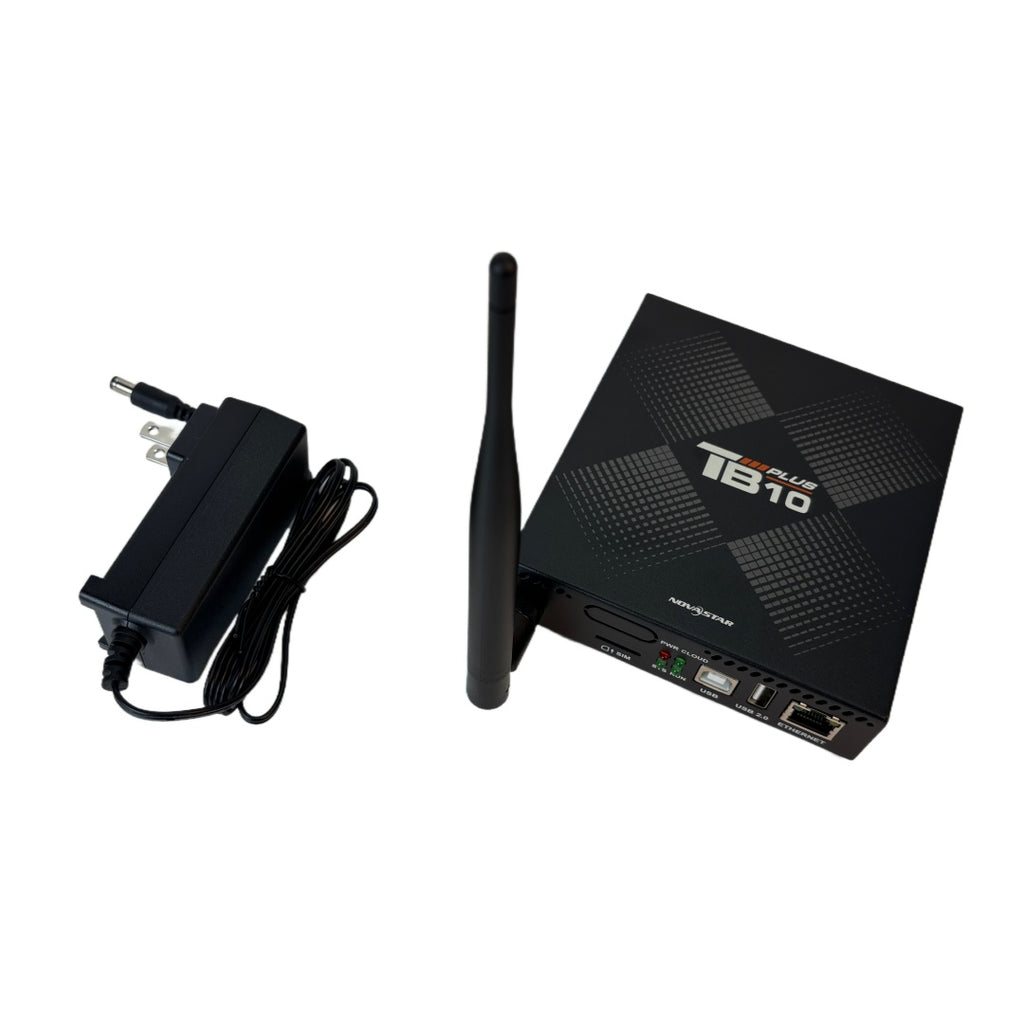

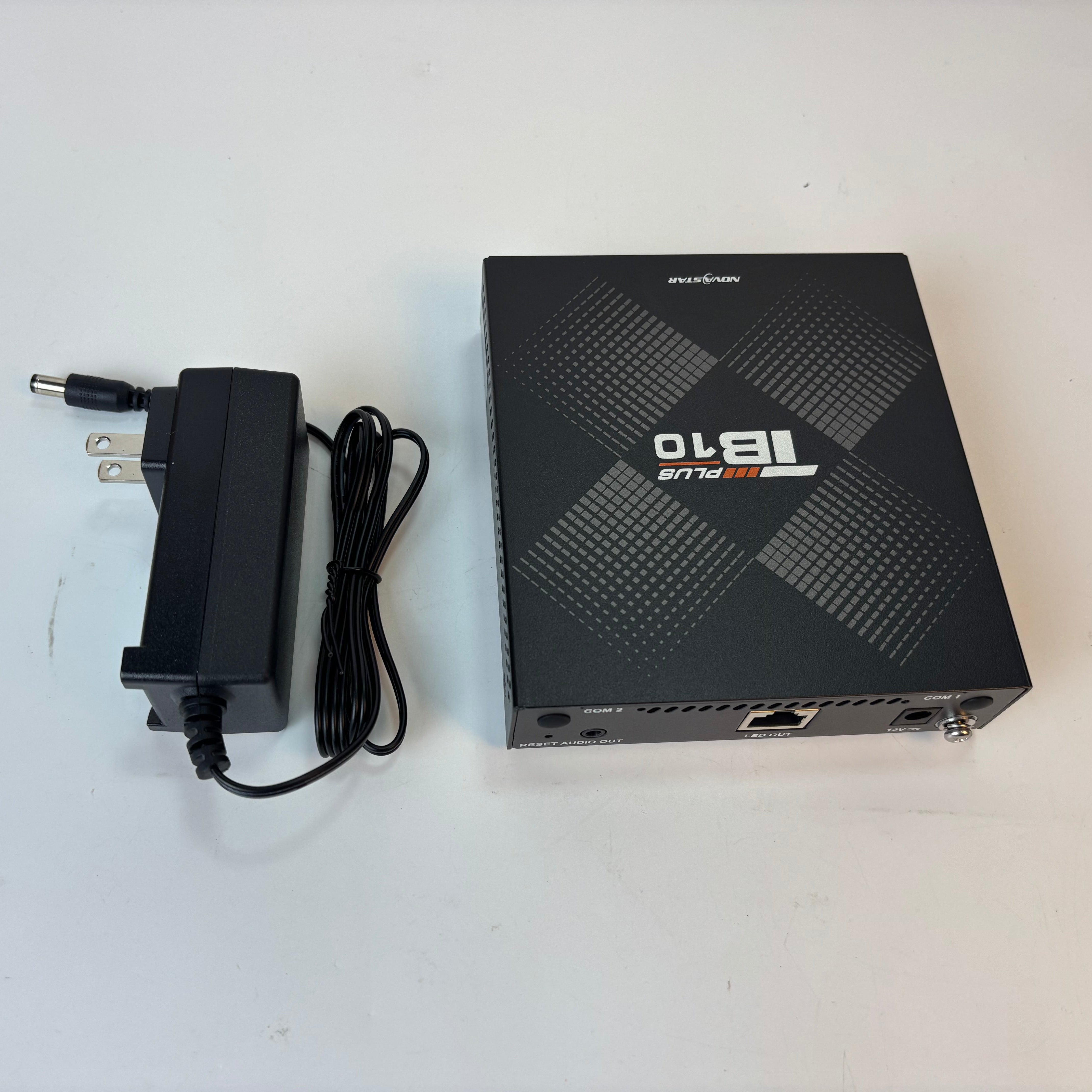

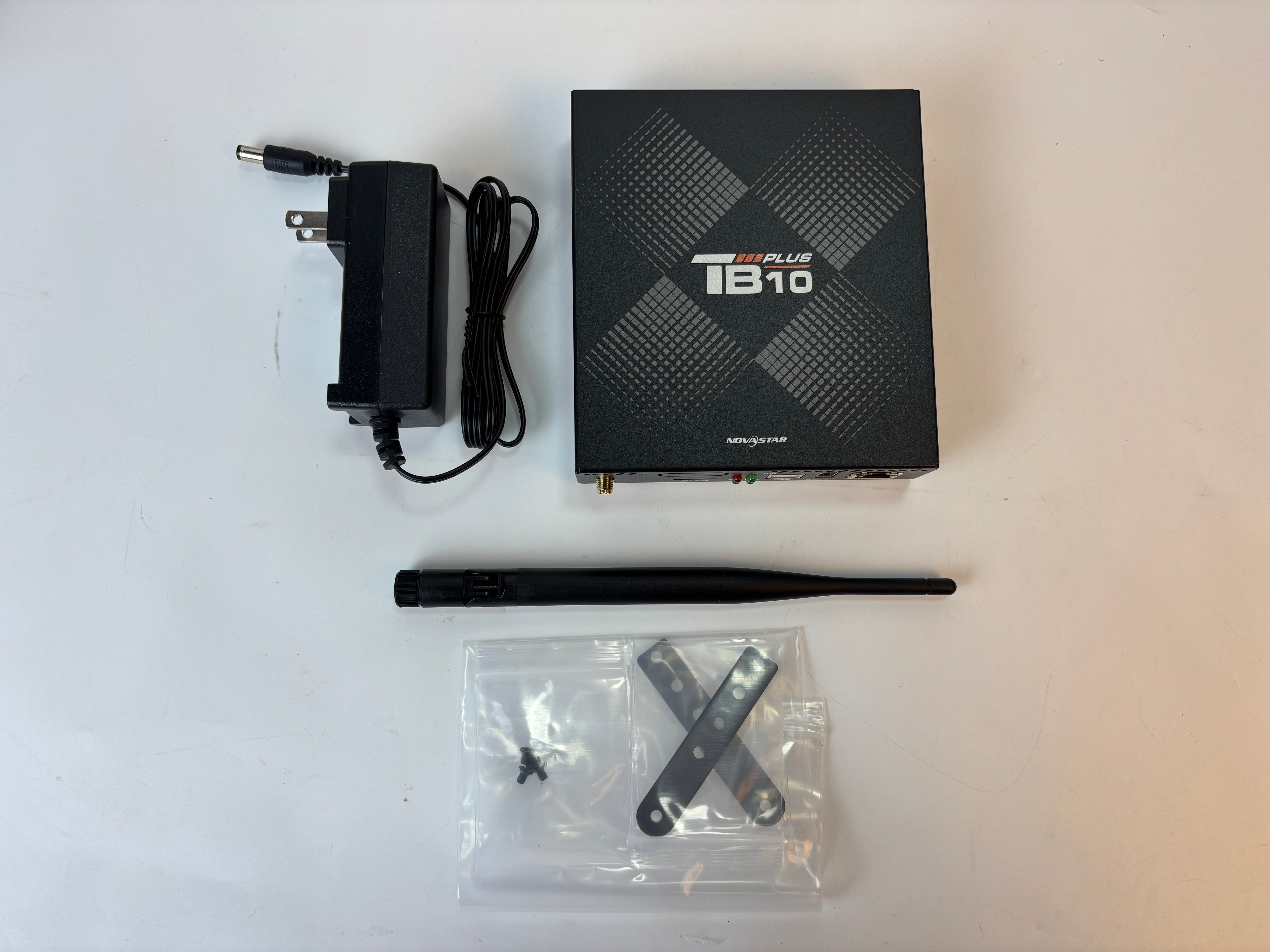

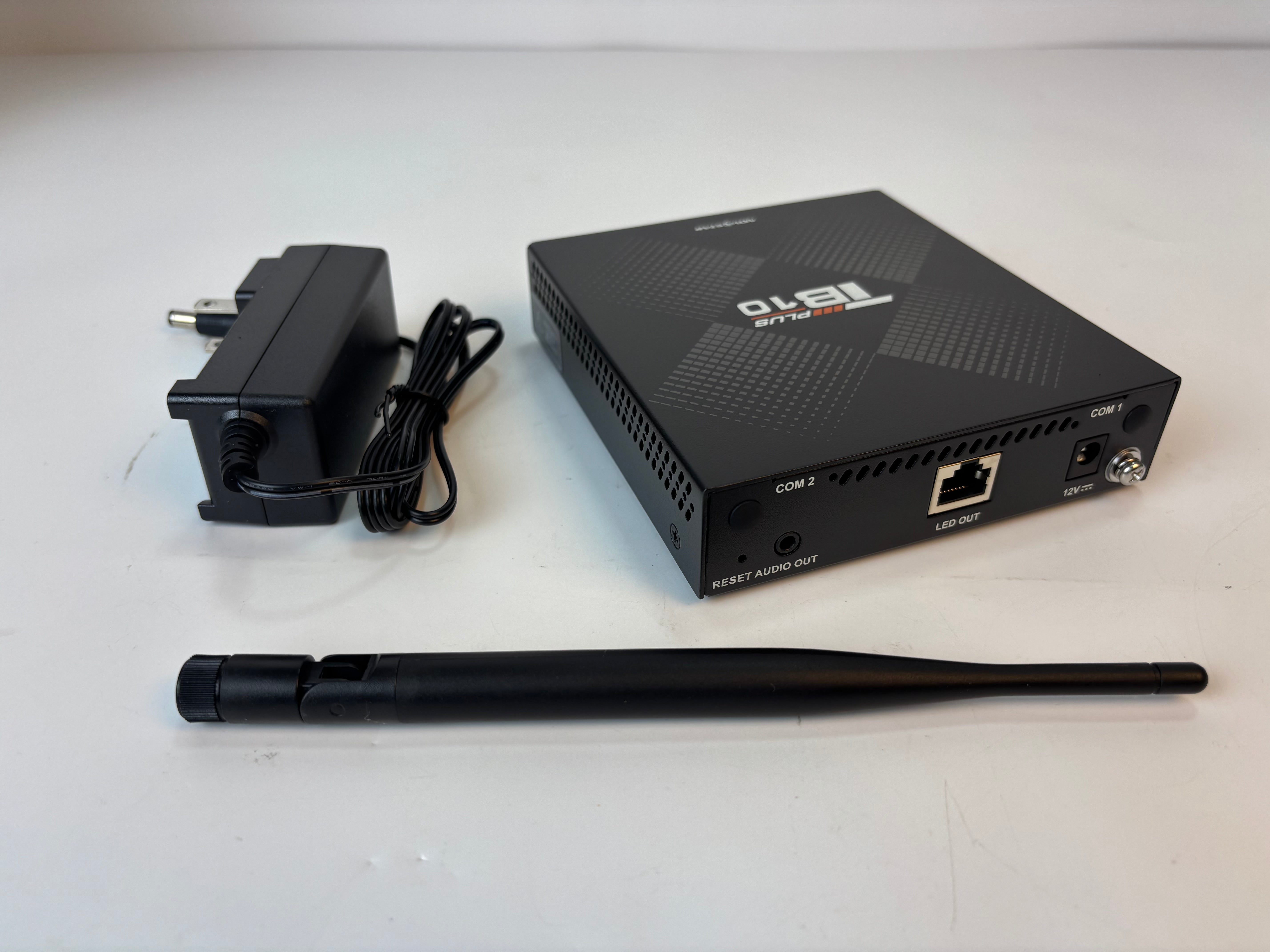

Novastar TB10 Plus Taurus Multimedia Player w/ 0.65 Million Pixel Loading Capacity

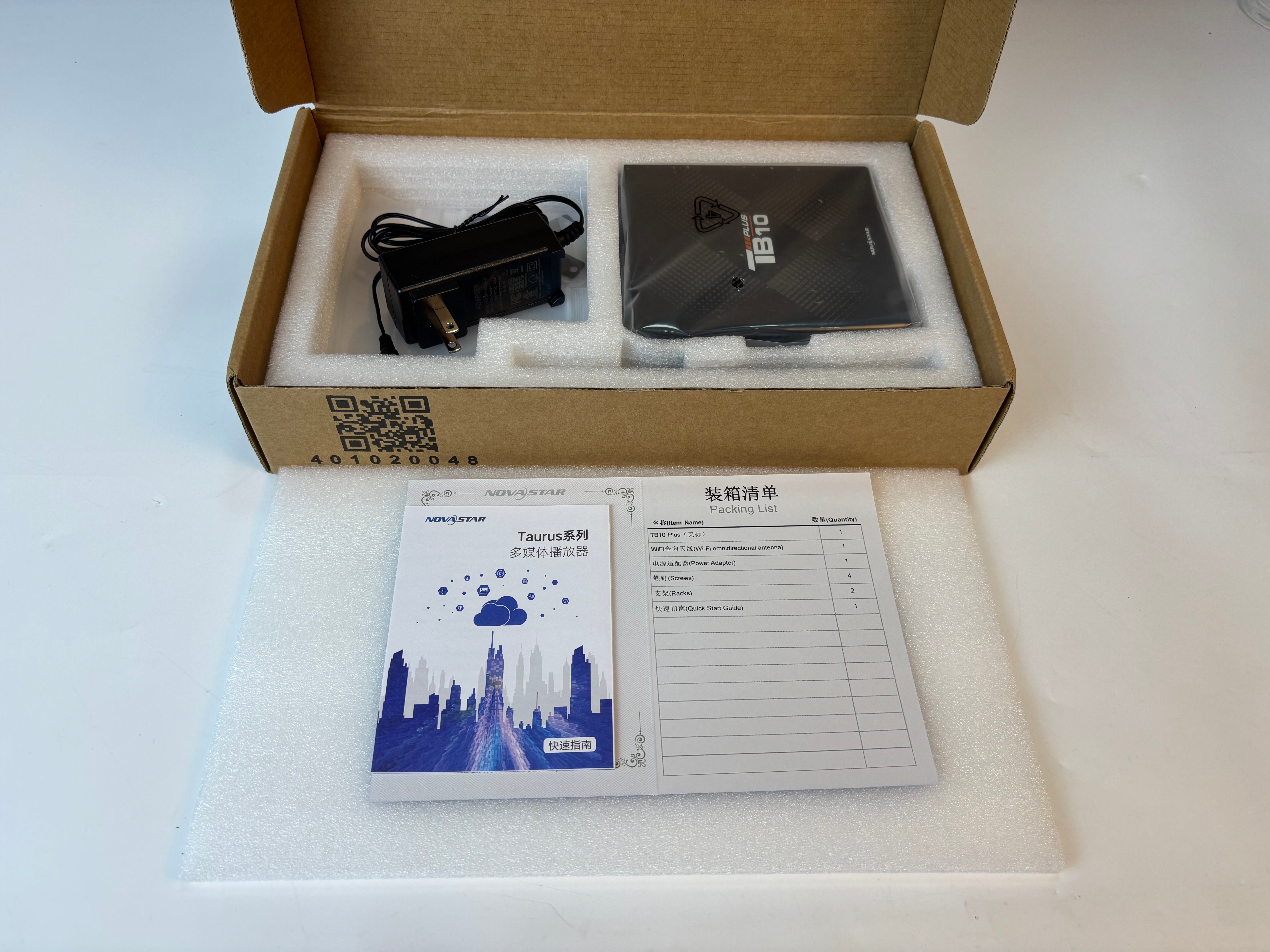

Package Included
| Version | Package Included |
| TB10 Plus | TB10 Plus multimedia player |
About this item
- High-performance LED screen controller supporting USB 2.0 input and Gigabit Ethernet output
- Compatible with multiple LED module pixel pitches, up to 2048 × 2048 resolution (8192 × 2048 for ultra-long screens)
- NovaStar features such as cloud-based publishing, remote monitoring, and secure playback verification for enhanced stability
- Supports USB playback, firmware upgrades, LAN connection, and optional 4G connectivity for flexible installation
- 2.4G WiFi with AP & STA modes for flexible network access
- Compact design with metal case for long-term reliability
- Ideal for fixed LED billboards, retail store displays, lamppost screens, chain store displays, advertisement players, and shelf displays
Order & Logistics
- Lead Time: Typically ships within 2–5 business days
- Packing: Cardboard box
- Shipping: Ships from local warehouses (3–7 days) if available, or from headquarters (7–25 days standard / 3–10 days express)
Key Specifications

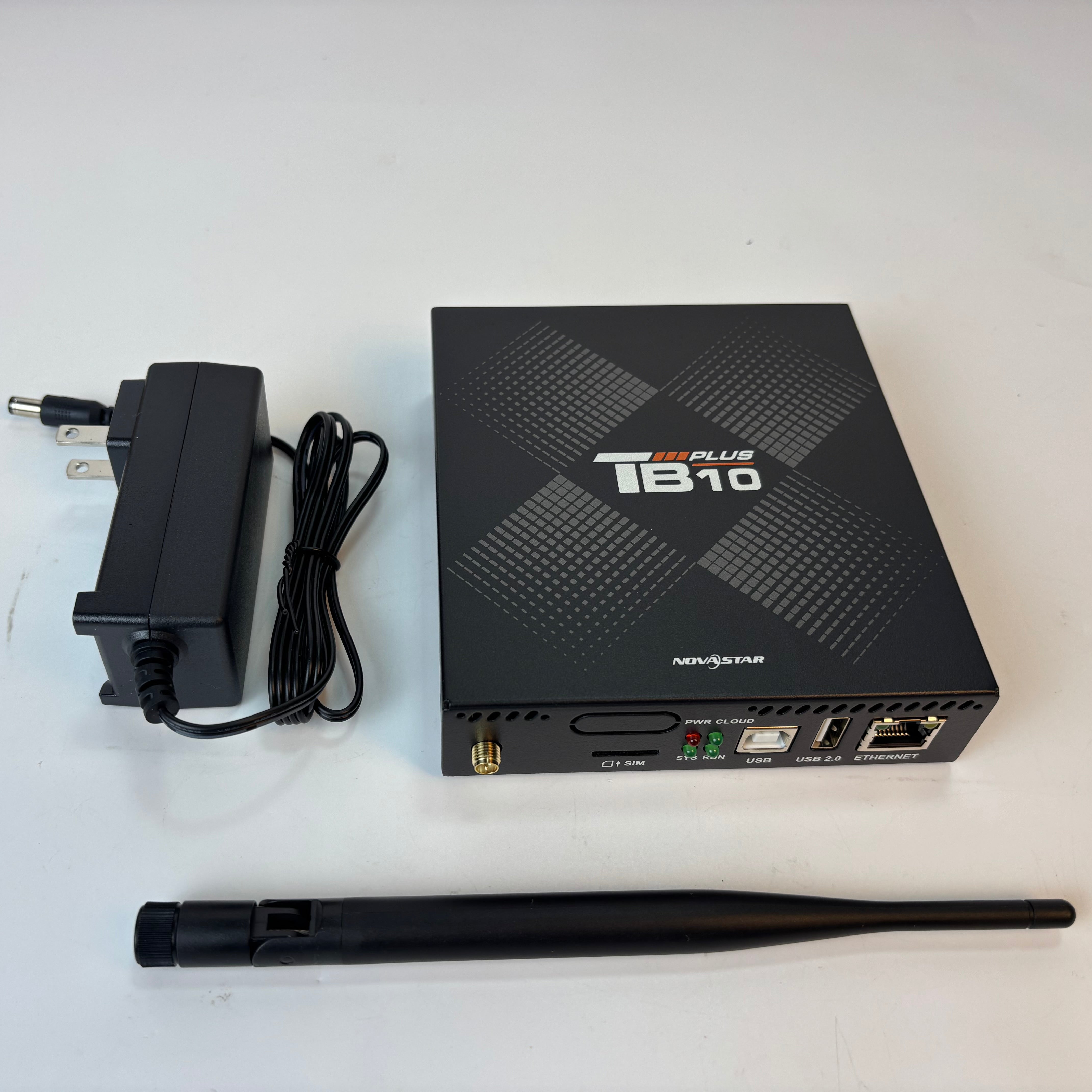

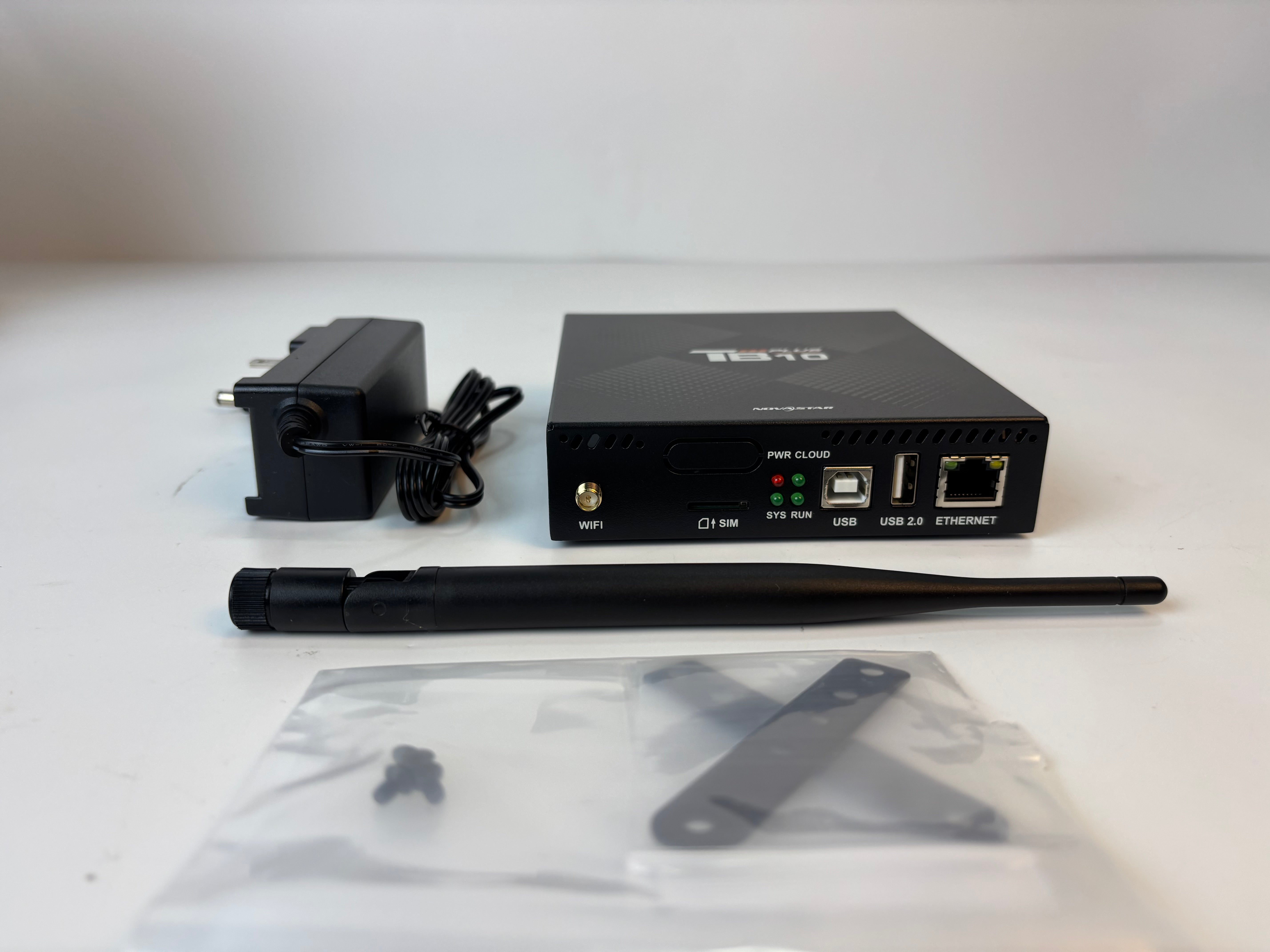

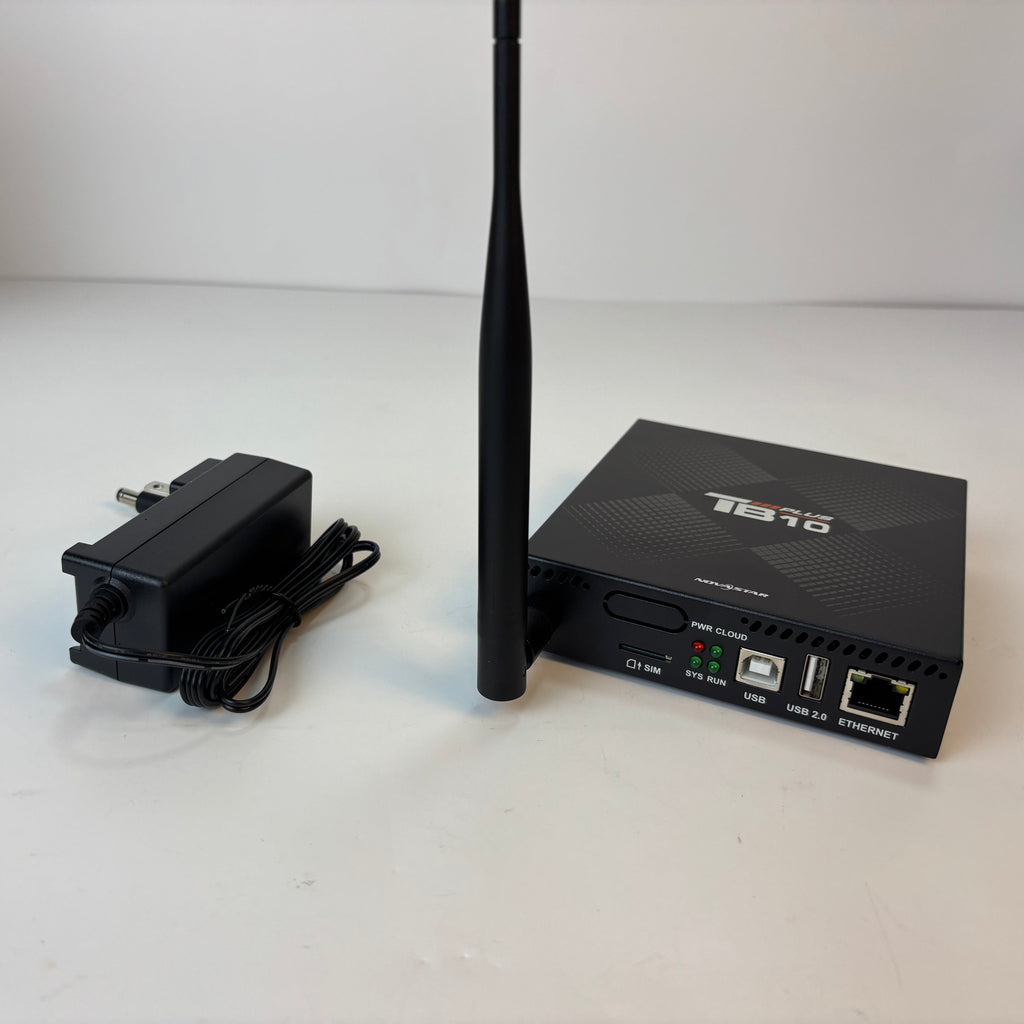

- Input Ports: 1 × USB 2.0 (Type A), 1 × USB (Type B)

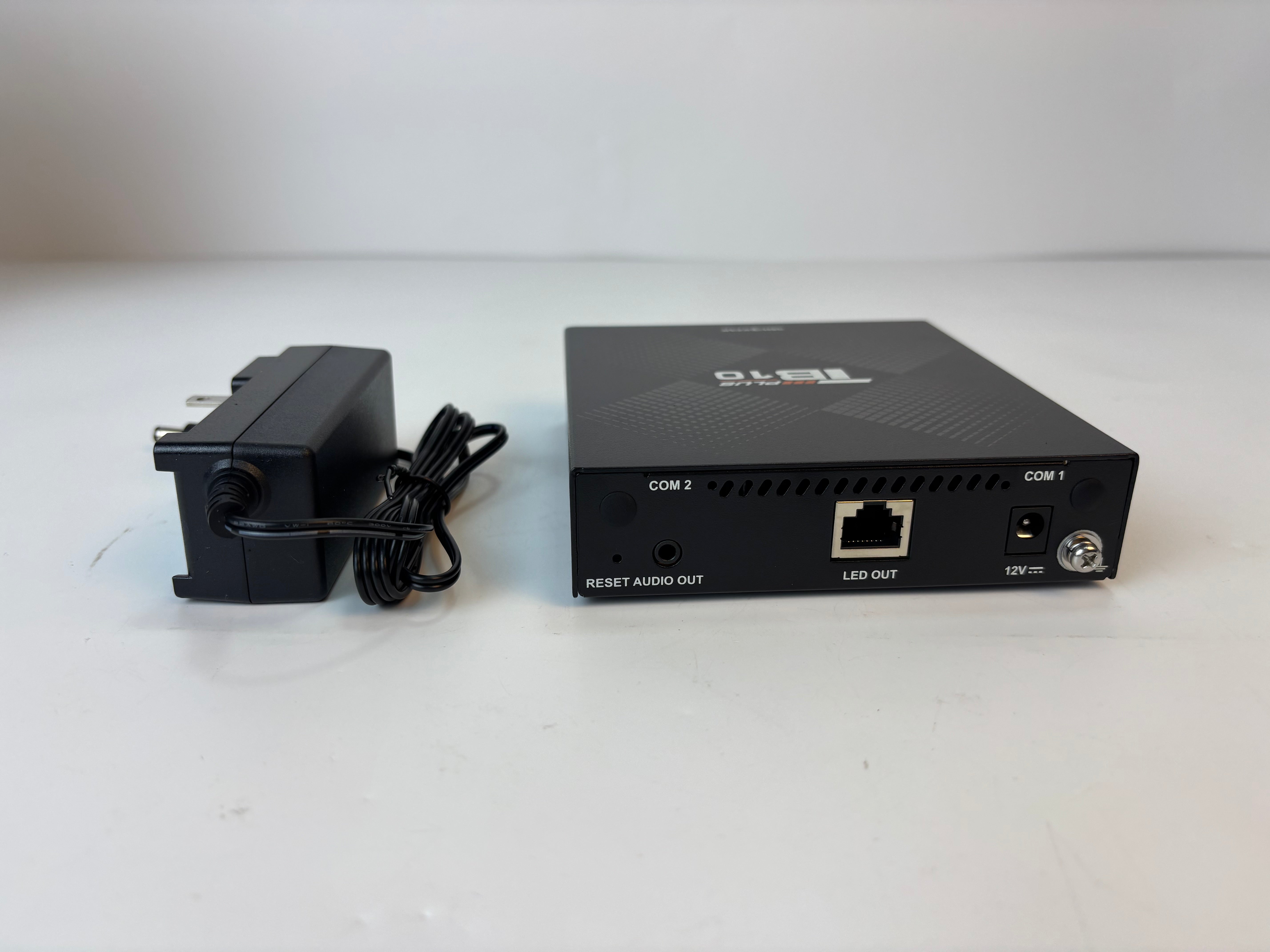

- Output Ports: 1 × Gigabit Ethernet, 1 × stereo audio output
- Supported Resolutions: Up to 2048 × 2048 (8192 × 2048 for ultra-long screens)
- Control Method: USB / Network / WiFi / Cloud
- Power Supply: AC 100–240V
- Operating Temperature: Not specified in listing
- Audio Output: Stereo, 48kHz sample rate
- LAN: 100 Mbps
- Mobile Connectivity: 4G optional, 5G not supported
Usage Notes / Installation Tips
- Always power off before connecting/disconnecting signal cables
- Use shielded network cables for stable data transmission
- Ensure adequate ventilation for prolonged operation
Technical Specifications
| Model | TB10 Plus | TB20 Plus | TB30 | TB40 | TB50 | TB60 |
| CPU | 4 Core A35 Processor/1.4GHz | 4 Core A35 Processor/1.4GHz | 4 Core A55 Processor/1.8GHz | 4 Core A55 Processor/1.8GHz | 4 Core A55 Processor/1.8GHz | 4 Core A55 Processor/1.8GHz |
| Storage | 2GB+32GB | 2GB+32GB | 1GB+32GB | 1GB+32GB | 1GB+32GB | 1GB+32GB |
| Decode Ability | 4K 60fps | 4K 60fps | 4K 60fps | 4K 60fps | 4K 60fps | 4K 60fps |
| Operation system | Android 10 | Android 10 | Android 11 | Android 11 | Android 11 | Android 11 |
| Max Capacity | 0.65 million pixels | 0.65 million pixels | 0.65 million pixels | 1.3 million pixels | 1.3 million pixels | 2.3 million pixels |
| Max Width/Max High | 2048 (Max Width),2048(Max High)；For stretched screen, 8192 (Max Width), 2084 (Max High) | 2048 (Max Width),2048(Max High)；For stretched screen, 8192 (Max Width), 2084 (Max High) | 4096(Max Width),4096(Max High) | 4096(Max Width),4096(Max High) | 4096(Max Width),4096(Max High) | 4096(Max Width),4096(Max High) |
| Number of video windows |
1x4K/3x1080P/ 8x720P/16x480P/ 20x360P |
1x4K/3x1080P/ 8x720P/16x480P/ 20x360P |
1x4K/2x1080P/ 4x720P/4x480P/ 6x360P |
1x4K/2x1080P/ 4x720P/4x480P/ 6x360P |
1x4K/2x1080P/ 4x720P/4x480P/ 6x360P |
1x4K/2x1080P/ 4x720P/4x480P/ 6x360P |
| LED Output port RJ45 | 1 Main 1 Backup | 1 Main 1 Backup | 1 Main 1 Backup | 2 Main | 2 Main | 4 Main |
| Sync Mode | NTP,GPS | NTP,GPS | NTP,GPS | NTP,GPS | NTP,GPS | NTP,GPS |
| Dual Mode Switch | X | √ | X | √ | √ | √ |
| HDMI splicing playback | X | X | X | √ 1080p, up to level 8 | √ 1080p, up to level 8 | √ 1080p, up to level 8 |
| Audio output | √ | √ | √ | √ | √ | √ |
| Sensor access | √ | √ | √ | √ | √ | √ |
| Remotely Control Power | Need Connect Multifunction Card | Need Connect Multifunction Card | Need Connect Multifunction Card | Need Connect Multifunction Card | Need Connect Multifunction Card | Need Connect Multifunction Card |
| Sensor | One aviation plug | One aviation plug | Two aviation plug | Two aviation plug | Two aviation plug | Two aviation plug |
| USB local playback | √ USB2.0 | √ USB2.0 | √ USB3.0 | √ USB3.0 | √ USB3.0 | √ USB3.0 |
| LAN | 100 Mbps | 100 Mbps | 1000 Mbps | 1000 Mbps | 1000 Mbps | 1000 Mbps |
| WiFi | 2.4G Switchable AP&STA | 2.4G Switchable AP&STA | 2.4G Switchable AP&STA | 2.4G Switchable AP&STA | 2.4G Switchable AP&STA | 2.4G Switchable AP&STA |
| 4G | Support(Option) | Support(Option) | Support(Option) | Support(Option) | Support(Option) | Support(Option) |
| 5G | X | X | Support(Option) | Support(Option) | Support(Option) | Support(Option) |
| Viplex Handy (Cloud/PC/Mobile Phone) | √ | √ | √ | √ | √ | √ |
| Novastar SDK Agreement | √ | √ | √ | √ | √ | √ |
| Appearance Material | Metal Case | Metal Case | Metal Case | Metal Case | Metal Case | Metal Case |
| Power Port | AC 100~240V | AC 100~240V | AC 100~240V | AC 100~240V | AC 100~240V | AC 100~240V |
| Certification | CE EMC、LVD、ROHS、FCC、FCC ID、 IC、RED、UKCA、UL、RCM、PSE、 FAC、PSB、KC、MIC、CB、NBTC |
CE EMC、LVD、ROHS、FCC、FCC ID、 IC、RED、UKCA、UL、RCM、PSE、 FAC、PSB、KC、MIC、CB、NBTC |
CE EMC、LVD、ROHS、FCC、FCC ID、 IC、RED、UKCA、UL、RCM、PSE、 FAC、PSB、KC、MIC、CB、NBTC |
CQC、SRRC、RoHS | CE EMC、LVD、ROHS、FCC、FCC ID、 IC、RED、UKCA、UL、RCM、PSE、 FAC、PSB、KC、MIC、CB、NBTC |
CE EMC、LVD、ROHS、FCC、FCC ID、 IC、RED、UKCA、UL、RCM、PSE、 FAC、PSB、KC、MIC、CB、NBTC |
Applications
- Fixed LED billboards
- Rental stage LED screens
- Indoor/outdoor advertising
- Conference / exhibition displays
- Lamppost LED displays
- Chain store and retail shelf displays
- Door head and advertisement player screens
