Description

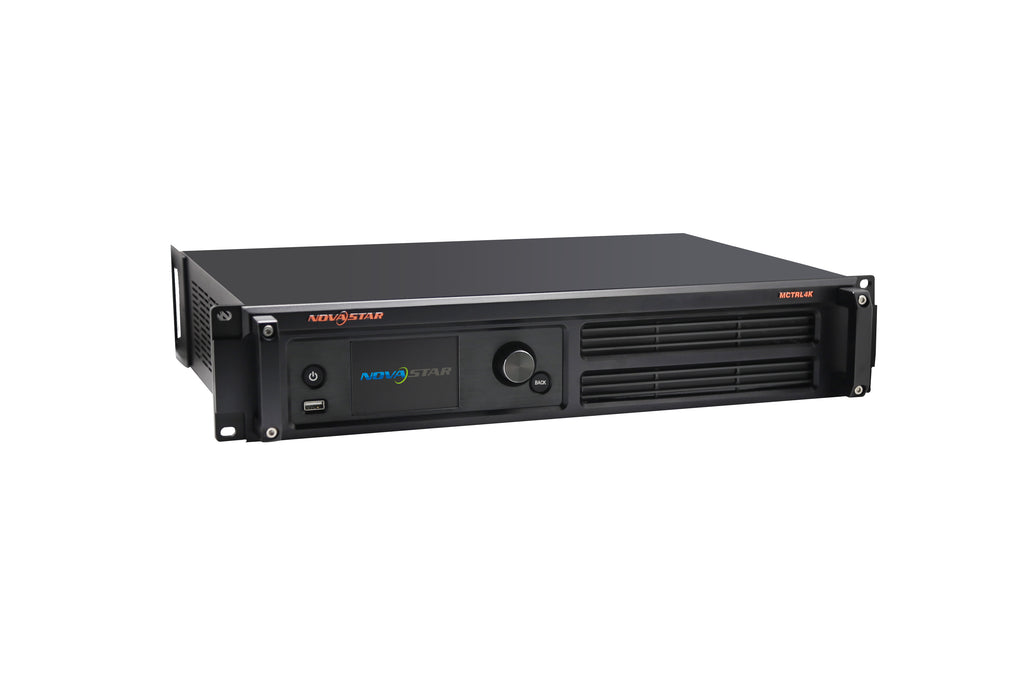

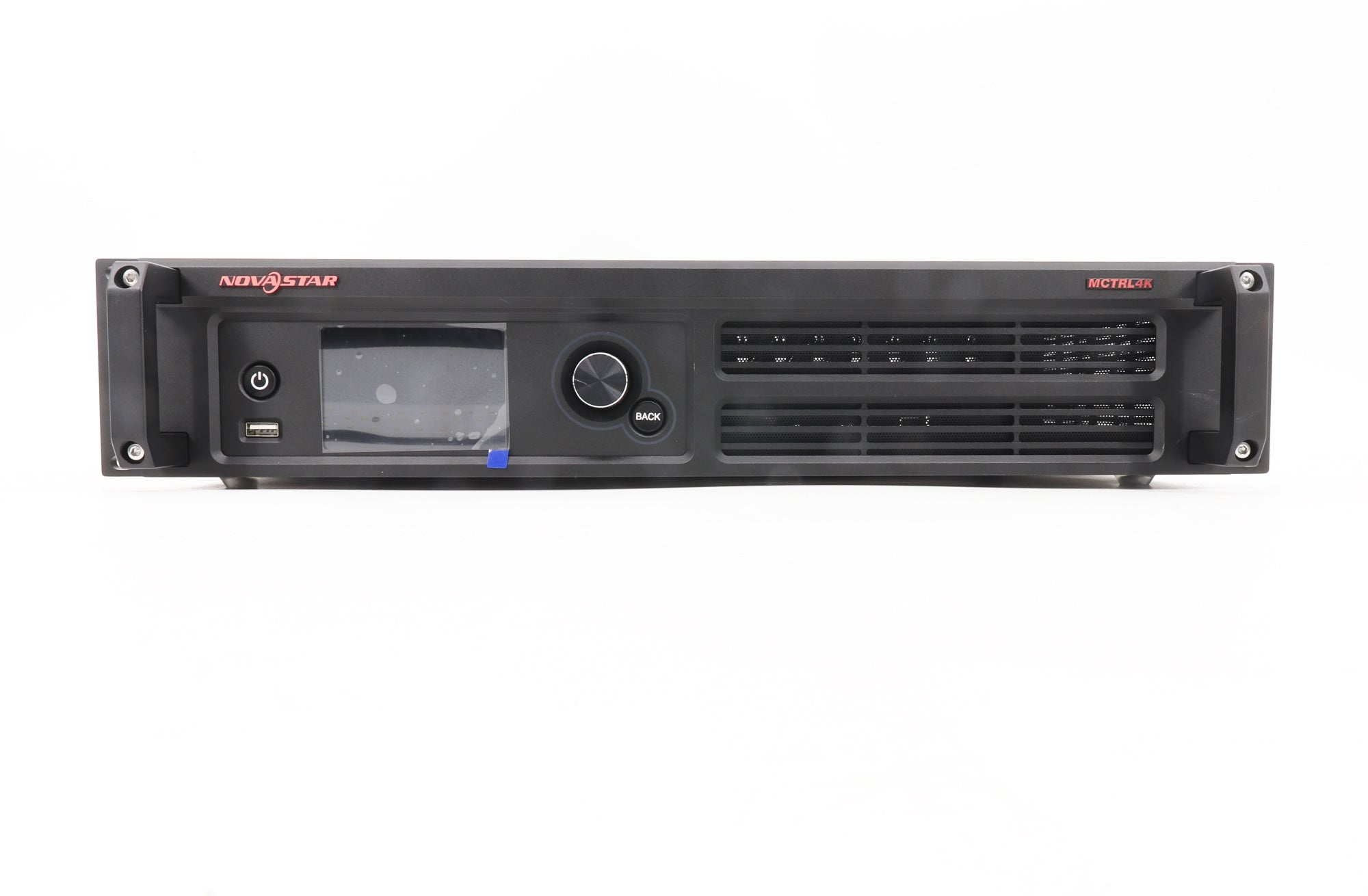

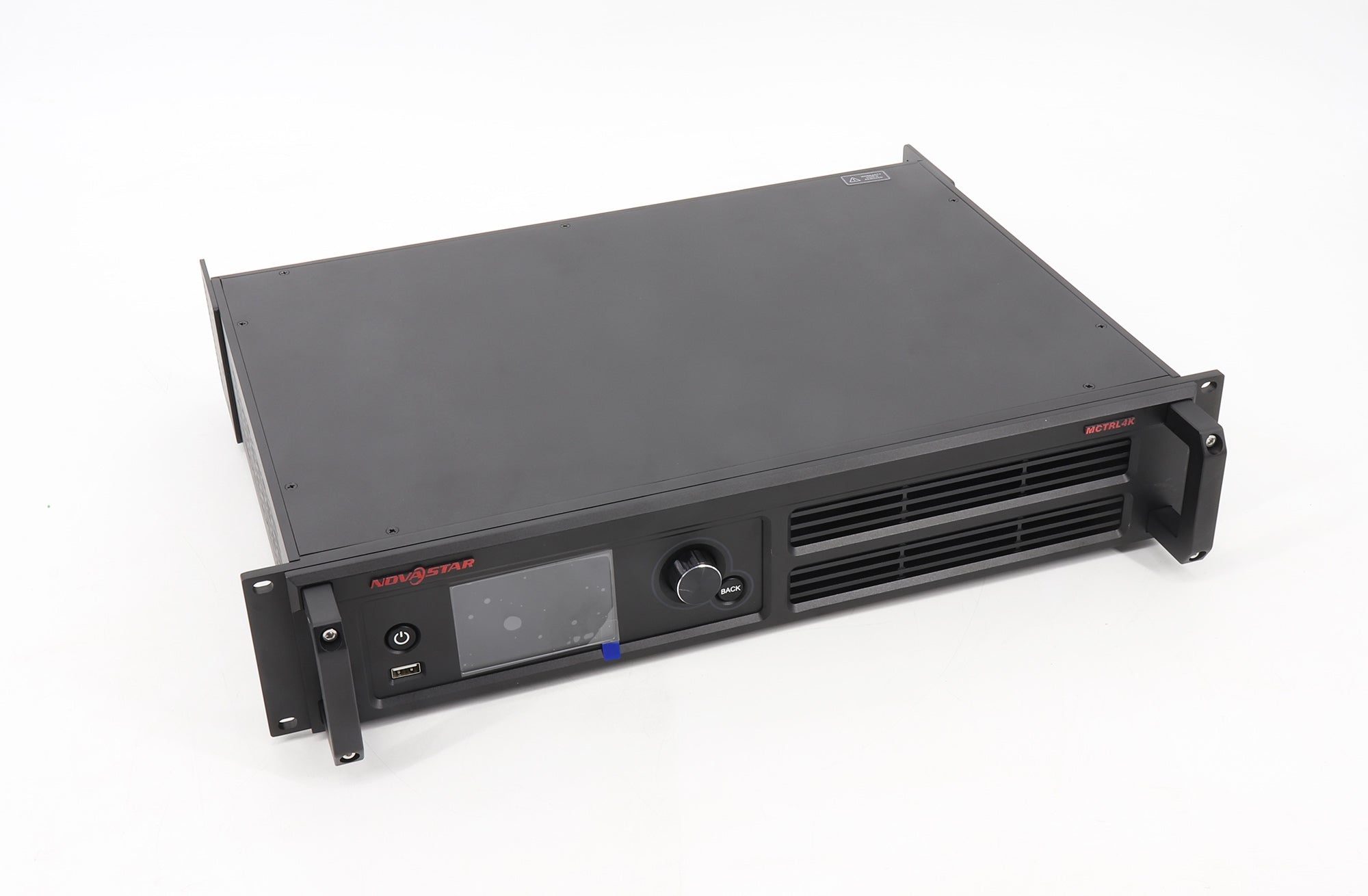

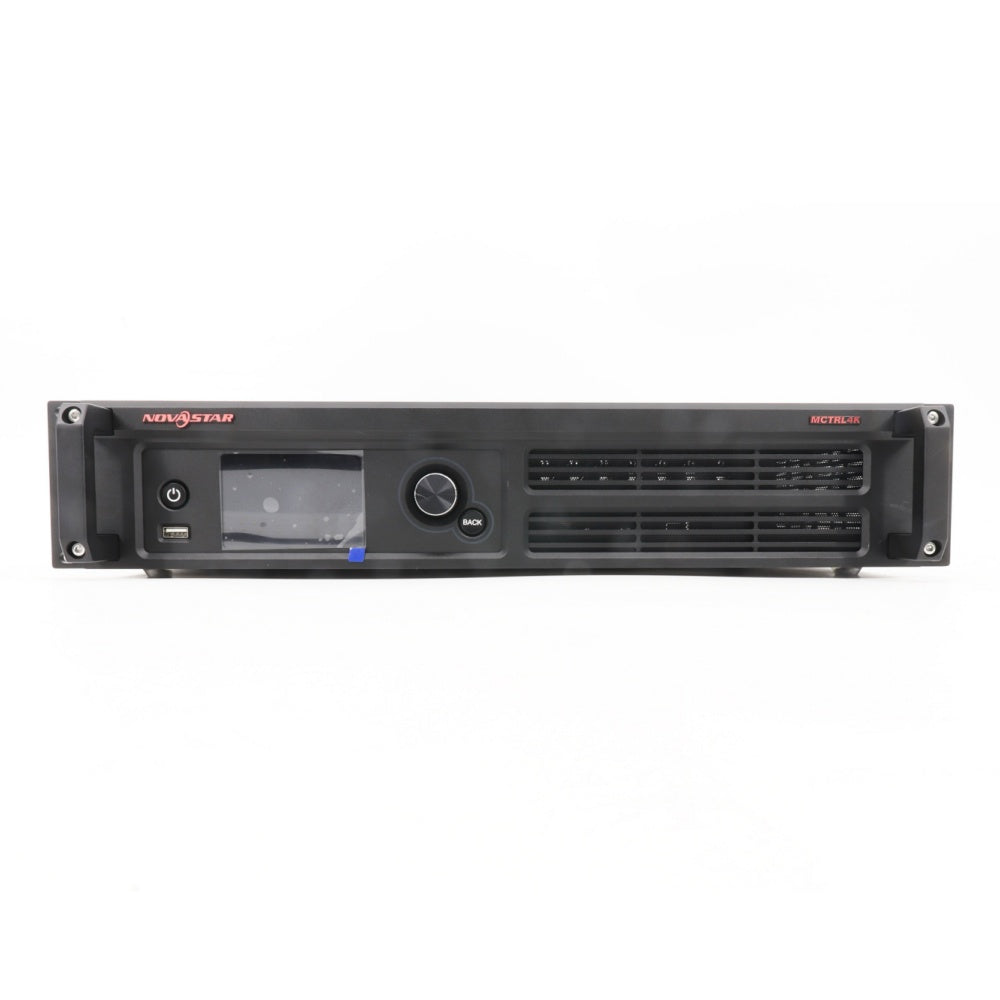

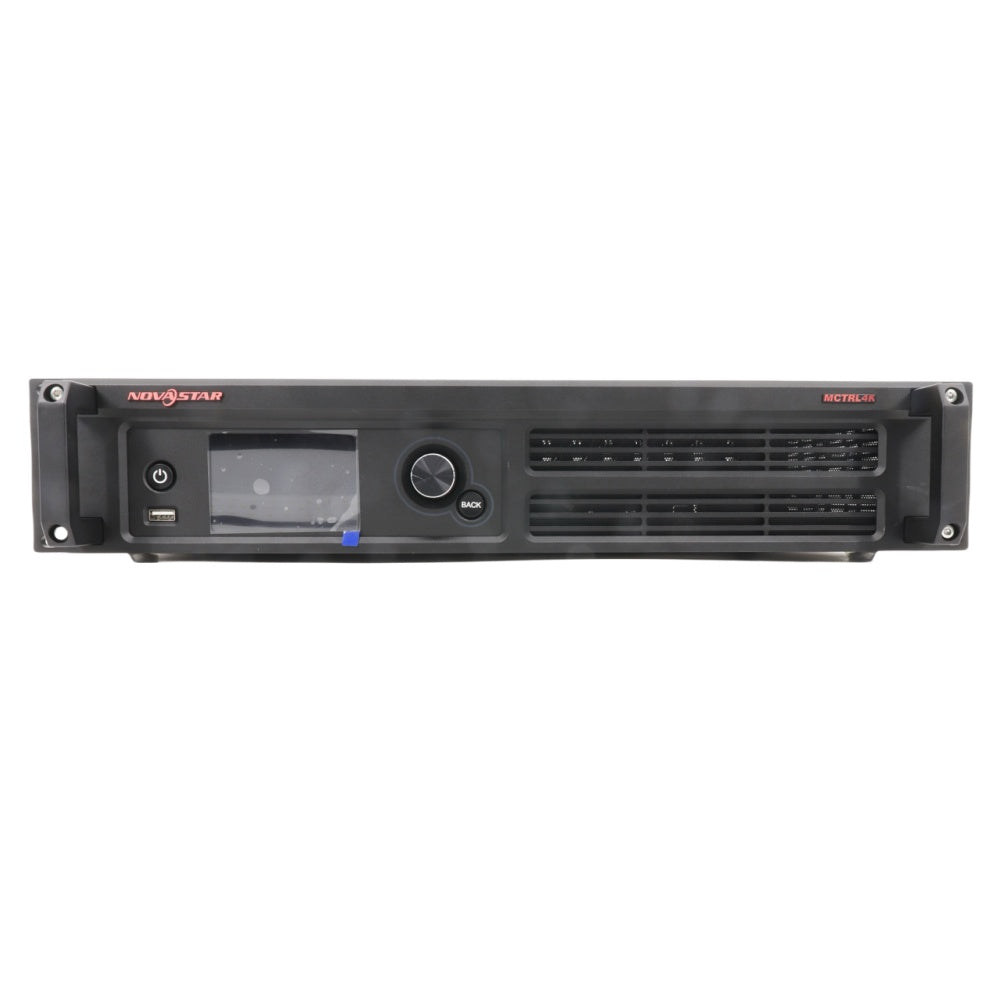

NovaStar MCTRL4K REAL High Definition 4K LED Display Controller 4K×2K Resolution 8.3 Million Loading Capacity

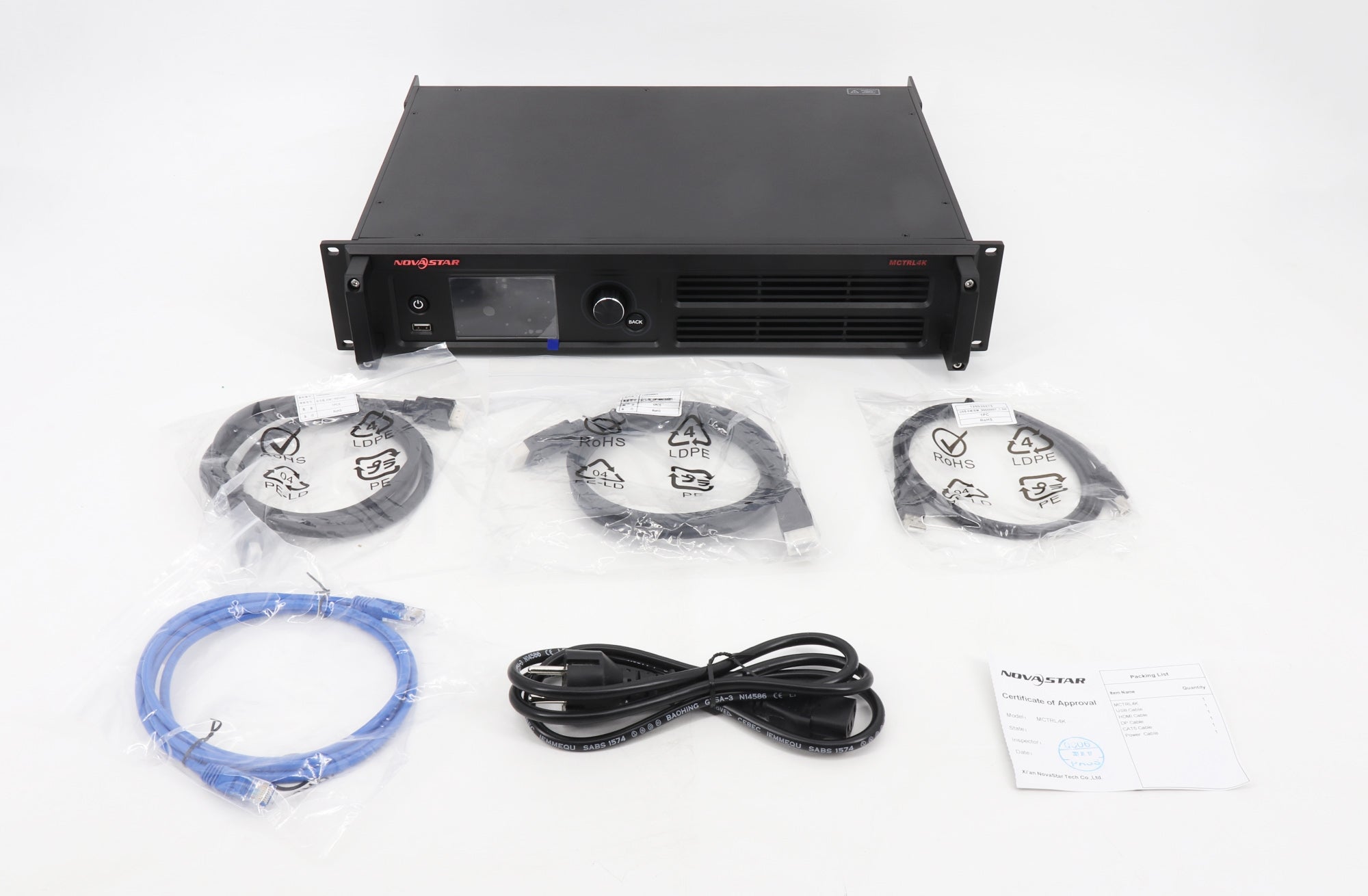

Package Included
| Version | Package Included |
| MCTRL4K | MCTRL4K LED display controller |
About this item
- DP 1.2 / HDMI 2.0 / D-DVI inputs, Gigabit Ethernet & 10G optical outputs
- Supports up to 4096×2160@60Hz, custom width/height up to 7680 pixels
- HDR10/HLG, 10/12-bit RGB Gamma, 3D mode, dual-source multi-card
- Compact design with efficient cooling for stable long-term use
- Ideal for fixed, rental, event, and large-scale LED displays
Order & Logistics
- Lead Time: Typically ships within 2–5 business days
- Packing: Cardboard box
- Shipping: Ships from local warehouses (3–7 days) if available, or from headquarters (7–25 days standard / 3–10 days express)
Key Specifications

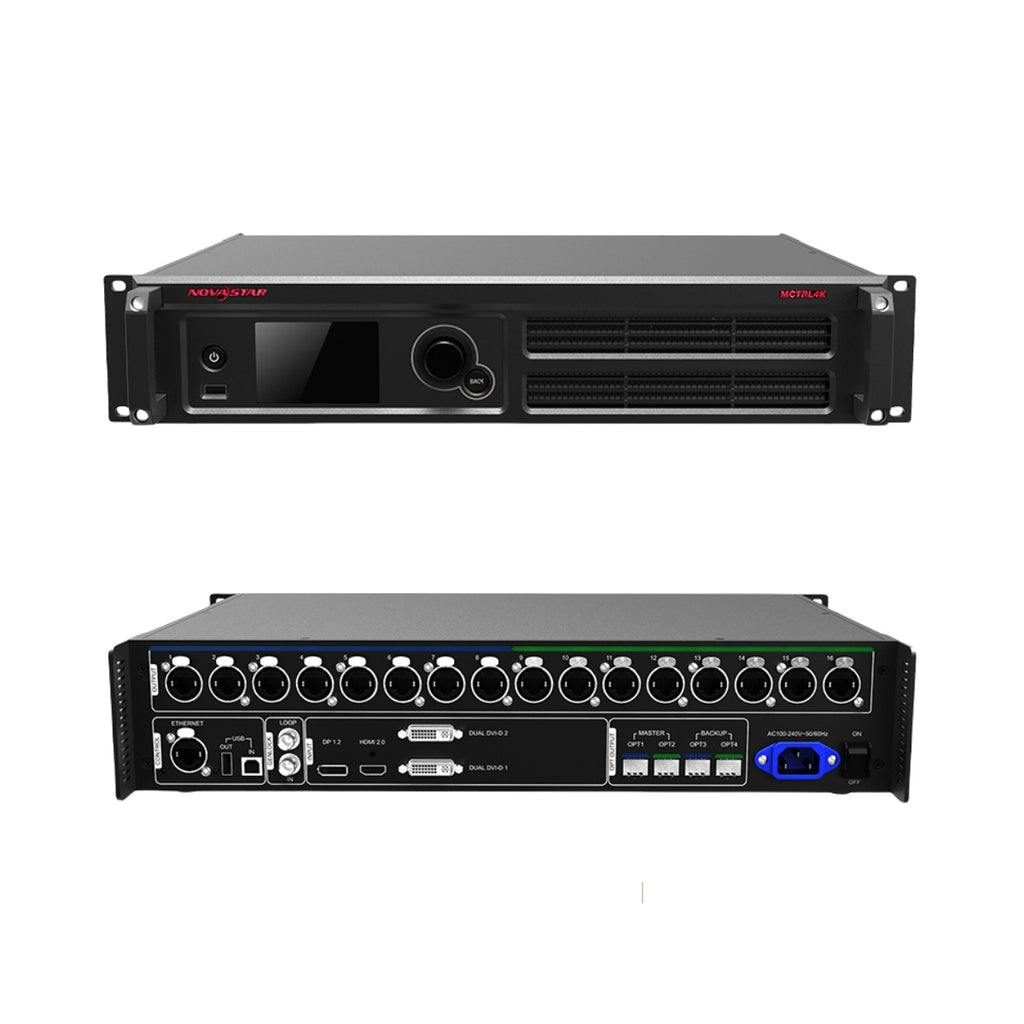

| Input Ports | 1 × DP 1.2 (up to 8.8M pixels), 1 × HDMI 2.0 (up to 8.8M pixels), 2 × D-DVI (up to 8.3M pixels total) |

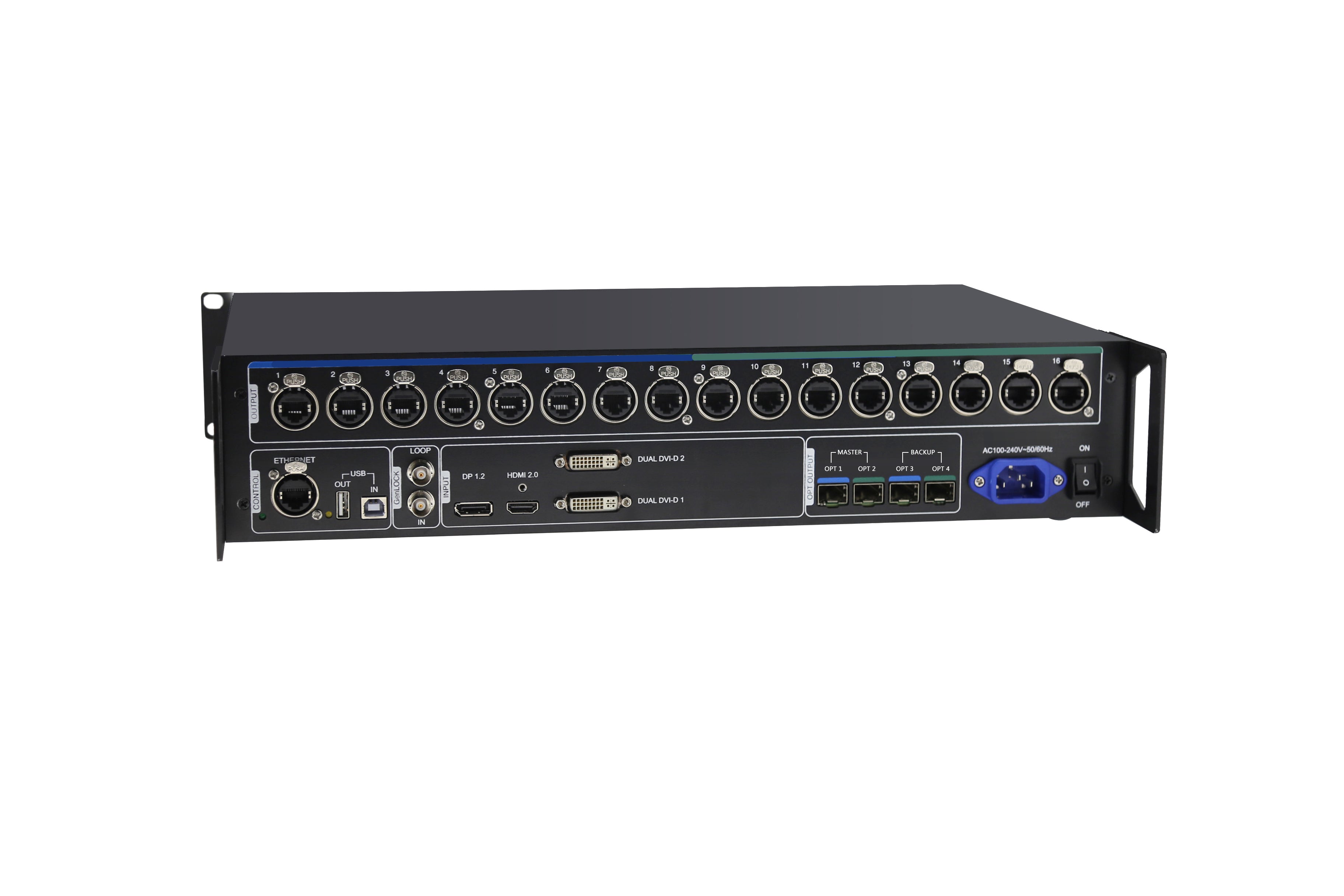

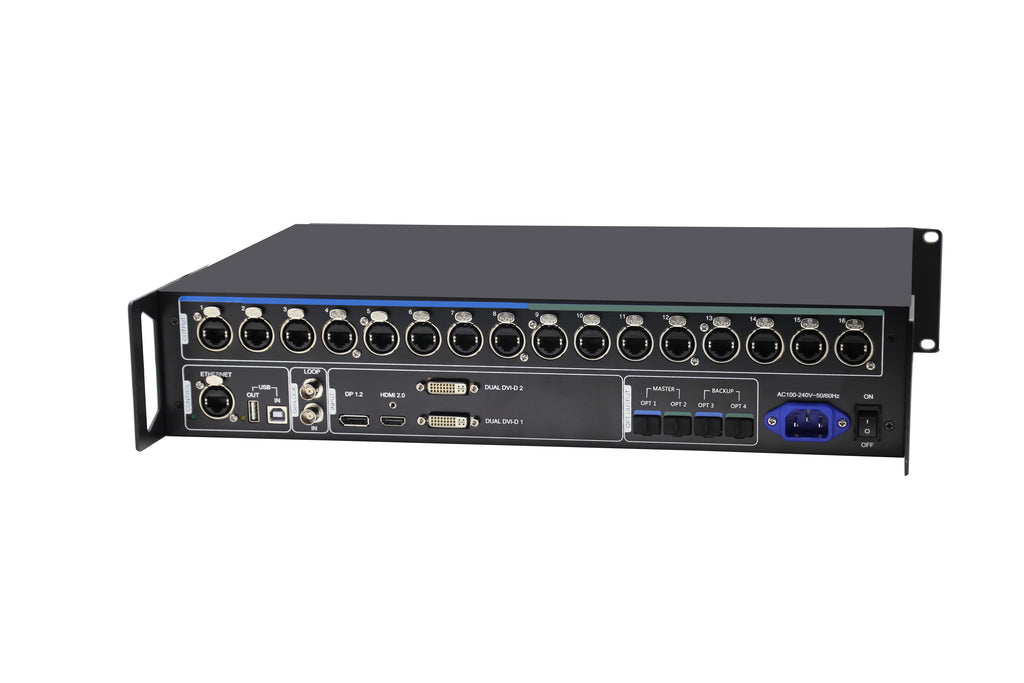

| Output Ports | 16 × Neutrik Gigabit Ethernet, 4 × 10G optical |
| Supported Resolutions | Up to 4096×2160@60Hz; max width/height 7680 pixels |
| Control Method | USB, Web interface, cascade via Ethernet/optical |
| Power Supply | AC 100–240V |
| Operating Temperature | -20°C to +60°C |
Usage Notes / Installation Tips
- Always power off before connecting/disconnecting signal cables
- Use shielded network cables for stable data transmission
- Ensure adequate ventilation for prolonged operation
Technical Specifications
| Supported video bit depths | 8-bit, 10-bit, 12-bit |
| Low latency | < 1 ms (image start position = 0) |
| NVIDIA ultra-high resolution | Supports NVIDIA ultra-high resolution settings |
| Frame rate compatibility | Adaptive to 23.98 / 29.97 / 47.95 / 59.94 / 71.93 / 119.88 Hz |
| Calibration | Supports NovaStar pixel-level calibration technology |
| DVI modes | Supports mosaic and multi-card modes for dual-link DVI inputs |
| Configuration | Screen configuration via Web interface; multiple units can be cascaded |
Applications
- Fixed LED billboards
- Rental stage LED screens
- Indoor/outdoor advertising
- Conference / exhibition displays
