Description

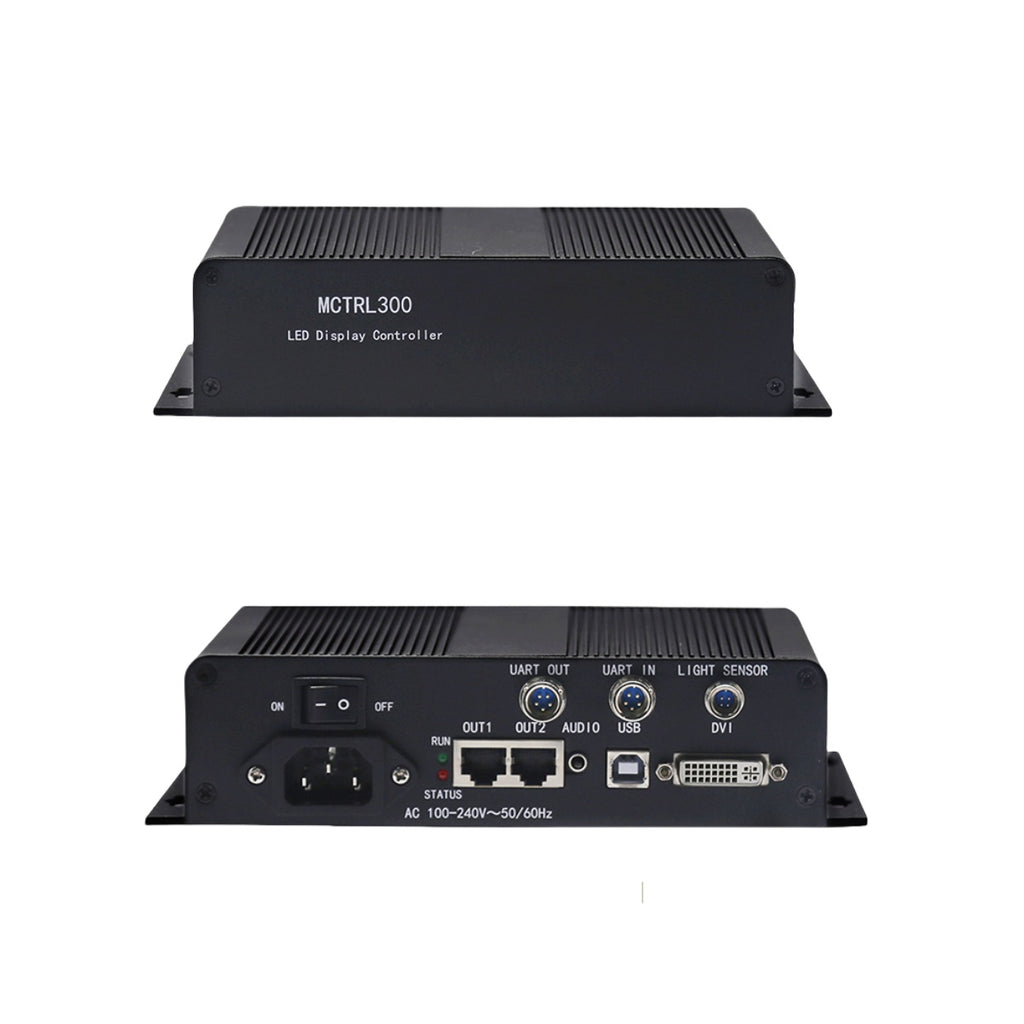

Novastar MCTRL300 Synchronous Independent LED Display Controller – 1× DVI Input, 2× Ethernet Outputs | Up to 1920×1200 Resolution | 1.3 Million Pixel Loading Capacity

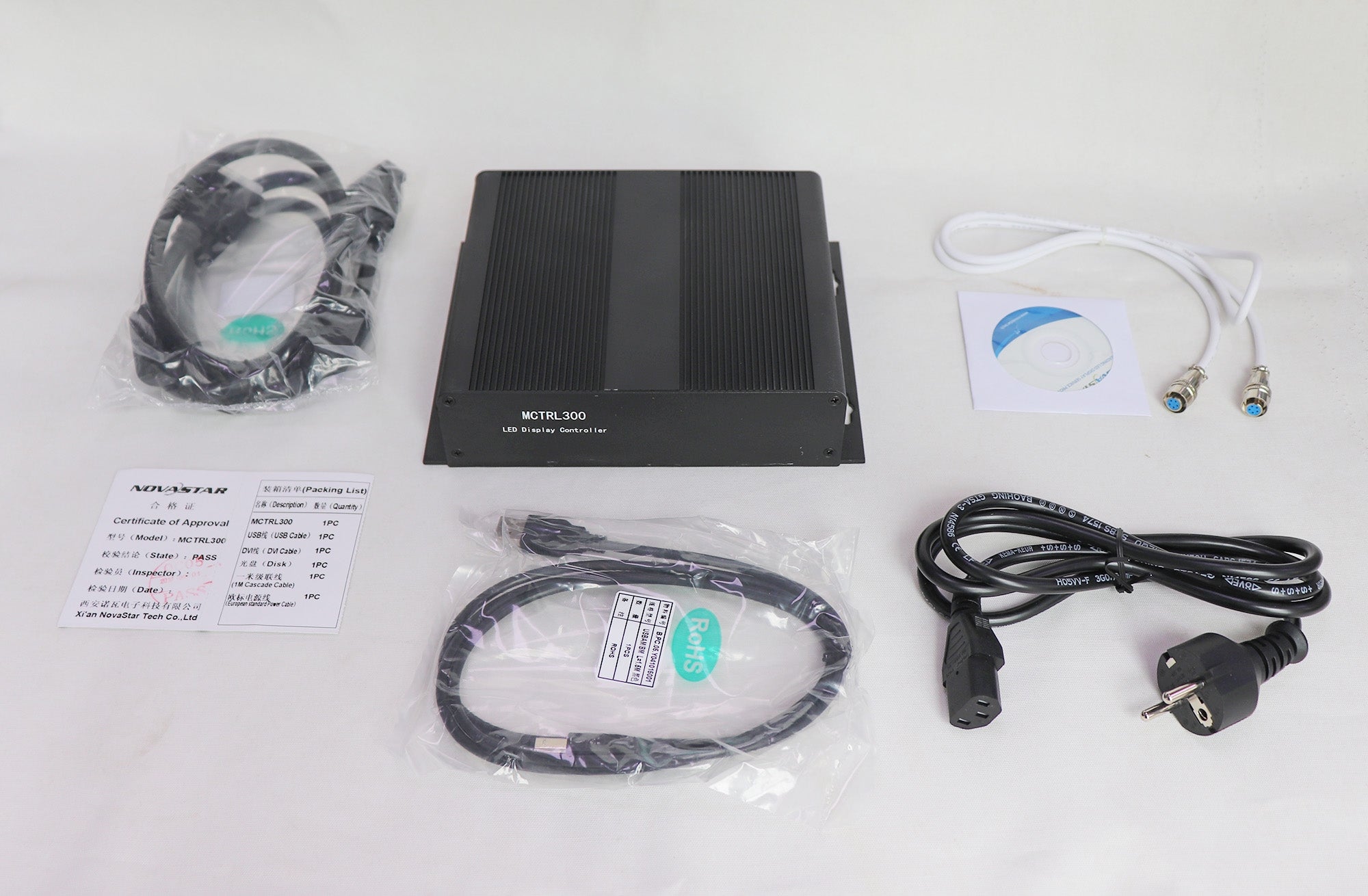

Package Included
| Version | Package Included |
| MCTRL300 | MCTRL300 controller unit |
About this item
- LED controller with 1× DVI input, 1× audio input, and 2× Ethernet outputs, supporting resolutions up to 1920×1200@60Hz
- Pixel-level brightness and chroma calibration with NovaLCT/NovaCLB for consistent image quality
- Includes 1× light sensor connector, 1× type-B USB port, and 2× UART cascade ports (up to 20 devices)
- Compact design with efficient cooling, ideal for rental and fixed LED display installations
- Certified EAC, CE, FCC, IC, PFOS, CB for compliance in multiple markets
Order & Logistics
- Lead Time: Typically ships within 2–5 business days
- Packing: Cardboard box
- Shipping: Ships from local warehouses (3–7 days) if available, or from headquarters (7–25 days standard / 3–10 days express)
Key Specifications
- Input Ports: 1× DVI, 1× Audio
- Output Ports: 2× Gigabit Ethernet
- Supported Resolutions: Up to 1920×1200@60Hz
- Control Method: Type-B USB, UART cascade (up to 20 units)
- Power Supply: AC 100–240V
- Operating Temperature: −20 °C to +60 °C
Usage Notes / Installation Tips
- Always power off before connecting/disconnecting signal cables
- Use shielded network cables for stable data transmission
- Ensure adequate ventilation for prolonged operation
Technical Specifications
| Specification | Value |
| Input Connectors | 1× SL-DVI, 1× Audio |
| Output Connectors | 2× Gigabit Ethernet |
| Control Ports | 1× Type-B USB; 2× UART (cascade up to 20 devices) |
| Sensor Port | 1× Light sensor |
| Supported Resolution | Up to 1920×1200@60 Hz |
| Calibration | Pixel-level brightness & chroma (with NovaLCT/NovaCLB) |
| Certifications | EAC, CE, FCC, IC, PFOS, CB |
Applications
- Fixed LED billboards
- Rental stage LED screens
- Indoor/outdoor advertising
- Conference / exhibition displays
